Culligan 60K Installation, Operation, And Service Instructions With Parts Lists

Culligan 60K Installation, Operation, And Service Instructions With Parts Lists

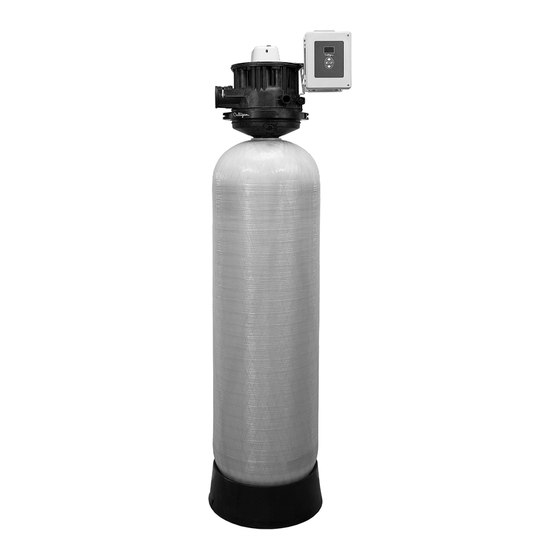

Top mount (ctm) water softeners models from 2020
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Top Mount (CTM)
Water Softeners
Models from 2020
CAT# 01029401 Rev F
DCO# 200293
10/21/20
© 2020 Culligan International Company

Advertisement

Table of Contents
loading

Related Manuals for Culligan 60K

Summary of Contents for Culligan 60K

  • Page 1 Top Mount (CTM) Water Softeners Models from 2020 CAT# 01029401 Rev F DCO# 200293 10/21/20 © 2020 Culligan International Company...

  • Page 2: Table Of Contents

    Electrical Controller Circuit Board Layout ......Accessories ..............Appendix B - Hi-Flo 3/3e to CTM Conversion....Start-Up ................Appendix C - Aqua-Sensor Guidelines ......Preventative Maintenance ..........Appendix D - Operation Log ......... Service................Index ................Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...

  • Page 3: Introduction

    Introduction Read this Manual First Before you operate the Culligan® Top Mount (CTM) Water Softeners, read this manual to become familiar with the device and its capabilities. The Culligan CTM Water Softeners are tested and certified by WQA against NSF/ANSI/CAN 61 and NSF/ANSI 372.
  • Page 4 Be sure to check and follow the applicable plumbing codes and ordinances when installing this equipment. Local codes may prohibit the discharge of sanitizing or descaling solutions to drain. Use protective clothing and proper face or eye protection equipment when handling chemicals or power tools. Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 5 Products manufactured and marketed by Culligan International Company (Culligan) and its affiliates are protected by patents issued or pending in the United States and other countries. Culligan reserves the right to change the specifications referred to in this literature at any time without prior notice. Culligan, Aqua-Sensor, Tripl-Hull, and SoftMinder are trademarks of Culligan International Company or its affiliates.

  • Page 6: Specifications

    ²The Suggested Progressive Flow Trip Point is simply a suggested flow rate at which point an additional tank will be brought on line if facility flow demand meets this rate. The Culligan GBE Controller will not remove a tank brought on line by attaining the Trip Point unless the flow is under the Trip Point amount for a 30-second period.
  • Page 7 ³Refill flow rates based on 60 psi inlet/influent pressure and eductor combinations specified per Table 5 on page 20 brine refill flow control inserts specified on page 21. The use of the standard or fast refill brine refill flow control insert options will change the brine refill times (see Table 8 on page 46).

  • Page 8: Installation

    Inlet Strainer Lubricant (Dow Corning 111/Molykote 111, Not Provided) Media Tank (Boxed Separately) Media (Separate Distributor Packaging, (Boxed Separately) Table 3 on page Brine Tank (Sold Separately) 1/2” Brine Tubing (Not Provided) Cat. No. 01029401 Culligan® Top Mount (CTM) Water Softeners...
  • Page 9 Locate Softener Select a space that is level and allows a sufficient amount of room above and behind the softener tank(s) for service access and plumbing supply and drain lines. Floor surface—Choose an area with a smooth, solid and level floor capable of supporting the operating weight of the softening system Drain facilities—A nearby drain must be capable of handling the water softener discharge flow rates during the backwash cycle of the regeneration process in addition to the maximum flow rates of other equipment...
  • Page 10 Clean tank threads, remove tape and check for any foreign materials NOTE! Minimize the amount of water added until final positioning of the tank with the control valve mounted Cullex Cullsan Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 11 Attach Tank Adapter (30” and 36” Tanks Only) Aqua-Sensor Ported Tanks Fasten the 12 bolts in the sequence indicated below. Once all of the bolts have been tightened, complete a second pass to ensure all of the bolts are secure. Figure 5.
  • Page 12 Making sure, that it is secured. CAUTION! NOTE! Tank may need to be rotated Do not overtighten. for preferred positioning. Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 13 Plumbing Adapter Figure 8. Insert pins into the valve body and adapter Lubricate o-rings Flow Meter Coupling 1.5” or 2” Threads Lubricate Insert Plumbing o-rings Adapter CAUTION! All soldering must be done on any connections requiring soldering prior to connecting the main control valve. The main control valve will be damaged if it is connected at the time of soldering.
  • Page 14 See “Specifications” on page 6 to aid the installation. If the layout drawings are not sufficient for your application, consult the Culligan dealer for specific installation guidelines. NOTE! The use of unions and inlet and outlet isolation valves is REQUIRED to facilitate the servicing of the system.
  • Page 15 Suggested Piping Installation CAUTION! Make sure that the plumbing connections to the inlet and outlet are all securely fastened using items, such as pipe hangers, clamp, etc, to prevent damage to the valve. The plumbing connections should also allow for 1/4” of movement. Figure 9.
  • Page 16 Figure 10. CTM Duplex Piping Outlet Inlet Top View Bypass Valve (Normally Closed) Soft Water Outlet Hard Water Inlet Manual Outlet Valve Manual Inlet Valve CTM Controller Brine Tank Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 17 Drain Line Proper discharge height and distance of the drain line will be dependent on the pressure supplied to the valve. Discharge to a nearby floor drain will cause no backpressure, if the drain line needs to run overhead, the maximum height is 10’...
  • Page 18 Lubricate o-ring Lubricate o-ring Push down on clip, while holding the adapter in place. CAUTION! Clip was designed to stay attached to the valve. Do NOT try to detach. Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 19 Pressure Relief Valve (PRV) Figure 13. Lubricate o-ring Insert fully into valve Push in the clip, while holding the PRV in place. CAUTION! Clip was designed to stay attached to the valve. Do NOT try to detach. 1” thread NOTE! The PRV is set to release at 137 psi.
  • Page 20 Lubricate o-rings. Insert fully to secure. Remove with pliers. Table 5 for correct eductor nozzle. NOTE! Brine draw is optimized when the opening in the eductor throat is facing down. Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 21 Table 8 on page 49 are based on 60 psi incoming pressure. When using 18X38 or 24X40 brine systems with 60K or 90K units, the 0.80 flow control should be removed from the brine valve.
  • Page 22 1-1.5 turns with a wrench beyond hand-tightening to prevent leakage. If connecting multiple softeners to the same brine tank, use the tee provided in a Duplex Kit 01040950 or Triplex Kit 01040951. Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 23 Tubing Pilot Valve For Pilot Valves operating on water, install tubing and strainer as detailed by the image. Water Operating Pressure must be 50 dynamic PSI - 125 PSI. For Pilot Valves operating on air, install plugs and connect as detailed by the arrows. Air Supply must be at least 10 PSI GREATER than the Highest Water Pressure.

  • Page 24: Electrical Controller Circuit Board Layout

    Figure 19. Controller Wall Mounted (Not Actual Size) 144” Meter’s Wire Harness (included in P/Ns 01030100 and 01030101) 144” 144” Wire Harness (included in P/Ns 01030100 and 01030101) 8.75” 144” 144” 4” Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 25 Valve Side Mount (Optional, P/N 01029171) Figure 20. Controller Valve Side Mounted Cat. No. 01029401 Electrical Controller Circuit Board Layout...
  • Page 26 Figure 23. 01021015 Cord Grip for 24V Power Cord Figure 24. Accessories 01028132 Cord Grip for Flow Meter, Position Sensor and Motor Cables Power Cord, Flow Meter Cable, Motor and Position Sensor Cable Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 27 Wiring the Smart Controller Power Cord and 24V Transformer CAUTION! DO NOT PLUG THE TRANSFORMER INTO THE WALL UNTIL ALL WIRING IS COMPLETED. The Smart Controller is powered by a 24 VAC and 2.1 Amps (50 VA) transformer (P/N 01014897, 60 Hz). If there are multiple controls in the system being installed, each controller will require its own transformer.
  • Page 28 Flow Meter Cable 2.5v 24v BRINE TANK Power Cable AUX INPUT AUX OUT1 AUX OUT2 AUX OUT3 AUX OUT4 (from transformer) Auxiliary Input Programmable External 24VAC Blocking Outputs (Optional) Valve Output (Optional) Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 29 Circuit Board - Motor and Position Sensor Figure 29. POSITION MOTOR FLOW RS485 METER 2.5v 24v BRINE TANK AUX OUT3 AUX OUT4 AUX INPUT AUX OUT1 AUX OUT2 Motor with Inverter Position Sensor Black White Green Brown Cat. No. 01029401 Electrical Controller Circuit Board Layout...
  • Page 30 Figure 30. Tubing to Ball Valve #1 (Ports 4, 5, 6) (Multi-Tank Softeners Only) For the tubing connections, match up the number ports. 1-1, 2-2, 3-3, etc... Feed Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 31 For the tubing connections, match up the number ports. 1-1, 2-2, 3-3, etc... Figure 31. Tubing to Ball Valve #2 (Ports 1, 2, 3) (Multi-Tank Softeners Only) Drain Feed NOTE! At least 50 psi dynamic pressure must be maintained for the pilot valve to hold the proper piston position.
  • Page 32 BEFORE inserting into the water tight connector. Softly press the round center to securely make the connection. Red wires from both ball valves go to the red wire from the harness. Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 33 IMPORTANT—Setting the Jumpers for GBE to GBE RS485 Communication Figure 34. For GBE controls to communicate via RS485 properly, the first and last units must have the jumpers set to pins 1 and 2 on terminal J22 (see Jumper location for Figure 34 at right).
  • Page 34 Failure to do so can result in, at a minimum, damaging the GBE circuit boards. Culligan STRONGLY RECOMMENDS that every GBE circuit board be provided with its own individual power transformer as shown in...
  • Page 35 Figure 39. Use of isolation relays to allow multiple GBE boards to control a shared solenoid valve. CORRECT FOUR INDIVIDUAL TRANSFORMERS NO NEED TO MATCH POLARITY BASE BOARD BASE BOARD BASE BOARD MODEM MODEM MODEM BOARD BOARD BOARD RF BOARD RF BOARD RF BOARD RJ11...

  • Page 36: Accessories

    GBE controller. 1/4” Tubing to 1.5” 1/4” Tubing to inlet inlet or outlet or outlet of ported of ported plumbing adapter plumbing adapter. L Bracket Connect to the gauge kit. Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 37 Softening Cartridge with Cartridge Adapter (P/N 01029504) Figure 43. Mounting to bracket NOTE! Softener Cartridge can be mounted to the side mount bracket (P/N 01029171), as shown, or to the wall. NOTE! Softening Cartridge’s capacity is 330 grains. Figure 44. Tubing Cat.
  • Page 38 Refer to GBE Programming for Commercial Softeners and Filters (except for HFxN) Manual (P/N 01027295) for programming information. This manual can be obtained from your local dealer, CPort (www.cport.culligan.com) under the Technical Service Tab or on the Service Tech App.
  • Page 39 Backwash Brine Draw Refer to GBE Programming for Commercial Softeners and Filters (except for HFxN) Manual (P/N 01027295) for programming information. This manual can be obtained from your local dealer, CPort (www.cport.culligan.com) under the Technical Service Tab or on the Service Tech App.
  • Page 40 To use the relay board, install it onto the back of the GBE board. Refer to GBE Programming for Commercial Softeners and Filters (except for HFxN) Manual (P/N 01027295) for programming information. This manual can be obtained from your local dealer, CPort (www.cport.culligan.com) under the Technical Service Tab or on the Service Tech App.
  • Page 41 Non-Hardwater Bypass Conversion NOTE! The Non-Hardwater Bypass is installed at the factory for the Multi-Tank valves and systems. Figure 50. Remove the tubing from the manifold Unscrew the manifold from the valve body (16 #3 screws). Use a flat head screwdriver to pry the manifold off the valve body.
  • Page 42 Make sure all the coupling o-rings are fully inserted into the manifold. Screw manifold back onto the valve body. Be careful not to pinch any of the o-rings Screw the cover onto the manifold. (16 screws) Reconnect the tubing (see page 23). Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...

  • Page 43: Start-Up

    GBE Programming for Commercial Softeners and Filters (except for HFxN) Manual (P/N 01027295). This manual can be obtained from your local dealer, Cport (www.cport. culligan.com) under the Technical Service Tab or the Service Tech App.
  • Page 44 19.1 1157 1508 2000 13.3 2300 15.3 1248 1261 2300 12.7 Key for 3/4” Brine Valve Chart and 1” Brine Valve Chart Dry Storage Wet Storage Do Not Use This Size Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 45 Table 7. CTM Brinemaker Data - 1” Brine Valve Chart Brine Tank Diameter Mineral Gals/In. Tank W/Out Salt Max Load 1100 2000 2300 LBS. LBS./CuFt Cubic Ft. Load Regens Load Regens Load Regens Load Regens Use Only Smaller Brine Tank Sizes 15.5 10.9 2000...
  • Page 46 11.5 13.4 10.9 125,000 12.2 14.3 11.6 13.0 15.2 120,000 12.4 10.4 175,000 13.8 13.1 11.1 14.5 13.8 11.7 15.3 90,000 14.5 12.3 15.3 150,000 12.9 13.5 14.1 14.7 15.4 210,000 Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 47 Resin Volume (ft3) 10.0 15.0 20.0 Refill Insert Size (GPM) 2.0 [180] 2.0 [180] 2.0 [180] [Molded Identifier] Refill (GPM), Standard [Fast 1.78 2.00 2.00 Refill] Resin Tank Diameter (in.) 24.0 30.0 36.0 Refill Minutes lbs/ft3 Dos. Cap. lbs/ft3 Dos. Cap.
  • Page 48 Wet Storage - When the salt level has to remain lower than the water level after refill to allow for the volume of water required for the appropriate salt dosage. (See Figure 54). Figure 54. Wet storage. Figure 53. Dry storage. BRINE LEVEL BRINE LEVEL Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 49 Use only mild soap and warm water to clean the exterior of the unit. Never use harsh abrasive cleaners or compounds which contain acid or bleach. Culligan recommends Simple Green or an equivalent cleaner. Protect the conditioner and drain line from freezing temperatures.

  • Page 50: Preventative Maintenance

    Preventative Maintenance Suggested Preventive Maintenance Inspection Schedule The Culligan CTM commercial water softener has been designed to provide a good, consistent service life. Routinely inspecting the system may help avoid potentially costly breakdowns related to circumstances outside of the control of the dealer and/or user.

  • Page 51: Service

    Refer to GBE Programming for Commercial Softeners and Filters (except for HFxN) Manual (P/N 01027295) for programming information. This manual can be obtained from your local dealer, CPort (www.cport.culligan.com) under the Technical Service Tab or on the Service Tech App.
  • Page 52 We suggest the use of “a mild cleaning solvent”. We suggest the following brands or their equivalents:  Cleaning Solvent: Simple Green --- water soluble for removing corrosion and dirt. Dow Corning #111, silicone grease, must be used in order to maintain the unit’s NSF certifications.  Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 53 CTM Valve O-Ring Kit Description The Valve O-Ring Kit 01029578 contains all the sealing o-rings needed for rebuilding a valve. The different o-ring sizes and quantities are divided into separate bags within the kit to help with proper placement in the valve. Use Figure 55 Figure 56 to identify the o-rings by part number and placement.
  • Page 54 Remove 16 #3 screws from the top manifold, including the two under the enclosure, then remove the top manifold by prying at the pry points. (see Figure Figure 57. Top Manifold Pry Points Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 55 Upper Manifold Disassembly Figure 58. Remove manifold couplers using the pry points. Figure 59. Remove non-hardwater bypass plug (if applicable) Remove refill spring Cat. No. 01029401 Service...
  • Page 56 Push all the pistons into the fully seated position. Figure 60. Fully Seated Position Bottom Figure 61. Lay the valve body on its side with the drain port facing up to remove the pistons. Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 57 Figure 62. Top View Using pliers grab the rib on the top of the piston, while removing the screws from the bottom of the piston and removing the flow valve assemblies Figure 63. Large Flow Valve Assemblies (5) #3 screws Lower Flow Valve T-Seal Upper Flow Valve...
  • Page 58 Do NOT lubricate T-Seals! Load all pistons (8) in from the top and push to lower into the fully seated position. Flip the valve body onto its top (flow valves up) Figure 65. Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 59 T-Seal Replacement and Assembly Figure 66. For All 5 Large Pistons Place flow valve assembly onto the piston and rotate until it locks into the keyway alignment. CAUTION! Do NOT lubricate T-Seals! Instead, lightly lubricate the t-seal valve bore. Figure 67. For All 3 Small Pistons Replace #3 screws NOTE!
  • Page 60 Screws will need to compress the top manifold to valve body with resistance from refill spring. CAUTION! Do not overtighten the screws. It will not prevent a leak, but it could likely loosen the embedded insert. Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 61 Reassemble Valve Figure 71. Pry Point Lubricate T-Seal Flow Port CAUTION! Do not rock the valve core onto the tank adapter, just place it straight down. Rocking may cause damage to the o-rings. NOTE! Remove excess water from Figure 72. the tank adapter to prevent o-ring(s) from floating during attachment with...
  • Page 62 43). Check for leaks around the Top Manifold, Clamp and to the drain. 10. Reassemble the GBE Controller and wiring after checking the valve body for leaks. Pilot Valve Rebuild (Kit P/N 01029583) Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 63 Pilot Valve Rebuild (Kit P/N 01029583) Pilot Valve Disassembly Bypass and depressurize unit (page Disconnect electrical connections and tubing Figure 74. Remove #2 screws from enclosure Remove enclosure Remove o-ring Remove top clamp, while holding the pilot valve in place Remove four #2 screws from top Pilot Valve clamp Remove pilot valve...
  • Page 64 Motor Replacement (P/N 01029558, if only replacing the motor assembly) Figure 75. Replace with new motor Motor Bracket Remove #2 Screw and Motor Gear Remove #2 Screws Figure 76. Ensure gears are engaged between motor and spool body. Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 65 Pilot Spool Replacement Figure 77. Replace pilot valve spool (P/N 01029555). Check o-rings to make sure they stay in place (or replace all 13 o-rings) NOTE! Make sure to that the position indicator dial is centered between the position sensor. Figure 78.
  • Page 66 Cycle valve, while checking the enclosure the pilot valve for leaks CAUTION! Ensure the o-ring is in place Replace clamp and when replacing the enclosure. tighten the 4 #2 screws Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...

  • Page 67: Troubleshooting Guide

    Troubleshooting Guide Drain Line Flow Control—Service Located on the drain connection of the valve, the purpose of the drain line flow controller is to regulate the up flow backwash required to expand and agitate the resin in the softener. The softener will allow maximum expansion of the resin, while preventing any loss to the drain.
  • Page 68 T-Seal may be worn. air (above 50 psi) and cycle through observing each piston position for • O-rings on Piston may be worn. proper positioning. • Pilot Assembly may need replacing Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 69 PROBLEM OR SYMPTOM CHECK PROCEDURE CAUSE Piston Does Not Open Turn off the water pressure, remove T-Seal may be fouled or swollen. clamp, remove external plumbing Pilot Assembly may need replacement. connections then remove valve body from tank adapter. Visually inspect T-Seal.
  • Page 70 Incorrectly sized eductor. Table 5 on page Check feed water pressure is always Low feed water pressure to the pilot valve above 50 dynamic psi. will prevent proper setting of the pistons. Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 71 PROBLEM OR SYMPTOM CHECK PROCEDURE CAUSE Continuous refill to the brine Backpressure on piston #7. (See Confirm correct brine refill control is tank. Figure 85 on page being used, see on page 21. For 18x38 and 24x40 brine systems, confirm #7 piston stuck open.
  • Page 72 Table Using the GBE, manually cycle the pilot to position #5. Confirm the correct piston function using Table Using the GBE, manually cycle the pilot to position #1. Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 73 PROBLEM OR SYMPTOM CHECK PROCEDURE CAUSE Overfilled Brine Tank. Remove the valve manifold and check Missing or damaged refill piston spring. refill piston spring. Change to heavier spring if pressure is above 50 psi. Incorrectly sized drain line flow control. Replace with the correct drain line flow control.
  • Page 74 CTM Refill Piston (#7) Vent Port Location Figure 80. CTM Refill Piston (#7) Vent Port CTM Motor Cover Drain Hole Location Figure 81. Motor Cover Drain Hole Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 75 Refer to the GBE Programming for Commercial Softeners and Filters, except for HFxN Manual (P/N 01027295) . This manual can be obtained from your local dealer, CPort (www.cport.culligan.com) under the Technical Service Tab or on the Service Tech App.
  • Page 76 Port 6 Piston #1 (Pressure) Port 5 Port 5 Piston #1 Port 4 (Drain) Port 3 (Drain) Port 2 Port 2 Port 1 (Pressure) Open Inlet flow valve Closed Inlet flow valve Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 77 Manual Valve Override Figure 83. Power MUST be in the OFF position when starting manual override. CAUTION! The manual function can only be used Gently pull up the knob approximately 1/8” in the case of electrical supply failure. and turn it left and right to control the valve (“O”...
  • Page 78 Down Down Drain - Backwash Down Down Down Down Drain - Fast Rinse Down Down Down Hard Water Bypass Down Down Refill Down Down Down Brine Draw Down Down Down Down Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 79 Service Treated Hard Brine Waste Diluted Brine Table 14. Piston Cycle Positions, Service Position 1 Position 2 Position 3 Position 4 Position 5 Piston Piston Brine Draw/ Number Service Backwash Fast Rinse Fill Slow Rinse Valve Inlet Down Down Valve Outlet Down Down Down...
  • Page 80 Down Down Drain - Backwash Down Down Down Down Drain - Fast Rinse Down Down Down Hard Water Bypass Down Down Refill Down Down Down Brine Draw Down Down Down Down Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 81 Brine Draw/Slow Rinse Treated Hard Brine Waste Diluted Brine Table 16. Piston Cycle Positions, Brine Draw/Slow Rinse Position 1 Position 2 Position 3 Position 4 Position 5 Piston Piston Brine Draw/ Number Service Backwash Fast Rinse Fill Slow Rinse Valve Inlet Down Down Valve Outlet...
  • Page 82 Down Down Drain - Backwash Down Down Down Down Drain - Fast Rinse Down Down Down Hard Water Bypass Down Down Refill Down Down Down Brine Draw Down Down Down Down Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 83 Refill Treated Hard Brine Waste Diluted Brine Table 18. Piston Cycle Positions, Fill Position 1 Position 2 Position 3 Position 4 Position 5 Piston Piston Brine Draw/ Number Service Backwash Fast Rinse Fill Slow Rinse Valve Inlet Down Down Valve Outlet Down Down Down...

  • Page 84: Parts List

    01030827¹ 01029377 00160710 (8) ¹The flanged tank adapter kit (P/N 01030828) required to mount the valve to these tanks is sold separately. ²Each Cullex (P/N 00156001) bag is 1 cubic foot. Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 85 Sizing Kits Figure 86. Softener Sizing Kit Drain Adapter Eductor Nozzle Eductor Throat Brine Elbow Assembly Inlet Strainer Flow Control Body with inserts Table 19. Softener Sizing Kits Kit Component 120K 150K 210K 300K 450K 600K 01040940 01040941 01037836 01037838 01037840 01040942 01040943...
  • Page 86 Control Valve Figure 87. Valve Body and Adapter Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 87 Figure 88. Valve Top Manifold NOTE: Items cannot be purchased separately Cat. No. 01029401 Parts List...
  • Page 88 — Kit, Position Indicator Wheel P1028012 Clip, Drain Line Flow Adapter, 10 PK — Gear, Pilot Drive Spool, CTM Kit, Drain and Brine Line Flow Control, 60K 01029469 Units (Contains Items 2 and 6) 01029558 Kit, Motor Assy, CTM Kit, Drain and Brine Line Flow Control,...
  • Page 89 Valve Service Rebuild Kits More than one option exists for rebuilding the CTM valve. Select the kit that best suits the customer’s rebuilding plans and costs. CTM Valve O-Ring Kit The CTM Valve O-ring Kit contains all the sealing o-rings needed in the valve. Use with the Piston Rebuild Kit, Piston Replacement Kit or the Valve Core Replacement Kit.
  • Page 90 Pilot Valve Rebuild Kits Part No. Description 01029583 Pilot Valve Rebuild Kit — Kit, Position Sensor Kit, Pilot Body and O-Rings — — Kit, Position Indicator Wheel — Gear, Pilot Drive Spool, CTM Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 91 Culligan GBE Controller for CTM Item Part No. Description 01028037 CTM GBE Controller - Complete with front mounting bracket 01030100 Wall Mount Kit for Single Unit GBEs 01030101 Wall Mount Kit for Multi-Unit GBEs 01024325, A GBE Enclosure 01020745, A...
  • Page 92 Brine Valve Repl 18" - 24” (1/2") NOTE! 18x38 and 24x40 brine systems may be used with 60k and 90k units; the 0.80 flow control must be removed from the brine valve for proper operation. 120k and larger should use 3/4”...
  • Page 93 24”, 30”, 39” and 42” Brine Systems Figure 90. 24” and 30” brine systems. Figure 91. 39” and 42” brine systems. Item No. Part No. Description Qty Req. 01024800 24" x 50" Brine System Complete 01024801 30" x 50" Brine System Complete 01024802 39"...
  • Page 94 Bell Float with Locking Nipple 3/8” Compression Nut Float Collet Float Rod Guide Coupling, Socket x FIPT Schedule 80 3/4” 3/4” NPT PVC Elbow * Please note orientation of seals when disassembling and reassembling. Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...
  • Page 95 Aqua-Sensor Plug and Probe Figure 93. Aqua-Sensor Probe. Item Part No. Description 01025279 Aqua-Sensor Probe — 01029510 Aqua Sensor Extension Cable — P1017434 O-Ring, Plug and Sensor, 10ea/Kit 01015122 Aqua-Sensor Plug Cat. No. 01029401 Parts List...

  • Page 96: Limited Warranty

    If a part described above is found defective within the specified period, you should notify your independently operated Culligan dealer and arrange a time during normal business hours for the dealer to inspect the water conditioner on your premises. Any part found defective within the terms of this warranty will be repaired or replaced by the dealer. You pay only freight from our factory and local dealer charges.

  • Page 97: Appendix A - Basic Principles

    The regeneration process for your commercial water softener is controlled automatically either on a predetermined time, volume, or external signal basis through the use of the Culligan Smart Controller with optional flow sensor. See the Installation chapter for further information. The regeneration process can also be initiated manually by the operator as required.

  • Page 98: Appendix B - Hi-Flo 3/3E To Ctm Conversion

    Connect the PRV to a suitable floor drain independent of the drain line for emergency relief. Install accessories, if applicable (page 36). Attach tubing (page 23) and electrical connections (page 39 page 40 page 30 (for multi-tank systems). Initiate Startup (page 43). Culligan® Top Mount (CTM) Water Softeners Cat. No. 01029401...

  • Page 99: Appendix C - Aqua-Sensor Guidelines

    Appendix C - Aqua-Sensor Guidelines Aqua-Sensor Application Guidelines Table 20. Aqua-Sensor Application Guidelines Parameter Value Hardness (gpg as CaCO3) 7 - 99 (See Notes 1 & 2) Soluble iron (ppm as Fe) < 2 (See Note 3) Manganese (ppm as Mn) <...

  • Page 100: Appendix D - Operation Log

    Most of this information can be found by going to Diagnostics > Advanced Stats on the GBE Controller. Refer to GBE Programming for Commercial Softeners and Filters (except for HFxN) Manual (P/N 01027295) for more information. This manual can be obtained from your local dealer, CPort (www.cport.culligan.com) under the Technical Service Tab or on the Service Tech App.
