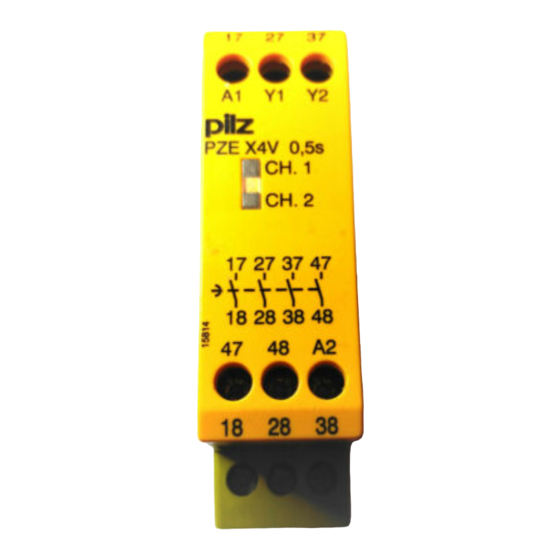

Pilz PZE X4V Operating Manual
  1. Manuals
  2. Brands
  3. Pilz Manuals
  4. Relays
  5. PZE X4V
  6. Operating manual

Pilz PZE X4V Operating Manual

Safety relays
Hide thumbs Also See for PZE X4V:
Table of Contents

Advertisement

Quick Links

Download this manual
PZE X4V
}
Safety relays
Operating Manual-1003200-EN-12

Advertisement

Table of Contents
loading

Related Manuals for Pilz PZE X4V

Summary of Contents for Pilz PZE X4V

  • Page 1 PZE X4V Safety relays Operating Manual-1003200-EN-12...
  • Page 2 Preface This document is the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.

  • Page 3: Table Of Contents

    Operation ..........................Status indicators ........................Faults – Interference ......................Dimensions in mm ......................... Technical details ........................Safety characteristic data ......................Supplementary data ......................Service life graph ........................Order reference ........................EC declaration of conformity ....................Operating Manual PZE X4V 1003200-EN-12...

  • Page 4: Introduction

    This describes a situation in which the product or devices could be dam- aged and also provides information on preventive measures that can be taken. It also highlights areas within the text that are of particular import- ance. Operating Manual PZE X4V 1003200-EN-12...

  • Page 5: Safety

    EN ISO 13849 and EN 62061. However, this does not guarantee the functional safety of the overall plant/machine. To achieve the relevant safety level of the overall plant/ machine’s required safety functions, each safety function needs to be considered separ- ately. Operating Manual PZE X4V 1003200-EN-12...

  • Page 6: Use Of Qualified Personnel

    Note for overvoltage category III: If voltages higher than low voltage (>50 VAC or >120 VDC) are present on the unit, connected control elements and sensors must have a rated insulation voltage of at least 250 V. Operating Manual PZE X4V 1003200-EN-12...

  • Page 7: Unit Features

    1 1 1 1 1 1 1 2 2 2 2 2 2 2 17 27 18 28 *Insulation between the non-marked area and the relay contacts: Basic insulation (over- voltage category III), Protective separation (overvoltage category II) Operating Manual PZE X4V 1003200-EN-12...

  • Page 8: Function Description

    When installed vertically: Secure the unit by using a fixing element (e.g. retaining bracket or end angle). If more than 2 units are installed next to each other in the control cabinet, leave a dis- tance of at least 6 mm between the units. Operating Manual PZE X4V 1003200-EN-12...

  • Page 9: Wiring

    Do not switch low currents using contacts that have been used previously with high cur- rents. The power supply must comply with the regulations for extra low voltages with protective electrical separation (SELV, PELV) in accordance with VDE 0100, Part 410. Operating Manual PZE X4V 1003200-EN-12...

  • Page 10: Preparing For Operation

    SIL CL 2/PL d at least 1x per year NOTICE The safety function should be checked after initial commissioning and each time the plant/machine is changed. The safety functions may only be checked by qualified personnel. Operating Manual PZE X4V | 10 1003200-EN-12...

  • Page 11: Status Indicators

    Open circuit, short circuit or earth fault ( e.g. in the input circuit) In the case of an error, the delay-on de-energisation safety contacts may open before the delay time has elapsed. Dimensions in mm 75 (2.95") 22,5 87 (3.42") (0,89") Operating Manual PZE X4V | 11 1003200-EN-12...

  • Page 12: Technical Details

    774582 Number of output con- tacts Safety contacts (N/O), delayed Max. short circuit current 1 kA 1 kA 1 kA Utilisation category In accordance with the standard EN 60947-4-1 EN 60947-4-1 EN 60947-4-1 Operating Manual PZE X4V | 12 1003200-EN-12...
  • Page 13 66 A²s Blow-out fuse, quick Blow-out fuse, slow Blow-out fuse, gG Circuit breaker 24 V AC/DC, characteristic Contact material AgCuNi + 0,2 µm Au AgCuNi + 0,2 µm Au AgCuNi + 0,2 µm Au Operating Manual PZE X4V | 13 1003200-EN-12...
  • Page 14 EN 60947-1 Overvoltage category III / II III / II III / II Pollution degree Rated insulation voltage 250 V 250 V 250 V Rated impulse withstand voltage 4 kV 4 kV 4 kV Operating Manual PZE X4V | 14 1003200-EN-12...
  • Page 15 87 mm Width 22,5 mm 22,5 mm 22,5 mm Depth 121 mm 121 mm 121 mm Weight 185 g 190 g 205 g Where standards are undated, the 2020-07 latest editions shall apply. Operating Manual PZE X4V | 15 1003200-EN-12...
  • Page 16 1500 VA DC1 at 24 V 24 V Min. current 0,01 A 0,01 A Max. current Max. power 150 W 150 W Utilisation category In accordance with the standard EN 60947-5-1 EN 60947-5-1 Operating Manual PZE X4V | 16 1003200-EN-12...
  • Page 17 With automatic start after power on max. 200 ms 200 ms Delay time tv 0,75 s Time accuracy -50 %/+50 % -50 %/+50 % Supply interruption before de-ener- gisation 1.500 ms 375 ms Operating Manual PZE X4V | 17 1003200-EN-12...
  • Page 18 TWIN crimp con- nectors 0,2 - 2,5 mm², 24 - 14 AWG 0,2 - 2,5 mm², 24 - 14 AWG Torque setting with screw terminals 0,6 Nm 0,6 Nm Operating Manual PZE X4V | 18 1003200-EN-12...

  • Page 19: Safety Characteristic Data

    A safety function's SIL/PL values are not identical to the SIL/PL values of the units that are used and may be different. We recommend that you use the PAScal software tool to calculate the safety function's SIL/PL values. Operating Manual PZE X4V | 19 1003200-EN-12...

  • Page 20: Supplementary Data

    DC-1: 24V AC-1: 230V AC-1: 230V AC-15: 230V AC-15: 230V DC-13: 24V DC-13: 24V 3 4 5 6 8 10 Switching current (A) Fig.: Service life graphs at 24 VDC and 230 VAC Operating Manual PZE X4V | 20 1003200-EN-12...

  • Page 21: Order Reference

    24 V DC; t = 1 s Screw terminals 774581 PZE X4V 24 V DC; t = 2 s Screw terminals 774582 PZE X4V 24 V DC; t = 3 s Screw terminals 774583 Operating Manual PZE X4V | 21 1003200-EN-12...

  • Page 22: Ec Declaration Of Conformity

    European Parliament and of the Council. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/support/downloads. Representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ost- fildern, Germany Operating Manual PZE X4V...
  • Page 23 We are represented internationally. Please refer to our homepage www.pilz.com for further details or contact our headquarters. Headquarters: Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: info@pilz.com, Internet: www.pilz.com...
