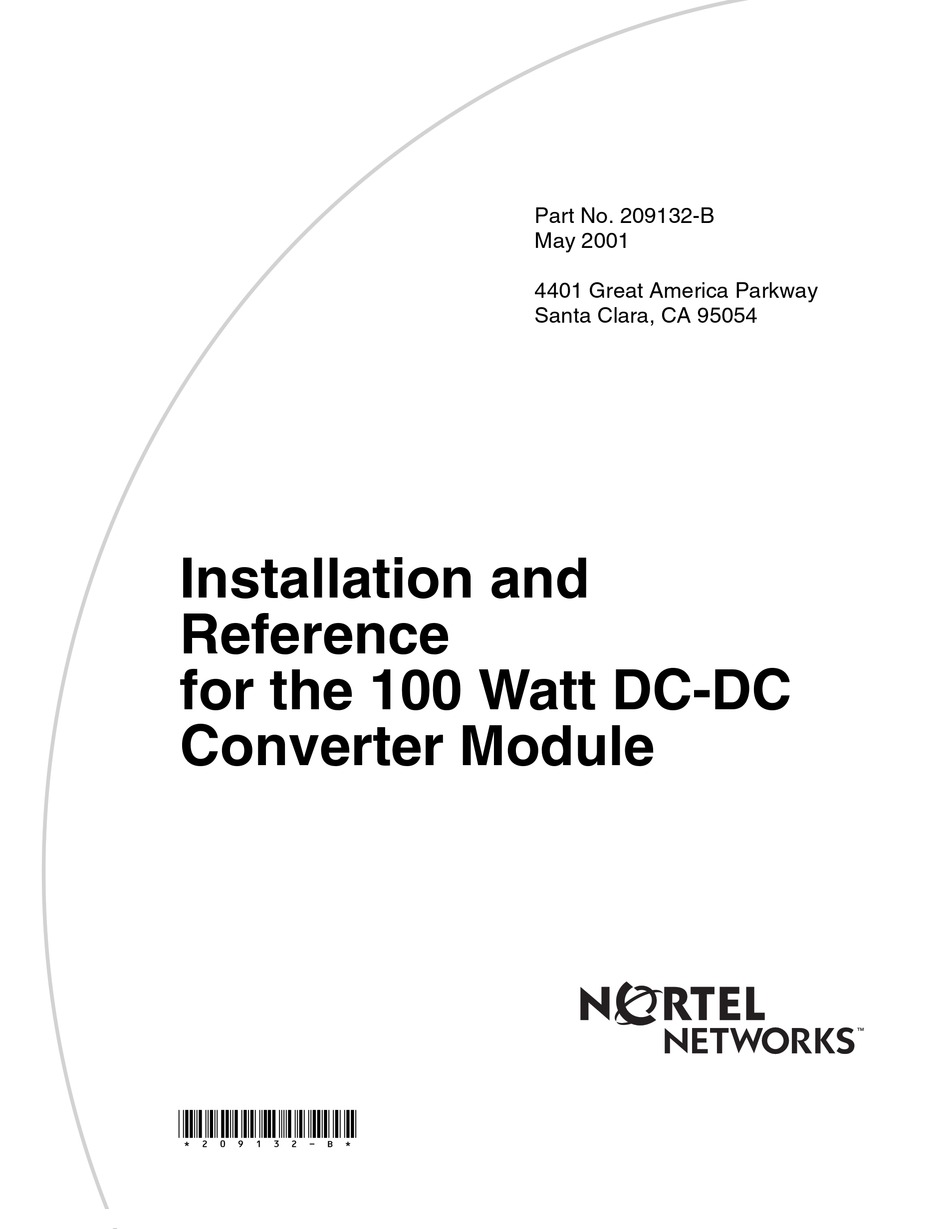

- Page 1 Installation and Reference for the 100 Watt DC-DC Converter Module *209132-B* Part No. 209132-B May 2001 4401 Great America Parkway Santa Clara, CA 95054...
- Page 2 Nortel Networks NA Inc. reserves the right to make changes to the products described in this document without notice. Nortel Networks NA Inc. does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.
- Page 3 European Requirements Only EN 55 022 Statement This is to certify that the Nortel Networks 100 Watt DC-DC Converter is shielded against the generation of radio interference in accordance with the application of Council Directive 89/336/EEC, Article 4a. Conformity is declared by the application of EN 55 022 Class A (CISPR 22).
- Page 4 Taiwan Requirements Bureau of Standards, Metrology and Inspection (BSMI) Statement Canada Requirements Only Canadian Department of Communications Radio Interference Regulations This digital apparatus (100 Watt DC-DC Converter Module) does not exceed the Class A limits for radio-noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.
- Page 5 This warranty does not apply if, in the judgment of Nortel Networks, the Product fails due to damage from shipment, handling, storage, accident, abuse or misuse, or if it has been...
- Page 6 Repair by anyone other than Nortel Networks or an approved agent will void this warranty. The maximum liability of Nortel Networks under this warranty is limited to the purchase price of the product covered by the warranty.
- Page 7 Business Policy Switch ™ other products available from Nortel Networks. Contact your Nortel Networks representative for information about what Nortel Networks products use the 100 Watt DC-DC Converter Module. The 100 Watt DC-DC Converter Module operates Note: in conjunction with the Nortel Networks BayStack Power Supply Unit and 200 W AC/DC Power Supply Module.
-
Page 8: About This Guide
The DC-DC converter module, in conjunction with the BayStack 10 Power Supply Unit (referred to as BayStack 10 PSU) and the 200 W AC/DC Power Supply Module (referred to as 200 watt RPS), receives DC input of -48 V and supplies DC power in the following three voltages: •... - Page 9 Installing the DC-DC converter module You must have a previously installed BayStack 10 PSU and 200 watt RPS to use the DC-DC converter module. Nortel Networks recommends rack-mounting both the Business Policy Switch and the BayStack 10 PSU containing the 200 watt RPS.
- Page 10 Prior to installing the DC-DC converter module, Note: make sure you are completely familiar with the requirements of the BayStack 10 PSU. Review Installation and Reference for the BayStack 10 Power Supply Unit thoroughly before beginning to install the DC-DC converter module. Unplug the power cord from the back of the Business Policy Switch.
- Page 11 9746FB Set aside the blank plate and the screws. If you remove the DC-DC converter module for any reason, be sure to re-insert the blank plate. If you have a plate with a domed flange, use a Phillips screwdriver to loosen the screws. Then insert the screwdriver in the domed flange at the bottom and press gently away from you to pry the plate loose.
- Page 12 Set aside the blank plate and the screws. If you remove the DC-DC converter module for any reason, be sure to re- insert the blank plate. Holding the DC-DC converter module by the sides, slide the DC-DC converter module into the Business Policy Switch using the guide rails.
- Page 13 Press firmly to make sure that the DC-DC converter module is fully seated. Fasten the DC-DC converter module screws to the switch using a screwdriver. Refer to “Connecting the cable” on page 15 power supply cord” on page 17 Replacing the DC-DC converter module Unplug the power cord from the back of the Business Policy Switch.
- Page 14 Unfasten the captive screws holding the DC-DC converter module to the Business Policy Switch, using a screwdriver. Gently pull the DC-DC converter module from the switch by pulling on the two captive screws. If you are installing a new DC-DC converter module, follow the instructions in on page If you are not installing a DC-DC converter module, retrieve...
-
Page 15: Connecting The Cable
If you have a plate with a domed flange, fit the bottom into the opening and firmly push in the top. Insert the screws and tighten using a Phillips screwdriver. Refer to “Connecting the cable,” next, and power supply cord” on page 17 Connecting the cable The -48 V DC-DC converter module cable used Note:... - Page 16 Use the 5-foot connector cable that shipped with the 200 watt RPS. Do not attempt to use any other cables to Caution: connect the modules. Using the incorrect cable may damage the modules and invalidate the warranty for this product. Ensure that one end of the cable is connected to the 200 watt RPS in the BayStack 10 PSU.
-
Page 17: Connecting The Power Supply Cord
Connecting the power supply cord Plug the power cord into the back of the Business Policy Switch. Connect the other end of the power cord to a power outlet. The switch and the DC-DC converter module should now be functioning normally. Check that the RPSU LED on the front of the Business Policy Switch is lit green. - Page 18 Vorsicht: Die Stromzufuhr zu diesem Gerät kann nur durch Ziehen des Netzstromkabels unterbrochen werden. Die Netzsteckdose, an die das Netzstromkabel angeschlossen ist, muß sich stets an einem Ort befinden, der bei einem Notfall schnell und einfach zugänglich ist. Avertissement: Le débranchement du cordon d'alimentation constitue le seul moyen de mettre cet appareil hors tension.
-
Page 19: Technical Specifications
For information on configuring the Business Policy Switch, refer to Using the Business Policy Switch 2000. Technical specifications Physical: Dimensions: Weight: Environmental requirements: Operating temperature: Storage temperature: Operating relative humidity: Storage relative humidity: Operating altitude: Storage altitude: MTBF: Electrical requirements:... -
Page 20: Related Publications
• Installation and Reference for the BayStack 10 Power Supply Unit (part number 208296-C) • All material referring to the Business Policy Switch 2000 • All material referring to the switch you are using with the DC-DC converter module UL 1950 CSA 22.2 No. - Page 21 Go to the Adobe Systems Web address at www.adobe.com download a free copy of Acrobat Reader. You can purchase selected documentation sets, CDs, and technical publications though the Internet at the www1.fatbrain.com/documentation/nortel/ Web address.
-
Page 22: How To Get Help
How to get help If you purchased a service contract for your Nortel Networks product from a distributor or authorized reseller, contact the technical support staff for that distributor or reseller for assistance. If you purchased a Nortel Networks service program, contact one of the following Nortel Networks Technical Solutions Centers.
