For a complete user guide refer to
Handset
Speaker
Copy
Services
Quit
Volume control
Mute
Handsfree

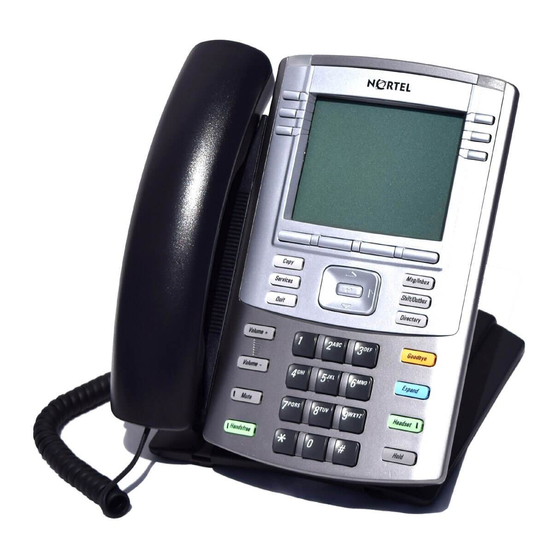

IP Phone 1140E Fixed Keys
The IP Phone 1140E is available with either icon fixed keys or English text fixed keys. Both forms are presented below.
Short Cut/Navigation Function Keys
Telephony Feature Keys
SIP Firmware for IP Phone 1140E Quick Reference
SIP Firmware Release 1.1 for IP Phone 1140E User Guide (NN43113-101).
Feature Status Indicator
Enter
Copy information from the Address Book, Inbox, Outbox, and IM log and to Feature keys and
Address Book entries.
Access your Search, Do Not Disturb, Call Forward, Presence, Retrieve Parked Call, and Ser-
vices features.
Quit or exit from a menu.
Access your inbox to view all calls or missed calls and to return a call.
Access your outbox to view all calls made and to place a call to a previously called contact.
Access your address book to view, add or edit entries including your designated friends You can
also send Instant Messages (IMs) or initiate a call.
Use the Enter key to select highlighted menu items and to set preferences. The Enter key
duplicates the function of the Set and Select Context-sensitive soft keys.
Use to increase the volume of the handset, headphones, phone speaker (handsfree) and alert-
ing volume (phone ringing).
Use to decrease the volume of the handset, headphones, phone speaker (handsfree) and alert-
ing volume (phone ringing).
User-defined feature keys
Visual Alerter/Message
Waiting Indicator
Dialpad
page 1
High resolution
display screen
Context-sensitive
soft keys
Inbox
Outbox
Directory
Goodbye
Expand
Headset
Hold
Navigation
Cluster
