Nortel NN43113-103 Get Started

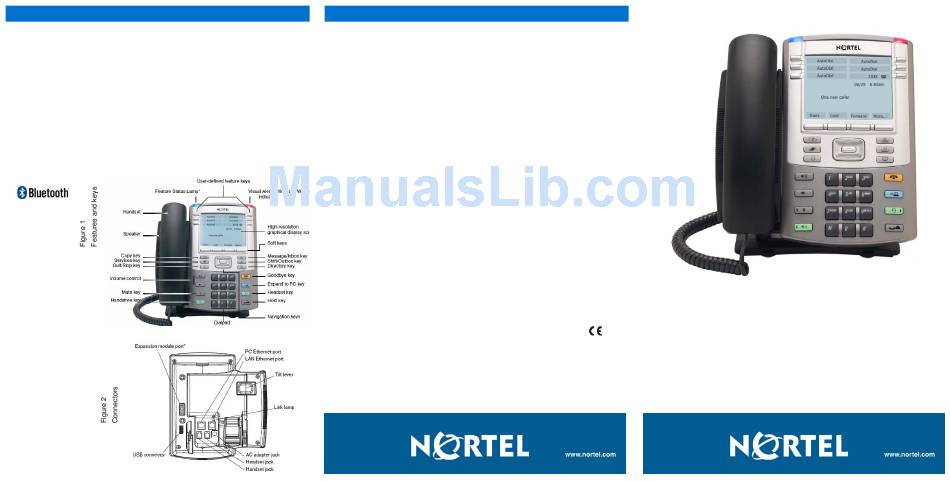

IP Phone 1140E features
• Six user-defined feature keys with labels and indicators
• Four soft keys
• Graphical, high-resolution LCD display, backlit, with adjustable contrast
• High-quality speaker phone
• Volume control keys for adjusting ringer, speaker, handset, and headset volume
• Six specialized feature keys:
— Quit, Directory, Message/Inbox, Shift/Outbox, Services, Copy
• Six call-processing fixed keys:
— Mute, Handsfree, Goodbye, Expand to PC, Headset, Hold
• Gigabit Ethernet ports
• Built-in Gigabit Ethernet switch for shared PC access
• Headset jack with an On/Off key
• USB port to support a keyboard or mouse
• Automatic network configuration
• Hearing-aid compatibility
®
• Wireless headset support using a Bluetooth 1.2 technology compliant Audio Gateway
(Headset Profile, Bluetooth Power Class 2)
*Note: If supported by your server, the Feature Status Lamp provides a user-defined alert. Contact your
system administrator to find out if this feature is available for you.
Regulatory Information
Nortel IP Phone 1140E Emissions Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures: reorient or relocate the receiving antenna,
increase the separation between the equipment and receiver, connect the equipment into an outlet on a
circuit different from that to which the receiver is connected, or consult the dealer or an experienced radio
or TV technician for help.
The user should not make changes or modifications not expressly approved by Nortel Networks. Any such
changes could void the user's authority to operate the equipment.
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B
est conforme à la norme NMB-003 du Canada.
This device complies with the essential requirements and other relevant provisions of R&TTE directive
1999/5/EC. A copy of the declaration may be obtained from Nortel Networks GmBH address:
Ingolstaedter Strasse 14-18, 80807 Munich Germany.
Use only with Nortel-approved Limited Power Source (output rated 48 V DC, 520mA.) OR using Power
over LAN options, including standard power over Ethernet.
Warning: The earpiece/mouthpiece region on the handset can attract and retain small objects. Privacy of
communications may not be ensured when using this telephone. To prevent radio interference to the
licensed service, this device must be operated indoors only and should be kept away from windows to
provide maximum shielding.
IMPORTANT NOTE:
FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
Date: February 2010
Document Release: Standard 01.04
Document Number: NN43113-103
Copyright © 2009-2010 Nortel Networks
All rights reserved.
Nortel, the Nortel logo, and the Globemark are trademarks of Nortel Networks.
www.nortel.com/documentfeedback.
To provide feedback or report a problem in this document, go to
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Nortel Networks
is under license.
IP Phone 1140E

Getting Started
