- Page 1 Air conditioner Installation manual PC4SUFDAN • Thank you for purchasing this Samsung air conditioner. • Before operating this unit, please read this manual carefully and retain it for future reference. DB68-07695A-00...
-
Page 2: Installing The Panel
Item Bolt (M5xL35 MACHINE) Installation manual 2 Pull both hooks in the direction of carved arrows and Shape take the grille to open. • Hooks are located below the Samsung logo on the grille. NOTE • If the supplied bolt is lost, you may purchase M5 machine bolt (with length of the thread more than 20 mm long) and a circular washer from any retail hardware store to replace the lost bolt. - Page 3 3 Hang the panel on the 2 hooks on the both sides of the 5 Fix the bolt to the panel. indoor unit firmly so that the panel not to fall out. • Fix 4 bolts to the panel temporarily. • Fix them tightly not to make a gap between the panel Hook and the ceiling.

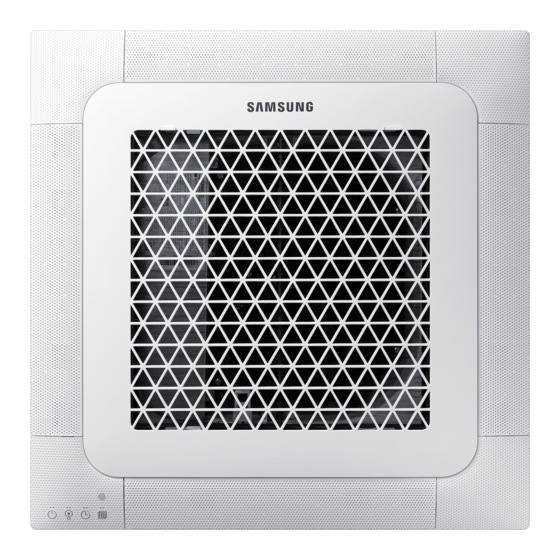

- Page 4 4 Way Cassette Wind-Free Panel 6 Connect 4 cables between the indoor unit and the 8 Attach and close the front grille. panel. • Make sure the hooks on the rear side of grille fits • Make sure you check the number of pins on the three properly into the grooves on panel ( ) and then push white terminal before connecting the cables. the panel to close ( White (13 PIN) White (10 PIN)
- Page 5 Memo English...
