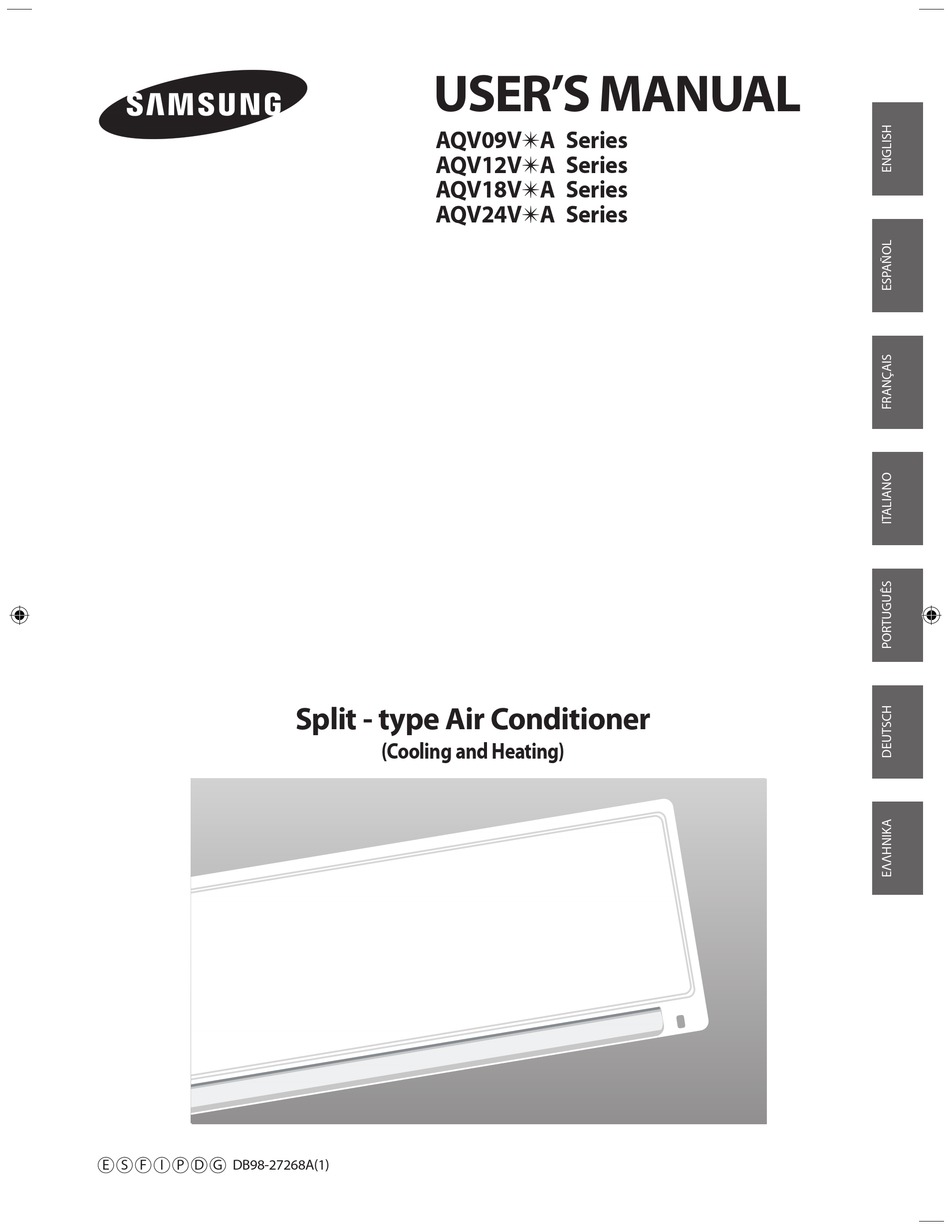

- Page 1 USER’S MANUAL AQV09VA Series AQV12VA Series AQV18VA Series AQV24VA Series Split - type Air Conditioner (Cooling and Heating) F I P D G DB98-27268A(1)
-
Page 2: Table Of Contents
(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household waste at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of waste and recycle it responsibly to promote the sustainable reuse of material resources. -
Page 3: Safety Precautions
Register your product at www.samsung.com/global/register Safety Precautions The following safety precautions are provided to protect the users’ safety and prevent property damage. Make sure to read the followings and use the air conditioner properly. Keep this user’s manual together with the installation manual in a handy place so that you can find it whenever you need to see it after reading this manual thoroughly. - Page 4 WARNING URING PERATION Do not attempt to repair, move, modify or reinstall the unit on your own. Make sure that these installations are carried out by qualified personnel to avoid electric shock or fire. Do not place any obstacles in front of the unit.
- Page 5 WARNING ISPOSING THE Before throwing out the When you need to dispose of device, it is necessary to pull the unit, consult your dealer. back the battery cells and get If pipes are removed rid of them safely for recycling incorrectly, refrigerant may reasons.
- Page 6 CAUTION EGARDING OWER Disconnect the circuit breaker when you don’t use the air conditioner for a long time to save energy. URING PERATION Do not open the front grille during operation. Do not use the air conditioner for a long time in a closed room or in a place where there’s a baby or an old person.
- Page 7 CAUTION URING PERATION Do not touch the pipes Do not use the air conditioner connected to the air to maintain the machine, food, conditioner. pet, plant or cosmetics. THERS Be sure that the air filter not to ...
-
Page 8: Name Of Each Part
Name of Each Part The design and shape can be changed according to the model. Indoor Unit Air filter (under the panel) Timer/Good Morning mode indicator AQVVWA Series Airflow blade (outlet) Set temperature & Operation indicator room temperature Air Inlet Room Temperature sensor Power(On/Off) -
Page 9: Outdoor Unit
Outdoor Unit AQV09VASeries AQV12VASeries Air Outlet Outdoor Unit AQV18VASeries AQV24VASeries Air Outlet Air Inlet (Rear) Connection Valve (Inside) Air Inlet (Rear) Connection Valve (Inside) -
Page 10: Remote Control-Buttons And Display
Remote Control-Buttons and Display Temperature setting MPI(Micro Plasma Ion) mode indicator Fan speed indicator Battery life indicator Good Morning mode indicator Power (On/Off) button Mode selection button (Auto, Cool, Dry, Fan, Heat) Swing button Digital On/Off button Turbo button Energy saving button On Timer button Off Timer button Time adjustment button... -
Page 12: Selecting Auto Mode
Selecting Auto Mode You can select Auto mode if you want to cool or heat your room automatically. You can adjust the temperature in this mode. Press the (On/Off) button. Result: The operation indicator on the indoor unit lights up. ... -
Page 13: Selecting Cool Mode
Selecting Cool Mode You can select Cool mode if you want to cool your room. You can adjust the temperature and the fan speed when cooling. Press the (On/Off) button. Result: The operation indicator on the indoor unit lights up. ... -
Page 14: Selecting Heat Mode
Selecting Heat Mode You can select Heat mode if you want to heat your room. You can adjust the temperature and the fan speed when heating. Press the (On/Off) button. Result: The operation indicator on the indoor unit lights up. ... -
Page 15: Selecting Dry Mode
Selecting Dry Mode Select Dry mode if you want to dehumidify your room. You can adjust the temperature in this mode. Press the (On/Off) button. Result: The operation indicator on the indoor unit lights up. The air conditioner starts up in the mode you selected last. ... -
Page 16: Selecting Fan Mode
Selecting Fan Mode Selecting the Turbo Function Select Fan mode if you want to ventilate your room. It helps to refresh the air in your room. You can adjust the fan speed in this mode. Press the (On/Off) button. Result: ... -
Page 17: Selecting The Energy Saving Function
Selecting the Energy Saving Function You can select the Energy Saving Function to save energy when cooling. The temperature range decreases in order to perform this function. Press the (On/Off) button. Result: The operation indicator on the indoor unit lights up. ... -
Page 18: Selecting Good Morning Mode
Selecting Good Morning Mode Good Morning mode helps users to fall asleep well after going to bed whether being too hot to sleep or being awakened by coldness. The Good Morning mode can be selected only when the air conditioner is switched on or off in cool/heat mode. Press the (On/Off) button. - Page 19 In cool mode Good Morning mode keeps the skin temperature at the best during the 3 stages such as, Falling Asleep Stage Sound Sleep Stage Wake Up Stage in order. F alling Asleep Stage : This stage supports the environment to quickly cool down. Together with comfortable intermittent air, you will be able to fall asleep quickly.
-
Page 20: Adjusting The Airflow Direction
Adjusting the Airfl ow Direction Adjust the airflow direction to circulate the air according to various needs. By adjusting the airflow direction, the efficiency of the air conditioner can be increased. Adjusting the Airfl ow Direction Vertically You can adjust the airflow direction vertically. The outer airflow blade moves up and down to increase the efficiency of the cooling or heating operation. -
Page 21: Selecting The Auto Cleaning Function
Selecting the Auto Cleaning Function You can select the Auto Cleaning Function if you want to sterilize the air conditioner or remove mold. You can set this function even when the air conditioner is turned off. Press the (On/Off) button. Result: ... -
Page 22: Setting The On Timer
Setting the On Timer You can set the On Timer to turn on the air conditioner automatically at the appointed time within a range of 30 minutes to 24 hours. Press the button . Press the buttons until the desired time is displayed to set the On Timer. -
Page 23: Setting The Off Timer
Setting the Off Timer You can set the Off Timer to turn off the air conditioner automatically at the appointed time within a range of 30 minutes to 24 hours. Press the button . Press the buttons until the desired time is displayed to set the Off Timer. -
Page 24: Selecting Silence Function
Selecting Silence Function Operating Your Air Conditioner Without the Remote Control Silence function makes the noise much quieter during the operation of the indoor unit. The silence function is set only in cool and heat mode. Press the (On/Off) button. Result: ... -
Page 25: Selecting Mpi (Micro Plasma Ion) Mode
Selecting MPI (Micro Plasma Ion) Mode The Micro Plasma Ion mode creates strong purified zone by decomposing harmful particles in the behavior of active hydrogen(H) and oxygen ion(O₂). The MPI mode can be selected whether the air conditioner is turned on or not. Press the button. -
Page 26: Cleaning The Air Filter On Your Air Conditioner
Cleaning Air Filter on Your Air Conditioner Front panel Body groove Air filter Body Front panel Hook Keeping Filters clean Deodorizing Filter Anti-allergy Filter Front panel Hook For the best use of your air conditioner, you must clean it every 2 weeks regularly to remove the dust that accumulates on the air filter. -
Page 27: Temperature And Humidity Ranges
Replacing Deodorizing Filter Activated carbon is incorporated in the Deodorizing filter, efficiently absorbing cigarette smoke, pet odors and other unpleasant smells. Open the upper front panel by pulling the lower right and left tabs of the panel. Detach the deodorizing filter(black) by pulling it forwards. Replace the deodorizing filter with a new one into the slot. -
Page 28: Operating Recommendations
Operating Recommendations When you use your air conditioner, it is recommended that you read the following: Topic Recommendation Heating capacity The heat pump inside the air conditioner absorbs heat from outside air and brings itindoors. If the temperature of the outside air drops, the air conditioner heats less. If the room is not warm enough, use an additional heating appliance. -
Page 29: Solving Common Problems
Solving Common Problems Before contacting the after-sales service, perform the following simple checks. They may save you the time and expense of an unnecessary call. Problem The air conditioner does not Check if power is on and operate the air conditioner again. operate at all. - Page 30 Contact SAMSUNG WORLD WIDE If you have any comments or questions regarding a Samsung product, contact the SAMSUNG customer care center. Country BELGIUM CZECH REPUBLIC DENMARK FINLAND FRANCE GERMANY HUNGARY ITALIA LUXEMBURG NETHERLANDS NORWAY POLAND PORTUGAL SLOVAKIA SPAIN SWEDEN Ireland...
