- Page 1 ORIGINAL INSTRUCTIONS Garden Blower Vacuum Instruction Manual HAS3000 IMPORTANT READ CAREFULLY BEFORE USE. KEEP FOR FUTURE REFERENCE. HYUNDAI 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Fabrique en PRC 2018...
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS 2. YOUR PRODUCT 3. ASSEMBLY 4. OPERATION 5. MAINTENANCE AND STORAGE 6. DISPOSAL 7. DECLARATION OF CONFORMITY... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS Safe operating practices for hand-held mains-operated electrical garden vacuums, and garden blower/vacuums with or without shredding means and garden blowers Training a) Read the instructions carefully. Be familiar with the controls and the correct use of the machine. b) Never allow children or people unfamiliar with these instructions to use the machine. - Page 4 g) If the cutting mechanism strikes any foreign objects or if the machine should start making any unusual noise or vibration, immediately shut off the power source and allow the machine to stop. Disconnect the machine from the supply and take the following steps before restarting and operating the machine: ⚫...
- Page 5 ⚫ Children should be supervised to ensure that they do not play with the appliance. ⚫ Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the machine, local regulations may restrict the age of the operator.
- Page 6 ⚫ Do not put any objects inside the tube and inside the tool. ⚫ Before using the product and after any shock, please check it for signs of wear or damage. ⚫ Please carry out repairs if necessary. ⚫ Inspect and regularly service the product. Repairs should be carried out only by an authorized service center or a similarly qualified specialist.
- Page 7 ⚫ Uses for your blowers: sweeping debris or grass clippings from driveways, sidewalks, patios, parks, parking lots, barns, etc. Gathering grass clippings, straw or leaves into piles. Removing debris from corners, around joints and between bricks. ⚫ Stay alert. Watch what you are doing and use common sense when operating a power tool.
- Page 8 Denotes risk of personal injury, loss of life, or damage to the tool in case of non-observance SWITCH OFF: Remove plug from mains before cleaning or maintenance. Do not use in the rain or leave outdoors while it is raining. Wear an eye protection Keep bystanders away Guarantee sound power level...
-
Page 9: Your Product

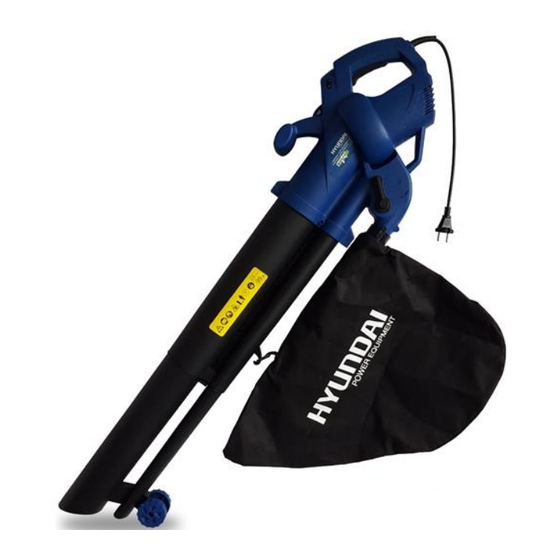

9. Wheel 4. Front handle 10. Attachment for shoulder harness 5. Blower tube 11. Speed control roller 6. Motor housing b. Technical specifications Model HAS3000 Rated input power 3200W Rated no-load speed 10000-15000/min Rated Voltage 230-240V~50Hz Blower velocity 250 km/h Maximum blower air output 10.7m... -
Page 10: Assembly
3. ASSEMBLY a. Tube assembly Slide the upper tube into the motor housing, then tighten the screws and make sure the tube is firmly fixed with motor housing. Insert the 2 lower tubes (one into upper tube and the smaller below) and push them until they are connected firmly together. - Page 11 Assemble the wheels to the lower tube. Add one wheel on each side of the hole situated on smaller lower tube. Fix the wheels together with the screw and the nut. Then fix the provided two plates and screws to fix the tubes together. Caution: In the interests of safety the tubes should not be dismantled after they have been assembled Attach the collect bag to the hook on upper tube and the outlet on the bottom of motor...
-
Page 12: Operation
4. OPERATION Before starting the machine, make sure that collect bag is fitted and the shoulder harness is adjusted to a suitable working position. a. Extension cable The tool must be connected to an extension cable. Plug the cable of the tool into extension cable. - Page 13 Hold the machine by the handle. Walk and hold the tube just above the ground and blow the debris. Switch on the tool by pushing and holding the ON/OFF switch. Work in order to gather the debris in one or more lots. Use the vacuum mode to collect the heap.
-
Page 14: Maintenance And Storage
5. MAINTENANCE AND STORAGE WARNING! Do not use products that can damage the device (abrasive, corrosive, alcohols, steam cleaners, abrasive cloths, scrapers, etc.). Do not install the appliance in a dishwasher for cleaning! The unit must be completely switched off, unplugged, and cool before cleaning. a. -
Page 15: Declaration Of Conformity
ZI, 32 rue, Aristide Bergès – 31270 Cugnaux - France Tel: +33 (0)5.34.502.502 Fax: +33 (0)5.34.502.503 States that the designated below machine: Garden Blower Vacuum HAS3000 Serial number: Developed, designed and manufactured in accordance with the requirements of directives: Machinery Directive 2006/42/EC...
