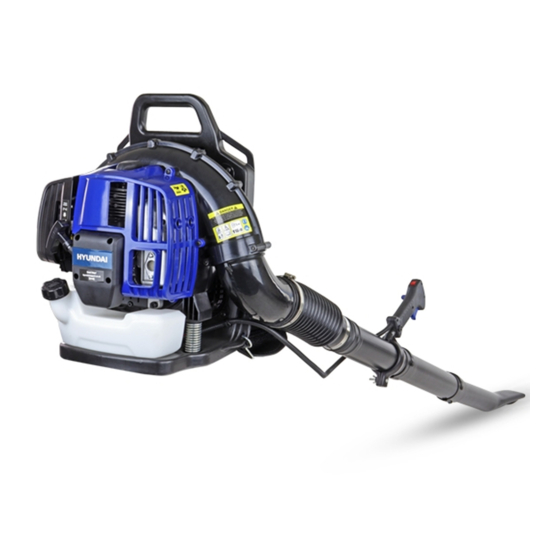

- Page 1 LEAF BLOWER HYB5200 Instruction Manual WARNING: Read the instructions carefully before use.
-
Page 2: Table Of Contents
Contents Introduction……..……………………………3 Useful Information………………………….41 Our YouTube Channel…..………………..41 Safety Information…..…………………..4-14 Warranty…………………………………….41 Manual Updates….……………………….41 Understand Your Machine.…..…………...4 Returning Your Product….……………….41 Personal Safety...…….……………………4-5 Leaving A Review….……………………...41 Inspect Your Machine……………………...5 Ordering Spare Parts.……………………..41 Work Area…….……………………………..6 During Use…….………………………………7 Product Record…………………………….42 Batteries…….…………………………………8 Electricity…….…………….…...…………….9 Vibrations….…………………………..10 Contact Us………………………………….43 Noise…….……………………………..10 Engine Safety………………………………11 Carbon Monoxide…….…………………..11... -
Page 3: Introduction.........................................3 Useful Information
THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user. This manual has been produced by Hyundai Power Products and should be kept with the product. Please read and understand these instructions before you use your product. -
Page 4: Safety Information
Safety Information Understand Your Machine • WARNING! You must read these instructions carefully before operating the machine. Make sure that you are familiar with the controls and properly operate the machine. You must learn how to stop the machine quickly. If you do not follow the warnings and instructions, it may result in fire and/or serious injury. -
Page 5: Inspect Your Machine
Safety Information Personal Safety (Continued) • Do not touch parts that might be hot from operation. Allow parts to cool before attempting to maintain, adjust, or service. • Do not overreach. Keep proper footing and balance at all times. This enables better control of the machine in unexpected situations. -
Page 6: Work Area
Safety Information Work Area • You must only work in daylight or with good artificial light in good visibility conditions. Do not work at night, at times of heavy fog, or at any other times when your field of vision might be limited and it would be difficult to gain a clear view of the area. -
Page 7: During Use
Safety Information During Use • Do not operate the machine in confined areas where there may be a risk of crushing the operator between the machine and another object. • Never attempt to make any adjustments, while the machine is running. •... -
Page 8: Batteries
Safety Information Batteries (Where Present) Batteries present a risk if they become damaged by the possible leaking of electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on or near them. NOTE: the electrolyte may be in a liquid or gel form. -
Page 9: Electricity
Safety Information Electricity (Where Applicable) DANGER : ELECTRICITY CAN KILL – NEVER WORK ON LIVE / ENERGISED EQUIPMENT. • Prior to carrying out any maintenance work you MUST identify electrical isolation methods and isolate all electrical supplies. • Prior to use and with all electrical supplies isolated, you MUST check all electrical cables, plugs and connectors for the following;... -
Page 10: Vibrations
Safety Information Vibrations (Where Applicable) • Prolonged use of hand held (operated) machines will cause the user to feel the effects of/from vibrations. These vibrations can lead to white finger (Raynaud’s phenomenon) or carpal tunnel syndrome. This condition reduces the ability of the hand to feel and regulate temperature, causing numbness and heat sensations and may cause nerve damage and circulatory tissue death. -
Page 11: Carbon Monoxide
Safety Information Engine Safety • Never start or run the engine inside a closed area. The exhaust fumes are dangerous, containing carbon monoxide, an odourless and deadly gas. Operate this unit only in a well-ventilated outdoor area. (See carbon monoxide safety). •... -
Page 12: Fuel Safety
Safety Information Fuel Safety General Safety • Do not smoke each time fuel is handled. • ALWAYS avoid inhaling fumes. • ALWAYS carry fuel in the correct and clearly marked container. • ALWAYS wear correct, suitable and fit for purpose Personal Protective Equipment (PPE), suggested items are but not limited to safety gloves and overalls. - Page 13 Safety Information Fuel Safety (Continued) Storage • Store fuel in containers specifically designed and approved for fuel storage. • Store fuel in a cool, well-ventilated area, safely away from sparks, open flames, or other sources of ignition. • Never store fuel – or a machine with fuel in the tank – inside a building where fumes may reach a spark, open flame, or any other source of ignition (such as a water heater, furnace, or clothes dryer).
-
Page 14: Personal Protective Equipment
Safety Information Personal Protective Equipment Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. No protective equipment can ensure 100% protection. When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit, etc. -
Page 15: Unboxing
2. Lay the contents out and check them. If any part is damaged or missing, you must not use the machine. Contact HYUNDAI POWER PRODUCTS immediately. 3. You must keep the packaging material in case the machine needs to be returned or repaired. -
Page 16: Features
Features Descriptions on next page www.hyundaipowerproducts.co.uk... - Page 17 Features Frame Side Cover Blower Cover Spark Plug Cap Engine Starter Handle Fuel Cap Fuel Tank Recoil Assembly Exhaust Shock Absorber Blower Elbow Flexi-pipe Control Handle Clamp Swivel Pipe Mid-pipe and Pipe Nozzle Control Handle www.hyundaipowerproducts.co.uk...
-
Page 18: Assembly
Assembly STEP 1 WARNING! Do not add fuel to this machine before assembly. Fuel can spill during assembly which is hazardous. 1. Put the larger hose clip on the larger side of the Flexible-pipe. 2. Attach the Flexible pipe to the Blower Elbow. Tighten the Hose clip - DO NOT overtighten, as once the threads on the hose clips are damaged they will no longer work. - Page 19 Assembly STEP 1 (Continued) www.hyundaipowerproducts.co.uk...
- Page 20 Assembly STEP 2 1. Loosen the Wing-nut on the Control Handle. 2. Insert the Control Handle over the Swivel Pipe. Ensure the notch on the Swivel Pipe, matches up with the Groove on the control Handle. Continued on next page www.hyundaipowerproducts.co.uk...
- Page 21 Assembly STEP 2 (Continued) www.hyundaipowerproducts.co.uk...
- Page 22 Assembly STEP 3 1. Place the smaller hose clip over the smaller side of the flexible pipe. 2. Insert the Swivel pipe into the Flexible Pipe. 3. Tighten the Hose clip www.hyundaipowerproducts.co.uk...
- Page 23 Assembly STEP 4 1. Insert the Mid-pipe into the swivel pipe, line up the notches on the Swivel pipe, to the groves on the Mid-pipe. 2. Twist together and tighten the screw to full secure the pipes together. Repeat these step for the Pipe Nozzle. Continued on next page www.hyundaipowerproducts.co.uk...
- Page 24 Assembly STEP 4 (Continued) www.hyundaipowerproducts.co.uk...
- Page 25 Assembly STEP 5 1. Insert the Harness Hooks, through the holes in the Frame. 2. Repeat this on both sides of the frame. 3. Adjust the straps of the harness to appropriately support the machine during use. www.hyundaipowerproducts.co.uk...
-
Page 26: Operation
Operation Fueling WARNING! It’s essential you NEVER use the machine with just unleaded petrol. This will cause permanent damage and void the products warranty. WARNING! When pouring fuel/oil into the mixing bottle, use a funnel or pipe. Petrol is a Solvent and Volatile liquid. WARNING! Always Fuel/Un-Fuel your machine in a well ventilated area. -
Page 27: Starting
WARNING! Before operating the HYB5200 ensure you have read and fully understand the user manual. The HYB5200 uses an automatic spring loaded On/Off switch, located on the Control Handle. When starting the machine, the switch will always be in the ON position. - Page 28 Operation Starting (Continued) 2. Prepare the engine to start by pressing the Primer Bulb 10 times. This fills the carburettor with fuel preparing the machine to start. 3. With a firm grip of the Starter Handle and the Frame, Pull the Recoil Starter 4-6 times.
- Page 29 Operation Starting (Continued) Hot Starting 1. If the engine is hot, or has just been run, the Choke Lever must be kept in the run position. 2. With a firm grip of the Starter Handle and the Frame, Pull the Recoil Starter, it should start after 1-2 pulls.
-
Page 30: Stopping
Operation Stopping To stop the Machine press the On/Off switch on the Control handle. This will instantly cut the power of the HYB5200. If the machine fails to stop, please contact us at 01646 687 880 or https://hyundaipowerequipment.co.uk/support When putting the machine on whilst started, try not to tip it too much from side to side. -
Page 31: Throttle
Operation Throttle To increase the output from the HYB5200, you need to increase the throttle. 1. Pull the Throttle Trigger on the Control Handle. Pull the trigger until you reach the desired airflow. Release the Trigger to return to idle speed 2. -
Page 32: Maintenance & Care
Maintenance & Care Air Filter Replacing the Air filter is important maintenance for your HYB5200. Dirty Air Filters Cause: • More Fuel Use • Machine Stalling • Difficult Starting Air Filter Replacement Ensure the Choke Lever is in Cold Start Position 1. - Page 33 Maintenance & Care Air Filter (Continued) www.hyundaipowerproducts.co.uk...
-
Page 34: Spark Plug
Maintenance & Care Spark Plug Replacing the Spark Plug is important maintenance for your HYB5200. Dirty Spark Plugs Cause: • More Fuel Use • Machine Stalling • Difficult Starting Spark Plug Replacement 1. Remove the Spark Plug Cap. Be careful with this step not to pull the spark wire away from the Spark Connector. - Page 35 Maintenance & Care Spark Plug (Continued) 0.6mm- 0.7mm www.hyundaipowerproducts.co.uk...
-
Page 36: Troubleshooting
Maintenance & Care Troubleshooting www.hyundaipowerproducts.co.uk... -
Page 37: General Maintenance
Maintenance & Care General Maintenance WARNING : Turn OFF the machine, allow all moving parts to come to a complete stop before maintaining the machine. You need to wear proper clothing and protective gloves whenever your hands are at risk. •... -
Page 38: Specifications
Technical Data Specification Model HYB5200 Length 870mm Width 440mm Height 505mm Net Weight 9.8kg Engine Type Air Cooled, 2-Stroke, Single Cylinder Engine Model IC52-T Carburettor Diaphragm Ignition System Flywheel Magneto, Capacitor Discharge Spark Plug L7RTC Gap (0.6-0.7mm) Exhaust System Spark Arrestor Muffler Fuel Mixed (Petrol &... -
Page 39: Recycling & Disposal
Recycling & Disposal Recycling & Disposal We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site. -
Page 40: Declaration Of Conformity
Isaac Way, Pembroke Dock, SA72 4RW Country of Origin: China Description: Leaf Blower SKU Code: HYB5200 Date of Issue: 23/07/2021 Regulations and Directives of Compliance • 2006/42/EC The Machine Directive • 2014/30/EU EMC Directive • 2016/1628/EC The Emission of Gaseous and Particulate Pollutants from internal Combustion engines •... -
Page 41: Our Youtube Channel
Go to YouTube and search ‘Hyundai Power Products’. Warranty Proof of purchase will be required before you make a warranty claim. Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website: www.hyundaipowerproducts.co.uk Manual Updates Our manuals are constantly being reviewed and updated. Should you find an error, omission or something unclear, please contact us for assistance. -
Page 42: Product Record
Product Record Information As soon as you have purchased the machine, we recommend that you fill out the following. If you need to contact an authorised dealer or customer service for information on servicing, you may need to provide the following information. Date Of Purchase:……………………………………………………………………………….. -
Page 43: Contact Us
Our friendly aftersales team will be more than happy to help you. Phone Call our team on 01646 687 880 Email aftersales@hyundaipowerproducts.co.uk Online Live Chat Go to www.hyundaipowerproducts.co.uk Post Genpower Ltd, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW. Hyundai Support Website Go to hyundaisupport.co.uk www.hyundaipowerproducts.co.uk... - Page 44 Importer: GENPOWER LTD Isaac Way, London Road, Pembroke Dock, UK, SA72 4RW. T: +44 (0) 1646 687 880 E: info@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk Imported / Distributed by Genpower Ltd for the United Kingdom & Ireland Licensed by Hyundai Corporation, Korea...
