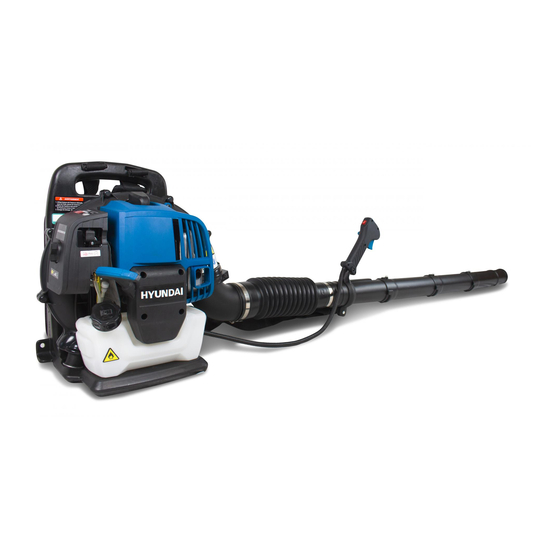

Hyundai HSDT45 Original Instructions Manual

Petrol blower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PETROL BLOWER
HSDT45
WARNING: Read thoroughly the instruction manual before
1
use

Advertisement

Table of Contents
loading

Related Manuals for Hyundai HSDT45

Summary of Contents for Hyundai HSDT45

  • Page 1 PETROL BLOWER HSDT45 WARNING: Read thoroughly the instruction manual before...

  • Page 2: Table Of Contents

    CONTENTS 1. SAFETY WARNINGS 2. DESCRIPTION 3. ASSEMBLY 4. FUELLING 5. OPERATION 6. MAINTENANCE 7. TECHNICAL SPECIFICATIONS 8. CE DECLARATION 9. WARRANTY 10.PRODUCT FAILURE 11.WARRANTY EXCLUSIONS...

  • Page 3: Safety Warnings

    1. SAFETY WARNINGS WARNING: For your own safety, please read this manual before attempting to operate your new unit. Failure to follow instructions can result in serious personal injury. Spend a few moments to familiarize yourself with your blower before each use. If you give this tool to another person, also hand over this manual.
  • Page 4 risks associated with inhaling harmful dust. Before starting the machine, clear the area where you are going to use it. Remove stones, broken glass, nails, wire ropes, ropes or other objects that could be thrown or get caught in the machine. Always keep a good balance.
  • Page 5 Never attempt to override the interlocked feature of the guard. Residuals risks Even if you use this product in compliance with all safety requirements, potential risks of injury and damage remain. The following hazards may arise from the structure and design of this product.
  • Page 6 Risk of inhalation of exhausted gas Pull the pull start with the choke in this position, when you pull out the choke, the air flap closed, when you push in the choke, the air flap opened Intended use This blower is meant to be used for blowing leaves, dust or garden debris into a desired direction.

  • Page 7: Description

    2. DESCRIPTION...

  • Page 8: Assembly

    1. Frame 14. Spark plug connector 1a. Carrying handle 15. Choke 2. Carrying strap 16. Pull start 3. Curved pipe 17. Fuel tank cap 4. Hose clip 18. Fuel tank 5. Flexible pipe (D) 19. Locking screw )for the air filter cover) 6.

  • Page 9: Fuelling

    4. FUELLING Fuel Use a mixture of unleaded gasoline and 2-stroke engine oil for best results. WARNING: Do not pour gasoline directly into the machine. This will cause irreversible damage to the engine and will void the warranty. Do not use a fuel mixture that has been stored for more than 90 days.

  • Page 10: Operation

    5. OPERATION CAUTION! Please comply with the statutory provisions in the relevant noise protection regulations. Before starting the appliance, always check that: The fuel system is not leaking. All screw connections are firmly seated. (1) Starting when the engine is cold ATTENTION! Never allow the pull start (16) to whip back.
  • Page 11 Now pull quickly on the pull start (16). The appliance should start after 1-2 pulls. If the appliance has still not started after 6 pulls, repeat the process as described in “Starting when the engine is cold”. (3) Parking throttle/throttle lever lock Press the throttle (9) halfway down and then push down the throttle lock (9a).

  • Page 12: Maintenance

    6. MAINTENANCE Cleaning the Air Filter Dirty air filers reduce engine power increase fuel consumption and make starting more difficult.  Release the screws and pull off the filter cover.  Remove the filter from the cover and inspect it - if it is dirty or damaged, clean the filter or fit a new one.

  • Page 13: Technical Specifications

     Do not expose the container to direct sunlight for unnecessarily long periods. UV rays can make the container material brittle, which could result in leaks or breakage. 7. Technical specifications MODELE............. HSDT45 Net Weight............Max. 7.9kg Max speed............7500/min Displacement............

  • Page 14: Ce Declaration

    ZI, 32 rue Aristide Bergès – 31270 Cugnaux - France Tel: +33 (0)5.34.502.502 Fax: +33 (0)5.34.502.503 Declares that the machines: PETROL BLOWER Model: HSDT45 Serial No.: 20210702585-20210702684 The people name holding the technical file：M. Olivier Patriarca Have been designed in compliance with the following standards:...

  • Page 15: Warranty

    9. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor.

  • Page 16: Product Failure

    10. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.

  • Page 17: Warranty Exclusions

    11. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
