Emerson MICRO MOTION HFVM Series Configuration And Use Manual

Emerson MICRO MOTION HFVM Series Configuration And Use Manual

Heavy fuel viscosity meters
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

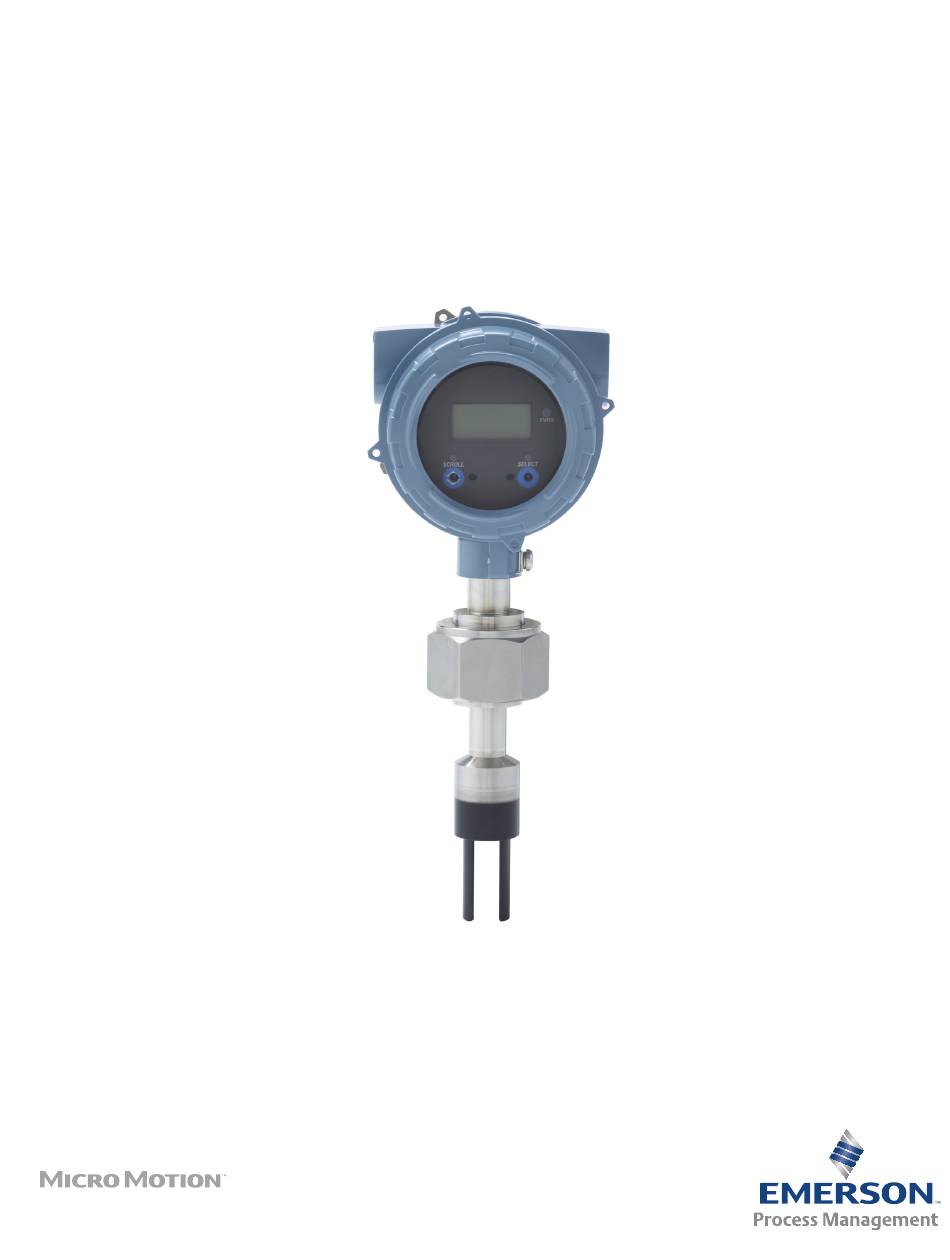

Configuration and Use Manual
MMI-20020969, Rev AB
April 2016
®
Micro Motion
Heavy Fuel Viscosity Meters
™
(HFVM) Viscomaster
Configuration and Use Manual

Advertisement

Table of Contents
loading

Related Manuals for Emerson MICRO MOTION HFVM Series

Summary of Contents for Emerson MICRO MOTION HFVM Series

  • Page 1 Configuration and Use Manual MMI-20020969, Rev AB April 2016 ® Micro Motion Heavy Fuel Viscosity Meters ™ (HFVM) Viscomaster Configuration and Use Manual...
  • Page 2 Safety messages Safety messages are provided throughout this manual to protect personnel and equipment. Read each safety message carefully before proceeding to the next step. Emerson Flow customer service Email: • Worldwide: flow.support@emerson.com • Asia-Pacific: APflow.support@emerson.com Telephone: North and South America...

  • Page 3: Table Of Contents

    Contents Contents Part I Getting Started Chapter 1 Before you begin ......................3 About this manual ........................3 Model codes and device types ..................... 3 HFVM model comparison ......................4 Communications tools and protocols ..................6 Additional documentation and resources ..................6 Chapter 2 Quick start ........................
  • Page 4 Contents 4.6.1 Set up the API referral application using ProLink III ............53 4.6.2 Set up the API referral application using the Field Communicator ....... 57 Chapter 5 Configure device options and preferences ..............63 Configure the transmitter display ....................63 5.1.1 Configure the language used for the display ...............
  • Page 5 Contents 9.1.1 Perform the inline calibration check using ProLink III ..........106 9.1.2 Perform the inline calibration check using the Field Communicator ......107 Perform the Known Density Verification procedure ..............107 9.2.1 Perform the Known Density Verification procedure using the display ....... 108 9.2.2 Perform the Known Density Verification procedure using ProLink III ......
  • Page 6 Contents 10.20 Check the drive gain ........................ 146 10.20.1 Collect drive gain data ....................146 10.21 Check for internal electrical problems ..................147 10.22 Locate a device using the HART 7 Squawk feature ..............147 Appendices and reference Appendix A Calibration certificate ....................

  • Page 7: Getting Started

    Getting Started Part I Getting Started Chapters covered in this part: • Before you begin • Quick start Configuration and Use Manual...
  • Page 8 Getting Started Micro Motion ® Heavy Fuel Viscosity Meters (HFVM) Viscomaster ™...

  • Page 9: Before You Begin

    Before you begin Before you begin Topics covered in this chapter: • About this manual • Model codes and device types • HFVM model comparison • Communications tools and protocols • Additional documentation and resources About this manual This manual provides information to help you configure, commission, use, maintain, and troubleshoot the Micro Motion Heavy Fuel Viscosity Meter (HFVM).

  • Page 10: Hfvm Model Comparison

    Before you begin In this manual, the term HFVM is used to apply to both HFVM models. When there are differences between the two models, the device nicknames are used. Related information HFVM model comparison HFVM model comparison The HFVM-B and the HFVM-R provide different measurement options and different process variables.
  • Page 11 Before you begin Table 1-2: Comparison of process measurement and features by HFVM model (continued) Measurement type HFVM-B HFVM-R I/O and communications Channel A = 4–20 mA + HART Channel B = 4–20 mA Channel C = Modbus/RS-485 (1) Calculated from reference density and reference temperature using the API equations for crude oil. (2) Three methods: ASTM D341 single-curve, ASTM D341 multi-curve, and matrix referral.

  • Page 12: Communications Tools And Protocols

    Appendix Micro Motion web site (www.micromo- tion.com You may be able to use other communications tools from Emerson Process Management, such as ™ AMS Suite: Intelligent Device Manager, or the Smart Wireless THUM Adapter. Use of AMS or the Smart Wireless THUM Adapter is not discussed in this manual. For more information on the Smart Wireless THUM Adapter, refer to the documentation available at www.micromotion.com.
  • Page 13 Before you begin All documentation resources are available on the Micro Motion web site at www.micromotion.com or on the Micro Motion user documentation DVD. Configuration and Use Manual...
  • Page 14 Before you begin Micro Motion ® Heavy Fuel Viscosity Meters (HFVM) Viscomaster ™...

  • Page 15: Chapter 2 Quick Start

    Quick start Quick start Topics covered in this chapter: • Power up the transmitter • Check meter status • Make a startup connection to the transmitter Power up the transmitter The transmitter must be powered up for all configuration and commissioning tasks, or for process measurement.

  • Page 16: Make A Startup Connection To The Transmitter

    Quick start Table 2-1: Transmitter status reported by status LED LED state Description Recommendation Green No alerts are active. Continue with configuration or process meas- urement. Yellow One or more low-severity alerts are active. A low-severity alert condition does not affect measurement accuracy or output behavior.
  • Page 17 Quick start Important If you are changing communications parameters for the connection type that you are using, you will lose the connection when you write the parameters to the transmitter. Reconnect using the new parameters. Configuration and Use Manual...
  • Page 18 Quick start Micro Motion ® Heavy Fuel Viscosity Meters (HFVM) Viscomaster ™...

  • Page 19: Part Ii Configuration And Commissioning

    Configuration and commissioning Part II Configuration and commissioning Chapters covered in this part: • Introduction to configuration and commissioning • Configure process measurement • Configure device options and preferences • Integrate the meter with the control system • Complete the configuration Configuration and Use Manual...
  • Page 20 Configuration and commissioning Micro Motion ® Heavy Fuel Viscosity Meters (HFVM) Viscomaster ™...

  • Page 21: Introduction To Configuration And Commissioning

    Introduction to configuration and commissioning Introduction to configuration and commissioning Topics covered in this chapter: • Default values • Enable access to the off-line menu of the display • Disable HART security • Set the HART lock • Restore the factory configuration Default values Default values for your meter are configured at the factory.

  • Page 22: Enable Access To The Off-Line Menu Of The Display

    Introduction to configuration and commissioning Table 3-2: HFVM default mA scaling values for calibration code R Variable Default 4 mA Default 20 mA Density (calculated) 0.500 g/cc 1.500 g/cc Temperature 0.000°C 200.000°C 32.00°F 392.000°F Dynamic viscosity 0 cP 100 cP Kinematic viscosity 0 cSt 100 cSt...
  • Page 23 Introduction to configuration and commissioning Prerequisites • Strap wrench • 3 mm hex key Procedure Power down the meter. Using the strap wrench, loosen the grub screws and remove the transmitter end- cap. Figure 3-1: Transmitter with end-cap removed A. Transmitter end-cap Using the hex key, remove the safety spacer.
  • Page 24 Introduction to configuration and commissioning Figure 3-2: Transmitter with end-cap and safety spacer removed A. Transmitter end-cap B. Safety spacer Move the HART security switch to the OFF position (up). The HART security switch is the switch on the left. Figure 3-3: HART security switch A.

  • Page 25: Set The Hart Lock

    Introduction to configuration and commissioning Replace the safety spacer and end-cap. Power up the meter. Set the HART lock If you plan to use a HART connection to configure the device, you can lock out all other HART masters. If you do this, other HART masters will be able to read data from the device but will not be able to write data to the device.
  • Page 26 Introduction to configuration and commissioning Overview Restoring the factory configuration returns the transmitter to a known operational configuration. This may be useful if you experience problems during configuration. Restoring the factory configuration is not a common action. You may want to contact Micro Motion to see if there is a preferred method to resolve any issues.

  • Page 27: Configure Process Measurement

    Configure process measurement Configure process measurement Topics covered in this chapter: • Verify the calibration factors • Configure line viscosity measurement • Configure line density measurement • Configure temperature measurement • Configure referred viscosity measurement • Set up the API referral application Verify the calibration factors Display Not available...

  • Page 28: Calibration Factors

    Configure process measurement Related information Sample calibration certificate 4.1.1 Calibration factors The original calibration factors are obtained from factory calibration, and are unique to each device. They are used to adjust measurements for the specific physical properties of the device. Related information Sample calibration certificate Configure line viscosity measurement...
  • Page 29 Configure process measurement Verify that the unit is set correctly for kinematic viscosity. Define a special measurement unit for dynamic viscosity or kinematic viscosity Display Not available ProLink III Device Tools > Configuration > Process Measurement > Line Viscosity > Special Units Field Communicator Configure >...

  • Page 30: Configure Viscosity Damping

    Configure process measurement Set Kinematic Viscosity Special Unit Conversion Factor to 100. Set User-Defined Label to Stokes. 4.2.2 Configure Viscosity Damping Display Not available ProLink III Device Tools > Configuration > Process Measurement > Line Viscosity > Line Viscosity Damping Field Communicator Configure >...

  • Page 31: Configure Line Density Measurement

    Configure process measurement Configure line density measurement The density measurement parameters control how density is measured and reported. Restriction Line density measurement is supported only by the HFVM-B. If you are using the HFVM-R, density data is calculated. • Configure Density Measurement Unit (Section 4.3.1) •...
  • Page 32 Configure process measurement Define a special measurement unit for density Display Not available ProLink III Device Tools > Configuration > Process Measurement > Line Density > Special Units Field Communicator Configure > Manual Setup > Measurements > Special Units Overview A special measurement unit is a user-defined unit of measure that allows you to report process data in a unit that is not available in the transmitter.

  • Page 33: Configure Density Damping

    Configure process measurement 4.3.2 Configure Density Damping Display Not available ProLink III Device Tools > Configuration > Process Measurement > Line Density > Density Damping Field Communicator Configure > Manual Setup > Measurements > Density > Density Damping Overview Density Damping controls the amount of damping that will be applied to the line density value.

  • Page 34: Configure Density Cutoff

    Configure process measurement 4.3.3 Configure Density Cutoff Display Not available ProLink III Device Tools > Configuration > Process Measurement > Line Density > Density Cutoff Low Field Communicator Configure > Manual Setup > Measurements > Density > Density Cutoff Overview Density Cutoff Low specifies the lowest density value that will be reported as measured.
  • Page 35 Configure process measurement Gas entrainment can cause your process density to drop temporarily. To reduce the occurrence of two-phase flow alerts that are not significant to your process, set Two-Phase Flow Low Limit slightly below your expected lowest process density. You must enter Two-Phase Flow Low Limit in g/cm³, even if you configured another unit for density measurement.

  • Page 36: Configure Calculated Line Density Measurement

    Configure process measurement If the two-phase flow condition does not clear before Two-Phase Flow Timeout expires, line density reverts to actual process density, but the two-phase flow alert remains active. If Two-Phase Flow Timeout is set to 0.0 seconds, two-phase flow will cause a two-phase flow alert but will have no effect on how the meter measures or reports line density.

  • Page 37: Configure Temperature Measurement Unit

    Configure process measurement • Configure Temperature Input (Section 4.4.3) 4.4.1 Configure Temperature Measurement Unit Display OFF-LINE MAINT > OFF-LINE CONFG > UNITS > TEMP ProLink III Device Tools > Configuration > Process Measurement > Line Temperature > Temperature Unit Field Communicator Configure > Manual Setup > Measurements > Temperature > Temperature Unit Overview Temperature Measurement Unit specifies the unit that will be used for temperature measurement.

  • Page 38: Configure Temperature Damping

    Configure process measurement 4.4.2 Configure Temperature Damping Display Not available ProLink III Device Tools > Configuration > Process Measurement > Line Temperature > Temperature Damping Field Communicator Configure > Manual Setup > Measurements > Temperature > Temp Damping Overview Temperature Damping controls the amount of damping that will be applied to the line temperature value, when the on-board temperature data is used (RTD).
  • Page 39 Configure process measurement Restriction An external temperature or a fixed temperature value is available only on the HFVM-B. The HFVM-R always uses the internal RTD temperature. Important Line temperature data is used in several different measurements and calculations. It is possible to use the internal RTD temperature in some areas and an external temperature in others.
  • Page 40 Configure process measurement Option Description Setup Polling The meter polls an external de- a. Set Line Temperature Source to Poll for External Value. vice for temperature data. This b. Set Polling Slot to an available slot. data will be available in addi- c.
  • Page 41 Configure process measurement Method Description Setup Internal RTD tem- Temperature data from the on- a. Choose Configure > Manual Setup > Measurements > External Inputs perature data board temperature sensor > Temperature. (RTD) is used. b. Set External Temperature or External Temperature for Viscosity to Disable.

  • Page 42: Configure Referred Viscosity Measurement

    Configure process measurement Verify that the host is writing to the correct register in memory, using the correct data type. • If necessary, apply an offset. Configure referred viscosity measurement Referred viscosity is line viscosity corrected to a reference temperature. In other words, this is the viscosity that the device would report if the line temperature matched the reference temperature.
  • Page 43 Configure process measurement • Configure referred viscosity measurement, ASTM D341 Single-Curve method, using ProLink III • Configure referred viscosity measurement, ASTM D341 Single-Curve method, using the Field Communicator Configure referred viscosity measurement, ASTM D341 Single-Curve method, using ProLink III Important Use the ASTM D341 Single-Curve method only with petroleum products.
  • Page 44 Configure process measurement Option Description Setup Polling The meter polls an external de- a. Set Line Temperature Source to Poll for External Value. vice for temperature data. This b. Set Polling Slot to an available slot. data will be available in addi- c.
  • Page 45 Configure process measurement • If necessary, apply an offset. Configure referred viscosity measurement, ASTM D341 Single-Curve method, using the Field Communicator Important Use the ASTM D341 Single-Curve method only with petroleum products. Prerequisites You must know the viscosity of your process fluid at two temperatures. Procedure Choose Configure >...
  • Page 46 Configure process measurement Method Description Setup Polling The meter polls an external de- a. Choose Configure > Manual Setup > Measurements > External Inputs vice for temperature data. This > Temperature. data will be available in addi- b. Set External Temperature for Viscosity to Enable. tion to the internal tempera- c.

  • Page 47: Configure Referred Viscosity Measurement, Astm D341 Multi-Curve Method

    Configure process measurement 4.5.2 Configure referred viscosity measurement, ASTM D341 Multi-Curve method Referred viscosity is line viscosity corrected to a reference temperature. In other words, this is the viscosity that the device would report if the line temperature matched the reference temperature.
  • Page 48 Configure process measurement Choose the method to be used to supply temperature data, and perform the required setup. Option Description Setup Internal RTD tem- Temperature data from the on- a. Set Line Temperature Source to Internal RTD. perature data board temperature sensor b.
  • Page 49 Configure process measurement Verify the HART tag of the external device. • For digital communications: Verify that the host has access to the required data. Verify that the host is writing to the correct register in memory, using the correct data type.
  • Page 50 Configure process measurement Choose the method to be used to supply temperature data, and perform the required setup. Method Description Setup Internal tempera- Temperature data from the on- a. Choose Configure > Manual Setup > Measurements > External Inputs ture board temperature sensor >...

  • Page 51: Configure Referred Viscosity Measurement, Matrix Referral Method

    Configure process measurement • For digital communications: Verify that the host has access to the required data. Verify that the host is writing to the correct register in memory, using the correct data type. • If necessary, apply an offset. 4.5.3 Configure referred viscosity measurement, Matrix Referral method...
  • Page 52 Configure process measurement a. In the first column, enter the temperatures for which you will enter viscosity data. b. In the second column, enter the viscosity of the first process fluid, at each of the specified temperatures. Enter viscosity in either cP or cSt, depending on the setting of Matrix Data Unit. c.
  • Page 53 Configure process measurement Option Description Setup Polling The meter polls an external de- a. Set Line Temperature Source to Poll for External Value. vice for temperature data. This b. Set Polling Slot to an available slot. data will be available in addi- c.
  • Page 54 Configure process measurement • If necessary, apply an offset. Related information Example: Using the Matrix Referral method Configure referred viscosity measurement, Matrix Referral method, using the Field Communicator You can set up referred viscosity calculations for up to six process fluids. You must set up at least two.
  • Page 55 Configure process measurement g. Choose Isotherm 2. h. Set the temperature for Isotherm 2. i. For each fluid, enter the viscosity value at the specified temperature. j. Continue until you have entered data for all process fluids. k. Press the back arrow twice to return to the Matrix Referral menu. Important •...
  • Page 56 Configure process measurement Method Description Setup Polling The meter polls an external de- a. Choose Configure > Manual Setup > Measurements > External Inputs vice for temperature data. This > Temperature. data will be available in addi- b. Set External Temperature for Viscosity to Enable. tion to the internal tempera- c.
  • Page 57 Configure process measurement Example: Using the Matrix Referral method This example illustrates setting up a matrix to measure four related process fluids. Viscosity data For each process fluid, dynamic viscosity data was collected for temperatures ranging from 250 °F to 350 °F. Multiple samples were taken at each temperature, and averaged. Table 4-3: Viscosity data by process fluid and temperature Average viscosity (cP)

  • Page 58: Set Up The Api Referral Application

    Configure process measurement Figure 4-1: Configuring the matrix using ProLink III Notes • The matrix is limited to six temperature points, so this matrix represents a subset of the data. • This example uses an arbitrary value for Reference Temperature. Results Fit Results = Good.

  • Page 59: Set Up The Api Referral Application Using Prolink Iii

    Configure process measurement Related information Set up the API referral application using ProLink III Set up the API referral application using the Field Communicator 4.6.1 Set up the API referral application using ProLink III This section guides you through the tasks required to set up and implement the API referral application.
  • Page 60 Configure process measurement API table group Process fluids E tables NGL (Natural Gas Liquids) and LPG (Liquid Petroleum Gas) Restriction The API referral application is not appropriate for the following process fluids: propane and propane mixes, butane and butane mixes, butadiene and butadiene mixes, isopentane, LNG, ethylene, propylene, cyclohexane, aeromatics, asphalts, and road tars.
  • Page 61 Configure process measurement Table 4-4: API tables, process fluids, measurement units, and default reference values (continued) Default reference tem- Process fluid API table Referred density (API) perature Unit: kg/m 15 °C Range: 610 to 1075 kg/m³ Generalized products (gasoline, jet Unit: °API 60 °F fuel, aviation fuel, kerosene, heat-...
  • Page 62 Configure process measurement temperature or the configured fixed value. Accordingly, if you set up polling for temperature in one area, and digital communications in another, and configure a fixed temperature value in a third, the fixed value will be overwritten by polling and digital communications, and polling and digital communications will overwrite each other.

  • Page 63: Set Up The Api Referral Application Using The Field Communicator

    Configure process measurement Postrequisites If you are using external temperature data, verify the external temperature value displayed in the Inputs group on the ProLink III main window. Need help? If the value is not correct: • Ensure that the external device and the meter are using the same measurement unit. •...
  • Page 64 Configure process measurement Procedure Choose Configure > Manual Setup > Measurements > API Referral. Choose API Referral Setup. Specify the API table that you want to use for measurement. Each API table is associated with a specific set of equations. a.
  • Page 65 Configure process measurement API Table Number and API Table Letter uniquely identify the API table. The selected API table is displayed, and the meter automatically changes the density unit, temperature unit, and reference temperature to match the API table. Restriction Not all combinations are supported by the API referral application.
  • Page 66 Configure process measurement Table 4-5: API tables, process fluids, measurement units, and default reference values (continued) Default reference tem- Process fluid API table Referred density (API) perature Unit: kg/m 15 °C Range: 653 to 1075 kg/m³ Liquids with a constant density Unit: °API 60 °F base or known thermal expansion...
  • Page 67 Configure process measurement Prerequisites If you plan to poll an external device, the primary mA output (Channel A) must be wired to support HART communications. If you are using an external temperature device, it must use the temperature unit that is configured in the transmitter.
  • Page 68 Configure process measurement Postrequisites Choose Service Tools > Variables > External Variables and verify the value for External Temperature. Need help? If the value is not correct: • Ensure that the external device and the meter are using the same measurement unit. •...

  • Page 69: Configure Device Options And Preferences

    Configure device options and preferences Configure device options and preferences Topics covered in this chapter: • Configure the transmitter display • Enable or disable the Acknowledge All Alerts display command • Configure security for the display menus • Configure alert handling •...

  • Page 70: Configure The Process Variables And Diagnostic Variables Shown On The Display

    Configure device options and preferences 5.1.2 Configure the process variables and diagnostic variables shown on the display Display Not available ProLink III Device Tools > Configuration > Transmitter Display > Display Variables Field Communicator Configure > Manual Setup > Display > Display Variables Overview You can control the process variables and diagnostic variables shown on the display, and the order in which they appear.

  • Page 71: Configure The Refresh Rate Of Data Shown On The Display

    Configure device options and preferences Procedure Select a variable. Set Number of Decimal Places to the number of decimal places you want shown when the process variable or diagnostic variable appears on the display. For temperature and density process variables, the default value is 2 decimal places. For all other variables, the default value is 4 decimal places.

  • Page 72: Enable Or Disable The Acknowledge All Alerts Display Command

    Configure device options and preferences Procedure Enable or disable Auto Scroll as desired. Option Description The display automatically scrolls through each display variable as specified Enabled by Scroll Rate. The operator can move to the next display variable at any time using Scroll.

  • Page 73: Configure Security For The Display Menus

    Configure device options and preferences Option Description Disabled Operators cannot acknowledge all alerts at once. Each alert must be ac- knowledged separately. Configure security for the display menus Display OFF-LINE MAINT > OFF-LINE CONFG > DISPLAY ProLink III Device Tools > Configuration > Transmitter Display > Display Security Field Communicator Configure >...

  • Page 74: Configure Alert Handling

    Configure device options and preferences Option Description Enabled Operator is prompted for the off-line passcode at entry to the off-line menu. Disabled (default) No passcode is required for entry to the off-line menu. Set Off-Line Password to the desired value. The default value is 1234.

  • Page 75: Configure Alert Severity

    Configure device options and preferences If the fault timeout period expires while the alert is still active, the fault actions are performed. If the alert condition clears before the fault timeout expires, no fault actions are performed. 5.4.2 Configure Alert Severity Display Not available ProLink III...
  • Page 76 Configure device options and preferences Option Description Informa- Actions when fault is detected: tional • The alert is posted to the Alert List. • The status LED (if available) changes to red or yellow (depending on alert se- verity). Actions when alert clears: •...

  • Page 77: Configure Informational Parameters

    Configure device options and preferences Table 5-1: Status alerts and Status Alert Severity (continued) User can reset Alert number Alert title Default severity severity A105 Two-Phase Flow Informational A106 Burst Mode Enabled Informational To Informational or Ignore only A107 Power Reset Occurred Informational A113 mA Output 2 Saturated...
  • Page 78 Configure device options and preferences Parameter Description Message A message to be stored in device memory. The message can contain up to 32 characters. Descriptor A description of this device. The description can contain up to 16 characters. Date A static date (not updated by the meter). Enter the date in the form mm/dd/yyyy. Flange Type The sensor flange type for this device.

  • Page 79: Integrate The Meter With The Control System

    Integrate the meter with the control system Integrate the meter with the control system Topics covered in this chapter: • Configure the mA output • Configure an enhanced event • Configure HART/Bell 202 communications • Configure Modbus communications • Configure Digital Communications Fault Action Configure the mA output The mA output is used to report the configured process variable.
  • Page 80 Integrate the meter with the control system Prerequisites If you are using the HART variables, be aware that changing the configuration of mA Output Process Variable will change the configuration of the HART Primary Variable (PV) and/or the HART Secondary Variable (SV). Procedure Set mA Output Process Variable as desired.

  • Page 81: Configure Lower Range Value (Lrv) And Upper Range Value (Urv)

    Integrate the meter with the control system Table 6-2: Options for mA Output Process Variable (continued) Label Process variable Display ProLink III Field Communicator Viscosity measurement Dynamic Viscosity DYNV Line Dynamic Viscosity Dynamic Viscosity Kinematic Viscosity KINV Line Kinematic Viscosity Kinematic Viscosity Referred Viscosity RVISC...
  • Page 82 Integrate the meter with the control system Overview The Lower Range Value (LRV) and Upper Range Value (URV) are used to scale the mA output, that is, to define the relationship between mA Output Process Variable and the mA output level.

  • Page 83: Configure Added Damping

    Integrate the meter with the control system 6.1.3 Configure Added Damping Display Not available ProLink III Device Tools > Configuration > I/O > Outputs > mA Output > mA Output 1 > Added Damping Device Tools > Configuration > I/O > Outputs > mA Output > mA Output 2 > Added Damping Field Communicator Configure >...

  • Page 84: Configure Ma Output Fault Action And Ma Output Fault Level

    Integrate the meter with the control system 6.1.4 Configure mA Output Fault Action and mA Output Fault Level Display Not available ProLink III Device Tools > Configuration > I/O > Outputs > mA Output > mA Output 1 > Fault Action Device Tools >...

  • Page 85: Configure An Enhanced Event

    Integrate the meter with the control system Table 6-3: Options for mA Output Fault Action and mA Output Fault Level (continued) Option mA output behavior mA Output Fault Level Downscale (default) Goes to the configured fault level Default: 3.2 mA Range: 3.2 to 3.6 mA Goes to the mA output level associated Not applicable...

  • Page 86: Configure Hart/Bell 202 Communications

    Integrate the meter with the control system Options Description x ≤ A or x ≥ B The event occurs when the value of the assigned process variable (x) is out of range, that is, less than Setpoint A or greater than Setpoint B, end- points included.

  • Page 87: Configure Hart Variables (Pv, Sv, Tv, Qv)

    Integrate the meter with the control system Valid address values are between 0 and 15. The default address (0) is typically used unless you are in a multidrop environment. Devices using HART protocol to communicate with the transmitter may use either HART Address or HART Tag (Software Tag) to identify the transmitter.
  • Page 88 Integrate the meter with the control system Prerequisites If you plan to set any of the HART variables to CCAI (Calculated Carbon Aromaticity Index) or CII (Calculated Ignition Index), the API referral application must be enabled and configured to report referred density at 15 °C. These two process variables require a non- zero value for referred density.

  • Page 89: Configure Burst Communications

    Integrate the meter with the control system Interaction of HART variables and transmitter outputs The HART variables are automatically reported through specific transmitter outputs. They may also be reported through HART burst mode, if enabled on your transmitter. Restriction One some devices, the PV and the primary mA output are fixed to a specific process variable and cannot be changed.
  • Page 90 Integrate the meter with the control system Overview Burst messages contain information on process variables or transmitter status. You can configure up to three burst messages. Each message can contain different information. Burst messages also provide the mechanism for trigger mode and event notification. Restriction If you are using a HART 5 host, only one burst message is supported.
  • Page 91 Integrate the meter with the control system Configure HART trigger mode Display Not available ProLink III Device Tools > Configuration > Communications > Communications (HART) Field Communicator Configure > Manual Setup > HART > Burst Mode > Burst Message x > Configure Update Rate Overview Trigger mode uses the burst message mechanism to indicate that a process variable has changed.
  • Page 92 Integrate the meter with the control system Ensure that Primary Variable or Burst Variable 0 is set to the variable that will activate the trigger. If it is not, reconfigure the burst message contents. Set Trigger Level to the value of the process variable at which the trigger will be activated.

  • Page 93: Configure Modbus Communications

    Integrate the meter with the control system Trigger Interval begins when the transmitter detects the alert condition. When Trigger Interval expires: • If the alert is still active, HART Command 119 is broadcast. • If the alert is not active, no message is broadcast. If you set Trigger Interval to 0, HART Command 119 is broadcast as soon as the alert is detected.
  • Page 94 Integrate the meter with the control system Procedure Enable or disable Modbus ASCII Support as desired. The setting of this parameter controls the range of valid Modbus addresses for your device. Modbus ASCII support Available Modbus addresses Disabled 1–127, excluding 111 (111 is reserved to the service port) Enabled 1–15, 32–47, 64–79, and 96–110 Set Modbus Address to a unique value on the network.

  • Page 95: Configure Digital Communications Fault Action

    Integrate the meter with the control system Do not set Additional Communications Response Delay unless required by your Modbus host. Configure Digital Communications Fault Action Display Not available ProLink III Device Tools > Configuration > Fault Processing Field Communicator Configure > Alert Setup > I/O Fault Actions > Digital Communication Fault Action Overview Digital Communications Fault Action specifies the values that will be reported via digital communications if the device encounters an internal fault condition.
  • Page 96 Integrate the meter with the control system Table 6-8: Options for Digital Communications Fault Action (continued) Label ProLink III Field Communicator Description Not a Number Not-a-Number • Process variables are reported as IEEE NAN. • Drive gain is reported as measured. •...

  • Page 97: Complete The Configuration

    Complete the configuration Complete the configuration Topics covered in this chapter: • Test or tune the system using sensor simulation • Back up transmitter configuration • Enable HART security Test or tune the system using sensor simulation Display Not available ProLink III Device Tools >...

  • Page 98: Enable Hart Security

    Complete the configuration Procedure Choose Device Tools > Configuration Transfer > Save or Load Configuration Data. In the Configuration groupbox, select the configuration data you want to save. Click Save, then specify a file name and location on your computer. Click Start Save.
  • Page 99 Complete the configuration Figure 7-1: Transmitter with end-cap removed A. Transmitter end-cap Using the hex key, remove the safety spacer. Figure 7-2: Transmitter with end-cap and safety spacer removed A. Transmitter end-cap B. Safety spacer Move the HART security switch to the ON position (down). Configuration and Use Manual...
  • Page 100 Complete the configuration The HART security switch is the switch on the left. Figure 7-3: HART security switch A. HART security switch B. Unused Replace the safety spacer and end-cap. Power up the meter. Micro Motion ® Heavy Fuel Viscosity Meters (HFVM) Viscomaster ™...

  • Page 101: Part Iii Operations, Maintenance, And Troubleshooting

    Operations, maintenance, and troubleshooting Part III Operations, maintenance, and troubleshooting Chapters covered in this part: • Transmitter operation • Measurement support • Troubleshooting Configuration and Use Manual...
  • Page 102 Operations, maintenance, and troubleshooting Micro Motion ® Heavy Fuel Viscosity Meters (HFVM) Viscomaster ™...

  • Page 103: Chapter 8 Transmitter Operation

    Transmitter operation Transmitter operation Topics covered in this chapter: • Record the process variables • View process variables and diagnostic variables • View and acknowledge status alerts Record the process variables Micro Motion suggests that you make a record of specific process variable measurements, including the acceptable range of measurements, under normal operating conditions.

  • Page 104: View Process Variables Using The Display

    Transmitter operation 8.2.1 View process variables using the display View the desired process variable(s). The display shows the configured display variables. For each display variable, the display reports the abbreviated name of the process variable (for example, DENS for density), the current value of that process variable, and the associated unit of measure (for example, G/ CM3).

  • Page 105: View Process Variables Using The Field Communicator

    Transmitter operation 8.2.3 View process variables using the Field Communicator Monitor process variables to maintain process quality. • To view current values of basic process variables, choose Overview. • To view a more complete set of process variables, plus the current state of the outputs, choose Service Tools >...
  • Page 106 Transmitter operation Figure 8-2: Using the display to view and acknowledge the status alerts Scroll and Select simultaneously for 4 seconds SEE ALARM Select Is ACK ALL enabled? ACK ALL Select Scroll EXIT Select Scroll Active/ unacknowledged alarms? Alarm code NO ALARM Scroll Select...

  • Page 107: View And Acknowledge Alerts Using Prolink Iii

    Transmitter operation Postrequisites • To clear A010, A011, A012, A013 alerts, you must correct the problem, acknowledge the alert, then repeat the calibration. • To clear A001, A002, A029, A031 alerts, you must correct the problem, acknowledge the alert, then power-cycle the transmitter. •...

  • Page 108: View Alerts Using The Field Communicator

    Transmitter operation • For all other alerts: If the alert is inactive when it is acknowledged, it will be removed from the list. If the alert is active when it is acknowledged, it will be removed from the list when the alert condition clears. Related information Alert data in transmitter memory 8.3.3...
  • Page 109 Transmitter operation Table 8-1: Alert data in transmitter memory (continued) Transmitter action if condition occurs Alert data structure Contents Clearing Alert Statistics One record for each alert (by alert number) Not cleared; maintained across transmitter that has occurred since the last master reset. power cycles Each record contains: •...
  • Page 110 Transmitter operation Micro Motion ® Heavy Fuel Viscosity Meters (HFVM) Viscomaster ™...

  • Page 111: Chapter 9 Measurement Support

    Measurement support Measurement support Topics covered in this chapter: • Perform the inline calibration check procedure • Perform the Known Density Verification procedure • Adjust viscosity measurement with Viscosity Offset • Adjust viscosity measurement with Viscosity Meter Factor • Adjust density measurement with Density Offset or Density Meter Factor •...

  • Page 112: Perform The Inline Calibration Check Using Prolink Iii

    Measurement support Know the density at reference conditions that was measured in the laboratory. Make sure the correct API table is selected. • If using a fluid other than water with concentration measurement: Know the density at reference conditions that was measured in the laboratory. Make sure the associated concentration measurement curve is loaded.

  • Page 113: Perform The Inline Calibration Check Using The Field Communicator

    Measurement support If the inline calibration check failed, continue to monitor the density performance on regular intervals. If the inline calibration check continues to fail, further diagnosis is required. Remove the meter from the line and run the Known Density Verification procedure. Related information Perform the Known Density Verification procedure using ProLink III Perform the Known Density Verification procedure using the Field Communicator...

  • Page 114: Perform The Known Density Verification Procedure Using The Display

    Measurement support Prerequisites Check calibration integrity inline first by running water or a known fluid through the system using the factory measurements. Verify that the reported density is correct. If it is not correct, continue with a KDV check and the following prerequisites. Power down the meter, remove the meter from the process, and place it in a protected stable environment.

  • Page 115: Perform The Known Density Verification Procedure Using Prolink Iii

    Measurement support For problems with Verification Time Period Signal or Drive Gain, ensure that the meter is clean and dry. Then retry the Known Density Verification procedure. If the Known Density Verification procedure continues to fail, contact Micro Motion customer service. 9.2.2 Perform the Known Density Verification procedure using ProLink III...

  • Page 116: Adjust Viscosity Measurement With Viscosity Offset

    Measurement support This step should be complete in approximately 40 seconds. Check the results in the Results data display. • If all process variables passed the tests, no action is required. Click Close to exit the wizard. • If one or more process variables failed the test: For problems with Line Temperature, verify that the ambient temperature of the meter is stable, and that the meter temperature has stabilized in the test location.

  • Page 117: Adjust Viscosity Measurement With Viscosity Meter Factor

    Measurement support Adjust viscosity measurement with Viscosity Meter Factor You can adjust viscosity measurement by applying a viscosity meter factor. The measured dynamic viscosity is always multiplied by the viscosity meter factor. The result is used in further calculations. The default value of Viscosity Meter Factor is 1.0. Accordingly, the default value has no effect on the line viscosity value.

  • Page 118: Adjust Viscosity Measurement With Viscosity Meter Factor Using Prolink Iii

    Measurement support Record the reference temperature. This is the temperature specified as Reference Temperature 1 during referred viscosity configuration. It must also be the temperature used for the laboratory measurement of dynamic viscosity. Obtain a laboratory value for the dynamic viscosity of your process fluid at reference temperature.

  • Page 119: Adjust Viscosity Measurement With Viscosity Meter Factor Using The Field Communicator

    Measurement support The default value for Viscosity Meter Factor is 1.0. The recommended range is 0.8 to 1.2. If your calculated meter factor is outside this range, contact Micro Motion customer service. To view all viscosity meter factors, choose Device Tools > Configuration > Process Measurement > Viscosity. 9.4.3 Adjust viscosity measurement with Viscosity Meter Factor using the Field Communicator...

  • Page 120: Adjust Density Measurement With Density Offset Or Density Meter Factor

    Measurement support You must use ProLink III for this procedure. Procedure Take a dynamic viscosity reading from the device and record the line temperature. Immediately after the previous step, take a sample from a location as close to the device as possible. Using the external measurement method, measure the viscosity of the sample at line temperature.
  • Page 121 Measurement support Restriction You cannot enter a density offset from the display. If you want to change the density offset manually, you must use ProLink III or the Field Communicator. Prerequisites You will need an external density measurement method that is highly accurate. Ensure that your process is stable during the sampling procedure.

  • Page 122: Perform Density Offset Calibration

    Measurement support • Using the Field Communicator: Configure > Manual Setup > Measurements > Density > Meter Factor The default value for Density Meter Factor is 1.0. The recommended range is 0.8 to 1.2. If your calculated meter factor is outside this range, contact Micro Motion customer service.

  • Page 123: Perform Density Offset Calibration Using Prolink Iii

    Measurement support Navigate to the Density Offset Calibration wizard: OFF-LINE MAINT > OFF-LINE CAL > DENS CAL OFFSET and activate Select. If concentration measurement is enabled, the active matrix is displayed. Activate Scroll to continue. The current reference temperature is displayed. Activate Scroll to move to the next step.

  • Page 124: Perform Density Offset Calibration Using The Field Communicator

    Measurement support 9.6.3 Perform density offset calibration using the Field Communicator Read Section 9.6 if you have not done so already. Navigate to the Density Offset Calibration method: Service Tools > Maintenance > Calibration > Density Offset Calibration. Enter the laboratory reference value. Press OK and wait for a few seconds while the calibration process is performed.

  • Page 125: Perform Temperature Calibration Using Prolink Iii

    Measurement support • In a pipeline, bypass, or flow-through chamber installation, close an upstream valve and empty the segment. Then close a downstream valve, open the upstream valve, and fill the segment with the low-temperature fluid. • In a tank installation, empty the tank, then fill it with the low-temperature fluid. Wait until the temperature of the tines matches the temperature of the fluid.

  • Page 126: Perform Temperature Calibration Using The Field Communicator

    Measurement support To view the new offset and slope values, choose Device Tools > Configuration > Process Measurement > Line Temperature. 9.7.3 Perform temperature calibration using the Field Communicator Read Section 9.7 if you have not done so already. Immerse the tines in a low-temperature fluid. •...
  • Page 127 Measurement support Procedure Select the user-defined calculation that you want to use. If you selected User-Defined Calculation 1: a. Enter the values to be used for the constants: A, B, X, Y. b. Enter the values to be used for a, b, c, d, e, and f. For these terms: •...

  • Page 128: Equations Used In User-Defined Calculations

    Measurement support Important The output of the user-defined calculation is based on internal measurement units for process variables. You may need to convert this value to the configured units before using it in your application or process. • Equations used in user-defined calculations (Section 9.8.1) •...
  • Page 129 Measurement support Table 9-1: Process variables and internal measurement units (continued) Process variable Internal measurement unit Drive Gain Dynamic Viscosity Kinematic Viscosity Referred Viscosity and Secondary Referred Viscosity cP or cSt, depending on config- uration Sensor Time Period Microseconds Unitless CCAI Unitless Configuration and Use Manual...
  • Page 130 Measurement support Micro Motion ® Heavy Fuel Viscosity Meters (HFVM) Viscomaster ™...

  • Page 131: Chapter 10 Troubleshooting

    Troubleshooting Troubleshooting Topics covered in this chapter: • Quick guide to troubleshooting • Check power supply wiring • Check grounding • Perform loop tests • Status LED states • Status alerts, causes, and recommendations • Viscosity measurement problems • Density measurement problems •...

  • Page 132: Check Power Supply Wiring

    Troubleshooting Verify cable shielding. Perform loop tests for each output. Check the sensor installation and orientation. Ensure that it is appropriate for your application. Ensure that the installation meets temperature and/or pressure requirements. • Check for active status alerts and follow the recommendations. •...

  • Page 133: Check Grounding

    Troubleshooting Ensure that the terminals, wires, and wiring compartment are clean and dry. Ensure that the power supply wires are connected to the correct terminals. Ensure that the power supply wires are making good contact, and are not clamped to the wire insulation. Reapply power to the transmitter.

  • Page 134: Perform Loop Tests Using Prolink Iii

    Troubleshooting Procedure Test the mA outputs. a. Choose OFFLINE MAINT > SIM > AO1 SIM or OFFLINE MAINT > SIM > AO2 SIM, and select a low value, e.g., 4 mA. Dots traverse the display while the output is fixed. b.

  • Page 135: Perform Loop Tests Using The Field Communicator

    Troubleshooting d. Read the mA current at the receiving device and compare it to the transmitter output. The readings do not need to match exactly. If the values are slightly different, you can correct the discrepancy by trimming the output. e.

  • Page 136: Status Led States

    Troubleshooting f. Press OK. g. Choose End. Postrequisites • If the mA output readings are within 200 microamps of each other, you can correct this discrepancy by trimming the output. • If the discrepancy between the mA output readings is greater than 200 microamps, or if at any step the reading was faulty, verify the wiring between the transmitter and the remote device, and try again.

  • Page 137: Status Alerts, Causes, And Recommendations

    Troubleshooting Related information View and acknowledge status alerts 10.6 Status alerts, causes, and recommendations Table 10-2: Status alerts, causes, and recommendations Alert number Alert title Possible causes Recommended actions A001 EEPROM Error The transmitter has detec- • Cycle power to the meter. ted a problem communicat- •...
  • Page 138 Troubleshooting Table 10-2: Status alerts, causes, and recommendations (continued) Alert number Alert title Possible causes Recommended actions A009 Transmitter Ini- Transmitter is in power-up • Allow the meter to complete its power-up se- tializing/Warm- mode. quence. The alert should clear automatically. ing Up or Sig- •...
  • Page 139 Troubleshooting Table 10-2: Status alerts, causes, and recommendations (continued) Alert number Alert title Possible causes Recommended actions A030 Incorrect Board The loaded software is not • Contact Micro Motion. Type compatible with the pro- grammed board type. A033 Insufficient The signal from the sensor •...
  • Page 140 Troubleshooting Table 10-2: Status alerts, causes, and recommendations (continued) Alert number Alert title Possible causes Recommended actions A102 Drive Over- The drive power (current/ • Check the drive gain. See Section 10.20. range voltage) is at its maximum. • Check for foreign material in the process gas or fluid, coating, or other process problems.

  • Page 141: Viscosity Measurement Problems

    Troubleshooting Table 10-2: Status alerts, causes, and recommendations (continued) Alert number Alert title Possible causes Recommended actions A118 Discrete Out- The discrete output has • Check whether the output is in loop test mode. If put 1 Fixed been configured to send a it is, unfix the output.
  • Page 142 Troubleshooting Table 10-3: Viscosity measurement problems and recommended actions (continued) Problem Possible causes Recommended actions Viscosity reading inac- • Incorrect calibration factors • Verify the calibration factors. Ensure that curate • Inappropriate viscosity offset or viscosity the viscosity ranges are appropriate for meter factor your process fluid.

  • Page 143: Density Measurement Problems

    Troubleshooting 10.8 Density measurement problems Table 10-4: Density measurement problems and recommended actions Problem Possible causes Recommended actions Erratic density reading • Normal process noise • Check your process conditions. • Two-phase flow • Increase the density damping value. • Flow rate too high •...

  • Page 144: Temperature Measurement Problems

    Troubleshooting Table 10-4: Density measurement problems and recommended actions (continued) Problem Possible causes Recommended actions Density reading from • Incorrect calibration factors • Verify the calibration factors. device does not • Laboratory conditions do not match sam- • Verify or adjust the density offset and/or match laboratory val- ple conditions the density meter factor.

  • Page 145: Api Referral Problems

    Troubleshooting 10.10 API referral problems Table 10-6: API referral problems and recommended actions Problem Possible causes Recommended actions No referred density • Line temperature or line density is outside • Check process conditions. reading the range of the configured API table •...
  • Page 146 Troubleshooting Table 10-7: Milliamp output problems and recommended actions (continued) Problem Possible causes Recommended actions mA output below • Open in wiring • Check your process conditions against the 4 mA • Bad output circuit values reported by the device. •...

  • Page 147: Using Sensor Simulation For Troubleshooting

    Troubleshooting 10.12 Using sensor simulation for troubleshooting When sensor simulation is enabled, the transmitter reports user-specified values for basic process variables. This allows you to reproduce various process conditions or to test the system. You can use sensor simulation to help distinguish between legitimate process noise and externally caused variation.

  • Page 148: Trim Ma Outputs Using The Field Communicator

    Troubleshooting Follow the instructions in the guided method. Important If you are using a HART/Bell 202 connection, the HART signal over the primary mA output affects the mA reading. Disconnect the wiring between ProLink III and the transmitter terminals when reading the primary mA output at the receiving device. Reconnect to continue the trim.
  • Page 149 Troubleshooting • A Field Communicator • A voltmeter • Optional: The HART Application Guide, available at www.hartcomm.org Procedure Verify the HART address. The default HART address is 0. This is the recommended value unless the device is in a multidrop network. If the primary mA output is producing a fixed value of 4 mA, ensure that mA Output Action (Loop Current Mode) is enabled.

  • Page 150: Check Lower Range Value And Upper Range Value

    Troubleshooting d. Connect a Field Communicator directly across the resistor and attempt to communicate (poll). If this test fails, the transmitter may need service. Contact Micro Motion. Related information Configure basic HART parameters Using the Field Communicator with the transmitter 10.15 Check Lower Range Value and Upper Range Value If the process variable assigned to the mA output falls below the configured Lower Range...

  • Page 151: Check For Radio Frequency Interference (Rfi)

    Troubleshooting 10.17 Check for radio frequency interference (RFI) The meter's TPS output or discrete output can be affected by radio frequency interference (RFI). Possible sources of RFI include a source of radio emissions, or a large transformer, pump, or motor that can generate a strong electromagnetic field. Several methods to reduce RFI are available.

  • Page 152: Check The Drive Gain

    Troubleshooting You can reduce the occurrence of two-phase flow alerts by setting Two-Phase Flow Low Limit to a lower value, Two-Phase Flow High Limit to a higher value, or Two-Phase Flow Timeout to a higher value. Related information Configure two-phase flow parameters 10.20 Check the drive gain Use the following table to check drive gain values.

  • Page 153: Check For Internal Electrical Problems

    Troubleshooting Observe and record drive gain data over an appropriate period of time, under a variety of process conditions. 10.21 Check for internal electrical problems Shorts between sensor terminals or between the sensor terminals and the sensor case can cause the sensor to stop working. Table 10-9: Possible causes and recommended actions for electrical shorts Possible cause...
  • Page 154 Troubleshooting Micro Motion ® Heavy Fuel Viscosity Meters (HFVM) Viscomaster ™...

  • Page 155: Appendix A Calibration Certificate

    Calibration certificate Appendix A Calibration certificate Sample calibration certificate Your meter was shipped with a calibration certificate. The calibration certificate describes the calibrations and configurations that were performed or applied at the factory. Configuration and Use Manual...
  • Page 156 Calibration certificate Figure A-1: Sample calibration certificate CALIBRATION CERTIFICATE HFVM VISCOMASTER HEAVY FUEL VISCOSITY METER SERIAL NO 14230500 HFVM11F729BAC3MEBEZZZ CAL DATE 08-May-2013 PRESSURE TEST 160 Bar VISCOSITY CALIBRATION COEFFICIENTS @ 20°C (2" schedule 40 boundary) : VISCOSITY = V0 + V1*(1/Q²) + V2*(1/Q ULTRA-LOW RANGE LOW RANGE (0.50-10.56)cP...

  • Page 157: Appendix B Using The Transmitter Display

    Using the transmitter display Appendix B Using the transmitter display Topics covered in this appendix: • Components of the transmitter interface • Use the optical switches • Access and use the display menu system • Display codes for process variables •...

  • Page 158: Access And Use The Display Menu System

    Using the transmitter display Access and use the display menu system The display menu system is used to perform various configuration, administrative, and maintenance tasks. The display menu system does not provide complete configuration, administrative, or maintenance functions. For complete transmitter management, you must use another communications tool. Prerequisites To access the display menu system, operator access to either the Off-Line menu or the Alert menu must be enabled.

  • Page 159: Enter A Floating-Point Value Using The Display

    Using the transmitter display • Activate Scroll until the EXIT option is displayed, then activate Select. • If the EXIT option is not available, activate Scroll and Select simultaneously and hold until the screen returns to the previous display. To exit the display menu system, you can use either of the following methods: •...
  • Page 160 Using the transmitter display If the current value is positive and there is a blank space at the left of the value, activate Select until the cursor is flashing under the blank space, then activate Scroll until the minus sign appears. If the current value is positive and there is no blank space at the left of the value, activate Select until the cursor is flashing under the leftmost digit, then activate Scroll until the minus sign appears.
  • Page 161 Using the transmitter display • S = Sign. A minus sign (−) indicates a negative number. A blank indicates a positive number. • X.XXX = The 4-digit mantissa. • E = The exponent indicator. • YY = The 2-digit exponent. Procedure Switch from decimal notation to exponential notation.

  • Page 162: Display Codes For Process Variables

    Using the transmitter display To save the displayed value to transmitter memory, activate Scroll and Select simultaneously and hold until the display changes. • If the displayed value is the same as the value in transmitter memory, you will be returned to the previous screen.
  • Page 163 Using the transmitter display Table B-3: Display codes for measurement units (continued) Code Measurement unit %PLATO °Plato %SOL-V % solution by volume %SOL-W % solution by weight °C °Celsius °F °Fahrenheit °K °Kelvin °R °Rankine Atmospheres B BBL Beer barrels BALL °Balling Bars...
  • Page 164 Using the transmitter display Table B-3: Display codes for measurement units (continued) Code Measurement unit CUFT/H Cubic feet per hour CUFT/S Cubic feet per second CUIN Cubic inches CUYD Cubic yards D API °API Days DBRIX °Brix DTWAD °Twaddle Feet FT/S Feet per second FTH2O...
  • Page 165 Using the transmitter display Table B-3: Display codes for measurement units (continued) Code Measurement unit KG/M3 Kilograms per cubic meter KG/MIN Kilograms per minute KG/S Kilograms per second KG/SCM Kilograms per square centimeter Kilopascals Liters Liters per hour L/MIN Liters per minute Liters per second Pounds LB/CUF...
  • Page 166 Using the transmitter display Table B-3: Display codes for measurement units (continued) Code Measurement unit MJ/m3 Megajoules per cubic meter MJ/MIN Megajoules per minute Millimeters mmH2O Millimeters of water at 68 °F mmHG Millimeters of mercury at 0 °C mmW4C Millimeters of water at 4 °C Megapascals Millivolts...
  • Page 167 Using the transmitter display Table B-3: Display codes for measurement units (continued) Code Measurement unit Standard liter SL/D Standard liters per day SL/H Standard liters per hour SL/MIN Standard liters per minute SL/S Standard liters per second Standard cubic meter SM3/D Standard cubic meters per day SM3/H...
  • Page 168 Using the transmitter display Table B-4: Display codes for menus, controls, and data Code Definition 12 mA 12 mA value 20 mA 20 mA value 20 mA 20 mA 4 mA 4 mA value 4 mA 4 mA ABORT Abort ACCPT Accept Acknowledge...
  • Page 169 Using the transmitter display Table B-4: Display codes for menus, controls, and data (continued) Code Definition Carbon monoxide Carbon dioxide CODE? Passcode CONC Concentration CONCENTR Concentration CONFG Configure or Configuration CONFIG Configure or Configuration COR M Mass flow rate from Coriolis input COR V Volume flow rate calculated from Coriolis input CUR Z...
  • Page 170 Using the transmitter display Table B-4: Display codes for menus, controls, and data (continued) Code Definition EXT P External or fixed pressure EXT T External or fixed temperature FAC Z Factory zero value FACT Factor FACTORY Factory FAIL Fail FAULT Fault FCTOR Factor...
  • Page 171 Using the transmitter display Table B-4: Display codes for menus, controls, and data (continued) Code Definition MDIUM Medium MEASR Measurement Micro Motion Millisecond MTR F Meter factor Molecular weight Nitrogen NET M Net mass flow rate NET V Net volume flow rate nSEC Nanoseconds NUMBR...
  • Page 172 Using the transmitter display Table B-4: Display codes for menus, controls, and data (continued) Code Definition RVISC Referred viscosity SAVE Save SCALE Scale SCL F Dynamic viscosity scale factor SCREEN Screen SCRLL Scroll SCROLL Scroll SECURE Secure mode enabled SELECT Select Set, Set simulated value, Set configuration value SETPOINT...
  • Page 173 Using the transmitter display Table B-4: Display codes for menus, controls, and data (continued) Code Definition Velocity VELSW Flow switch or velocity switch VERSION_STRING Revision or Version VISC Viscosity Volume VOLTS Volts WOBBE Wobbe index XMTR Transmitter YES? Confirm Compressibility ZERO Zero Configuration and Use Manual...
  • Page 174 Using the transmitter display Micro Motion ® Heavy Fuel Viscosity Meters (HFVM) Viscomaster ™...

  • Page 175: Appendix C Using Prolink Iii With The Transmitter

    Using ProLink III with the transmitter Appendix C Using ProLink III with the transmitter Topics covered in this appendix: • Basic information about ProLink III • Connect with ProLink III Basic information about ProLink III ProLink III is a configuration and service tool available from Micro Motion. It runs on a Windows platform and provides complete access to transmitter functions and data.

  • Page 176: Connect With Prolink Iii

    Using ProLink III with the transmitter • The ability to connect to and view information for more than one device • A guided connection wizard These features are documented in the ProLink III manual. They are not documented in the current manual.

  • Page 177: Connect With Prolink Iii Over Modbus/Rs-485

    Using ProLink III with the transmitter • Modbus connections, including service port connections, are typically faster than HART connections. • When you are using a HART connection, ProLink III will not allow you to open more than one window at a time. This is done to manage network traffic and optimize speed.
  • Page 178 Using ProLink III with the transmitter Figure C-1: Connection to RS-485 terminals A. PC B. RS-232 to RS-485 converter C. Transmitter with end-cap removed Note This figure shows a serial port connection. USB connections are also supported. To connect over the RS-485 network: a.
  • Page 179 Using ProLink III with the transmitter Figure C-2: Connection over network A. PC B. RS-232 to RS-485 converter Ω , 1/2-watt resistors at both ends of the segment, if necessary C. 120- D. DCS or PLC E. Transmitter with end-cap removed Note This figure shows a serial port connection.

  • Page 180: Connect With Prolink Iii Over Hart/Bell 202

    Using ProLink III with the transmitter Table C-1: RS-485 connection parameters (continued) Optional or re- Connection type Parameter Value quired? Auto-detection Baud Rate 1200 to 38400 Optional Yes. The device accepts con- nection requests that use any valid setting, and re- sponds using the same set- ting.
  • Page 181 Using ProLink III with the transmitter CAUTION! If you connect directly to the mA terminals, the transmitter's mA output may be affected. If you are using the mA output for process control, set devices for manual control before connecting directly to the mA terminals. Prerequisites •...
  • Page 182 Using ProLink III with the transmitter Figure C-3: Connection to mA output terminals A. PC B. RS-232 to Bell 202 converter Ω resistance C. 250–600 D. External power supply E. Transmitter with end-cap removed Note This figure shows a serial port connection. USB connections are also supported. The signal converter must be connected across a resistance of 250–600 Ω.
  • Page 183 Using ProLink III with the transmitter Figure C-4: Supply voltage and resistance requirements A. External resistance (ohms) B. Supply voltage VDC (volts) C. Operating range Note To connect to a point in the local HART loop: a. Attach the leads from the signal converter to any point in the loop, ensuring that the leads are across the resistor.
  • Page 184 Using ProLink III with the transmitter Figure C-5: Connection over local loop A. PC B. RS-232 to Bell 202 converter C. Any combination of resistors R1 and R2 as necessary to meet HART communication resistance requirements D. DCS or PLC E.
  • Page 185 Using ProLink III with the transmitter Figure C-6: Supply voltage and resistance requirements A. External resistance (ohms) B. Supply voltage VDC (volts) C. Operating range Note To connect over a HART multidrop network: a. Attach the leads from the signal converter to any point in the loop. b.
  • Page 186 Using ProLink III with the transmitter Figure C-7: Connection over multidrop network A. RS-232 to Bell 202 converter Ω resistance B. 250–600 C. Devices on the network D. Master device Start ProLink III. Choose Connect to Physical Device. Set Protocol to HART Bell 202. HART/Bell 202 connections use standard connection parameters.
  • Page 187 Using ProLink III with the transmitter Click Connect. Need help? If an error message appears: • Verify the HART address of the transmitter, or poll HART addresses 1–15. • Ensure that there is at least 1 VDC across the connection terminals. Add resistance as necessary to achieve at least 1 volt.
  • Page 188 Using ProLink III with the transmitter Micro Motion ® Heavy Fuel Viscosity Meters (HFVM) Viscomaster ™...

  • Page 189: Appendix D Using The Field Communicator With The Transmitter

    Using the Field Communicator with the transmitter Appendix D Using the Field Communicator with the transmitter Topics covered in this appendix: • Basic information about the Field Communicator • Connect with the Field Communicator Basic information about the Field Communicator The Field Communicator is a handheld configuration and management tool that can be used with a variety of devices, including Micro Motion transmitters.

  • Page 190: Connect With The Field Communicator

    Using the Field Communicator with the transmitter If Micro Motion is not listed, or you do not see the required device description, use the Field Communicator Easy Upgrade Utility to install the device description, or contact Micro Motion. Field Communicator menus and messages Many of the menus in this manual start with the On-Line menu.
  • Page 191 Using the Field Communicator with the transmitter HART connections are not polarity-sensitive. It does not matter which lead you attach to which terminal. Figure D-1: Field Communicator connection to transmitter terminals A. Field Communicator Ω resistance B. 250–600 C. External power supply D.
  • Page 192 Using the Field Communicator with the transmitter To connect to a point in the HART multidrop network, attach the leads from the Field Communicator to any point on the network. Figure D-3: Field Communicator connection to multidrop network A. Field Communicator B.
  • Page 193 Using the Field Communicator with the transmitter Configuration and Use Manual...
