- Page 1 Camel...

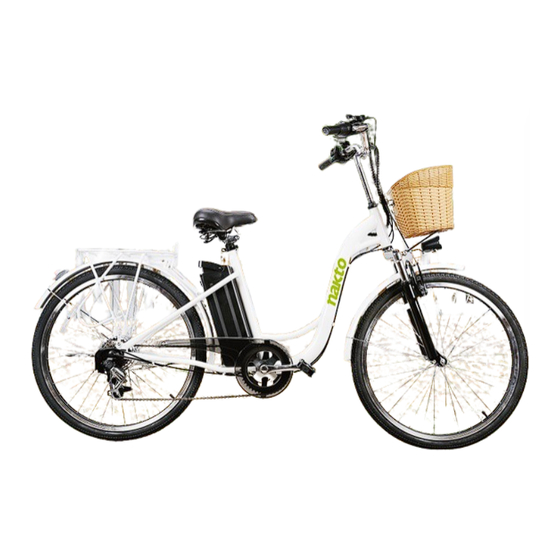

- Page 2 Fully Assembled Camel FW, Camel FB and Camel MB. CAMEAL FW CAMEAL FB CAMEAL MB...
- Page 3 The spare is not used for assembly. Keep it in a safe place that it will be used for the replacement if the original fuse were damaged. Ensure all the following pieces are included with the Nakto Camel.
- Page 4 2.Now stand the bike upright. Place some foam padding under the front fork if placed on the ground or put it on bike assembly/repair stand if you have one. We want to keep your bike looking new! Step Two: Assemble the front wheel. 1.Loosen axle nuts on front wheel to make room for the front fork.
- Page 5 3.Lift the front of the bike and lower the fork onto the wheel. Notice: The axle should enter the fork dropouts fully. 4.Line up the axle lock washers (These are the metal washer with a bent tab on one side) with the hole at each fork. Notice: These two special fork lock washers keep the wheel from falling off...
- Page 6 6.Push the black plastic caps onto the nuts. 7.Put the brake cable back to the linkage of the left arm while squeezing the brake arms .
- Page 7 Step Three: Install the handlebar stem into the steer tube. 1.Insert handlebar stem into the neck of the frame. 2.Set the stem to the desired height but not exceed max height or mini- mum insertion. 3.Align the stem so the handlebar is perpendicular to the front wheel.
- Page 8 4.Tighten the bolt on top of the handlebar stem with the supplied allen wrench. 5.Perform a twist test. (1).Brace the front wheel between your legs. (2).Switch hands so the opposite hands are pushing and pulling with about 20 pounds of force make sure the handlebar and front wheel are still properly aligned.
- Page 9 Step Four: Install the front fender and headlight. 1.Remove the fender and headlight mounting bolt from the fork arch with the supplied screwdriver and set aside. 2.Place the fender in position. From the back of the front tire, pass the front fender mounting point under the front fork arch.
- Page 10 4.Attach the fender mounting arms to the front fork. Remove the mount- ing bolts from the fork. Pass the bolt through the arm mount and fork mounting point. Ensure the fender is centered and tighten both the mounting bolts.
- Page 11 5.Center the headlight and adjust the angle slightly downwards to illumi- nate the road ahead and not blind oncoming traffic. Use the supplied Phillips-head screwdriver to loosen the headlight angle adjustment bolt, tilt the headlight to the optimal position, and then tighten in place securely.
- Page 12 Step Five: Adjust the front brake system. NOTICE: The The adjustment of the front brake system is not easy. The following steps are only a general guide to assist in the adjustment of the front brake system. Consult a certified, reputable bike mechanic to assist with it.
- Page 13 2.Cable Attachment. Before we draw the pads together, back out the barrel adjusters three or four turns. So that we can have some fine tuning at the lever. Loosen the pinch bolt.Pull the arms together with your hand and pull the cable out with some mild force.
- Page 15 3.Set Pad Clearance. Bring the barrel adjuster in toward the lever, giving more slack. Typically, the pads should feel like they are contacting the rotor at a minimum of 1/2 the lever travel. 4.Centering. Centering is done by subtle changes in spring tension. There are screws to the return spring on both sides.
- Page 16 keep even pad clearance on either side of the rim. Take the right pad for example, we can tighten to make it far from the rim, or loosen the screw to make it close. Step Six: Install the seat. 1.Open the quick release lever by hinging it open fully. 2.Insert seat post into seat tube.
- Page 17 3.Close the quick release lever to secure the seat post and check that it cannot move. If needed, use the thumb nut to add tension to the clamp so there is some resistance when the lever is in line with the clamp bolt.
- Page 18 Step Seven: Install the pedals. 1.Locate the pedal with an “R” stamped into the end of the pedal axle, which indicate it is the right pedal. The right pedal goes on the crank on the right side of the bike. The remaining pedal with an “L” stamped into the end of the axle, is the left pedal.
- Page 19 2.The right pedal is threaded to tighten by turning clockwise. The left pedal is reverse-threaded and tightens counterclockwise. Carefully thread the pedal onto the crank by hand slowly. 3.Further tighten with the supplied double open-end wrench. Do not cross thread or damage the threads. Step Eight: Install basket.
- Page 20 1.Remove the fender mounting bolts of the basket on top of the front fork with the supplied screwdriver. Pass the bolt through the fender mounting point and the bottom bracket (bracket 1) mounting point. Thread the lock nut onto the bolt end and tighten with the supplied screwdriver.
- Page 21 3.Fix the basket to the bottom bracket. Fit the bottom bracket into the curve of “bracket 4” . Pass the bolt through “bracket 3” mounting point, the basket bottom mounting point and “bracket 4” mounting point. Tighten with the supplied screwdriver.
- Page 22 4.Snap the cover into place. Step Nine: Inflate the tires. Check that the tire beads and tires are evenly seated around the rims. Use a pump with a Schrader valve and pressure gauge to inflate each tire to the recommended pressure indicated on the tire sidewall. Do not overinflate or underinflate tires.
- Page 23 Operate the electrical system when the battery has been adequately charged and the battery is secured to the frame mount. Your Nakto bike comes partially charged. We recommend you Connect the charger input plug (110/220-volt plug) to the power outlet for 3 to 4 hours.
- Page 24 Torque Required Hardware Loca�on Hardware (Nm) All Fender Moun�ng Bolts Fenders and Hardware Headlight Angle Headlight Adjustment Bolt All Basket Moun�ng Bolts Basket Area and Hardware Seat Angle Adjustment Seatpost Area Bolt Rear Dropout Area Rear Axle Nuts Rear Dropout Area Rear Torque Arm Bolt Derailleur Hanger Rear Dropout Area...
- Page 25 Quick Start Guide This ebike is equipped with two ways for a rider to use power assistance from the motor to propel the bike forward: The pedal assist system (PAS) ⸺The rider can engage the pedal assist system (PAS) while pedaling, and it will call up assistance from the motor to help propel the bike forward.
- Page 26 2.Sit on the bike. 3.Activate the pedal assistance system⸺Press the red button on the right side of the handlebar. 4.Turn on the headlight if needed or desired. Turn on the headlight by sliding the light button to right. Turn on the headlight by sliding the light button to left.
- Page 27 5.Begin riding carefully.⸺Hold handlebars and start pedaling on a flat surface, in a low gear (1 or 2), most riders should be able to begin pedal- ing the bike with pedal assist. You may also use the throttle to accelerate and maintain your desired speed.
- Page 28 Do not use the throttle while dismounted. Avoid accidental application of the throttle while dismounted; anytime you are moving the bike while dismounted, ensure the bike is powered off to prevent accidental applica- tion of the throttle. 7.Brake⸺Brake the bike by squeezing the brake lever (Notice: as a safety feature applying either front or rear brake will disengage the motor.) 8.Deactivate the pedal assistance system⸺Press the red button on...
- Page 29 first ride. It is the user’ s responsibility to ensure a potential passenger on the Nakto eblike is adequately experienced and healthy enough to ride safely as a passenger. Serious injury or death can occur if passengers are inexperienced or in poor health such that it impacts their ability to ride as passengers safely.
- Page 30 ELECRTIC BICYCLE Trek Power Inc Toll Free: 1-855-997-7297 E-mail: support@nakto.com Website: www.nakto.com Adress:1683 Sierra Madre,Placentia,CA 92870...
