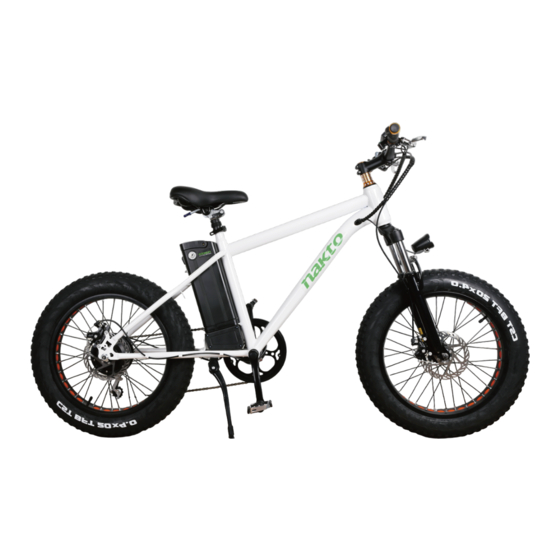

- Page 1 Mini Cruiser...
- Page 2 Keep the spare fuse in a safe place.It is not used for assembly and will be used for the replacement if the original fuse were damaged. Ensure all the following pieces are included with the Nakto Mini Cruiser.
- Page 3 2.Now stand the bike upright. Place some foam padding under the front fork if placed on the ground or put it on bike assembly/repair stand if you have one. We want to keep your bike looking new! Step Two: Assemble the front wheel. 1.Loosen the thumb nut on front wheel to make enough room for the front fork.
- Page 4 3.Check that the wheel is fully seated in the dropouts and that it is centered. Hold the quick-release lever in line with axle and tighten the thumb nut on the opposite side until the lever can stay parallel to the floor without being held.
- Page 5 Step Three: Install the handlebar. 1.Loosen the bolt on the top of the stem with the supplied allen wrench. Remove the stem bolt and washer and set aside. 2. Remove and discard plastic spacer.
- Page 6 3.Install the handlebars onto the steer stem. 4.Pass the stem bolt through the washer mounting point and the stem mount, tighten with the supplied allen wrench part away.
- Page 7 5.Align the stem so the handlebar is perpendicular to the front wheel. Use the allen wrench to tighten the stem clamp bolts evenly (a half turn at a time alternating between the two bolts).
- Page 8 6.Tighten the bolt on the top of the stem with the supplied allen wrench. 7.Perform a twist test. (1).Brace the front wheel between your legs. (2).Switch hands so the opposite hands are pushing and pulling with about 20 pounds of force make sure the handlebar and front wheel are still properly aligned.
- Page 9 Step Four： Adjust the front brake system. NOTICE: The The adjustment of the front brake system is not easy. The following steps are only a general guide to assist in the adjustment of the front brake system. Consult a certified, reputable bike mechanic to assist with it.
- Page 10 On the front disc brake caliper there are two bolts mounting it to the front fork. Loosen the mounting bolts until the caliper body is able to freely move side to side. Then squeeze the brake lever （ this centers the caliper body over the rotor）...
- Page 11 If the pads are still rubbing, we need to do some fine-tuning. Loosen one bolt at a time and adjust until there is a gap on either side of the rotor. Once the pads are not rubbing, fully secure each mounting bolt and the process is complete.
- Page 12 Loosen the bolt on the end of the disc brake caliper arm with the supplied allen wrench to adjust the brake cable tension. Once achieve the required tension mentioned above, fully secure the mounting bolt and the process is complete. Step Five: Install headlight.
- Page 13 2.Attach the headlight to the fork arch. Pass the bolt through the head- light mount and the fork arch mounting point. Thread the locknut onto the bolt end and tighten with the supplied screwdriver. 3.Center the headlight and adjust the angle slightly downwards to illumi- nate the road ahead and not blind oncoming traffic.
- Page 14 Step Six: Install the seat. 1.Open the quick release lever by hinging it open fully.
- Page 15 2.Insert seat post into seat tube. Adjust the seat post up or down to a comfortable height, while ensuring the seat post is inserted into the frame past the minimum insertion point. 3.Close the quick release lever to secure the seat post and check that it cannot move.
- Page 16 Step Seven: Install the pedals. 1. Locate the pedal with an “R” stamped into the end of the pedal axle, which indicate it is the right pedal. The right pedal goes on the crank on the right side of the bike. The remaining pedal with an “L” stamped into the end of the axle, is the left pedal.
- Page 17 2. The right pedals threaded to tighten by turning clockwise. The left pedals reverse-threaded and tightens counterclockwise. Carefully thread the pedal onto the crank by hand slowly. 3.Further tighten with the supplied double open-end wrench. Do not cross thread or damage the threads. Step Eight: Inflate the tires.
- Page 18 Operate the electrical system when the battery has been adequately charged and the battery is secured to the frame mount. Your Nakto bike comes partially charged. We recommend you Connect the charger input plug (110/220-volt plug) to the power outlet for 3 to 4 hours.
- Page 19 Torque Required Hardware Loca�on Hardware (Nm) Brake Cable to Caliper Brakes Clamp Brakes Disc Brake Rotor to Hub Headlight Angle Headlight Adjustment Bolt Seatpost Area Seat Angle Adjustment Bolt Rear Dropout Area Rear Axle Nuts Rear Dropout Area Rear Torque Arm Bolt Derailleur Hanger Rear Dropout Area Moun�ng Bolt...
- Page 20 Quick Start Guide This ebike is equipped with two ways for a rider to use power assistance from the motor to propel the bike forward: The pedal assist system (PAS) ⸺The rider can engage the pedal assist system (PAS) while pedaling, and it will call up assistance from the motor to help propel the bike forward.
- Page 21 2.Sit on the bike. 3.Turn on the electrical system⸺Press and hold the start button on the display for approximately 3 seconds until power is delivered to the display. 4.Turn on the headlight if needed or desired. Once the controller is on, press “Light”...
- Page 22 5.Select the desired level of pedal assistance⸺Select the level from “Low” to “High” by pressing “Model” . “Low” corresponds to the lowest level of pedal assistance, and “High” corresponds to the highest level of pedal assistance. Start in PAS level “Low” and adjust from there. 6.Begin riding carefully⸺Hold handlebars and start pedaling on a flat surface, in a low gear (1 or 2), most riders should be able to begin pedal- ing the bike with pedal assist level “Low”...
- Page 23 7.The throttle is used by slowly and carefully rotating the throttle back- ward toward the rider. The more you twist, the more powerfully the throttle will propel the bike forward. Do not use the throttle while dismounted. Avoid accidental application of the throttle while dismounted;...
- Page 24 first ride. It is the user’ s responsibility to ensure a potential passenger on the Nakto eblike is adequately experienced and healthy enough to ride safely as a passenger. Serious injury or death can occur if passengers are inexperi- enced or in poor health such that it impacts their ability to ride as passen- gers safely.
- Page 25 ELECRTIC BICYCLE Trek Power Inc Toll Free: 1-855-997-7297 E-mail: support@nakto.com Website: www.nakto.com Adress:1683 Sierra Madre,Placentia,CA 92870...
