DPE I/O module LEDs

Use the fault LEDs to identify the faulted part.

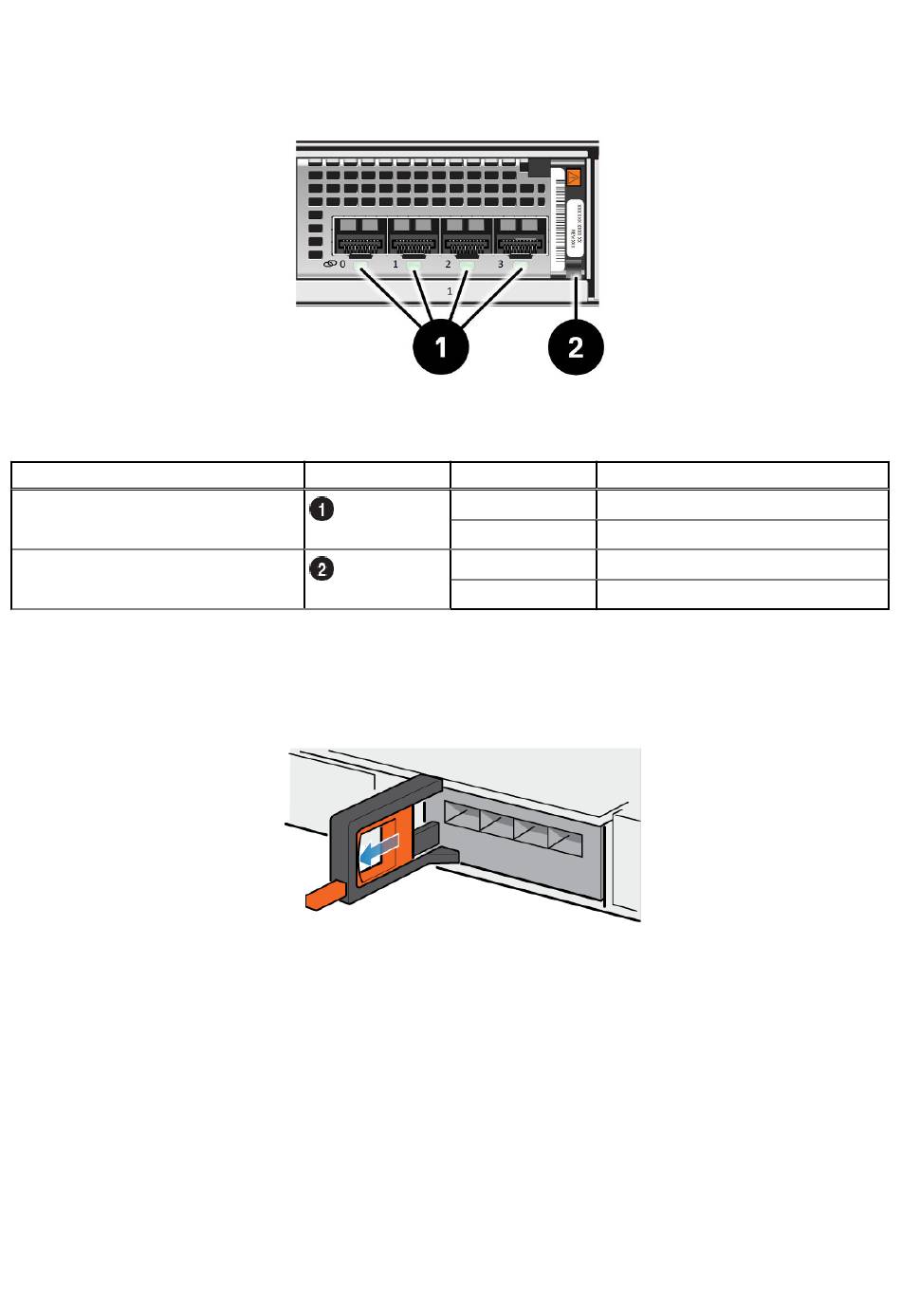

Figure 63. DPE I/O module LEDs
Table 6. DPE I/O module LEDs
LED
Port link
Power fault

Remove a faulted I/O module

Steps
1. Pull the trigger mechanism on the I/O module handle to release it.
Figure 64. Releasing the I/O module
2. Gently pull the I/O module from the slot.
62 Service Procedures
Location State
Green or blue
Off
Green
Amber
Description
Link up
Link down
Power on
Power fault
