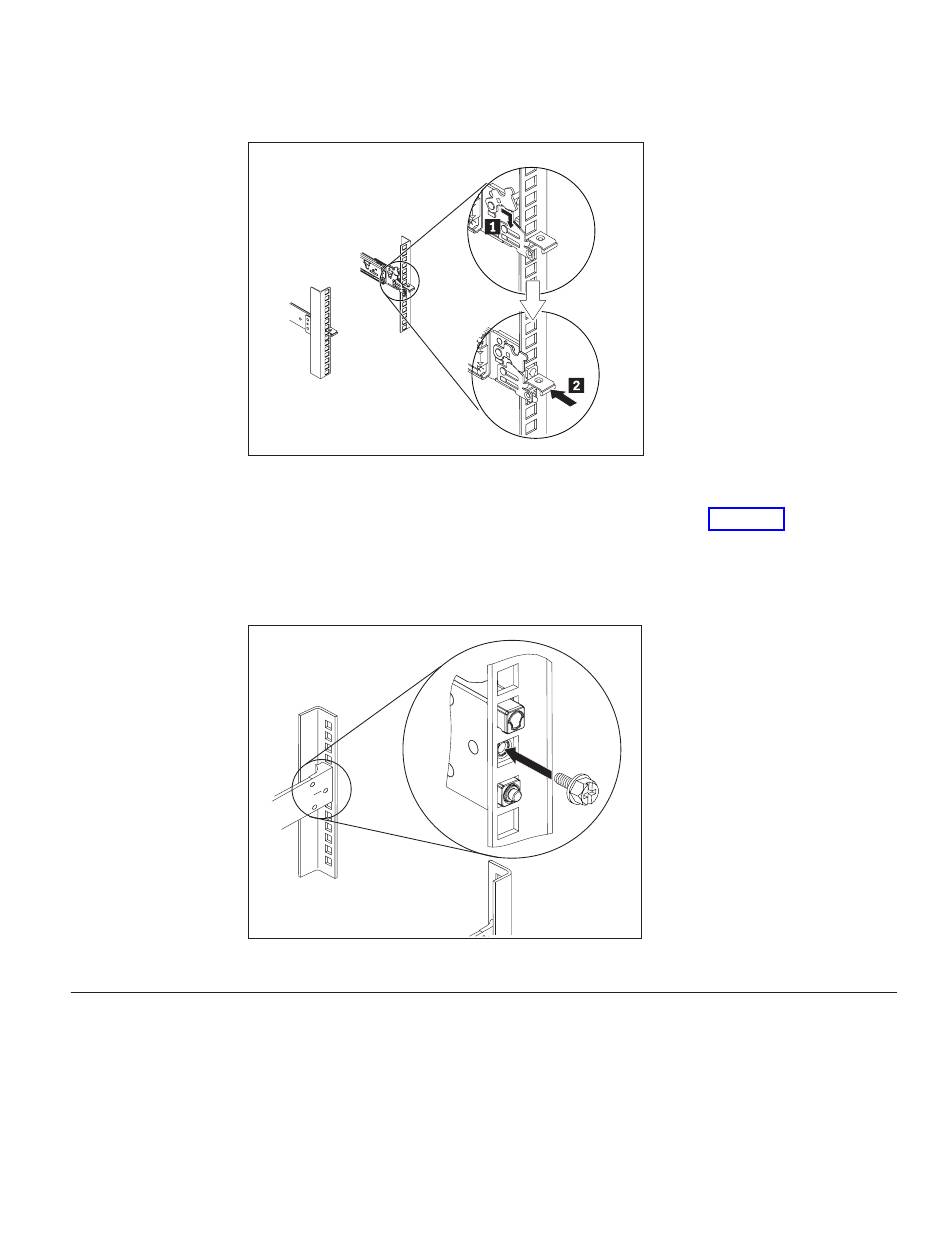

Figure 11. Install the front end of the slide rails
4. Secure the appliance slide rails in the rack, as shown in Figure 12:
Figure 12. Securing the appliance on slide rails in the rack

Installing the appliance on the slide rails

CAUTION:
Type 7198: This part or unit is heavy but has a weight smaller than 18 kg (39.7
lb). Use care when lifting, removing, or installing this part or unit. (C008)
CAUTION:
Type 7199: The weight of this part or unit is between 18 and 32 kg (39.7 and 70.5
lb). It takes two persons to safely lift this part or unit. (C009)
c. Repeat steps 1 through 3 to install the other rail into the rack. Make sure
that each front latch is fully engaged.
Rack Front
a. Install a 10-32 screw in the rear of right slide.
b. Install a 10-32 screw in the rear of left.
Rack Rear
