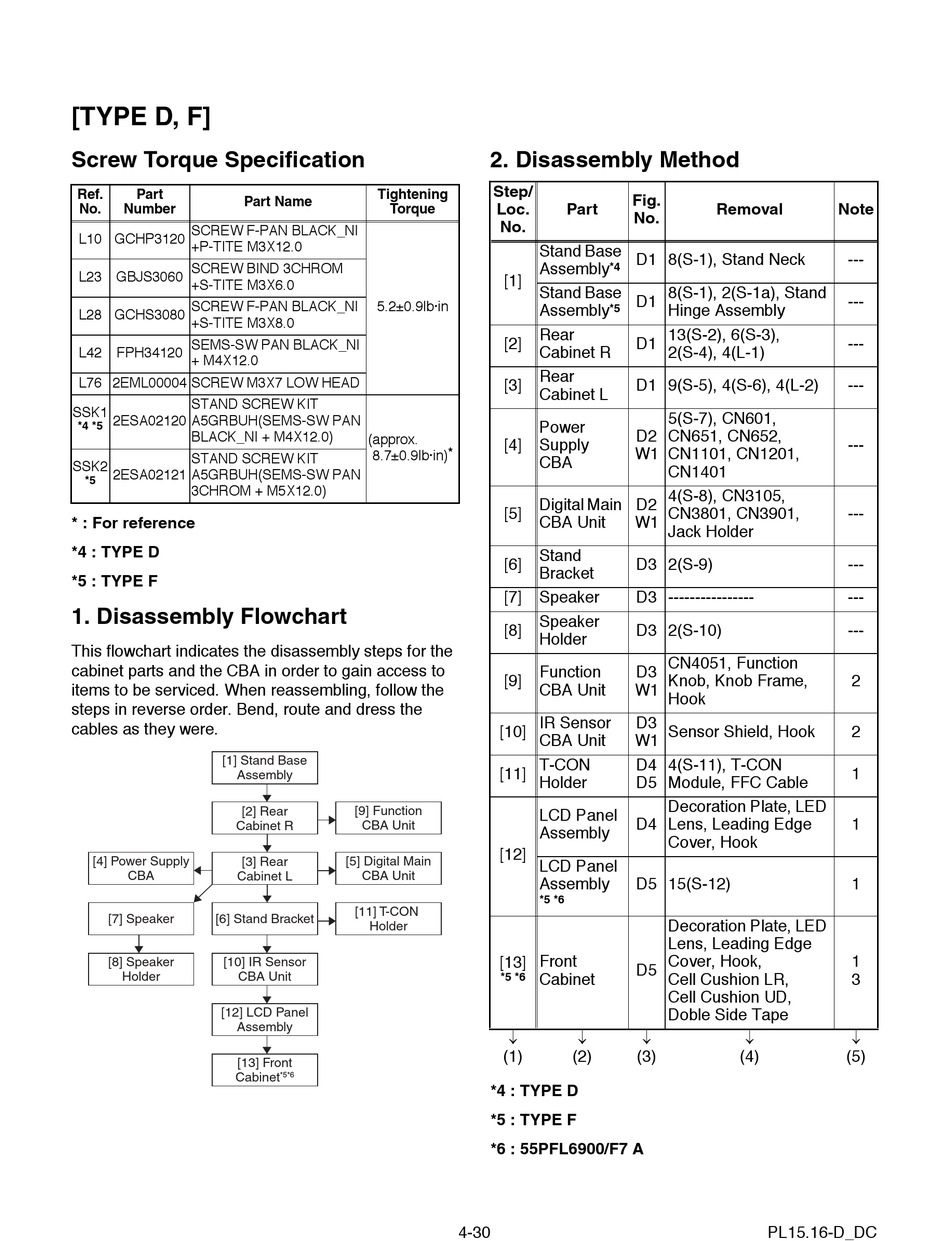

[Type D, F] - Philips 55PFL6900/F7 Service Manual

[TYPE D, F]

Screw Torque Specification
Ref. Part
Part Name
No. Number
SCREW F-PAN BLACK_NI
L10 GCHP3120
+P-TITE M3X12.0
SCREW BIND 3CHROM
L23 GBJS3060
+S-TITE M3X6.0
SCREW F-PAN BLACK_NI
L28 GCHS3080
+S-TITE M3X8.0
SEMS-SW PAN BLACK_NI
L42 FPH34120
+ M4X12.0
L76 2EML00004 SCREW M3X7 LOW HEAD
STAND SCREW KIT
SSK1
2ESA02120 A5GRBUH(SEMS-SW PAN
*4 *5
BLACK_NI + M4X12.0)
STAND SCREW KIT
SSK2
2ESA02121 A5GRBUH(SEMS-SW PAN
*5
3CHROM + M5X12.0)
* : For reference
*4 : TYPE D
*5 : TYPE F
1. Disassembly Flowchart
This flowchart indicates the disassembly steps for the
cabinet parts and the CBA in order to gain access to
items to be serviced. When reassembling, follow the
steps in reverse order. Bend, route and dress the
cables as they were.
[1] Stand Base
Assembly
[2] Rear
Cabinet R
[4] Power Supply
[3] Rear
CBA Cabinet L
[7] Speaker [6] Stand Bracket
[8] Speaker [10] IR Sensor
Holder CBA Unit
[12] LCD Panel
Assembly
[13] Front
Cabinet
Tightening
Torque
5.2±0.9lb·in
(approx.
*
8.7±0.9lb·in)
[9] Function
CBA Unit
[5] Digital Main
CBA Unit
[11] T-CON
Holder
*5*6
4-30
2. Disassembly Method
Step/
Fig.
Loc. Part
No.
No.
Stand Base
D1 8(S-1), Stand Neck
Assembly *4
[1]
Stand Base 8(S-1), 2(S-1a), Stand
D1
Assembly *5 Hinge Assembly
Rear 13(S-2), 6(S-3),
[2] D1
Cabinet R 2(S-4), 4(L-1)
Rear
[3] D1 9(S-5), 4(S-6), 4(L-2)
Cabinet L
5(S-7), CN601,
Power
D2 CN651, CN652,
[4] Supply
W1 CN1101, CN1201,
CBA
CN1401
4(S-8), CN3105,
Digital Main D2
[5] CN3801, CN3901,
CBA Unit W1
Jack Holder
Stand
[6] D3 2(S-9)
Bracket
[7] Speaker D3 ----------------
Speaker
[8] D3 2(S-10)
Holder
CN4051, Function
Function D3
[9] Knob, Knob Frame,
CBA Unit W1
Hook
IR Sensor D3
[10] Sensor Shield, Hook
CBA Unit W1
T-CON D4 4(S-11), T-CON
[11]
Holder D5 Module, FFC Cable
Decoration Plate, LED
LCD Panel
D4 Lens, Leading Edge
Assembly
Cover, Hook
[12]
LCD Panel
Assembly D5 15(S-12)
*5 *6
Decoration Plate, LED
Lens, Leading Edge
Front Cover, Hook,
[13]
D5
*5 *6 Cabinet Cell Cushion LR,
Cell Cushion UD,
Doble Side Tape
  
(1) (2) (3)
*4 : TYPE D
*5 : TYPE F
*6 : 55PFL6900/F7 A
Removal Note
---
---
---
---
---
---
---
---
---
2
2
1
1
1
1
3
 
(4) (5)
PL15.16-D_DC
