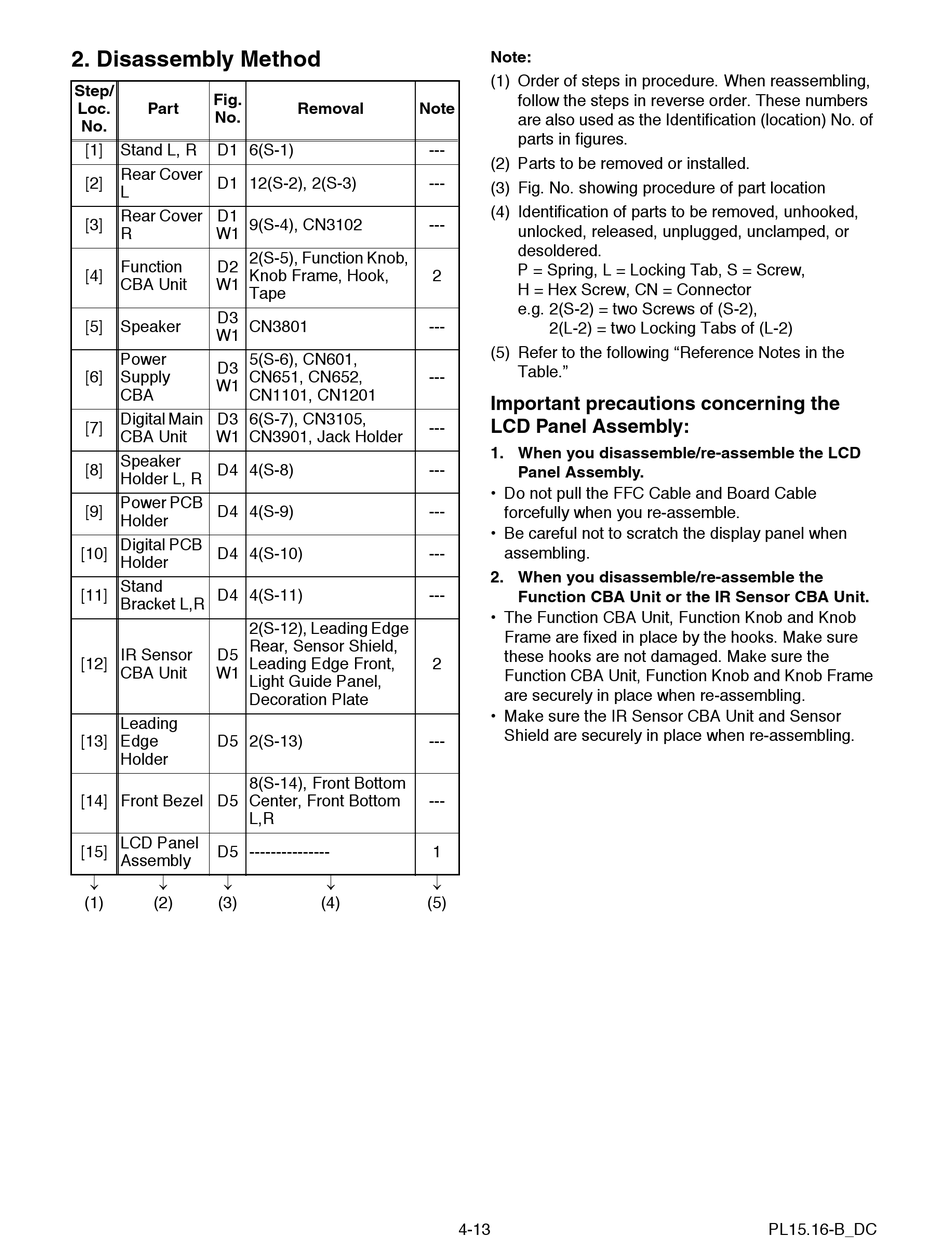

2. Disassembly Method
Step/
Fig.
Loc. Part
No.
No.
[1] Stand L, R D1 6(S-1)
Rear Cover
[2] D1 12(S-2), 2(S-3)
L
Rear Cover D1
[3] 9(S-4), CN3102
R W1
2(S-5), Function Knob,
Function D2
[4] Knob Frame, Hook,
CBA Unit W1
Tape
D3
[5] Speaker CN3801
W1
Power 5(S-6), CN601,
D3
[6] Supply CN651, CN652,
W1
CBA CN1101, CN1201
Digital Main D3 6(S-7), CN3105,
[7]
CBA Unit W1 CN3901, Jack Holder
Speaker
[8] D4 4(S-8)
Holder L, R
Power PCB
[9] D4 4(S-9)
Holder
Digital PCB
[10] D4 4(S-10)
Holder
Stand
[11] D4 4(S-11)
Bracket L,R
2(S-12), Leading Edge
Rear, Sensor Shield,
IR Sensor D5
[12] Leading Edge Front,
CBA Unit W1
Light Guide Panel,
Decoration Plate
Leading
[13] Edge D5 2(S-13)
Holder
8(S-14), Front Bottom
[14] Front Bezel D5 Center, Front Bottom
L,R
LCD Panel
[15] D5 ---------------
Assembly
  
(1) (2) (3)
Removal Note
---
---
---
2
---
---
---
---
---
---
---
2
---
---
1
 
(4) (5)
4-13
Note:
(1) Order of steps in procedure. When reassembling,
follow the steps in reverse order. These numbers
are also used as the Identification (location) No. of
parts in figures.
(2) Parts to be removed or installed.
(3) Fig. No. showing procedure of part location
(4) Identification of parts to be removed, unhooked,
unlocked, released, unplugged, unclamped, or
desoldered.
P = Spring, L = Locking Tab, S = Screw,
H = Hex Screw, CN = Connector
e.g. 2(S-2) = two Screws of (S-2),
2(L-2) = two Locking Tabs of (L-2)
(5) Refer to the following "Reference Notes in the
Table."
Important precautions concerning the
LCD Panel Assembly:
1. When you disassemble/re-assemble the LCD
Panel Assembly.
• Do not pull the FFC Cable and Board Cable
forcefully when you re-assemble.
• Be careful not to scratch the display panel when
assembling.
2. When you disassemble/re-assemble the
Function CBA Unit or the IR Sensor CBA Unit.
• The Function CBA Unit, Function Knob and Knob
Frame are fixed in place by the hooks. Make sure
these hooks are not damaged. Make sure the
Function CBA Unit, Function Knob and Knob Frame
are securely in place when re-assembling.
• Make sure the IR Sensor CBA Unit and Sensor
Shield are securely in place when re-assembling.
