Philips 55PFL6900/F7 Service Manual page 158

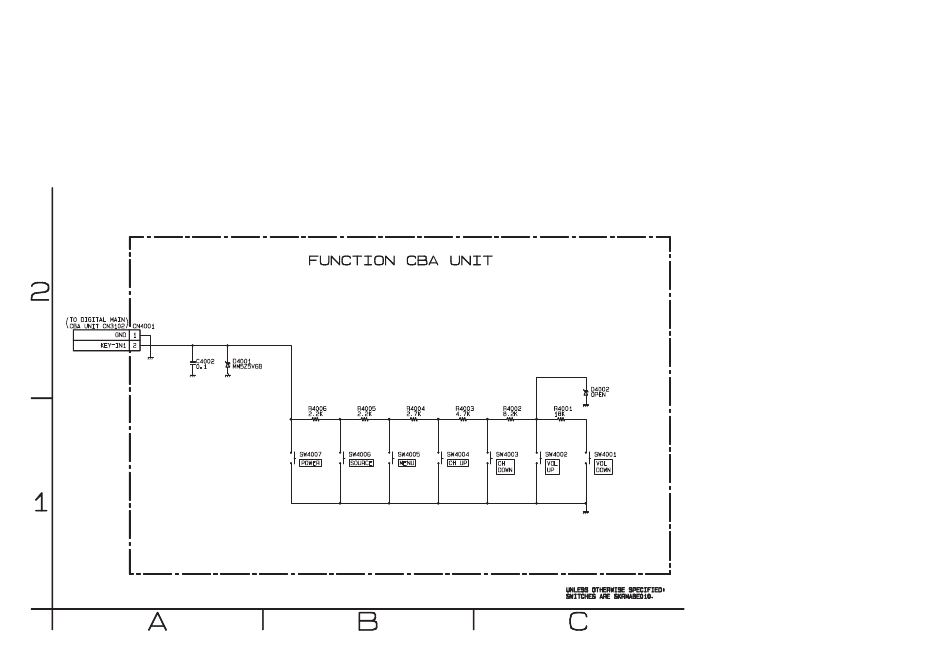

Function Schematic Diagram [TYPE B]
2
TO DIGITAL MAIN
CBA UNIT CN3102 CN4001
GND 1
KEY-IN1 2
C4002
0.1
1
A
FUNCTION CBA UNIT
D4001
MM5Z5V6B
R4006 R4005 R4004
2.2K 2.2K 2.7K
SW4007 SW4006 SW4005
POWER SOURCE MENU
B
D4002
OPEN
R4003 R4002 R4001
4.7K 8.2K 18K
SW4004 SW4003 SW4002 SW4001
CH UP
CH VOL VOL
DOWN UP DOWN
UNLESS OTHERWISE SPECIFIED:
SWITCHES ARE SKRMABE010.
C
10-56 PL15.16BSCF
