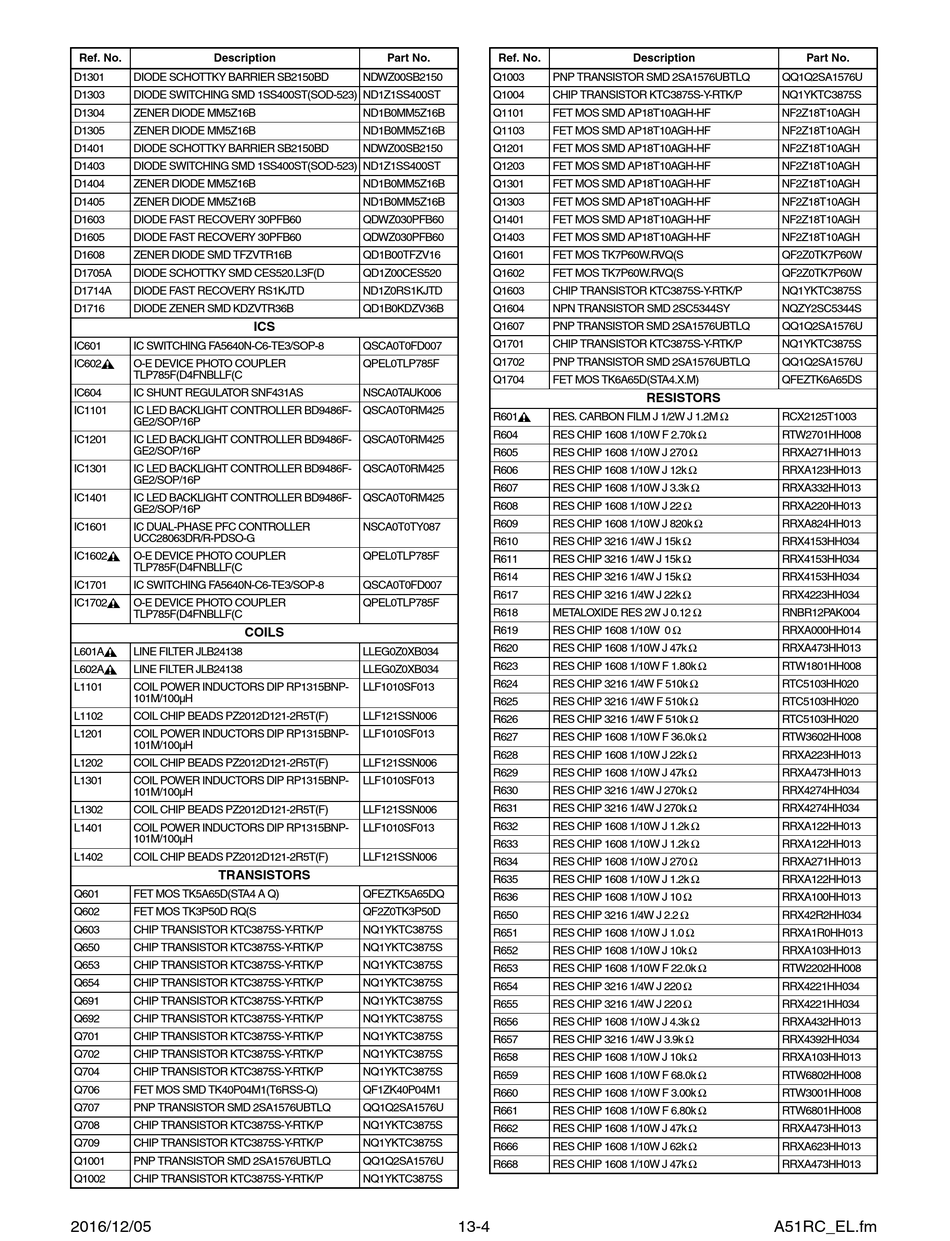

Philips 55PFL6900/F7 Service Manual page 189

Ref. No. Description
D1301 DIODE SCHOTTKY BARRIER SB2150BD
D1303 DIODE SWITCHING SMD 1SS400ST(SOD-523) ND1Z1SS400ST
D1304 ZENER DIODE MM5Z16B
D1305 ZENER DIODE MM5Z16B
D1401 DIODE SCHOTTKY BARRIER SB2150BD
D1403 DIODE SWITCHING SMD 1SS400ST(SOD-523) ND1Z1SS400ST
D1404 ZENER DIODE MM5Z16B
D1405 ZENER DIODE MM5Z16B
D1603 DIODE FAST RECOVERY 30PFB60
D1605 DIODE FAST RECOVERY 30PFB60
D1608 ZENER DIODE SMD TFZVTR16B
D1705A DIODE SCHOTTKY SMD CES520.L3F(D
D1714A DIODE FAST RECOVERY RS1KJTD
D1716 DIODE ZENER SMD KDZVTR36B
IC601 IC SWITCHING FA5640N-C6-TE3/SOP-8
IC602# O-E DEVICE PHOTO COUPLER
TLP785F(D4FNBLLF(C
IC604 IC SHUNT REGULATOR SNF431AS
IC1101 IC LED BACKLIGHT CONTROLLER BD9486F-
GE2/SOP/16P
IC1201 IC LED BACKLIGHT CONTROLLER BD9486F-
GE2/SOP/16P
IC1301 IC LED BACKLIGHT CONTROLLER BD9486F-
GE2/SOP/16P
IC1401 IC LED BACKLIGHT CONTROLLER BD9486F-
GE2/SOP/16P
IC1601 IC DUAL-PHASE PFC CONTROLLER
UCC28063DR/R-PDSO-G
IC1602# O-E DEVICE PHOTO COUPLER
TLP785F(D4FNBLLF(C
IC1701 IC SWITCHING FA5640N-C6-TE3/SOP-8
IC1702# O-E DEVICE PHOTO COUPLER
TLP785F(D4FNBLLF(C
COILS
L601A# LINE FILTER JLB24138
L602A# LINE FILTER JLB24138
L1101 COIL POWER INDUCTORS DIP RP1315BNP-
101M/100µH
L1102 COIL CHIP BEADS PZ2012D121-2R5T(F)
L1201 COIL POWER INDUCTORS DIP RP1315BNP-
101M/100µH
L1202 COIL CHIP BEADS PZ2012D121-2R5T(F)
L1301 COIL POWER INDUCTORS DIP RP1315BNP-
101M/100µH
L1302 COIL CHIP BEADS PZ2012D121-2R5T(F)
L1401 COIL POWER INDUCTORS DIP RP1315BNP-
101M/100µH
L1402 COIL CHIP BEADS PZ2012D121-2R5T(F)
TRANSISTORS
Q601 FET MOS TK5A65D(STA4 A Q)
Q602 FET MOS TK3P50D RQ(S
Q603 CHIP TRANSISTOR KTC3875S-Y-RTK/P
Q650 CHIP TRANSISTOR KTC3875S-Y-RTK/P
Q653 CHIP TRANSISTOR KTC3875S-Y-RTK/P
Q654 CHIP TRANSISTOR KTC3875S-Y-RTK/P
Q691 CHIP TRANSISTOR KTC3875S-Y-RTK/P
Q692 CHIP TRANSISTOR KTC3875S-Y-RTK/P
Q701 CHIP TRANSISTOR KTC3875S-Y-RTK/P
Q702 CHIP TRANSISTOR KTC3875S-Y-RTK/P
Q704 CHIP TRANSISTOR KTC3875S-Y-RTK/P
Q706 FET MOS SMD TK40P04M1(T6RSS-Q)
Q707 PNP TRANSISTOR SMD 2SA1576UBTLQ
Q708 CHIP TRANSISTOR KTC3875S-Y-RTK/P
Q709 CHIP TRANSISTOR KTC3875S-Y-RTK/P
Q1001 PNP TRANSISTOR SMD 2SA1576UBTLQ
Q1002 CHIP TRANSISTOR KTC3875S-Y-RTK/P
2016/12/05
Part No.
NDWZ00SB2150
ND1B0MM5Z16B
ND1B0MM5Z16B
NDWZ00SB2150
ND1B0MM5Z16B
ND1B0MM5Z16B
QDWZ030PFB60
QDWZ030PFB60
QD1B00TFZV16
QD1Z00CES520
ND1Z0RS1KJTD
QD1B0KDZV36B
ICS
QSCA0T0FD007
QPEL0TLP785F
NSCA0TAUK006
QSCA0T0RM425
QSCA0T0RM425
QSCA0T0RM425
QSCA0T0RM425
NSCA0T0TY087
QPEL0TLP785F
QSCA0T0FD007
QPEL0TLP785F
LLEG0Z0XB034
LLEG0Z0XB034
LLF1010SF013
LLF121SSN006
LLF1010SF013
LLF121SSN006
LLF1010SF013
LLF121SSN006
LLF1010SF013
LLF121SSN006
QFEZTK5A65DQ
QF2Z0TK3P50D
NQ1YKTC3875S
NQ1YKTC3875S
NQ1YKTC3875S
NQ1YKTC3875S
NQ1YKTC3875S
NQ1YKTC3875S
NQ1YKTC3875S
NQ1YKTC3875S
NQ1YKTC3875S
QF1ZK40P04M1
QQ1Q2SA1576U
NQ1YKTC3875S
NQ1YKTC3875S
QQ1Q2SA1576U
NQ1YKTC3875S
Ref. No. Description
Q1003 PNP TRANSISTOR SMD 2SA1576UBTLQ
Q1004 CHIP TRANSISTOR KTC3875S-Y-RTK/P
Q1101 FET MOS SMD AP18T10AGH-HF
Q1103 FET MOS SMD AP18T10AGH-HF
Q1201 FET MOS SMD AP18T10AGH-HF
Q1203 FET MOS SMD AP18T10AGH-HF
Q1301 FET MOS SMD AP18T10AGH-HF
Q1303 FET MOS SMD AP18T10AGH-HF
Q1401 FET MOS SMD AP18T10AGH-HF
Q1403 FET MOS SMD AP18T10AGH-HF
Q1601 FET MOS TK7P60W.RVQ(S
Q1602 FET MOS TK7P60W.RVQ(S
Q1603 CHIP TRANSISTOR KTC3875S-Y-RTK/P
Q1604 NPN TRANSISTOR SMD 2SC5344SY
Q1607 PNP TRANSISTOR SMD 2SA1576UBTLQ
Q1701 CHIP TRANSISTOR KTC3875S-Y-RTK/P
Q1702 PNP TRANSISTOR SMD 2SA1576UBTLQ
Q1704 FET MOS TK6A65D(STA4.X.M)
RES. CARBON FILM J 1/2W J 1.2M Ω
R601#
RES CHIP 1608 1/10W F 2.70k Ω
R604
RES CHIP 1608 1/10W J 270 Ω
R605
RES CHIP 1608 1/10W J 12k Ω
R606
RES CHIP 1608 1/10W J 3.3k Ω
R607
RES CHIP 1608 1/10W J 22 Ω
R608
RES CHIP 1608 1/10W J 820k Ω
R609
RES CHIP 3216 1/4W J 15k Ω
R610
RES CHIP 3216 1/4W J 15k Ω
R611
RES CHIP 3216 1/4W J 15k Ω
R614
RES CHIP 3216 1/4W J 22k Ω
R617
METALOXIDE RES 2W J 0.12 Ω
R618
RES CHIP 1608 1/10W 0 Ω
R619
RES CHIP 1608 1/10W J 47k Ω
R620
RES CHIP 1608 1/10W F 1.80k Ω
R623
RES CHIP 3216 1/4W F 510k Ω
R624
RES CHIP 3216 1/4W F 510k Ω
R625
RES CHIP 3216 1/4W F 510k Ω
R626
RES CHIP 1608 1/10W F 36.0k Ω
R627
RES CHIP 1608 1/10W J 22k Ω
R628
RES CHIP 1608 1/10W J 47k Ω
R629
RES CHIP 3216 1/4W J 270k Ω
R630
RES CHIP 3216 1/4W J 270k Ω
R631
RES CHIP 1608 1/10W J 1.2k Ω
R632
RES CHIP 1608 1/10W J 1.2k Ω
R633
RES CHIP 1608 1/10W J 270 Ω
R634
RES CHIP 1608 1/10W J 1.2k Ω
R635
RES CHIP 1608 1/10W J 10 Ω
R636
RES CHIP 3216 1/4W J 2.2 Ω
R650
RES CHIP 1608 1/10W J 1.0 Ω
R651
RES CHIP 1608 1/10W J 10k Ω
R652
RES CHIP 1608 1/10W F 22.0k Ω
R653
RES CHIP 3216 1/4W J 220 Ω
R654
RES CHIP 3216 1/4W J 220 Ω
R655
RES CHIP 1608 1/10W J 4.3k Ω
R656
RES CHIP 3216 1/4W J 3.9k Ω
R657
RES CHIP 1608 1/10W J 10k Ω
R658
RES CHIP 1608 1/10W F 68.0k Ω
R659
RES CHIP 1608 1/10W F 3.00k Ω
R660
RES CHIP 1608 1/10W F 6.80k Ω
R661
RES CHIP 1608 1/10W J 47k Ω
R662
RES CHIP 1608 1/10W J 62k Ω
R666
RES CHIP 1608 1/10W J 47k Ω
R668
13-4
Part No.
QQ1Q2SA1576U
NQ1YKTC3875S
NF2Z18T10AGH
NF2Z18T10AGH
NF2Z18T10AGH
NF2Z18T10AGH
NF2Z18T10AGH
NF2Z18T10AGH
NF2Z18T10AGH
NF2Z18T10AGH
QF2Z0TK7P60W
QF2Z0TK7P60W
NQ1YKTC3875S
NQZY2SC5344S
QQ1Q2SA1576U
NQ1YKTC3875S
QQ1Q2SA1576U
QFEZTK6A65DS
RESISTORS
RCX2125T1003
RTW2701HH008
RRXA271HH013
RRXA123HH013
RRXA332HH013
RRXA220HH013
RRXA824HH013
RRX4153HH034
RRX4153HH034
RRX4153HH034
RRX4223HH034
RNBR12PAK004
RRXA000HH014
RRXA473HH013
RTW1801HH008
RTC5103HH020
RTC5103HH020
RTC5103HH020
RTW3602HH008
RRXA223HH013
RRXA473HH013
RRX4274HH034
RRX4274HH034
RRXA122HH013
RRXA122HH013
RRXA271HH013
RRXA122HH013
RRXA100HH013
RRX42R2HH034
RRXA1R0HH013
RRXA103HH013
RTW2202HH008
RRX4221HH034
RRX4221HH034
RRXA432HH013
RRX4392HH034
RRXA103HH013
RTW6802HH008
RTW3001HH008
RTW6801HH008
RRXA473HH013
RRXA623HH013
RRXA473HH013
