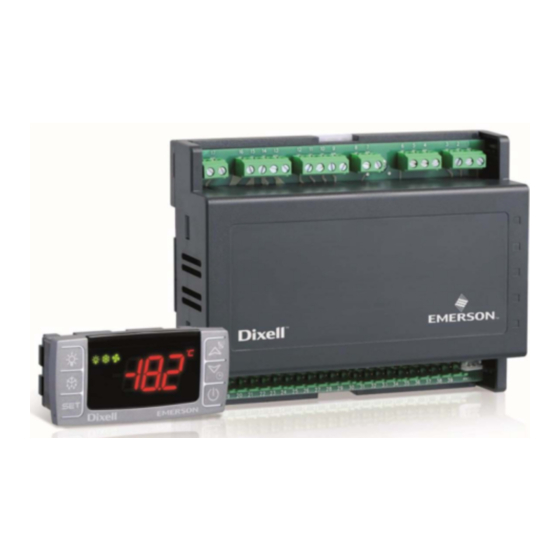

Emerson XM670K Installing And Operating Instructions

Controllers for Multiplexed Cabinets
XM670K Rel. 5.4
Installing and Operating Instructions
1 Introduction
1.1. General Warnings
Please read the following safety precautions and warnings before using this manual:
CAUTION!
• This manual is part of the product and should be kept near the device for easy and quick reference.
• The device should not be used for purposes different from those described in this manual. It cannot be used as a safety device.
• Check the application limits before proceeding.
• Emerson reserves the right to change the composition of its products, even without notice, ensuring the same and unchanged functionality.
SAFETY PRECAUTIONS!
• Check that the supply voltage is correct before connecting the device.
• Do not expose to water or moisture: use the controller only within the operating limits and avoid sudden temperature changes with high
atmospheric humidity to prevent condensation from forming.
• Warning: Disconnect all electrical connections before performing any kind of maintenance.
• Fit the probe where it is not accessible by the end user. The device must not be opened.
• In case of failure or faulty operation, send the device back to the distributor or to Emerson (see address) with a detailed
description of the fault.
• Verify the maximum current that can be applied to each relay (see section 16, Technical Data).
• Ensure that the wires for probes, loads, and the power supply are separated and far enough from each other without crossing or intertwining.
• In case of applications in industrial environments, the use of main filters in parallel with inductive loads could be useful.
2 Before Proceeding
2.1. Software Release of XM670K
1. Look at the software release of XM670K printed on the label of the controller.
2. If the software release is 5.4, proceed with this manual; otherwise contact Emerson to access the correct manual.
3. Note that RTC is not supported on devices connected to E2, E3, and Site Supervisor.
Document Part # 026-4280 Rev 1
©2022 Emerson Digital Cold Chain, Inc. This document may be photocopied for personal use.
Visit our website at www.climate.emerson.com for the latest technical documentation and updates.
Figure 2-1 - Software Release of XM670K 5.4
