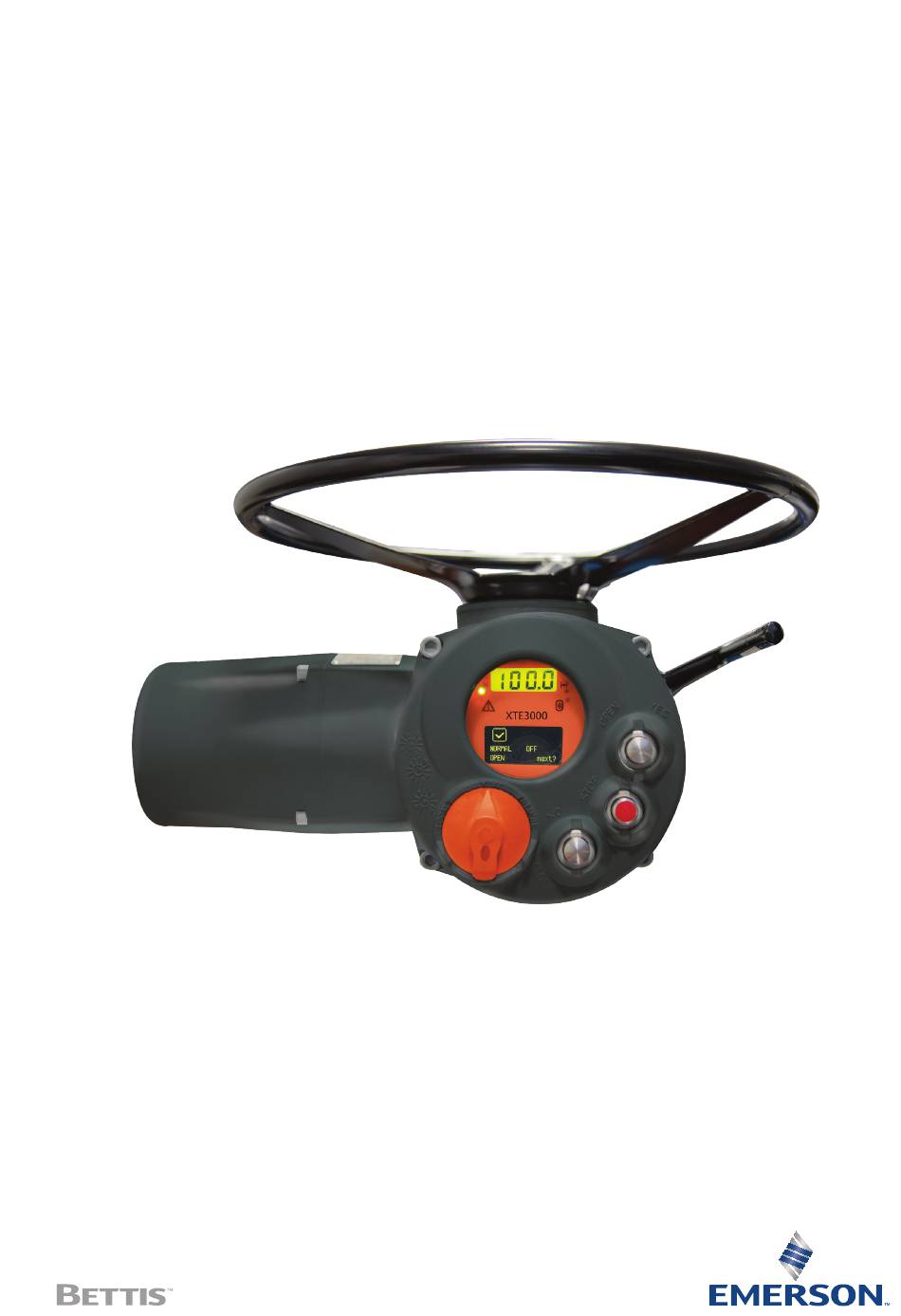

Installation, Operation and Maintenance Manual
MAN-02-04-97-0713-EN Rev. 1
October 2019

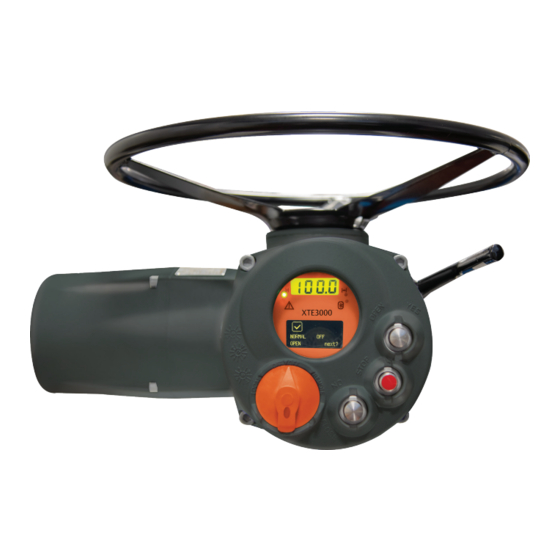

Bettis XTE3000
Electric Actuator

Advertisement

Table of Contents
loading

Related Manuals for Emerson Bettis XTE3000

Summary of Contents for Emerson Bettis XTE3000

  • Page 1 Installation, Operation and Maintenance Manual MAN-02-04-97-0713-EN Rev. 1 October 2019 Bettis XTE3000 Electric Actuator...

  • Page 3: Table Of Contents

    Installation, Operation and Maintenance Manual Table of Contents MAN-02-04-97-0713-EN Rev. 1 October 2019 Table of Contents Section 1: General Safety Instructions Range of Applications ................... 1 Safety Instructions for Installation in Hazardous Areas ........1 1.2.1 Marking ....................2 Applicable Standards and Regulations ............2 Terms and Conditions ...................
  • Page 4 Table of Contents Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 5.6.1 Remote Commands................30 5.6.2 Output Contacts ................32 5.6.3 ESD Operation .................. 32 5.6.4 Interlock Inputs ................33 Operating the XTE3000 for the First Time ........... 34 Optional Modules ..................
  • Page 5 Installation, Operation and Maintenance Manual Table of Contents MAN-02-04-97-0713-EN Rev. 1 October 2019 Section 10: View Routines 10.1 Actuator Set-Up ..................76 10.2 Nameplate ....................77 10.3 Valve Data ....................78 10.4 Maintenance ....................78 10.4.1 Alarm Log ..................78 10.4.2 Torque Profile ...................
  • Page 6 Table of Contents Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Maintenance ..................... 122 A.8.1 Periodic Inspection ................. 122 A.8.2 Disassembly and Re-assembly ............122 A.8.3 Repairs ................... 123 Appendix B: XTE3000 / XTE3000AD / XTE3000LP Safety Instructions ..................124 B.1.1 General ..................
  • Page 7 Installation, Operation and Maintenance Manual Table of Contents MAN-02-04-97-0713-EN Rev. 1 October 2019 Appendix D: XTE3000 Safety Instructions ..................144 D.1.1 General ..................144 D.1.2 Identification of Main Parts ............. 145 Instructions for Proper Installation ............146 D.2.1 Marking ..................146 Applicable Directives, General Standards, and Norms .......

  • Page 9: Section 1: General Safety Instructions

    Section 1: General Safety Instructions Range of Applications The Bettis XTE3000 electric actuator covered in this manual is designed for the operation of any type of industrial valve used in heavy industrial, chemical, and petrochemical facilities. Emerson will not be liable for potential damage resulting from use in anything other than these designated applications.

  • Page 10: Marking

    Section 1: General Safety Instructions Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 1.2.1 Marking Table 1. IECEx INE XX.ZZZZ IECEx reference certificate (CoC) XX ATEX ZZZZ ATEX reference certificate 0080 Notified body for ATEX quality assurance (INERIS) Group II (surface industries) Category 2 apparatus Explosive atmospheres caused by gas, mists, or...

  • Page 11: Terms And Conditions

    Electric motor Terms and Conditions Emerson guarantees every product to be free from defects and to conform to industry standards. The warranty period is one year from the date of installation by the first user, or eighteen months from the date of shipment to the first user, whichever occurs first. No...

  • Page 12: Section 2: Storage And Pre-Installation

    Section 2: Storage and Pre-Installation Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Section 2: Storage and Pre-Installation Tests to be Carried Out When the Actuator is Received If the actuator is received already mounted on the valve, all the below operations should have already been performed during valve/actuator assembly.

  • Page 13: Short-Term Storage (One Year Or Fewer)

    Installation, Operation and Maintenance Manual Section 2: Storage and Pre-Installation MAN-02-04-97-0713-EN Rev. 1 October 2019 2.2.2 Short-term Storage (One Year or Fewer) 2.2.2.1 Indoor Storage Make sure that the actuator is kept in a dry place, laid on a wooden pallet, and protected from dust.
  • Page 14 Section 2: Storage and Pre-Installation Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Figure 3 Figure 4 Figure 5 Storage and Pre-Installation...

  • Page 15: Checks To Be Performed Before Installation

    Installation, Operation and Maintenance Manual Section 2: Storage and Pre-Installation MAN-02-04-97-0713-EN Rev. 1 October 2019 Figure 6 Checks to be Performed Before Installation • Make sure that the valve to be motorized is appropriate for coupling to the actuator. • The electrical supply cables must be suitable for the power rating (refer to the test certificate that comes with the actuator).

  • Page 16: Section 3: Installation

    Section 3: Installation Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Section 3: Installation Working Condition Standard actuators are suitable for the following environment temperatures: -20 °C +85 °C (-4 °F to +185 °F) Special versions are available for extreme environment temperatures: -40 °C +85 °C (-40 °F to +185 °F) -55 °C +65 °C (-67 °F to +149 °F) NOTICE...

  • Page 17: Coupling Block: Disassembly From The Actuator

    Installation, Operation and Maintenance Manual Section 3: Installation MAN-02-04-97-0713-EN Rev. 1 October 2019 Coupling Block: Disassembly from the Actuator The bushing is delivered already assembled to the drive sleeve, even when it is unmachined. In order to perform the necessary machining, remove the bushing from its housing.
  • Page 18 Section 3: Installation Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Extract the stem nut from the block housing. Figure 9 The internal thrust bearing will remain at the bottom of the block housing. Figure 10 NOTICE Before re-mounting the stem nut, make sure that coupling tolerances to the valve stem are correct.

  • Page 19: Type "B1" And "B2" Coupling Blocks

    Installation, Operation and Maintenance Manual Section 3: Installation MAN-02-04-97-0713-EN Rev. 1 October 2019 3.2.1.2 Re-assembling the Internal Parts It is advisable to wash the dismantled parts with a suitable solvent and dry them with compressed air. Make sure that no metal filings or foreign bodies remain; spread a film of grease on all parts (for grease type, see Section 4, Lubrication).

  • Page 20: Type "B3" And "B4" Coupling Blocks

    Section 3: Installation Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Figure 12 The internal thrust washer will remain at the bottom of the block housing. The bore can now be machined in the bushing to suit coupling requirements. The same procedure is also used if maintenance becomes necessary.

  • Page 21: Attaching The Coupling Block To The Gear Reduction Unit

    Installation, Operation and Maintenance Manual Section 3: Installation MAN-02-04-97-0713-EN Rev. 1 October 2019 Figure 14 Extract the bushing and machine it according to the mating needs. Figure 15 3.2.3.2 Re-assembling the Internal Parts It is advisable to wash the dismantled parts with a suitable solvent and dry them with compressed air.

  • Page 22: Manual Operation

    Section 3: Installation Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Manual Operation To engage manual operation, depress (by 20°-30°) the lever in the direction shown in Figure 18 and then let the lever automatically return to its rest position. If no engagement is obtained, slowly rotate the handwheel and repeat the operation.
  • Page 23 Installation, Operation and Maintenance Manual Section 3: Installation MAN-02-04-97-0713-EN Rev. 1 October 2019 Engagement lever locked in handwheel operation position: operation with the electric motor is mechanically disengaged. TO CLOSE Figure 18 Figure 19 Figure 20 Installation...

  • Page 24: Mounting The Actuator Onto The Valve

    Section 3: Installation Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 WARNING Never lift the valve/actuator assembly without securing slings to both the valve and the actuator. Never use the handwheel to lift the actuator. Table 5. Model Max.

  • Page 25: Actuator Mounting

    Installation, Operation and Maintenance Manual Section 3: Installation MAN-02-04-97-0713-EN Rev. 1 October 2019 3.4.3 Actuator Mounting NOTICE If the actuator is supplied without stud bolts and nuts, these must be provided by the customer and conform to the material requirements in Table 6. CAUTION Failure to use proper torque values can result in damage to the actuator and/or valve.

  • Page 26: Electrical Connections

    Access to terminals for electrical connections and commissioning is via the terminal cover, since all settings are non-intrusive. The removal of any other covers without Emerson approval will invalidate the warranty; Emerson will not accept responsibility for any damage or deterioration that may be caused.

  • Page 27: Removing The Terminal Board Enclosure

    Installation, Operation and Maintenance Manual Section 3: Installation MAN-02-04-97-0713-EN Rev. 1 October 2019 Figure 22 Removing the Terminal Board Enclosure The sealing of cables and conduit entries should be carried out in accordance with the relevant national standards or the regulatory authorities that certified the actuators. This is especially true for units that are certified for use in hazardous areas, where the method of sealing must be to an approved standard and cable glands, reducers, plugs, and adapters must be approved and separately certified.

  • Page 28: Terminal Board

    Section 3: Installation Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Figure 23 If some parts of the cable glands have been removed while working on the conduit entries, put them back into place immediately to avoid misplacing the dismantled parts. Unused entries: •...
  • Page 29 Installation, Operation and Maintenance Manual Section 3: Installation MAN-02-04-97-0713-EN Rev. 1 October 2019 Terminate the ground connections to the stud marked "ground". One internal ground stud and one external ground stud are provided. Before performing service or maintenance operations (unless otherwise indicated), ensure that power is turned off to the unit to avoid injury or damage to equipment.

  • Page 30: Instructions For Explosion-Proof Enclosures

    Instructions For Explosion-proof Enclosures NOTICE The Bettis XTE3000 electric actuator shall be installed and maintained according to the applicable rules regarding electrical installations in hazardous area (other than mines) classified as zone 1 (gas); for example: EN 60079-10 (hazardous area classification), EN 60079-14 (electrical installation), EN 60079-17 (maintenance), and/or other national standards.

  • Page 31: Installation In Environments With Explosive Dusts

    Explosive Dusts NOTICE The Bettis XTE3000 electric actuator shall be installed and maintained according to the applicable rules regarding electrical installation in hazardous areas (other than mines), classified as zone 21 (dust); for example: EN 50281-1-2 (dust) and/or other national standards.

  • Page 32: Section 4: Lubrication

    Section 4: Lubrication Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Section 4: Lubrication Lubrication Inspection The actuator is lubricated for the duration of its service life; under normal working conditions it is not necessary to replace or refill the oil. However, it is recommended to check the oil level every 3-5 years using holes 1 or 2 (per Figures 27 and 28) depending on what orientation the actuator was mounted.
  • Page 33 Installation, Operation and Maintenance Manual Section 4: Lubrication MAN-02-04-97-0713-EN Rev. 1 October 2019 Should maintenance become necessary, the following GREASES are recommended: Ambient temperature from -20 °C to +85 °C • AGIP GREASE MU EP 2 or equivalent Ambient temperature from -40 °C to +85 °C •...

  • Page 34: Section 5: Operating The Xte3000

    Section 5: Operating the XTE3000 Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Section 5: Operating the XTE3000 Operation By Handwheel To operate the actuator via the handwheel, press down the lever and at the same time rotate the handwheel until the clutch is engaged.

  • Page 35: Electrical Operation

    Installation, Operation and Maintenance Manual Section 5: Operating the XTE3000 MAN-02-04-97-0713-EN Rev. 1 October 2019 Electrical Operation Before connecting power to the actuator check that the voltage is correct and corresponds to the indications on the nameplate. An incorrect power supply could cause permanent damage to the electrical components.
  • Page 36 Section 5: Operating the XTE3000 Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Figure 30 Figure 31 Figure 32 Figure 33 OPEN/YES STOP CLOSE/NO Operating the XTE3000...

  • Page 37: Locking The 3-Position Selector

    Installation, Operation and Maintenance Manual Section 5: Operating the XTE3000 MAN-02-04-97-0713-EN Rev. 1 October 2019 Figure 34 Operation Local selector Status or Position position request R% Figure 35 Locking the 3-Position Selector The 3-position selector can be locked in any of its three positions by means of a padlock. Operating the XTE3000...

  • Page 38: Remote Control

    Section 5: Operating the XTE3000 Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Remote Control Place the 3-position selector in REMOTE to transfer the actuator control to a remote device. Local OPEN or CLOSE operation will be inhibited. Only the local STOP control remains active.
  • Page 39 Installation, Operation and Maintenance Manual Section 5: Operating the XTE3000 MAN-02-04-97-0713-EN Rev. 1 October 2019 Figure 36 Option A1) Option B1) Figure 37 Option A2) Option B2) Figure 38 Option A3) Option B3) Operating the XTE3000...

  • Page 40: Output Contacts

    Section 5: Operating the XTE3000 Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 5.6.2 Output Contacts Standard version • Monitor relay: the voltage-free, change-over contacts of the monitor relay are available on the terminal board. The monitor relay indicates if the actuator can be remotely controlled or if there is a problem or condition that prevents remote control of the valve.

  • Page 41: Interlock Inputs

    Installation, Operation and Maintenance Manual Section 5: Operating the XTE3000 MAN-02-04-97-0713-EN Rev. 1 October 2019 5.6.4 Interlock Inputs Two additional inputs are available to inhibit actuator movement in the open or closed direction. The controls are momentary, and the inhibiting action continues until the relevant signal is present.

  • Page 42: Operating The Xte3000 For The First Time

    Section 5: Operating the XTE3000 Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Operating the XTE3000 for the First Time Before attempting to operate the XTE3000 for the first time, check that the actuator is correctly mounted on to the valve. Place the 3-position selector to OFF and switch the power on.

  • Page 43: Ain/Aout Card

    Installation, Operation and Maintenance Manual Section 5: Operating the XTE3000 MAN-02-04-97-0713-EN Rev. 1 October 2019 5.8.2 Ain/Aout Card With the above card, the XTE3000 is provided with a 4-20 analog input and a 4-20 mA analog output. This card should be plugged on the base card, replacing the “TERMINAL BOARD ADAPTOR”...
  • Page 44 Section 5: Operating the XTE3000 Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 If mains voltage is lost, behavior will be different if the power supply of the 4-20 mA output stage is internally- or externally-generated: — Internal power supply (or passive loop): If mains voltage is lost the output 4-20 mA drops to 0.

  • Page 45: Base Card Of The Xte3000

    Installation, Operation and Maintenance Manual Section 5: Operating the XTE3000 MAN-02-04-97-0713-EN Rev. 1 October 2019 The “VIEW and SET-UP” features can configure different options, which are described in Section 9.1.7, Positioner. If the POSITIONER function is active, the alpha-numeric display indicates the value of the position request in % (R%: xxx.x).
  • Page 46 Section 5: Operating the XTE3000 Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Figure 46 Top View of Base Card Top View of Base Card Base card equipped with fieldbus interface card and Terminal Board Adapter (TBA) card. Figure 47 Fieldbus interface card Fieldbus interface card...

  • Page 47: Absolute Encoder Of The Xte3000

    Installation, Operation and Maintenance Manual Section 5: Operating the XTE3000 MAN-02-04-97-0713-EN Rev. 1 October 2019 Figure 49 Potentiometer card Potentiometer card This card can be used for some special FW versions of the XTE3000. Figure 50 5.10 Absolute Encoder of the XTE3000 The XTE3000 absolute encoder can measure up to 8,000 output turns.

  • Page 48: Section 6: Local Controls

    Section 6: Local Controls Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Section 6: Local Controls Description of the Local Operator Interface The following functions are available via the XTE3000 local operator interface: • Actuator Control • Actuator Configuration •...
  • Page 49 Installation, Operation and Maintenance Manual Section 6: Local Controls MAN-02-04-97-0713-EN Rev. 1 October 2019 Table 9. List output torque mot temp motor speed term temp main voltage log status current wireless report temperature node report * time FDI report * date base report alarm...
  • Page 50 Section 6: Local Controls Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Local Controls: OPEN/YES, CLOSE/NO, and STOP push-buttons. The STOP push-button resets any existing command and is active both in local and remote. If the 3-position selector is in LOCAL, the OPEN / YES, and CLOSE /NO pushbuttons work as OPEN and CLOSE commands.
  • Page 51 Installation, Operation and Maintenance Manual Section 6: Local Controls MAN-02-04-97-0713-EN Rev. 1 October 2019 The alarm and warning lists only contain the present alarms and warnings. When the fault condition disappears, the corresponding alarm or warning disappears from the list. A reset routine is provided to clear the type of alarm/warning that is memorized (over-torque, jammed valve, etc.).

  • Page 52: Configuration Options

    Use “View” mode to see the actuator configuration, and use “Set-up” mode to change the present configuration. Unauthorized access to the set-up mode is prevented by a 4-character alphanumeric password. The actuator is supplied by Emerson with the default password “0 0 0 0”.
  • Page 53 Installation, Operation and Maintenance Manual Section 6: Local Controls MAN-02-04-97-0713-EN Rev. 1 October 2019 Nameplate This menu includes a series of data identifying the actuator characteristics, service, and utilization mode. The data are entered by the manufacturer and can only be viewed (not edited;...

  • Page 54: Entering The View Mode

    Section 6: Local Controls Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Maintenance This menu includes all diagnostic and historic data which can assist the operator if failures occur or during maintenance operations. The Maintenance menu also includes the “Set password”...

  • Page 55: Entering The Set-Up Mode

    Installation, Operation and Maintenance Manual Section 6: Local Controls MAN-02-04-97-0713-EN Rev. 1 October 2019 Entering the Set-Up Mode To change the existing settings or to set stroke limits it is necessary to enter the correct password. Ensure that mains power (or the external auxiliary supply) is supplied. •...
  • Page 56 Section 6: Local Controls Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Figure 54 Enter View and Set-Up Mode Local Controls...

  • Page 57: Section 7: Set-Up Menu

    Installation, Operation and Maintenance Manual Section 7: Local Controls MAN-02-04-97-0713-EN Rev. 1 October 2019 Section 7: Set-Up Menu Figure 55 Set-Up Menu...
  • Page 58 Section 7: Local Controls Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Figure 56 shows the procedure to navigate through the set-up routines. Figure 56 Set-Up Menu...

  • Page 59: Section 8: View Menu

    Installation, Operation and Maintenance Manual Section 8: View Menu MAN-02-04-97-0713-EN Rev. 1 October 2019 Section 8: View Menu Figure 57 View Menu View Menu...
  • Page 60 Section 8: View Menu Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Figure 58 shows the procedure to navigate through the view routines. Figure 58 Procedure to Move in the View Routines View Menu...

  • Page 61: Section 9: Set-Up Routines

    Installation, Operation and Maintenance Manual Section 9: Set-Up Routines MAN-02-04-97-0713-EN Rev. 1 October 2019 Section 9: Set-Up Routines Actuator Set-Up 9.1.1 Set Stroke Limits This routine allows the actuator to be configured according to the type of valve it is mounted on.
  • Page 62 Section 9: Set-Up Routines Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Close limit by torque • Move the local selector to LOCAL. The local controls can be used. • Press the CLOSE control. The actuator will move in the closing direction and when the configured torque value is reached, the motor will stop and the new position limit is memorized.

  • Page 63: Torque Set-Up

    Installation, Operation and Maintenance Manual Section 9: Set-Up Routines MAN-02-04-97-0713-EN Rev. 1 October 2019 9.1.2 Torque Set-up The output torque limits to close or to open may be configured between 40% and 100% of the nominal torque stated on the actuator nameplate. Set-up Procedure •...

  • Page 64: Remote Controls

    Section 9: Set-Up Routines Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 • Press YES to change ESD priority with reference to the following signals or status: — (*) Motor thermostat alarm. By choosing ESD > THERMOSTAT, the ESD action will be carried out even in the event of motor over-heating.

  • Page 65: Local Controls

    Installation, Operation and Maintenance Manual Section 9: Set-Up Routines MAN-02-04-97-0713-EN Rev. 1 October 2019 Configuration procedure • Move the local selector to OFF and then simultaneously press OPEN and STOP. Select the language and then enter the password according to the instructions (see “Entering the set-up mode”).

  • Page 66: Output Relays

    Section 9: Set-Up Routines Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 LED colors • Press YES if the color of the open LED is correct. Press NO to change it, and then press YES to confirm. • Press YES if the color of the close LED is correct.
  • Page 67 Installation, Operation and Maintenance Manual Section 9: Set-Up Routines MAN-02-04-97-0713-EN Rev. 1 October 2019 Auxiliary output relays For status indication or diagnostic purposes, 8 voltage-free contacts of 8 relays are available to be configured individually to switch upon occurrence of the following conditions: Status •...

  • Page 68: Positioner

    Section 9: Set-Up Routines Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Configuration procedure • Move the local selector to OFF and then simultaneously press OPEN and STOP. Select the language and enter the password according to the instructions (see “Entering the set-up mode”).
  • Page 69 Installation, Operation and Maintenance Manual Section 9: Set-Up Routines MAN-02-04-97-0713-EN Rev. 1 October 2019 The following options can be configured via the local operator interface: • Dead band: configurable from “position resolution%” to 25.5% of the maximum position error. The configured value should be great enough to avoid a "hunting"...

  • Page 70: Fail Safe

    Section 9: Set-Up Routines Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Example D With input signal < 8 mA, the position request is 100% and the actuator is driven to open. With input signal = 16 mA , the position request is 0% and the actuator is driven to close. With input signal = 12 mA, the position request is 50% and the actuator is driven to reach position 50%.
  • Page 71 Installation, Operation and Maintenance Manual Section 9: Set-Up Routines MAN-02-04-97-0713-EN Rev. 1 October 2019 Figure 61 Example A Example B Position request % Position request % 100% Configured values: Configured values: 100% % min = 0% % min = 25% % max = 100% % max = 75% Polarity : 4 mA = CL...

  • Page 72: Out 4-20 Ma

    Section 9: Set-Up Routines Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 9.1.9 OUT 4-20 mA This routine is only available if the Ain/Aout card is present. With this card, the XTE3000 is provided with a 4-20 mA analog input and a 4-20 mA analog output. The 4-20 mA output can be configured to provide a current proportional to either “position”...

  • Page 73: Interlock

    Installation, Operation and Maintenance Manual Section 9: Set-Up Routines MAN-02-04-97-0713-EN Rev. 1 October 2019 9.1.10 Interlock The interlock inputs can be used to inhibit the actuator movement in the open or closed direction. The controls are momentary; the inhibiting action continues while the relevant signal is present.

  • Page 74: Bus (Or Fdi Control)

    Section 9: Set-Up Routines Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Configuration procedure • Move the local selector to OFF and then simultaneously press OPEN and STOP. Select the language and then enter the password according to the instructions (see “Entering the set-up mode”).

  • Page 75: Miscellaneous

    Installation, Operation and Maintenance Manual Section 9: Set-Up Routines MAN-02-04-97-0713-EN Rev. 1 October 2019 9.1.13 Miscellaneous This includes different types of routines such as “time and date”, “lithium battery”, and "torque profile", used only for special applications or in particular conditions. 9.1.13.1 Time and Date Time and date are used in maintenance functions to associate time information to the...
  • Page 76 Section 9: Set-Up Routines Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Figure 64 Actuator Direction: Closing Closing torque % of nominal Breakout limit Ending limit Running limit Position % 100% Cl brk% Cl end % 0% Figure 65 Actuator Direction: Opening Opening torque % of nominal Breakout limit...
  • Page 77 Installation, Operation and Maintenance Manual Section 9: Set-Up Routines MAN-02-04-97-0713-EN Rev. 1 October 2019 9.1.13.4 Torque Bypass (%) Since a momentary high torque may be required to unseat certain valves, the torque bypass routine disables the torque alarm when an open or close command is received and the actuator is fully open or closed.

  • Page 78: Valve Data

    Section 9: Set-Up Routines Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Valve Data The valve data allow identification of the valve and its function in the process. The valve manufacturer and the end user can enter the data. The following data can be entered: •...

  • Page 79: Set Password

    9.3.1 Set Password The actuator is supplied by Emerson with the default password (“0 0 0 0”). The Set Password routine allows the user to enter a different password consisting of 4 alphanumeric characters. After entering the new password, the old one becomes invalid. Therefore, it is mandatory to NOT FORGET THE PASSWORD (or store the password in a secure location) after the default one has been modified.

  • Page 80: Set Curve Reference

    Section 9: Set-Up Routines Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 9.3.4 Set Curve Reference The “set curve reference” routine allows selection of 1 of 100 opening and closing torque curves in the memory of the XTE3000 and to transfer them to the torque curve reference registers.

  • Page 81: Set Maintenance Date

    Installation, Operation and Maintenance Manual Section 9: Set-Up Routines MAN-02-04-97-0713-EN Rev. 1 October 2019 9.3.6 Set Maintenance Date The maintenance date routine allows the following operations: • to set the last maintenance date • to set the next maintenance date •...

  • Page 82: Set Data Logger

    Section 9: Set-Up Routines Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 9.3.7 Set Data Logger The “data logger” routine allows setting of the data logger parameters (see VIEW mode, Maintenance, Data logger, Section 10.4.6). To start the data logger the following data should be set: Table 12.

  • Page 83: Example Of Set-Up Routine

    Installation, Operation and Maintenance Manual Section 9: Set-Up Routines MAN-02-04-97-0713-EN Rev. 1 October 2019 Example of Set-Up Routine 9.4.1 Torque Set-Up Figure 66 LOCAL REMOTE XTE3000 XTE3000 XTE3000 XTE3000 ACTUATOR SETUP ACTUATOR SETUP ACTUATOR SETUP SETUP MODE TORQUE SETUP STROKE LIMIT CHANGE? CHANGE? CHANGE?

  • Page 84: Section 10: View Routines

    Section 10: View Routines Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Section 10: View Routines 10.1 Actuator Set-Up The above menu allows the operator to view the present actuator configuration. No changes may be made to the present data. The following data can be viewed (see Table 13): Table 13.

  • Page 85: Nameplate

    The following data may be viewed: • Serial number: max. 28 characters, unique identifier of the actuator with reference to the Emerson order acknowledgment. • Actuator type: max. 28 characters, describes the type of actuator with reference to the Emerson catalog.

  • Page 86: Valve Data

    Section 10: View Routines Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 10.3 Valve Data To identify the valve and its function in the process the following data can be viewed: • Tag name (max. 28 characters) • Serial number (max.

  • Page 87: Torque Profile

    Installation, Operation and Maintenance Manual Section 10: View Routines MAN-02-04-97-0713-EN Rev. 1 October 2019 10.4.2 Torque Profile The torque profile routine gives important information on the actuator working conditions in comparison with a previously memorized reference profile. The torque profile can indicate a change in process conditions.

  • Page 88: Torque Curve

    Section 10: View Routines Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 View Procedure • Move the local selector to OFF and then simultaneously press OPEN and STOP. Select the language according to the instructions (see “Entering the view mode”). When the message displayed is “VIEW MODE OK?”...

  • Page 89: Operation Log

    Installation, Operation and Maintenance Manual Section 10: View Routines MAN-02-04-97-0713-EN Rev. 1 October 2019 The amount of data to be viewed is large and the local display can only display one datum at a time. To use this function, it is recommended to utilize the features of DCMlink via a PDA or PC.
  • Page 90 Section 10: View Routines Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Figure 67 Table 15 shows the list of data collected by the general and recent data log: Table 15. General Data Recent Data Log Opening time Closing time Contactor cycles Contactor cycles...
  • Page 91 Installation, Operation and Maintenance Manual Section 10: View Routines MAN-02-04-97-0713-EN Rev. 1 October 2019 View Procedure • Move the local selector to OFF and then simultaneously press OPEN and STOP. Select the language according to the instructions (see “Entering the view mode”). When the message displayed is “VIEW MODE OK?”...

  • Page 92: Maintenance Date

    Section 10: View Routines Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 10.4.5 Maintenance Date The routine allows the following dates to be viewed: • Last date • Next date • Start-up date • Recent log date (see Table 17 below) Table 17.
  • Page 93 Installation, Operation and Maintenance Manual Section 10: View Routines MAN-02-04-97-0713-EN Rev. 1 October 2019 Data logger modes: • OFF: the data logger is not active. • RECORDER mode: the XTE3000 measures and memorizes the following 3 data: — Main voltage supply (V) —...
  • Page 94 Section 10: View Routines Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Figure 69 T-Recorder Mode T-logger stops recording if a torque alarm is triggered. The last 256 samples remain in the actuator memory until a new start of the logger is initiated. •...

  • Page 95: Example Of View Routine

    Installation, Operation and Maintenance Manual Section 10: View Routines MAN-02-04-97-0713-EN Rev. 1 October 2019 Figure 70 Event Mode 10.5 Example of View Routine 10.5.1 View Torque Set-up Figure 71 LOCAL REMOTE XTE3000 XTE3000 XTE3000 XTE3000 ACTUATOR SETUP ACTUATOR SETUP ACTUATOR SETUP STROKE LIMIT VIEW MODE TORQUE SETUP...

  • Page 96: Section 11: Maintenance

    Section 11: Maintenance Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Section 11: Maintenance 11.1 Standard Maintenance Approx. every 2 years: Under normal operating conditions, the XTE3000 requires no formal maintenance; however, visual inspection for oil leakage or external visible damage is recommended every two years. When conditions are severe (frequent operation or high temperatures), inspect the oil level and oil quality more frequently.

  • Page 97: Special Maintenance

    11.2 Special Maintenance In case actuator failure, please refer to Section 12, Troubleshooting for possible causes. Spare parts can be ordered from Emerson; refer to the individual item number shown in Section 13, Parts list and drawings. NOTICE In cases of actuator failure, refer to Section 12, Troubleshooting for possible causes.

  • Page 98: Lithium Battery Change

    Section 11: Maintenance Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 11.3 Lithium Battery Change • Isolate the main supply to the actuator and all other control voltages. • Remove the terminal board cover. • Disconnect two wires (+) (-) from the main board. •...
  • Page 99 Installation, Operation and Maintenance Manual Section 11: Maintenance MAN-02-04-97-0713-EN Rev. 1 October 2019 Figure 74 — Remove the battery cover. Figure 75 Figure 76 Maintenance...
  • Page 100 Section 11: Maintenance Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Figure 77 — Replace the battery. Figure 78 Figure 79 Maintenance...
  • Page 101 Installation, Operation and Maintenance Manual Section 11: Maintenance MAN-02-04-97-0713-EN Rev. 1 October 2019 Figure 80 NOTICE The new battery must be the same type as the one provided: Lithium – SAFT LS 9V. NOTICE To check the battery status, press the STOP button for at least 3 seconds. In any event, the battery status is automatically checked at least once a day.

  • Page 102: Section 12: Troubleshooting

    Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Section 12: Troubleshooting This section assumes that the XTE3000 has passed a functional test performed by Emerson quality assurance personnel. WARNING Installation, configuration, commissioning, maintenance, and repairs must be performed by approved and qualified personnel only.

  • Page 103: Dc Output Voltage Not Available At The Terminals

    Installation, Operation and Maintenance Manual Section 12: Troubleshooting MAN-02-04-97-0713-EN Rev. 1 October 2019 12.2 DC Output Voltage not Available at the Terminals • Switch the main power supply off and disconnect all wires from terminals B1-B2 and C1. • Switch the main power supply on and check if the voltage on the terminals B1-B2 and C1 is between 23 and 27 V DC.

  • Page 104: The Motor Is Very Hot And Does Not Start

    Section 12: Troubleshooting Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 12.4 The Motor is Very Hot and does not Start • Check that no alarm other than motor overheating is present. • Wait until the motor cools down and the normally closed (NC) contact of the thermal switch automatically resets before trying to operate the actuator again.

  • Page 105: The Manual Override Cannot Be Engaged

    Installation, Operation and Maintenance Manual Section 12: Troubleshooting MAN-02-04-97-0713-EN Rev. 1 October 2019 If the local display changes the valve position indicators: • Verify that the stem nut fits correctly in the actuator base. • Verify that the stem nut has sufficient engagement with the valve stem. •...

  • Page 106: Valve Operation Requires Excessive Torque

    Section 12: Troubleshooting Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 12.8 Valve Operation requires Excessive Torque • Clean, lubricate and check the valve stem. • If the valve packing is too tight, loosen the gland bolt nuts. •...

  • Page 107: The Actuator Does Not Stop In The Fully Open Or Fully Closed Position

    Installation, Operation and Maintenance Manual Section 12: Troubleshooting MAN-02-04-97-0713-EN Rev. 1 October 2019 12.9 The Actuator does not Stop in the Fully Open or Fully Closed Position • Check that the actual open and close positions of the valve respectively correspond to 100% and 0% on the actuator display.
  • Page 108 Section 12: Troubleshooting Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Figure 88 LOCAL REMOTE XTE3000 XTE3000 WARNINGS ALARMS VIEW? VIEW? 3-position selector Display XTE3000 XTE3000 XTE3000 XXXXXX XXXXXX WARNING ALARM XXXXXX NEXT? NEXT? NEXT? XTE3000 XTE3000 VIEW VARIABLES WARNING ALARM...
  • Page 109 Installation, Operation and Maintenance Manual Section 12: Troubleshooting MAN-02-04-97-0713-EN Rev. 1 October 2019 Table 19. Alarm Table Available Controls Display Condition for Alarm Action message alarm reset Local Remote Measured torque greater than the Operate the actuator relevant value in opening direction. High torque in Configuration configured in...
  • Page 110 Section 12: Troubleshooting Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Available Controls Display Condition for Alarm Action message alarm reset Local Remote The test routine K1 contactor (not reports a failure Not available Control in Opposite Opposite available for XTE of K1 Check the contactor...
  • Page 111 Installation, Operation and Maintenance Manual Section 12: Troubleshooting MAN-02-04-97-0713-EN Rev. 1 October 2019 Table 20. Warning Table Display message Condition for Action Available Controls Alarm reset alarm Local Remote Measured torque greater than the Check the torque High torque in OP relevant value necessary to Available...
  • Page 112 N° indicates the number of the parameter to be configured. To clear the alarm, a table of all XTE3000 parameters is necessary. Call Emerson After-Sales service to solve the problem. If the alarm message is “CONFIGURATION OBJ 9999", only one of the XTE3000 parameters needs to be changed.

  • Page 113: Section 13: Parts List And Drawings

    Installation, Operation and Maintenance Manual Section 13: Parts List and Drawings MAN-02-04-97-0713-EN Rev. 1 October 2019 Section 13: Parts List and Drawings This Section includes the drawings and parts list of each component and sub-assembly of the XTE3000. CAUTION Using a fastener other than the approved type may result in damage to the actuator or valve. NOTICE - When ordering spare parts, be sure to indicate the serial number embossed on the actuator nameplate.
  • Page 114 Section 13: Parts List and Drawings Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Table 21. Item Description Housing Lower bearing Hollow shaft Worm wheel Circlip Driver sleeve Driver sleeve spring Spring retaining ring Seal kit 9.1 * O-ring 9.2 * Seal ring...
  • Page 115 Installation, Operation and Maintenance Manual Section 13: Parts List and Drawings MAN-02-04-97-0713-EN Rev. 1 October 2019 Item Description 25 * Electric motor assembly Motor cover Screw Oil plug 29 * Finger assembly Screw Bush Shoulder washer Fork Bearing bush Lever washer Lever assembly Lever screw block Screw...
  • Page 116 Section 13: Parts List and Drawings Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Figure 90 Electric Motor 25.1 25.2 25.3 25.4 25.5 25.6 25.7 25.8 25.1 25.2 25.3 25.4 Table 22. Electric Motor Item Description 25.1 * Electric motor 25.2 Speed magnetic sensor...
  • Page 117 Installation, Operation and Maintenance Manual Section 13: Parts List and Drawings MAN-02-04-97-0713-EN Rev. 1 October 2019 Figure 91 Electric Motor (XTE LP) Table 23. Electric Motor (XTE LP) Item Description Material 25.1 * Electric motor 25.2 Flange Carbon steel 25.3 Screw Stainless steel 25.4...
  • Page 118 Section 13: Parts List and Drawings Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Figure 92 Finger Assembly 29.1 29.2 29.3 29.4 29.5 29.6 29.7 29.1 Table 25. Finger Assembly Item Description 29.1 Circlip 29.2 Cover finger 29.3 Finger 29.4 29.5...
  • Page 119 Installation, Operation and Maintenance Manual Section 13: Parts List and Drawings MAN-02-04-97-0713-EN Rev. 1 October 2019 Figure 93 Lever Assembly 36.1 Table 26. Lever Assembly Item Description 36.1 Lever 36.2 36.3 Shoulder washer 36.4 Bearing 36.5 Spring 36.6 Retainer ring 36z.7 Parts List and Drawings...
  • Page 120 Section 13: Parts List and Drawings Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Figure 94 Local Interface Assembly Table 27. Local Interface Assembly Item Description 55.1 Ball 55.2 Spring 55.3 O-ring 55.4 Selector 55.5 Screw 55.6 Plug * Recommended spare parts Parts List and Drawings...
  • Page 121 Installation, Operation and Maintenance Manual Section 13: Parts List and Drawings MAN-02-04-97-0713-EN Rev. 1 October 2019 Figure 95 Thrust Block Assembly Table 28. Thrust Block Assembly Item Description 75.1 O-ring 75.2 Thrust block housing 75.3* Greaser 75.4 Thrust washer 75.5 Stem nut 75.6* Thrust bearing...
  • Page 122 Section 13: Parts List and Drawings Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Figure 96 Wiring Loom and Cables Identification Table 29. Wiring Loom and Cables Identification Item Cable Type Description CAB0100 I/O remote cable CAB0150 Remote control supply cable CAB0160 Inlet power cable CAB0270...

  • Page 123: Appendix A: Xte3000 / Xte3000Ad

    Installation, Operation and Maintenance Manual Appendix MAN-02-04-97-0713-EN Rev. 1 October 2019 Appendix A: XTE3000 / XTE3000AD Ex db eb h IIB+H2 T4 Gb / Ex h tb IIIC T135°C Db IP66/68 Ex db eb h ia IIB+H2 T4 Gb / Ex h tb IIIC T135°C Db IP66/68 Safety Instructions A.1.1 General...

  • Page 124: Marking

    Appendix Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 A.2.1 Marking Figure A-1 Template of the label for XTE3000 / XTE3000AD IECEx INE YY.NNNNX = IECEx reference certificate (CoC) INERIS YY ATEX NNNNX = ATEX reference certificate 0080 = Notified body for ATEX quality assurance (INERIS) = Group II (surface industries) = Category 2 apparatus...

  • Page 125: Applicable General Standards And Regulations

    ISO 80079-37:2016 Terms and Conditions Emerson guarantees every product to be free from defects and to conform to industry standards. Unless otherwise specified, the warranty period is one year from the date of installation by the first user or eighteen months from the date of shipment to the first user, whichever occurs first.

  • Page 126: Storage And Pre-Installation

    Appendix Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Storage and Pre-Installation A.6.1 Storage Procedure NOTICE Not following the procedures according to this document will invalidate the product warranty. The standard plastic plugs used to protect the conduit entries during transport are neither explosion-proof nor waterproof;...

  • Page 127: Identification Of Entries

    Installation, Operation and Maintenance Manual Appendix MAN-02-04-97-0713-EN Rev. 1 October 2019 A.7.2 Identification of Entries The XTE3000 electric actuator as it pertains to this appendix can be equipped with up to 5 conduit entries (3 are standard; the 4th and 5th are supplied upon request). With reference to Figure A-2, the thread form/size for each entry is as follows: Table A-4.

  • Page 128: Electrical Connections

    Appendix Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 A.7.3 Electrical Connections External wires or connections of external ATEX-certified apparatus via the conduit entry of an additional extension must be wired to the internal cards of the XTE3000, in accordance with the wiring diagram and general instructions on the actuator label.

  • Page 129: Installation In Environments With Explosive Dusts

    Installation, Operation and Maintenance Manual Appendix MAN-02-04-97-0713-EN Rev. 1 October 2019 NOTICE The cables and cable glands MUST be selected considering the maximum temperature of the cable indicated on the label fixed to the base XTE3000 unit. When selecting cables and cable glands, the maximum temperature of the cable (indicated on the product label of the base XTE3000) must be considered.

  • Page 130: Maintenance

    Appendix Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Maintenance WARNING Before performing service or maintenance operations (unless otherwise indicated), ensure that power is turned off to the unit to avoid injury and/or damage to equipment. WARNING Installation, configuration, commissioning, maintenance, and repairs must be performed by approved and qualified personnel only.

  • Page 131: Repairs

    Standard IEC/EN 60079-1. Should maintenance require the replacement of any component that forms part of an explosion-proof joint, only an original spare provided by Emerson can be used. Direct repair or reconstruction of the above components is not permitted without Emerson authorization.

  • Page 132: Appendix B: Xte3000 / Xte3000Ad / Xte3000Lp

    Appendix Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Appendix B: XTE3000 / XTE3000AD / XTE3000LP Ex db h IIB T4 Gb / Ex h tb IIIC T135°C Db IP66/68 Ex db h ia IIB T4 Gb / Ex h tb IIIC T135°C Db IP66/68 Safety Instructions B.1.1 General...

  • Page 133: Identification Of Main Parts

    Installation, Operation and Maintenance Manual Appendix MAN-02-04-97-0713-EN Rev. 1 October 2019 B.1.2 Identification of Main Parts Figure B-1 Base Unit Figure B-2 Base Unit with Extension [A] Figure B-3 Base Unit with Extensions [B] or [C] Appendix...

  • Page 134: Instructions For Proper Installation

    Appendix Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Instructions for Proper Installation WARNING Before installation, it is mandatory to check if the nameplate associated with the extension for additional entry specifies the appropriate degree of protection and ambient temperature limits as requested by the rules applicable to the plant/location where the XTE3000 is installed.

  • Page 135: Applicable General Standards And Regulations

    ISO 80079-37:2016 Terms and Conditions Emerson guarantees every product to be free from defects and to conform to industry standards. Unless otherwise specified, the warranty period is one year from the date of installation by the first user or eighteen months from the date of shipment to the first user, whichever occurs first.

  • Page 136: Manufacturer's Liability

    Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Manufacturer's Liability Emerson will not accept any liability in the event of: • Use of product in a fashion that contravenes local safety at work legislation. • Incorrect installation relating to, disregard for, or incorrect application of the instructions as provided on the product nameplate and in the Installation, Operation, and Maintenance Manual MAN-02-04-97-0713 and Appendix B within.

  • Page 137: Installation

    Installation, Operation and Maintenance Manual Appendix MAN-02-04-97-0713-EN Rev. 1 October 2019 Installation NOTICE Installation must be carried out in accordance to the applicable standards IEC/EN 60079-14 and IEC/EN 60079-17 regarding the electrical installations in Hazardous Areas (other than mines) classified as Zones 1, 2 (gas) and Zones 21, 22 (dust) following IEC/EN 60079-10-1 and IEC/EN 60079-10-2 and any other applicable national standards and rules.

  • Page 138: Identification Of Entries

    Appendix Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 B.7.2 Identification of Entries B.7.2.1 Base Actuator The XTE3000 electric actuator is equipped with 5 entries (3 are standard; the 4th and 5th are supplied upon request). With reference to Figure B-5, the thread form/size for each entry is as follows: Table B-4.
  • Page 139 Installation, Operation and Maintenance Manual Appendix MAN-02-04-97-0713-EN Rev. 1 October 2019 B.7.2.2 Base Actuator With Extension [A] on the Control Compartment Extension [A] provides an additional entry for a cable or conduit connection or for connection of an external ATEX-certified apparatus. With reference to Figure B-6, the thread form/size for the entry is as follows: Table B-5.

  • Page 140: Electrical Connections

    Appendix Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 WARNING Unused entries may remain unmachined or must be plugged with a certified plug suitable for the subject environment. Figure B-7 Base actuator with extensions [B] or [C] on the terminal board compartment B.7.3 Electrical Connections...

  • Page 141: Cable Connection

    Installation, Operation and Maintenance Manual Appendix MAN-02-04-97-0713-EN Rev. 1 October 2019 B.7.4 Cable Connection When optional extensions for additional entries or additional electronic cards are connected to external cables or conduits, the sealing of these entries must be carried out in accordance with the national standards or regulatory authorities that certified the extension(s).

  • Page 142: Installation In Environments With Explosive Dusts

    Appendix Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 B.7.5 Installation in Environments with Explosive Dusts Special attention must be paid to the following points: • Before assembly, joint surfaces must be greased with Aeroshell grease. • The cable glands must at a minimum possess a protection degree of IP66 or IP68 (15 m depth / 90 hours) according to IEC/EN 60529 standard.

  • Page 143: Repairs

    Emerson can be used. Direct repair or reconstruction of the above components is not permitted without Emerson authorization. Not performing this procedure will invalidate the product safety and contractual guarantee.

  • Page 144: Appendix C: Xte3000 / Xte3000Ad

    Appendix Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Appendix C: XTE3000 / XTE3000AD Ex db h IIC T4 Gb / Ex h tb IIIC T135°C Db IP66/68 Ex db h ia IIC T4 Gb / Ex h tb IIIC T135°C Db IP66/68 Safety Instructions C.1.1 General...

  • Page 145: Marking

    Installation, Operation and Maintenance Manual Appendix MAN-02-04-97-0713-EN Rev. 1 October 2019 C.2.1 Marking Figure C-1 Template of the label for XTE3000 IECEx INE YY.NNNNX IECEx reference certificate (CoC) INERIS YY ATEX NNNNX ATEX reference certificate 0080 Notified body for ATEX quality assurance (INERIS) Group II (surface industries) Category 2 apparatus Explosive atmospheres caused by gas, mists, or vapors...

  • Page 146: Applicable General Standards And Regulations

    ISO 80079-37:2016 Terms and Conditions Emerson guarantees every product to be free from defects and to conform to industry standards. Unless otherwise specified, the warranty period is one year from the date of installation by the first user or eighteen months from the date of shipment to the first user, whichever occurs first.

  • Page 147: Storage And Pre-Installation

    Installation, Operation and Maintenance Manual Appendix MAN-02-04-97-0713-EN Rev. 1 October 2019 Storage and Pre-Installation C.6.1 Storage Procedure NOTICE Not following the procedures according to this document will invalidate the product warranty. The standard plastic plugs used to protect the cable entries during transport are neither explosion-proof nor waterproof;...

  • Page 148: Identification Of Entries

    Appendix Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 C.7.2 Identification of Entries The XTE3000 electric actuator is equipped with 5 entries (3 are standard; the 4th and 5th are supplied upon request). With reference to Figure C-2, the thread form/size for each entry is as follows: Table C-4.

  • Page 149: Electrical Connections

    Installation, Operation and Maintenance Manual Appendix MAN-02-04-97-0713-EN Rev. 1 October 2019 C.7.3 Electrical Connections The electrical connections shall be made in accordance with the wiring diagram and to the general instructions associated with the documentation of the base unit. C.7.3.1 Connection for Ex-e Terminals Enclosure The wires must be terminated in accordance with the following method: Type of terminal:...

  • Page 150: Installation In Environments With Explosive Dusts

    Appendix Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 To guarantee that weather-proof and explosion-proof characteristics are maintained, screw the cable gland or the external ATEX-certified apparatus tightly (at least 5 turns of engagement) and coat them with a thread sealant. NOTICE The cables and cable glands MUST be selected considering the maximum temperature of the cable indicated on the label fixed to the base XTE3000 unit.

  • Page 151: Disassembly And Re-Assembly

    Emerson can be used. Direct repair or reconstruction of the above components is not permitted without Emerson authorization. Not performing this procedure will invalidate the product safety and contractual guarantee.

  • Page 152: Appendix D: Xte3000

    Appendix Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Appendix D: XTE3000 Ex db eb h IIC T4 Gb / Ex h tb IIIC T135°C Db IP66/68 Ex db eb h ia IIC T4 Gb / Ex h tb IIIC T135°C Db IP66/68 Safety Instructions D.1.1 General...

  • Page 153: Identification Of Main Parts

    Installation, Operation and Maintenance Manual Appendix MAN-02-04-97-0713-EN Rev. 1 October 2019 D.1.2 Identification of Main Parts Figure D-1 Base Unit Figure D-2 Base Unit with Extension [A] Figure D-3 Base Unit with Extensions [B] or [C] Appendix...

  • Page 154: Instructions For Proper Installation

    Appendix Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Instructions for Proper Installation WARNING Before installation, it is mandatory to check if the nameplate associated with the extension for additional entry specifies the appropriate degree of protection and ambient temperature limits as requested by the rules applicable to the plant/location where the XTE3000 is installed.

  • Page 155: Applicable Directives, General Standards, And Norms

    Installation, Operation and Maintenance Manual Appendix MAN-02-04-97-0713-EN Rev. 1 October 2019 Table D-1. Hazardous zone Categories according to 2014/34/EU Directive Gas, mists, or vapors Zone 0 Gas, mists, or vapors Zone 1 2G or 1G Gas, mists, or vapors Zone 2 3G or 2G or 1G Dust Zone 20...

  • Page 156: Terms And Conditions

    MAN-02-04-97-0713-EN Rev. 1 Terms and Conditions Emerson guarantees every product to be free from defects and to conform to industry standards. Unless otherwise specified, the warranty period is one year from the date of installation by the first user or eighteen months from the date of shipment to the first user, whichever occurs first.

  • Page 157: Installation

    Installation, Operation and Maintenance Manual Appendix MAN-02-04-97-0713-EN Rev. 1 October 2019 Installation NOTICE Installation must be carried out in accordance to the applicable standards IEC/EN 60079-14 and IEC/EN 60079-17 regarding the electrical installations in Hazardous Areas (other than mines) classified as Zones 1, 2 (gas) and Zones 21, 22 (dust) following IEC/EN 60079-10-1 and IEC/EN 60079-10-2 and any other applicable national standards and rules.
  • Page 158 Appendix Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Figure D-5 Base Actuator Base actuator with extensions [B] or [C] on the terminal board compartment Entries from A to K NOTICE When alternative entries according to ISO 965 are used, indication of the dimensions is imprinted on the adapter bush or directly on the housing when ISO 965 entries are created by machining the housing.

  • Page 159: Electrical Connections

    Installation, Operation and Maintenance Manual Appendix MAN-02-04-97-0713-EN Rev. 1 October 2019 D.7.2.3 Base Actuator with Extensions [B] or [C] on the Terminal Board Compartment Extension B provides up to 9 additional entries for cable or conduit connection. Extension [C] is equipped with an electronic card (Profibus or Lonworks Removable Connection Modules) and provides up to 6 additional entries.

  • Page 160: Cable Connection

    Appendix Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 D.7.4 Cable Connection When optional extensions for additional entries or additional electronic cards are connected to external cables or conduits, the sealing of these entries must be carried out in accordance with the national standards or regulatory authorities that certified the extension(s).

  • Page 161: Installation In Environments With Explosive Dusts

    Installation, Operation and Maintenance Manual Appendix MAN-02-04-97-0713-EN Rev. 1 October 2019 D.7.5 Installation in Environments with Explosive Dusts Special attention must be paid to the following points: • Before assembly, joint surfaces must be greased with Aeroshell grease. • The cable glands must at a minimum possess a protection degree of IP66 or IP68 (15 m depth / 90 hours) according to IEC/EN 60529 standard.

  • Page 162: Disassembly And Re-Assembly

    Emerson can be used. Direct repair or reconstruction of the above components is not permitted without Emerson authorization. Not performing this procedure will invalidate the product safety and contractual guarantee.

  • Page 163: Appendix E: Xte3000

    Installation, Operation and Maintenance Manual Appendix MAN-02-04-97-0713-EN Rev. 1 October 2019 Appendix E: XTE3000 Ex db eb h IIB T4 Gb / Ex h tb IIIC T135°C Db IP66/68 Ex db eb h ia IIB T4 Gb / Ex h tb IIIC T135°C Db IP66/68 Safety Instructions E.1.1 General...

  • Page 164: Identification Of Main Parts

    Appendix Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 E.1.2 Identification of Main Parts Figure E-1 Base Unit Figure E-2 Base Unit with Extension [A] Figure E-3 Base Unit with Extensions [B] or [C] Appendix...

  • Page 165: Instructions For Proper Installation

    Installation, Operation and Maintenance Manual Appendix MAN-02-04-97-0713-EN Rev. 1 October 2019 Instructions for Proper Installation WARNING Before installation, it is mandatory to check if the nameplate associated with the extension for additional entry specifies the appropriate degree of protection and ambient temperature limits as requested by the rules applicable to the plant/location where the XTE3000 is installed.

  • Page 166: Applicable General Standards And Regulations

    ISO 80079-37:2016 Terms and Conditions Emerson guarantees every product to be free from defects and to conform to industry standards. Unless otherwise specified, the warranty period is one year from the date of installation by the first user or eighteen months from the date of shipment to the first user, whichever occurs first.

  • Page 167: Manufacturer's Liability

    Appendix MAN-02-04-97-0713-EN Rev. 1 October 2019 Manufacturer's Liability Emerson will not accept any liability in the event of: • Use of product in a fashion that contravenes local safety at work legislation. • Incorrect installation relating to, disregard for, or incorrect application of the instructions as provided on the product nameplate and in the Installation, Operation, and Maintenance Manual MAN-02-04-97-0713 and Appendix E within.

  • Page 168: Working Condition

    Appendix Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 E.7.1 Working Condition WARNING Verify that the actuator nameplate conforms to the applicable certification, ambient temperature range, and site safety requirements. E.7.1.1 Models and Temperature XTE3000-010, XTE-020, XTE-030, XTE-040, XTE-050 from -25 °C to +60 °C (from -13 °F to +140 °F) E.7.2 Identification of Entries...
  • Page 169 Installation, Operation and Maintenance Manual Appendix MAN-02-04-97-0713-EN Rev. 1 October 2019 NOTICE When alternative entries according to ISO 965 are used, indication of the dimensions is imprinted on the adapter bush or directly on the housing when ISO 965 entries are obtained by machining the housing.

  • Page 170: Electrical Connections

    Appendix Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Figure E-6 Base actuator with extension [A] Base actuator with extensions [B] or [C] Connection for Ex-e on the control compartment on the terminal board compartment terminals enclosure Entry 6 Entries from A to K E.7.3 Electrical Connections...

  • Page 171: Installation In Environments With Explosive Dusts

    Installation, Operation and Maintenance Manual Appendix MAN-02-04-97-0713-EN Rev. 1 October 2019 To guarantee that the weather-proof and explosion-proof characteristics are maintained, screw the cable gland or the external ATEX-certified apparatus tightly (at least 5 turns of engagement) and coat them with a thread sealant. NOTICE All accessories (including cable glands) must comply with approved specifications for the site requirements and be certified according to the standard directive.

  • Page 172: Maintenance

    Appendix Installation, Operation and Maintenance Manual October 2019 MAN-02-04-97-0713-EN Rev. 1 Maintenance WARNING Installation, configuration, commissioning, maintenance, and repairs must be performed by approved and qualified personnel only. E.8.1 Periodic Inspection • Inspect the general condition of the XTE3000 and the possible optional additional extension at regular intervals.

  • Page 173: Repairs

    Emerson can be used. Direct repair or reconstruction of the above components is not permitted without Emerson authorization. Not performing this procedure will invalidate the product safety and contractual guarantee.
  • Page 175 ©2018 Emerson. All rights reserved. Holland Fasor 6 P. R. China Székesfehérvár 8000 The Emerson logo is a trademark and service mark of Emerson Electric Co. T +86 22 8212 3300 Hungary Bettis is a mark of one of the Emerson family of companies.

Table of Contents
