- Page 1 OPERATION MANUAL Total Heat Exchanger Heat Reclaim Ventilator MODELS (Ceiling-mounted Duct type) VAM150HVE VAM250HVE VAM350HVE VAM500HVE VAM650HVE VAM800HVE VAM1000HVE VAM1500HVE VAM2000HVE Production only: Indonesia: Thailand: Vietnam: 3P645002-1...
- Page 3 Heat Reclaim Ventilator Before using the DAIKIN Heat Reclaim Ventilator, be sure to read this operation manual thoroughly. If you have any problems or there is a malfunction, please refer to this operation manual. Please keep this manual for your future reference whenever you do not understand how to use it when...

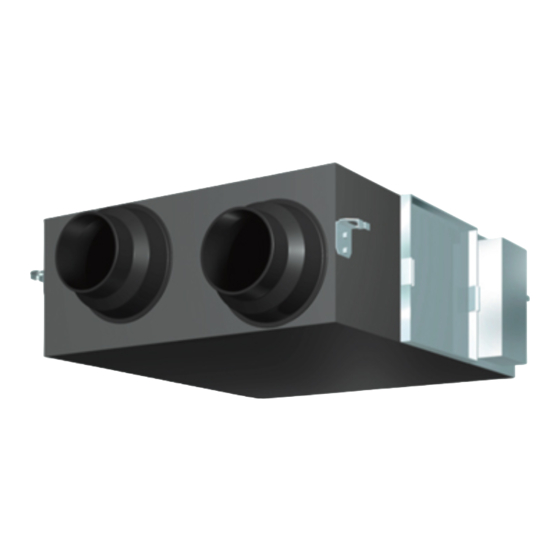

- Page 4 It exchanges the indoor heat with the outdoor air, conditioning the outdoor air closer to the air in the room and supplying it back into the room. ※ 1 pc for VAM150HVE and VAM250HVE Electrical component box Name plate Damper...
- Page 5 MODELS VAM1500HVE VAM2000HVE Name of Parts Maintenance cover (2 pcs.) Lifting lug Open and close it when cleaning the air fi lter and heat exchange element. Exhaust fan (2 pcs.) Heat exchange elements (4 pcs.) It exchanges the indoor heat with the outdoor air, conditioning the outdoor air closer to the air in the room and supplying it back into...
- Page 6 Remote controller for indoor unit • Combined operation system with VRV systems and Sky-air series Indoor unit Heat Reclaim Ventilator unit Remote controller for indoor unit MODELS VAM150HVE - VAM1000HVE MODELS VAM1500HVE - VAM2000HVE Metal bracket Maintenance cover Maintenance cover...
- Page 7 MODELS VAM150HVE - VAM1000HVE MODELS VAM1500HVE - VAM2000HVE Air fi lter Air fi lter...
-
Page 8: Table Of Contents
VAM150HVE VAM650HVE VAM250HVE VAM800HVE Total Heat Exchanger Heat Reclaim Ventilator Operation manual VAM350HVE VAM1000HVE VAM500HVE VAM1500HVE VAM2000HVE CONTENTS • Do not use in the room which have much oil mist such as kitchen, and the atmosphere which contains flammable or corrosive gases... - Page 9 • Do not use the unit without air filter. • Be sure to install an earth leakage breaker. The quality of heat exchange element may get Failure to install an earth leakage breaker may worse by dust, and it may cause malfunction. result in electric shocks, or fire.
-
Page 10: What To Do Before Operation
Before initiating operation, contact • Clean the air filter frequently. your Daikin dealer for the operation that corresponds If the unit is used with a clogged air filter, it may to your system type and mark. -
Page 11: Operation Procedure
The product’s method of use varies according to 3-2 NIGHTTIME FREE COOLING each system. OPERATION Check with the dealer on what system has the product The nighttime free cooling is an energy-saving been installed with prior to operation. function which works at night when the air For operations of remote controls and centralized conditioners is off;... -
Page 12: Maintenance
4 MAINTENANCE STAND-ALONE NIGHTTIME FREE COOLING OPERATION (for a qualified service person only) WARNING Outdoor temperature • Do not use flammable gas (such as hair spray and insecticide) near the main unit. Do not wipe the main unit and remote control with thinner, Set temperature etc. - Page 13 4-1 ROUTINE MAINTENANCE NOTE • Do not rub the air filter to clean. 4-1-1 HOW TO CLEAN THE AIR FILTER This may result in deformation or reduced durability. • Do not wash the air filter with hot water of more than 50°C.
- Page 14 4-1-3 HOW TO INSTALL AND 4. Clean the heat exchange element. REPLACE THE HIGH- Use a vacuum cleaner to remove dust and foreign PERFORMANCE FILTER objects on the surface of the heat exchange element. (OPTIONAL ACCESSORY) • Use the vacuum cleaner equipped with a brush on the tip of the suction nozzle.
-
Page 15: Trouble Shooting
4-1-4 INSPECTION OF THE FAN • Operation stops sometimes. <Symptom> MOTOR “U5” is displayed on the remote control and the operation stops but then restarts after a few NOTE minutes. When the fan motor fails, the remote controller does <Cause> not display any error code. - Page 16 CHECK THE FOLLOWING BEFORE REQUESTING If one of the following malfunctions occurs, contact Daikin dealer. FOR SERVICE. WARNING • The unit does not operate at all. • When the unit presents abnormal conditions <Cause> (burnt smell, etc.), stop the operation and turn Check if there is a power failure.
-
Page 17: After-Sales Service
6 AFTER-SALES SERVICE • Table 1. “Inspection Cycle” and “Maintenance Cycle” Lists After-sales service: Maintenance WARNING Inspection Cycle Name of Main Part Cycle [Replacements • Do not modify the unit. and/or repairs] This may cause electric shoc For fan (Note 3) Electric 1 to 2 •... - Page 18 Recommended replacement cycle of consumables [Note: The replacement cycle is not the same as the warranty period.] • T able 2. “Replacement Cycle” Lists Inspection Replacement Name of Main Part Cycle cycle Air fi lter ( ) damaged 1 year High-performance filter 1 year (optional accessory)
