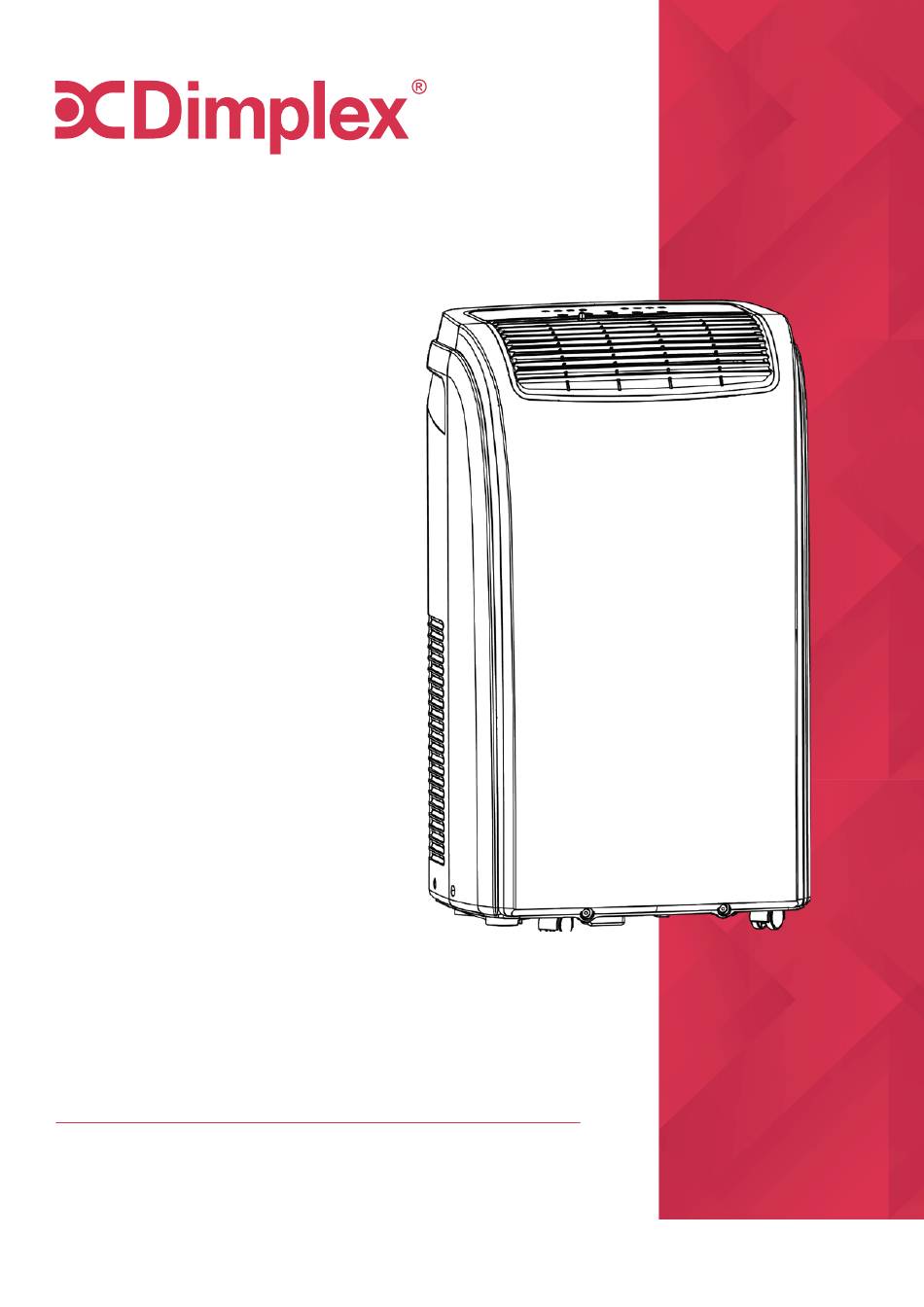

INSTRUCTION MANUAL
Portable Air Conditioner
Model: DCP12AN
For domestic household use
only.

Advertisement

Table of Contents
loading

Summary of Contents for Dimplex DCP12AN

  • Page 1 INSTRUCTION MANUAL Portable Air Conditioner Model: DCP12AN For domestic household use only.
  • Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY Please read the operating instructions carefully before using your Portable Air Conditioner for the first time and keep them in a safe place.
  • Page 3 may lead to a risk of fire or electric shock. • Only operate this appliance with a minimum of 50cm clearance all around i.e. away from walls, furniture and overhanging objects such as curtains or a shelf. • WARNING: To avoid danger of suffocation please remove all packaging materials particularly plastic and EPS and keep these away from vulnerable people, children and babies.
  • Page 4 WARNING: For using R290 refrigerant. ThIs symbol shows that this appliance uses a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire. CAUTION: RISK OF FIRE/FLAMMABLE MATERIALS. THE APPLIANCE MUST BE INSTALLED, USED &...
  • Page 5 1. Transport of equipment containing flammable refrigerants - see transport regulations 2. Marking of equipment using signs - see local regulations 3. Disposal of equipment using flammable refrigerants - see national regulations. 4. Storage of equipment/appliances - The storage of equipment should be in accordance with the manufacturer's instructions.
  • Page 6 • Checks to the refrigeration equipment Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance.
  • Page 7 • Repair to intrinsically safe components Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere.
  • Page 8 • Charging procedures In addition to conventional charging procedures, the following requirements shall be followed. Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimise the amount of refrigerant contained in them. Cylinders shall be kept upright.
  • Page 9 • Recovery When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge is available.
  • Page 10 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children No extension leads or Where the power may be left unattended power boards cable may be damaged On a slope or Where there is risk Where it may be uneven surface...
  • Page 11: Specification

    Specification DCP12AN Model no. Colour White Power supply 220-240~, 50Hz Operating temperature 16-31° Thermostat range 18-35° Rated Power Cooling 1346W Cooling Capacity 3300W Dehumidification Capacity 3L/h Noise Level Minimum (Lo) 65db(A) Air Volume (Lo/Med/Hi) 350/390/410 Refrigerant R290 Fan speeds Modes...
  • Page 12 Parts 5. Air Outlet 1. Louver 6. Back Cover 2. Control Panel 7. Power cord & plug 3. Front Cover 8. Drainage Outlet 4. Castor 9. Decoration Cover 10. Air Inlet 11. Drainage Outlet 12. Power cord winding buckle 1 x Exhaust hose kit 1 x Window slider (with hole) 2 x Dowel 1 x Remote control...
  • Page 13: Control Panel

    Control Panel - Operation Mode - Cooling Mode - Temperature Down - Dehumidifying Mode - Power On/ - Fan Mode - Temperature Up - Temperature Display Area - Fan Speed - Auto Wind - Low Fan Speed -Medium Fan Speed -High Fan Speed Remote Control 1.
  • Page 14: Installation

    Installation PREPARATION NOTE: All the illustrations in the manual are for explanatory purposes only. Your machine may be slightly different. The unit can be controlled by the control panel or with the remote control. EXHAUST HOSE INSTALLATION The exhaust hose and adaptor must be installed or removed in accordance with the set MODE.
  • Page 15: Exhaust Hose Installation

    Installation EXHAUST HOSE INSTALLATION 1. Insert the square fixing clip into the openings at the back of the air conditioner. 2. Ensure that the other end of the exhaust hose is able to reach through the windowsill. The window slider kit has been designed to fit most standard vertical and horizontal window applications, however it may be necessary for you to modify some aspects of the installation procedures for certain types of windows.
  • Page 16: Window Kit Installation

    Installation WINDOW KIT INSTALLATION Note The window kit can be installed horizontally or vertically. 1. Place the window kit on the window. 2. Adjust the length of the window slider kit according to the window width or height. Fix in place with the supplied dowel. 3.
  • Page 17 Installation DRAINAGE Full Water Alarm A water level safety switch is installed inside the air conditioner to control the water level. When the water level reaches the intended height, the full water indicator will light up. When the water is full, please remove the rubber plug at the bottom of the device, and drain the water outside.
  • Page 18: Cool Mode

    Functions ON/OFF Press to turn the unit on/o . LED display The LED displays indicates the timer setting or set temperature. When the set temperate or the timer is adjusted, the new setting is shown on the display. The LED display is also used to show error codes should a fault occur.
  • Page 19: Sleep Mode

    Functions SLEEP MODE • The SLEEP MODE maintains the optimum room temperature without excessive fluctuations in either temperature or humidity and with quieter operation. • Fan speed is always LOW, while room temperature and humidity vary gradually to ensure the most comfortable nights sleep. •...
  • Page 20: Error Codes

    Functions TEMPERATURE • In COOL mode, the temperature range can be set between 16-31°C. By pressing the 'Temperature Up' or 'Temperature Down' buttons, this will increase or decrease the temperature by 1°C. • Press and hold the 'Temperature Up & Temperature Down' buttons simultaneously to switch between Celsius and Farenheit.
  • Page 21 Remote Control Using the Remote Control 1. Open the battery cover of the remote control, and insert 2 x AAA batteries. 2. Please point to the receiver and be within 5m when using the remote control. 3. If the battery voltage is low, please open the battery cover as per the diagram and replace with a new batteries (2 x AAA).
  • Page 22: Safety Precautions

    Cleaning SAFETY PRECAUTIONS • Always unplug the unit before cleaning or servicing. • DO NOT use flammable liquids or chemicals to clean the unit. • DO NOT wash the unit under running water. Doing so causes electrical danger. • DO NOT operate the machine if the power supply was damaged during cleaning.
  • Page 23: Troubleshooting

    Troubleshooting Trouble Possible Cause Suggested Action The unit does not start - The water tank might be -Dump the water from the when pressing the on/off full. water tank. button. -The room temperature - Reset the temperature. might be lower than the set- ting temperature.
  • Page 24: Maintenance

    Warranty Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below. Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd 1340 Ferntree Gully Road, 38 Harris Road, East Tamaki,...
  • Page 28 Supplied by Glen Dimplex Australia 1340 Ferntree Gully Road, Scoresby, Victoria, 3179 © Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
