Makita MAC700 Parts Breakdown

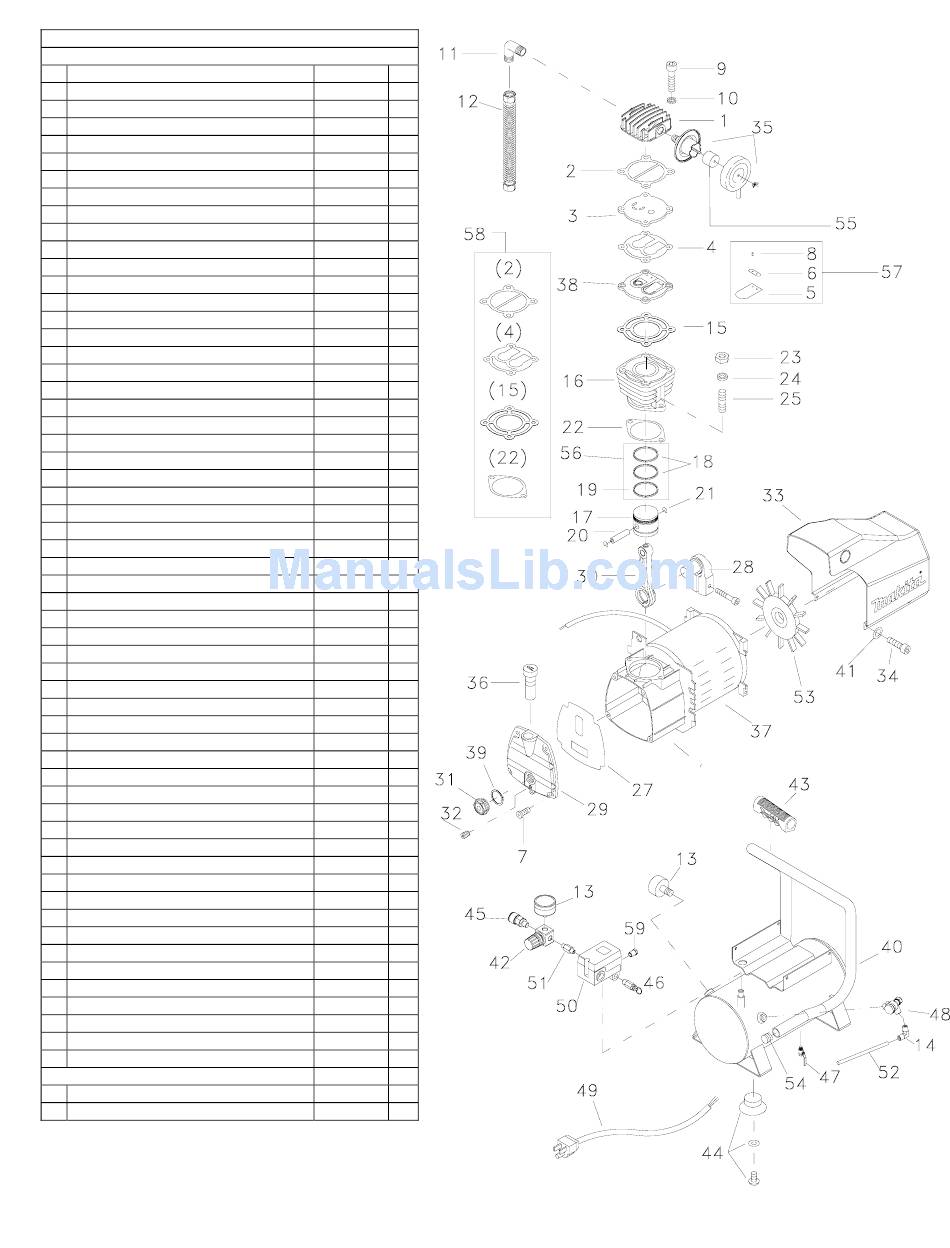

PARTS BREAKDOWN - MAC 700
Ref. # Description
1 Cylinder head
2
Valve seat to head gasket
3 Inlet valve seat
4
Inlet & Exhaust valve seat gasket
5 Inlet & Exhaust valve plate
6 Inlet & Exhaust spring plate
7
Crankcase cover bolt
8 Valve plate screw
9
Cylinder head bolt
10 Spring washer
11 Exhaust elbow
12
Discharge tube assembly
13 Pressure gauge
14
Unloading elbow
15 Valve seat to cylinder gasket
16
Cylinder
17
Piston
18 Compression ring
19
Oil control ring
20 Piston pin
21
Piston pin snap ring
22 Cylinder to crankcase gasket
23 Set nut (cylinder to crankcase)
24
Spring washer (cyl. to crankcase)
25 Double head screw
27
Crankcase cover gasket
28 Crankshaft
29 Crankcase cover
30
Connecting rod
31 Oil sight gauge
32
Oil draining plug
33 Motor cover
34
Motor cover bolt
35 Air filter assembly
36 Oil filler/crankcase breather
37
Electric motor / Crankcase
38 Exhaust valve seat
39
Oil gauge gasket
40 Air tank
41 Spring washer
42
Regulator
43 Rubber handle
44
Tank foot assembly
46 Safety valve (1/4")
47 Drain cock
48
Check valve
49 Power cord
50
Pressure switch
51 Regulator nipple
52
Unloading tube assembly (1/4")
53 Motor fan
54 Handle plug
55
Air filter (element only)
56 Ring kit (#18 and 19)
57
Valve kit (#5, 6, and 8)
58 Gasket kit (#2, 4, 15 and 22)
59 Plug
Standard Accessories
Compressor oil (1 quart)
45 Quick coupler (1/4")
Part # Qty
101001-E 1
211001-E 1
104001-E 1
212001-E 1
125001-E 2
127001-E 2
353043-E 5
126001-E 4
352087-E 4
382011-E 4
151404-E 1
E 1
230092S-
411028-E 2
151001-E 1
213001-E 1
201013-E 1
203002-E 1
206002-E 2
207002-E 1
204002-E 1
205001-E 2
214001-E 1
371005-E 2
382005-E 2
358001-E 2
215001-E 1
302001-E 1
304013-E 1
316001-E 1
321001-E 1
360001-E 1
433011-E 1
352071-E 4
170006-E 1
324003-E 1
251215-E 1
114001-E 1
217001-E 1
401129-E 1
382004-E 4
410030-E 1
435017-E 1
434002-E 4
407001-E 1
413008-E 1
409004-E 1
452005-E 1
412024-E 1
441001-E 1
240082-E 1
431005-E 1
439010-E 2
171002-E 1
RK700-E 1
VK700-E 1
GK700-E 1
360002-E 1
181122-A
447013-E 1
