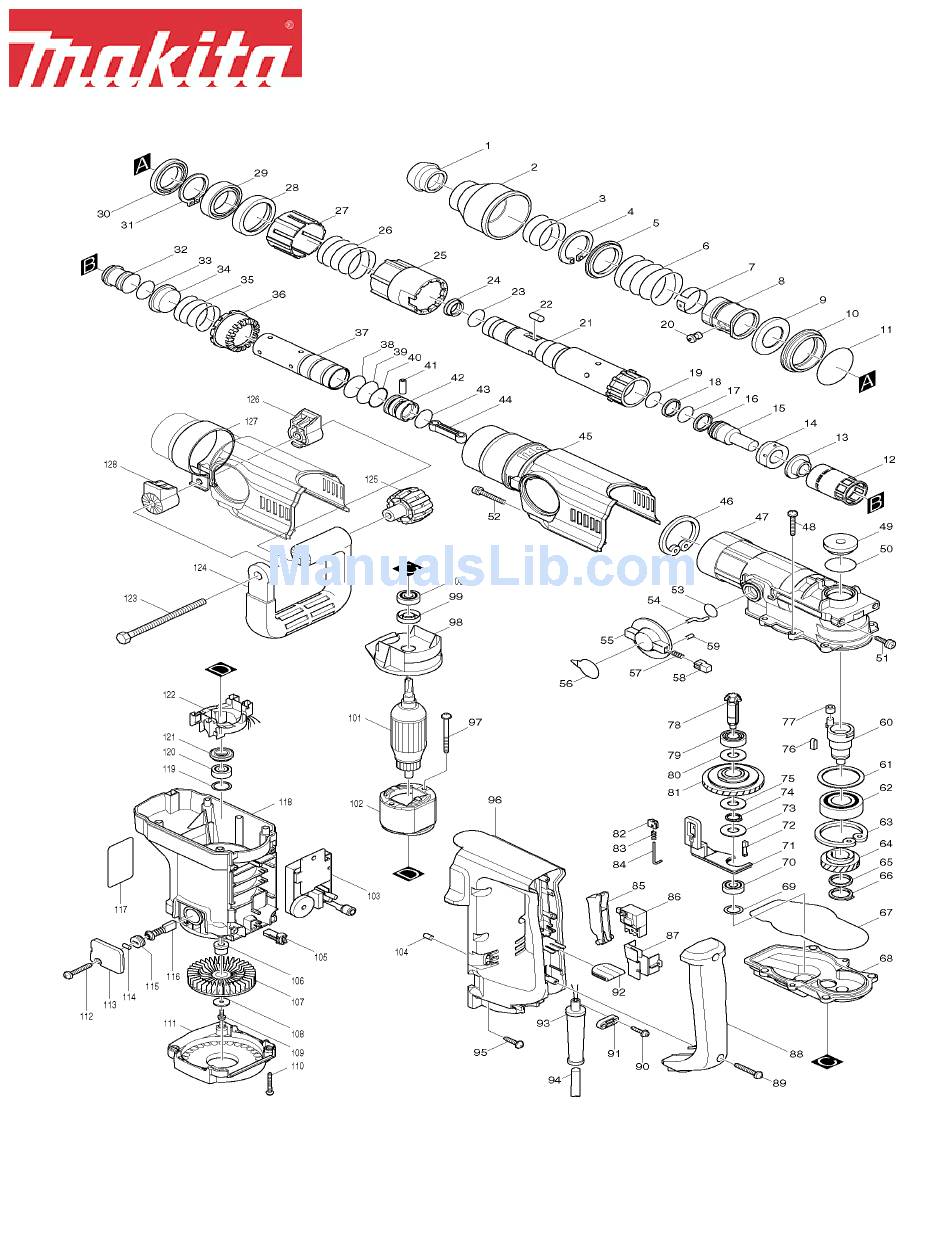

Parts Breakdown
HR4000C
Page 1 of 4
2/8/2008

Advertisement

loading

Related Manuals for Makita HR4000C

Summary of Contents for Makita HR4000C

  • Page 1 Parts Breakdown HR4000C Page 1 of 4 2/8/2008...
  • Page 2 33 213370-0 O RING 22, AF502 34 331509-4 RING 33, HR4000C 35 233176-0 COMPRESSION SPRING 37, HR4000C 36 226745-4 STRAIGHT BEVEL GEAR 33, HR4000C 37 331508-6 CYLINDER 28.5, HR4000C 38 213406-5 O RING 30, HR5000 39 213406-5 O RING 30, HR5000...
  • Page 3 75 267113-2 FLAT WASHER 12, 8412DWG 76 254229-2 KEY 5, HR4000C 77 257631-8 SLEEVE 7, HR4000C 78 226746-2 STRAIGHT BEVEL GEAR 10, HR4000C 79 211121-5 BALL BEARING 1207, HR4000C 80 267113-2 FLAT WASHER 12, 8412DWG 81 159947-6 TORQUE LIMITER COMPLETE, HR4040C...
  • Page 4 SIDE HANDLE, HM1202C 124 416009-6 SIDE HANDLE, HM1100C 125 252640-2 WING NUT M8, HM1100C 126 416298-3 SIDE HANDLE BASE 68, HR4000C,T1 127 344490-0 HANDLE SPRING 68, HR4000C,T1 127 151769-0 SIDE HANDLE 68 CPL., HR4040C 128 416298-3 SIDE HANDLE BASE 68, HR4000C,T1...
