Intake Side Panel Removal

See Figure 2-6. The intake side panel (A) must
be removed to access battery compartment,
fuel regulator, and sediment trap.
1.
Raise lid and remove front panel.
2.
Use a hex key to remove two mounting
screws (B) and the hex screw (C) on the L-
bracket.
3.
Lift intake panel up and away from
generator.
4.
Inspect for any hidden freight damage.
Contact freight carrier if damage is
present.
NOTE: Always lift intake side panel straight up
before pulling away from enclosure. Do not
pull panel away from enclosure before lifting
up (D).

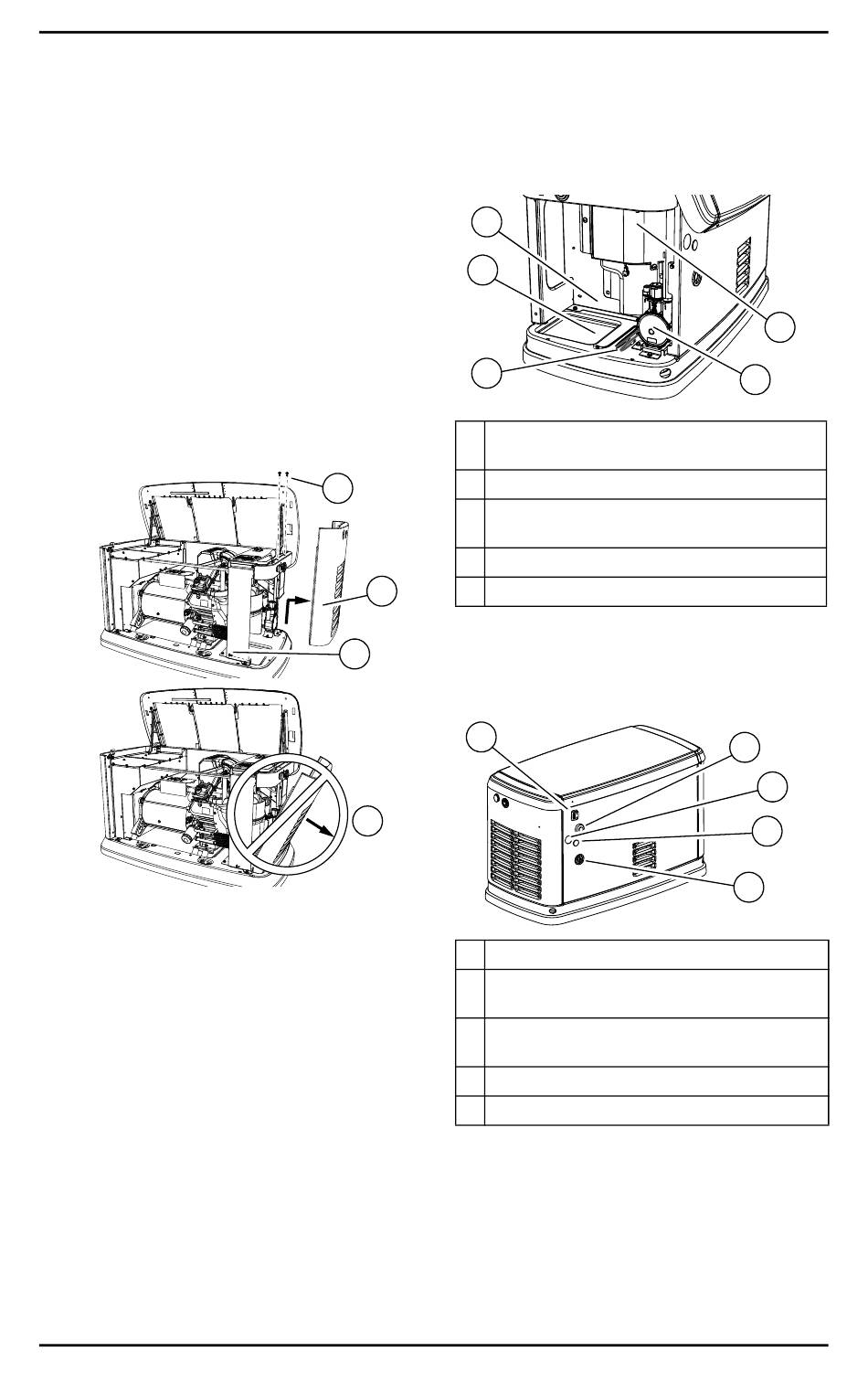

Figure 2-6. Intake Side Panel Removal
Installation Guidelines for 60 Hz Air-Cooled Generators
Customer Connections and
Loose Parts
See
connections and loose parts location.
2-10 illustrates parts shipped loose.
E
C
D
A Customer electrical connection area
(behind access panel)
B Fuel regulator with sediment trap
B
C Battery compartment
(battery not supplied) (PN 0H3421S)
D Positive (+) and negative (-) battery cables
A
E Location of "Loose Shipped Parts"
Figure 2-7. Customer Connection Area and
C

Rear Connections

E
D
002961
A Wi-Fi module
B Main AC/Control wiring hole for 1-1/4 in
conduit
C Main AC/Control wiring hole for 3/4 in
conduit (if equipped)
D Fuel connection hole
E Auxiliary shutdown switch
NOTE: Generator is equipped with a Wi-Fi
module. See Wi-Fi module owner's manual for
further instruction.
Unpacking and Inspection
Figure 2-7 and Figure 2-8
Loose Parts Location
Figure 2-8. Rear Connections
for customer
Figure
A
B
001800
A
B
C
D
001360
