Exmark Radius 135-6717 Installation Instructions

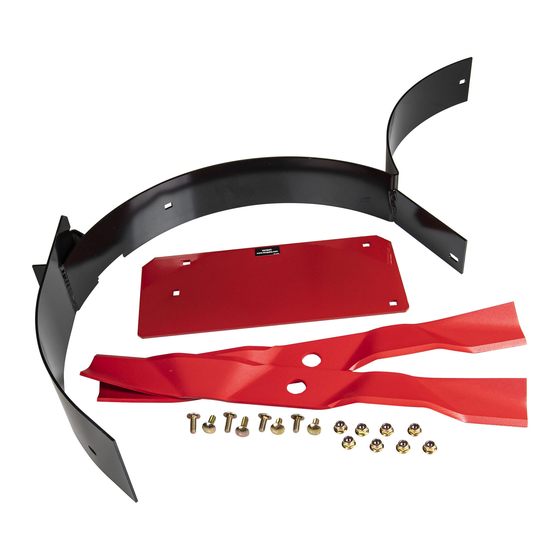

Mulch Kit
Radius 44 Inch Deck
®
Kit No. 135-6717
Safety Alert Symbol
This Safety Alert Symbol
this instruction sheet and on the machine to identify
important safety messages which must be followed to
avoid accidents
This symbol means: ATTENTION! BECOME ALERT!
YOUR SAFETY IS INVOLVED!
Safety Alert Symbol
The safety alert symbol appears above information
which alerts you to unsafe actions or situations and
will be followed by the word DANGER, WARNING, or
CAUTION.
DANGER: White lettering / Red background. Indicates
an imminently hazardous situation which, if not
avoided, Will result in death or serious injury.
WARNING: Black lettering / Orange background.
Indicates a potentially hazardous situation which, if
not avoided, Could result in death or serious injury.
CAUTION: Black lettering / Yellow background.
Indicates a potentially hazardous situation which, if
not avoided, May result in minor or moderate injury.
This manual uses two other words to highlight
information. Important calls attention to special
mechanical information and Note emphasizes general
information worthy of special attention.
© 2019—Exmark Mfg. Co., Inc.
2101 Ashland Ave
Beatrice, NE 68310
(Figure 1) is used both in
Figure 1
www.Exmark.com
WARNING
While maintenance or adjustments are being
made, someone could start the engine.
Accidental starting of the engine could
seriously injure you or other bystanders.
Remove the key from the ignition switch,
engage parking brake, and pull the wire(s)
off the spark plug(s) before you do any
maintenance. Also push the wire(s) aside so
it does not accidentally contact the spark
plug(s).
g000502
Note:
Determine the left and right sides of the
machine from the normal operating position.
Note:
Park the unit on a level surface. Make sure all
moving parts have stopped, parking brake is engaged,
the key has been removed, and the spark plug wire
has been disconnected. Allow unit to cool before
starting these instructions.
Original Instructions (EN)
Form No. 4504-443 Rev A
Installation Instructions
All Rights Reserved *4504-443* A
Printed in the USA
