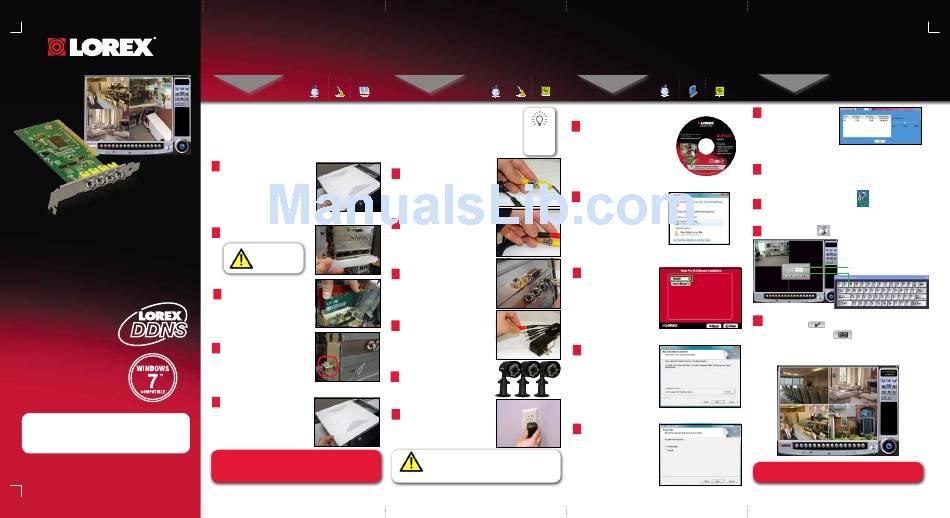

Lorex QLR464 Quick Setup Manual

QLR460 SeRieS
4 pORt pci cARd
diGitAL videO RecORdeR
Quick Setup Guide

pAckAGe cONteNtS:
1 x 4 Port PCI Capture Card
1 x User's Manual
1 x Quick Start Guide
1 x Software CD

NOte:
QLR464 also includes:
4 x Cameras
4 x 60ft Extension Cables
1 x 4-in-1 Power Adaptor
it's all on the web www.lorexcctv.com
For detailed setup information, please refer to your included User's
Manual. For additional information, please visit our website
www.lorexcctv.com
Information in this document is subject to change without notice. As our products are subject to
continuous improvement, Lorex Technology INC. and our subsidiaries reserve the right to modify
product design, specifications and prices, without notice and without incurring any obligation. E&OE
© 2010 LOREX. All rights reserved.
ENGLISH REVISION # R1
Time
BASic Setup: pci cARd
under 15 minutes under 30 minutes under 60 minutes over 60 minutes
Time
Hand Tools Hardware Hi Speed
pci cARd iNStALLAtiON Guide
Router
under 15 minutes under 30 minutes under 60 minutes over 60 minutes
Time: 20 Minutes Hand Tools Skills - Moderate
Step 1
Hand Tools Skill Level Hardware Hi Speed
Router
easy Intermediate advanced
Skill Level
Hardware installation
NOte: please turn off the computer's power and unplug the power cord
Intermediate advanced
easy
prior to installing the QLR capture card.
if you are unfamiliar with installing pc hardware, it is recommended to
have a pc technician perform the installation.
Remove the computer's cover panel
1 Refer to your computer's owner's
manual for instructions on how
to remove the case cover if you
are unsure of how to do so.
Remove the pci cover plate
Remove the PCI slot's metal
2
plate at the back of the system.
Be careful of
sharp edges
while removing
the metal plate.
insert the pci card
Push the card firmly into an avail-
3
able PCI slot until it clicks in place.
The gold-colored connector pins
should not be visible after the card
is secure.
Secure the pci card
Secure the PCI Card by tightening
4
the screw with a screw driver.
connect additional cameras
Replace the computer's cover panel
5. Slide the computer cover panel
5
back on and secure it with screws
using a screw driver.

congratulations!
You have completed Step 1 successfully.
Your computer can now support up to 4 cameras.
Time
BASic Setup: cAMeRAS
under 15 minutes under 30 minutes under 60 minutes
Time
Hand Tools Hardware
cAMe RA iNStA LL Ati O N Gu i de
Router
under 15 minutes under 30 minutes under 60 minutes over 60 minutes
Time: 20 Minutes Hand Tools Skills - Easy
Step 2
Skill Level
Hand Tools Hardware Hi Speed
Router
easy Intermediate
Skill Level
camera installation
Before you install a camera, carefully plan where and how you will
Intermediate advanced
position the camera, and where you will route the cables. easy
TIP
NOte: The 4 Port PCI card has 4 Video inputs, allowing you to
Make sure your
connect up to 4 cameras (the instructions below apply to the
cameras are fully
cameras included with QLR464). You may connect your own
functional before
cameras, however please make sure to use a proper power adaptor mounting them in
the final location.
NOt exceediNG 12v dc for each camera.
connect to BNc extension cable
1 Connect the camera's BNC
connector into the extension cable's
BNC connector. The connection
should be snug and secure.
connect power cable
2 Plug the camera's power connector
into the power connector end of the
extension cable.
connect BNc to the computer
3 Screw in the BNC connector from
the extension cable to the back
of the QLR card. The connection
should be snug and secure.
connect power adaptor
4 Connect the 4-in-1 12V DC power
adaptor to the power connector end
of the extension cable.
5 Repeat these steps for up to three
additional cameras.
plug in the power adaptor
6 Plug the power adaptor into the wall
outlet. This will provide power for
up to 4 cameras.
For QLR464, you are required to use the
included power adaptor. Use of a non-regulated,
nonconforming power adaptor can damage the
wARNiNG cameras and will void the warranty.
Time
expReSS iNStALLAtiON
over 60 minutes under 15 minutes under 30 minutes under 60 minutes
(dRiveR ANd LOcAL SOftwARe) Hi Speed Hand Tools Hardware
LO cAL iN StA LLAti ON Gui de
Router
Time: 10 Minutes Hardware Skills - Easy
Step 3
PC
Skill Level
advanced easy Intermediate
installing the pci card driver
Insert the installation disc into your
1
computer's CD/DVD drive.
Follow the auto-run
2
instructions on screen. Click
on the "Run Setupdisc.exe"
option if prompted.
If your system does not support
auto-run, you can browse the CD,
and search for the Vista Pro 6
Server in the X:\Package\Remote
Client directory, where "X" is your
CD/DVD drive.
The installation screen will
3
open. Click on the install
button and then click the
express installation button.
Note: A pop-up window may
appear asking you to verify the
software. Click the button to
allow the installation.
The installation window
4
will pop up. Follow the
instructions by clicking the
"Next" buttons after making
your selections. You will be
asked to set the installation
location, language and
program folder.
Once installed, you will be
5
asked to select whether you
want the program to start
automatically or manually.
Note: It is recommended that
you select "automatically". This
ensures that your DVR is always
ready to record, even after
restarting your computer.
expReSS iNStALLAtiON
over 60 minutes
(dRiveR ANd LOcAL SOftwARe)
Hi Speed
Step 3
cONtiNued
advanced
You will be asked to select a
6
drive for storage, and to set
the storage size.
Note: If you set more than 90% of
your hard drive to be allocated to the
QLR460 storage, your computer may
read the drive as being full, as this
hard drive space is being saved for the
program.
It is recommended that you remove the installation CD and then
7
restart your computer before running the VistaPro 6 Server Software.
Logging in to vistapro 6 Server
8
Click the DVR shortcut on your desktop , or locate the application
in the start menu. If a Windows Firewall warning pops up, select the
"Unblock" option.
9
Click the Lock Button . The Logon window appears.
Default ID: admin
Default Password: 1111
Under ID, enter admin; under Password, enter 1111. Click the
10
checkmark button to log in.
NOTE: Click the Virtual Keyboard button to type in the User ID and Password if you do
not have access to a keyboard.
NOTE: It is recommended to change the default password. For details on changing the admin
password, see "Changing User Account Password" on page 34.
NOTE: Click the Exit button on the bottom right hand corner of the window to exit the program.
congratulations!
You have successfully installed the VistaPro 6 Server software.
You can now view, record and playback video on your local computer.
