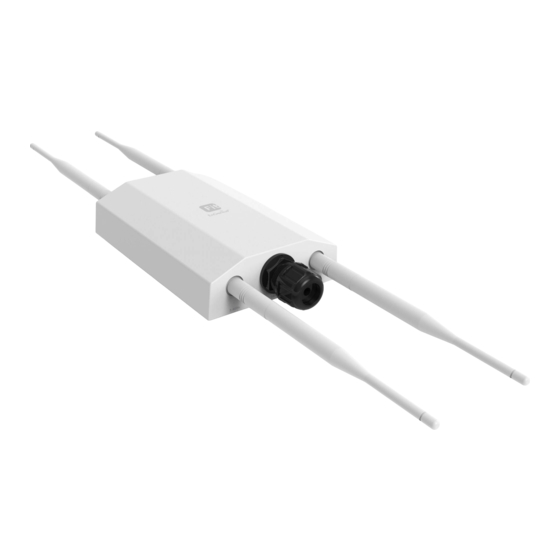

EnGenius Fit Wi-Fi 6 2×2 Outdoor Wireless
Access Point
Quick Start Guide
Introduction
This Quick Start Guide is designed to guide you through the
installation of the Fit 2x2 access point, model EWS850-FIT,
including hardware mounting and configuration.
Package Contents
FIT Bridge Outdoor
Access Point
Detachable Antena:
2.4GHz Antenna x2
5GHz Antenna x2
Mounting
Bracket
Product Card
Model: EWS850-FIT
• Wi-Fi 6 technology for high-performance Wi-Fi in high-density,
multi-device environments.
• Two spatial streams support up to 1,200 Mbps (5GHz) & 574
Mbps (2.4GHz).
• Multiple applications for cloud and on premises solutions.
Ground Wire &
Mounting
Screw Set
Screw Kit x2
System Requirements
Web Browser
• Google Chrome (57.0.2987.110 and later)
• Microsoft Edge (80.0.361.103 and later)
• Mozilla Firefox (52.0 and later)
Quick Start Guide
EWS850-FIT
Pole Mounting
Strap x2
EWS850-FIT Quick Start Guide
Advertisement
Table of Contents
Related Manuals for EnGenius EWS850-FIT
Summary of Contents for EnGenius EWS850-FIT
- Page 1 • Wi-Fi 6 technology for high-performance Wi-Fi in high-density, multi-device environments. This Quick Start Guide is designed to guide you through the installation of the Fit 2x2 access point, model EWS850-FIT, • Two spatial streams support up to 1,200 Mbps (5GHz) & 574 including hardware mounting and configuration.
-
Page 2: Hardware Overview
5GHz Radio On 5GHz (Green) Solid On 5GHz Transmitting 5GHz (Green) Flashing Firmware Upgrading Flashing (0.5 Sec.) 2.4GHz 5GHz Reset to Default PWR (Orange) Fast Flashing AP Location Mode Flashing (1.5 Sec. on ->0.5 Sec. off) 2.4GHz 5GHz EWS850-FIT Quick Start Guide... -
Page 3: Hardware Mounting
4. Hang the Access Point against the wall on the 5. Secure the Access Point on the Mounting Bracket Mounting Bracket. with the secure lock on the side. FIT Bridge Outdoor Access Point Wall Mounting Bracket EWS850-FIT Quick Start Guide... - Page 4 Mounting Bracket onto the pole. Pole Mounting Strap Mounting Pole Mounting Bracket Strap Mounting Bracket 3. Hang the Access Point onto the Mounting Bracket. 4. Secure the Access Point on the Mounting Bracket with the secure lock on the side. EWS850-FIT Quick Start Guide...
- Page 5 AP is power by a PoE Switch Powering with a PoE Injector (A) Connect one end of the Ethernet cable into the LAN (PoE) port of EnGenius FIT AP and the other end to the PoE port on the PoE Adapter.
-
Page 6: Management Plane
Management Plane EnGenius Fit provides flexible options to manage your devices based on your network planning and deployment. Option A: Cloud Management Option B: On-Premises Management Option C: Standalone Configuration Cloud Management Manage and monitor the Access Point through the FitXpress Platform with a mobile app or through the web portal. - Page 7 Option A: Cloud Management with FitXpress Step 1: Connecting Ethernet Connect the Ethernet cable from the EnGenius Fit AP directly to the DHCP-enabled network and make sure the AP can reach the Internet. DHCP-Assigned IP EnGenius Fit Access Point Internet...
- Page 8 If a firmware upgrade is required, it might take 8~10 minutes to complete the process. All LED indicators will be Flashing (0.5 sec) till the process is finished. Step 4: Manage with the FitXpress Log in to the FitXpress app to configure detailed settings and monitor your devices. EWS850-FIT Quick Start Guide...
- Page 9 Option B: On-premises Management with FitController Step 1: Connecting Ethernet Connect the Ethernet cable from the EnGenius Fit AP directly to the DHCP-enabled network, which is the same Layer-2 network as FitController. Internet FitController Gateway EnGenius Fit Access Point EnGenius Fit...
- Page 10 1. Go to the system > Inventory page and click “Register Device (+)”. 2. FitController will list all EnGenius Fit devices discovered from the same L2 network in the Pending Approval section. Select the device and Click “Register” to add to inventory. You can also tap “Manually” tab and register Fit device by entering Serial Number.
- Page 11 EnMGMTxxxx - xxxx is the last four digits of MAC - MAC can be found on the device label on the back of the access point. 2. Under your web browser, enter the URL: http://EnGenius.local or http://192.168.1.1 to access the device’s user interface.
