EnGenius Fit Wi-Fi 6 4×4 Indoor Wireless
Access Point
Quick Start Guide
Introduction
This Quick Start Guide is designed to guide you through the
installation of the Fit 4x4 access point, model EWS377-FIT,
including hardware mounting and configuration.

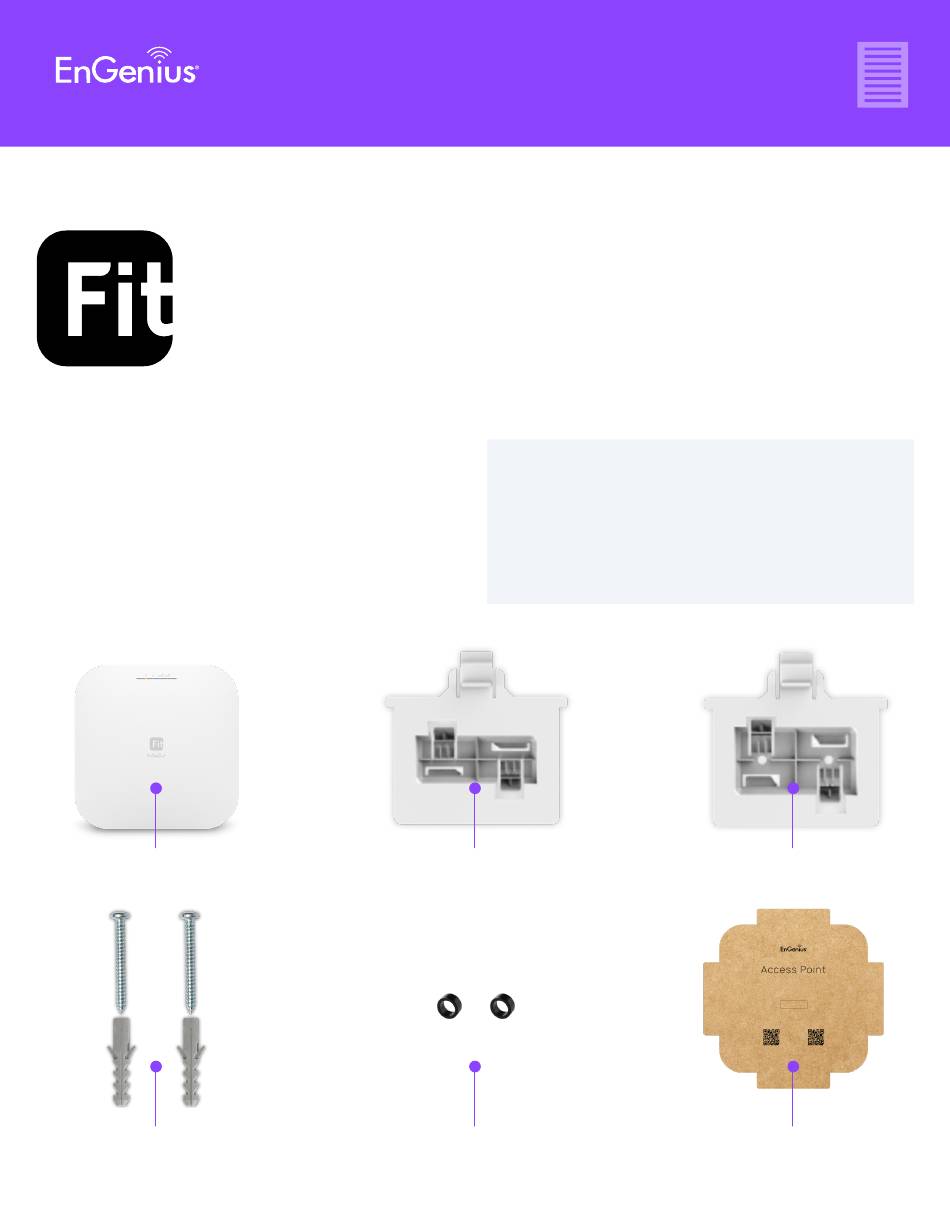

Package Contents
FIT Managed Indoor
Access Point
Mounting Kit
Model: EWS377-FIT
• Wi-Fi 6 technology for high-performance Wi-Fi in high-density,
multi-device environments.
• Two spatial streams support up to 2,400 Mbps (5GHz) & 1,200
Mbps (2.4GHz).
• Multiple applications for cloud and on premises solutions.
Ceiling Mount Base
(9/16" T-Rail)
Spacer
Quick Start Guide
EWS377-FIT
Ceiling Mount Base
(15/16" T-Rail)
Product Card
EWS377-FIT Quick Start Guide
Advertisement
Table of Contents
Related Manuals for EnGenius EWS377-FIT
Summary of Contents for EnGenius EWS377-FIT
- Page 1 • Wi-Fi 6 technology for high-performance Wi-Fi in high-density, multi-device environments. This Quick Start Guide is designed to guide you through the installation of the Fit 4x4 access point, model EWS377-FIT, • Two spatial streams support up to 2,400 Mbps (5GHz) & 1,200 including hardware mounting and configuration.
-
Page 2: System Requirements
5GHz (Blue) Solid On 5GHz Transmitting 5GHz (Blue) Flashing Firmware Upgrading Flashing (0.5 Sec.) 2.4GHz 5GHz Reset to Default PWR (Orange) Fast Flashing (0.2 Sec.) AP Location Mode Flashing (1.5 Sec. on ->0.5 Sec. off) 2.4GHz 5GHz EWS377-FIT Quick Start Guide... -
Page 3: Hardware Mounting
1. Slide the Ceiling Mount Base into the designated slot on the access point slot of the Access Point. Celing Mount Base Access Point 2. Slightly hook the ceiling mount bracket onto the T-Rail until you hear a click. T-Rrail Access Point EWS377-FIT Quick Start Guide... - Page 4 Access Point on it. 3. Hang the Access Point against the wall onto the Screw heads. Access Point Screws Spacers Anchors Holes in the wall Ceiling Mount Base EWS377-FIT Quick Start Guide...
- Page 5 AP is power by a PoE Switch Powering with a PoE Injector (A) Connect one end of the Ethernet cable into the LAN (PoE) port of EnGenius FIT AP and the other end to the PoE port on the PoE Adapter.
-
Page 6: Management Plane
Access Point Adaptor AP is power by a power adapter Management Plane EnGenius Fit provides flexible options to manage your devices based on your network planning and deployment. Option A: Cloud Management Option B: On-Premises Management Option C: Standalone Configuration Cloud Management Manage and monitor the Access Point through the FitXpress Platform with a mobile app or through the web portal. -
Page 7: Standalone Configuration
GUI page for configurations whenever the device is set to Standalone mode. Option A: Cloud Management with FitXpress Step 1: Connecting Ethernet Connect the Ethernet cable from the EnGenius Fit AP directly to the DHCP-enabled network and make sure the AP can reach the Internet. DHCP-Assigned IP... - Page 8 If a firmware upgrade is required, it might take 8~10 minutes to complete the process. All LED indicators will be Flashing (0.5 sec) till the process is finished. Step 4: Manage with the FitXpress Log in to the FitXpress app to configure detailed settings and monitor your devices. EWS377-FIT Quick Start Guide...
- Page 9 Option B: On-premises Management with FitController Step 1: Connecting Ethernet Connect the Ethernet cable from the EnGenius Fit AP directly to the DHCP-enabled network, which is the same Layer-2 network as FitController. Internet Gateway EnGenius Fit FitController Access Point EnGenius Fit PoE Switch Step 2: Log in to the FitController Launch your web browser to access the login page of FitController and create an account.
- Page 10 1. Go to the system > Inventory page and click “Register Device (+)”. 2. FitController will list all EnGenius Fit devices discovered from the same L2 network in the Pending Approval section. Select the device and Click “Register” to add to inventory. You can also tap “Manually” tab and register Fit device by entering Serial Number.
- Page 11 EnMGMTxxxx - xxxx is the last four digits of MAC - MAC can be found on the device label on the back of the access point. 2. Under your web browser, enter the URL: http://EnGenius.local or http://192.168.1.1 to access the device’s user interface.
