Solid-state Timer
DIN 48 x 48-mm Multifunctional Timer Series
Conforms to EN61812-1 and EN60664-1
(VDE0110) 4 kV/2 for Low Voltage, and EMC
Directives.
Approved by UL and CSA.

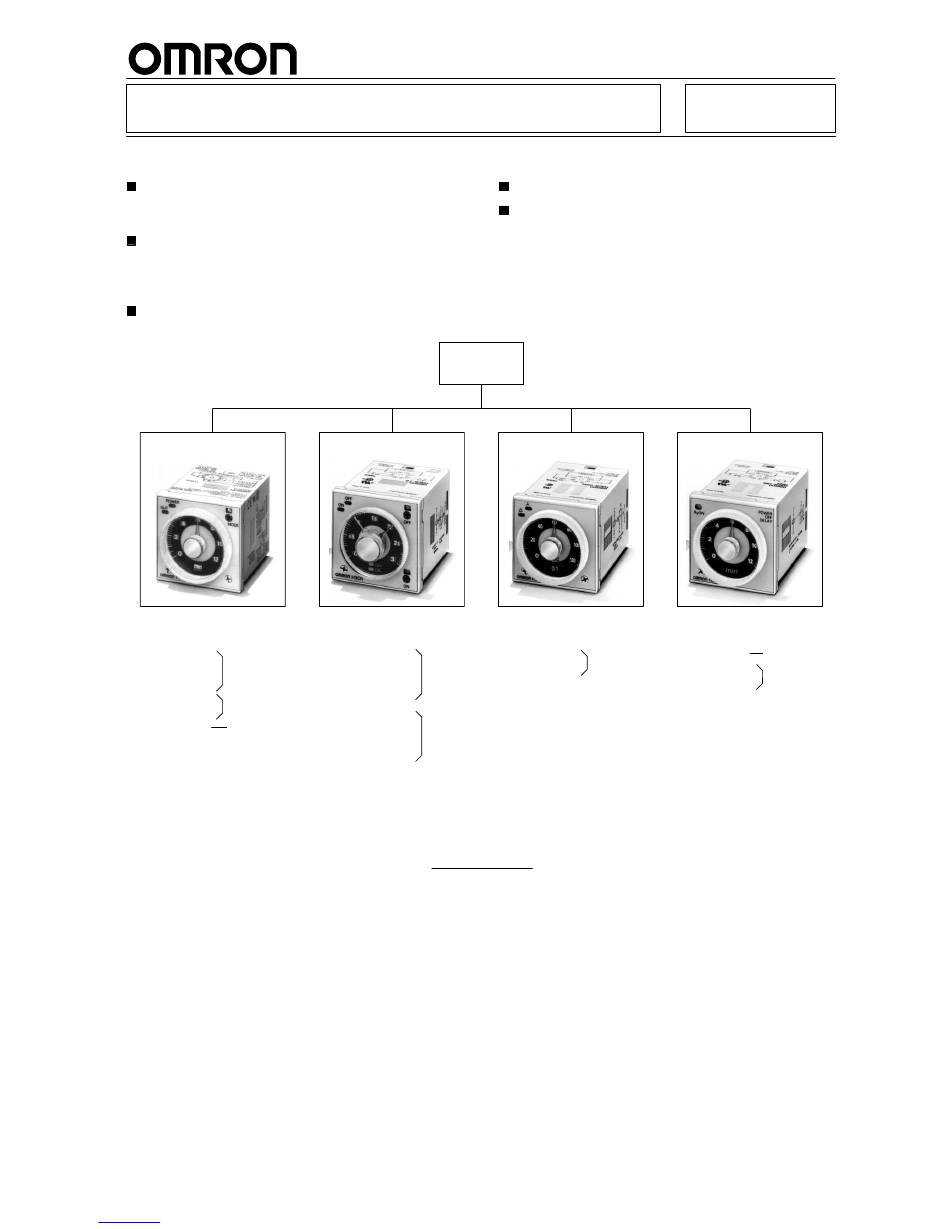

Broad Line-up of H3CR Series
H3CR-A
Multifunctional Timer
H3CR-A
H3CR-AS
H3CR-AP
H3CR-A8
H3CR-A8S
H3CR-A8E
Note: H3CR-AS, H3CR-A8S: Transistor output models
Solid-state Timer
Common to ALL Timers
Downloaded from
Elcodis.com
electronic components distributor
H3CR-F
Twin Timer
H3CR-F
11-pin model
H3CR-FN
H3CR-F-300
H3CR-FN-300
8-pin model
H3CR-F8
8-pin with
H3CR-F8N
instantaneous
H3CR-F8-300
contact output
H3CR-F8N-300
model
H3CR-A
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
H3CR-F
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
H3CR-G
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
H3CR-H
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessories
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Precautions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lloyds/NK approvals.
Six-language instruction manual provided.
H3CR
H3CR-G
Star-delta Timer
H3CR-G8L
8-pin model
H3CR-G8EL
11-pin model
8-pin model
Contents
H3CR
H3CR-H
Power OFF-delay Timer
11-pin model
H3CR-HRL
H3CR-H8L
8-pin model
H3CR-H8RL
4
23
29
36
44
46
50
3

Advertisement

loading

Summary of Contents for Omron H3CR Series

  • Page 1 DIN 48 x 48-mm Multifunctional Timer Series Conforms to EN61812-1 and EN60664-1 Lloyds/NK approvals. (VDE0110) 4 kV/2 for Low Voltage, and EMC Six-language instruction manual provided. Directives. Approved by UL and CSA. Broad Line-up of H3CR Series H3CR H3CR-A H3CR-F H3CR-G H3CR-H Multifunctional Timer...
  • Page 2 H3CR-A H3CR-A Solid-state Timer H3CR-A DIN 48 x 48-mm State-of-the-art Multifunctional Timer A wider power supply range reduces the number of timer models kept in stock. A wide range of applications through six or four operating modes. Reduced power consumption. (Except for H3CR-A8E) Enables easy sequence checks through instanta- neous outputs for a zero set value at any time...
  • Page 3 H3CR-A H3CR-A 8-pin Models Output Supply voltage Input type Time range Operating mode Model (see note 2) Contact No-input 0.05 s to 300 h Four multi-modes: A, H3CR-A8 100 to 240 VAC (50/60 Hz)/ available a a ab e B2, E, J , , J 100 to 125 VDC (Power supply start)
  • Page 4 H3CR-A H3CR-A Accessories (Order Separately) Name/specifications Models Flush Mounting Adapter Y92F-30 Y92F-70 Y92F-71 Mounting Track 50 cm (l) x 7.3 mm (t) PFP-50N PFP-100N 1 m (l) x 7.3 mm (t) 1 m (l) x 16 mm (t) PFP-100N2 End Plate PFP-M Spacer PFP-S...
  • Page 5 H3CR-A H3CR-A Time Ranges Note: When the time setting knob is turned below “0” until the point where the time setting knob stops, the output will operate instantaneously at all time range settings. Standard (0.05-s to 300-h) Models Time unit s (sec) h (hrs) x10 h (10 h)
  • Page 6 H3CR-A H3CR-A Characteristics ±0.2% FS max. (±0.2%±10 ms max. in a range of 1.2 s) Accuracy of operating time ±5% FS ±50 ms (see note) Setting error Reset time Min. power-opening time: 0.1 s max. Min. pulse width: 0.05 s (H3CR-A/-AS) Reset voltage 10% max.
  • Page 7 H3CR-A H3CR-A Engineering Data 10,000 5,000 1,000 Reference: A maximum current of 0.15 A can be switched at 125 VDC (cosφ = 1) 30 VDC L/R = 7 ms and a maximum current of 0.1 A can be switched if L/R is 7 ms. In both cases, a life of 100,000 operations can be expected.
  • Page 8 H3CR-A H3CR-A Operation Block Diagrams H3CR-A/AS Zero setting Time range/ Operating AC (DC) input detection unit selectors mode selector circuit Oscillation Power supply Counting Output circuit circuit circuit circuit Indicator Input circuit Reset input, start input, and gate input circuit Power-ON Output-ON indicator...
  • Page 9 H3CR-A H3CR-A H3CR-A8/A8S Zero setting Time range/ Operating AC (DC) input detection unit selectors mode selector circuit Oscillation Power supply Counting Output circuit circuit circuit circuit Indicator circuit Power-ON Output-ON indicator indicator H3CR-A8E Zero setting Time range/ Operating AC (DC) input detection unit selectors mode selector...
  • Page 10 H3CR-A H3CR-A Timing Chart Note: 1. The minimum power-opening time (“Rt”) is 0.1 s and the minimum pulse width is 0.05 s. 2. The letter “t” in the timing charts stands for the set time and “t–a” means that the period is less than the time set. H3CR-A/-AS/-AP* *H3CR-AP model incorporates start input only.
  • Page 11 H3CR-A H3CR-A Operating Timing chart mode Basic operation Signal Power OFF-delay Power Start Start Reset (see note) Output relay (NC) Output Output relay (NO) Note: Start input is valid and (Output indicator) re-triggerable while the Power indicator Timer is in operation. Basic operation Interval Power...
  • Page 12 H3CR-A H3CR-A H3CR-A8/-A8S Operating Timing chart mode ON-delay Power Basic operation Output relay (NC) Power Output relay (NO) (output Output indicator) Power indicator Flicker ON Power start Basic operation Output relay (NC) Power Output relay (NO) (output Output indicator) Power indicator Interval Power...
  • Page 13 H3CR-A H3CR-A H3CR-A8E Operating Timing chart mode ON-delay Power Output relay (NC) Output relay Basic operation (NO) (output indicator) Instantaneous Power output relay (NC) Instantaneous output relay (NO) Output Power indicator Flicker ON Power start Output relay (NC) Basic operation Output relay (NO) (output Power...
  • Page 14 H3CR-A H3CR-A Dimensions Note: All units are in millimeters unless otherwise indicated. H3CR-A H3CR-AP 66.6 H3CR-AS 52.3 39 dia. 44.8 x 44.8 11 pins H3CR-A8 H3CR-A8S H3CR-A8E 66.6 52.3 39 dia. 44.8 x 44.8 8 pins Dimensions with Set Ring 16.5 42 dia.
  • Page 15 H3CR-A H3CR-A Installation Terminal Arrangement Note: The delayed contact of conventional Timers was indicated as The contact symbol of the H3CR-A is indicated as because its operating mode is six multi-modes (four multi-modes for the H3CR-A8). 11-pin Models 8-pin Models H3CR-A (Contact Output) H3CR-A8 (Contact Output) (–)
  • Page 16 H3CR-A H3CR-A Input Connections H3CR-A/-AS The inputs of the H3CR-A/-AS are no-voltage (short-circuit or open) inputs. No-voltage Inputs No-contact Input Contact Input No-contact Input (Connection to NPN open (Connection to a voltage collector output sensor.) output sensor.) 12 to 24 VDC 12 to 24 VDC (sensor power supply) (sensor power supply)
  • Page 17 H3CR-A H3CR-A H3CR-AP The start input of the H3CR-AP is voltage input. (Voltage imposition or open) Voltage Inputs No-contact Input No-contact Input Contact Input (Connection to PNP open (Connection to NPN open collector output sensor) collector output sensor) 12 to 24 VDC 12 to 24 VDC (sensor power supply) (sensor power supply)
  • Page 18 H3CR-A H3CR-A Application Examples A Mode: ON-delay ON-delay operation (A mode) is a basic mode. 1. Power-ON Start/Power-OFF Reset 3. Control of Integrated Time with Gate Signal The Power-ON start/Power-OFF reset operation is a standard oper- With a gate signal, the Power-ON start operation and Signal start ating method.
  • Page 19 H3CR-A H3CR-A 2. Signal Start/Signal Reset (in B Mode) 2. Signal-ON-OFF Start/Instantaneous Operation/Time-limit Reset If there is an abnormal signal, flashing starts. When the abnormal condition is restored, a reset signal stops the display flashing. Power (2 and 10) Power (2 and 10) Start (2 and 6) Start (2 and 6) Control output: NC (8 and 11)
  • Page 20 H3CR-A H3CR-A 2. Signal Start/Instantaneous Operation/Time-limit Reset 2. Signal Start/Instantaneous Operation/Time-limit Reset This function is useful for the repetitive control such as the filling of liquid for a specified period after each Signal start input. Power (2 and 10) Start (2 and 6) Power (2 and 10) Control output: NC (8 and 11) NC (1 and 4)
  • Page 21 H3CR-F H3CR-F Solid-state Twin Timers H3CR-F DIN 48 x 48-mm Twin Timers Wide power supply ranges of 100 to 240 VAC and 48 to 125 VDC respectively. Independent ON- and OFF-time settings. Further- more, combinations of long ON- or OFF-time and short OFF- or ON-time settings are possible.
  • Page 22 H3CR-F H3CR-F Accessories (Order Separately) Name/specifications Models Flush Mounting Adapter Y92F-30 Y92F-73 Y92F-74 Mounting Track 50 cm (l) x 7.3 mm (t) PFP-50N PFP-100N 1 m (l) x 7.3 mm (t) 1 m (l) x 16 mm (t) PFP-100N2 End Plate PFP-M Spacer PFP-S...
  • Page 23 H3CR-F H3CR-F Ratings Rated supply voltage (see note) 100 to 240 VAC (50/60 Hz),12 VDC, 24 VAC/DC (50/60 Hz), 48 to 125 VDC Operating voltage range 85% to 110% of rated supply voltage; 90% to 110% with 12-VDC models Power reset Minimum power-opening time: 0.1 s Power consumption 100 to 240 VAC: approx.
  • Page 24 H3CR-F H3CR-F Engineering Data 10,000 5,000 1,000 Reference: A maximum current of 0.15 A can be switched at 125 VDC (cosf = 1) 30 VDC L/R = 7 ms and a maximum current of 0.1 A can be switched if L/R is 7 ms. In both cases, a life of 100,000 operations can be expected.
  • Page 25 H3CR-F H3CR-F Timing Chart : ON set time : OFF set time Operating mode Timing chart Flicker OFF start 0.1 s min. Power indicator Not lit indicator Not lit Output Output Flicker ON start 0.1 s min. Power indicator Not lit indicator Not lit Output...
  • Page 26 H3CR-F H3CR-F Dimensions Note: All units are in millimeters unless otherwise indicated. H3CR-F H3CR-FN 17.4 66.6 52.3 H3CR-F-300 H3CR-FN-300 44.8 x 44.8 37 dia. 14 dia. R1.3 11 pins 17.4 66.6 H3CR-F8 52.3 H3CR-F8N H3CR-F8-300 H3CR-F8N-300 37 dia. 44.8 x 44.8 14 dia.
  • Page 27 H3CR-G H3CR-G Solid-state Star-delta Timer H3CR-G DIN 48 x 48-mm Star-delta Timer A wide star-time range (up to 120 seconds) and star-delta transfer time range (up to 0.5 seconds). Ordering Information Outputs Supply voltage 8-pin models Time-limit contact 100 to 120 VAC H3CR-G8L 200 to 240 VAC Time-limit contact and instantaneous contact...
  • Page 28 H3CR-G H3CR-G Accessories (Order Separately) Name/specifications Models Flush Mounting Adapter Y92F-30 Y92F-70 Y92F-71 Mounting Track 50 cm (l) x 7.3 mm (t) PFP-50N PFP-100N 1 m (l) x 7.3 mm (t) 1 m (l) x 16 mm (t) PFP-100N2 End Plate PFP-M Spacer PFP-S...
  • Page 29 H3CR-G H3CR-G Ratings Rated supply voltage 100 to 120 VAC (50/60 Hz), 200 to 240 VAC (50/60 Hz) Operating voltage range 85% to 110% of rated supply voltage Power reset Minimum power-opening time: 0.5 s Power consumption 100 to 120 VAC: approx. 6 VA (2.6 W) at 120 VAC 200 to 240 VAC: approx.
  • Page 30 H3CR-G H3CR-G Engineering Data 10,000 5,000 1,000 Reference: A maximum current of 0.15 A can be switched at 125 VDC (cosf = 1) 30 VDC L/R = 7 ms and a maximum current of 0.1 A can be switched if L/R is 7 ms. In both cases, a life of 100,000 operations can be expected.
  • Page 31 H3CR-G H3CR-G Operation Block Diagrams H3CR-G8L Star Star-delta operation transfer time time range selector selector Star-delta Star-delta Star operation Star Power transfer time transfer time time operation AC input Star operation supply oscillation counting oscillation time counting circuit Output circuit circuit circuit circuit...
  • Page 32 H3CR-G H3CR-G Timing Chart t1: Star operation time setting t2: Star-delta transfer time Model Timing chart H3CR-G8L/-G8EL 0.5 s min. Power (2 – 7) Instantaneous output (1 – 3) (-E models) Star operation output (8 – 5) Delta operation output (8 – 6) Star operation indicator Not lit Delta operation indicator...
  • Page 33 H3CR-G H3CR-G Dimensions Note: All units are in millimeters unless otherwise indicated. 78.0 63.7 39 dia. 44.8 x 44.8 8 pins Dimensions with Set Ring 16.5 42 dia. Time setting ring Panel cover Dimensions with Front Connecting Socket Dimensions with Back Connecting Socket P2CF-08-j P3G-08 92.9...
  • Page 34 H3CR-H H3CR-H Solid-state Power OFF-delay Timer H3CR-H DIN 48 x 48-mm Power OFF-delay Timer Long power OFF-delay times; S-series: up to 12 seconds, M-series: up to 12 minutes. Models with forced-reset input are available. 11-pin and 8-pin models are available. Ordering Information Input Output...
  • Page 35 H3CR-H H3CR-H Accessories (Order Separately) Name/specifications Models Flush Mounting Adapter Y92F-30 Y92F-70 Y92F-71 Mounting Track 50 cm (l) x 7.3 mm (t) PFP-50N PFP-100N 1 m (l) x 7.3 mm (t) 1 m (l) x 16 mm (t) PFP-100N2 End Plate PFP-M Spacer PFP-S...
  • Page 36 H3CR-H H3CR-H Ratings Rated supply voltage (see note 1) 100 to 120 VAC (50/60 Hz), 200 to 240 VAC (50/60 Hz), 24 VAC/VDC (50/60 Hz), 48 VDC, 100 to 125 VDC Operating voltage range 85% to 110% of rated supply voltage No-voltage input (see note 2) ON-impedance: 1 kΩ...
  • Page 37 H3CR-H H3CR-H Engineering Data 10,000 5,000 1,000 Reference: A maximum current of 0.15 A can be switched at 125 VDC (cosf = 1) 30 VDC L/R = 7 ms and a maximum current of 0.1 A can be switched if L/R is 7 ms. In both cases, a life of 100,000 operations can be expected.
  • Page 38 H3CR-H H3CR-H Operation Block Diagrams Without Reset Input (H3CR-H8L) Time range selector Power supply Oscillation Counting Output AC (DC) input circuit circuit circuit circuit Power failure Indicator Output detection circuit circuit indicator With Reset Input (H3CR-H8RL/-HRL) Time range selector Power supply Oscillation Counting Output...
  • Page 39 H3CR-H H3CR-H Timing Chart Set time Rt: Minimum power ON time (S-series: 0.1 s min.; M-series: 2 s min.) Model Timing chart H3CR-H8L Power (see note) Output (1 – 3) Output (1 – 4) Output (8 – 6) Output (8 – 5) Output indicator Not lit...
  • Page 40 H3CR-H H3CR-H Dimensions Note: All units are in millimeters unless otherwise indicated. H3CR-H8L H3CR-H8RL 78.0 63.7 39 dia. 44.8 x 44.8 8 pins H3CR-HRL 78.0 63.7 44.8 x 44.8 39 dia. 11 pins Dimensions with Back Connecting Socket Dimensions with Front Connecting Socket P3G-08/P3GA-11 P2CF-08-j/P2CF-11-j 92.9...
  • Page 41 H3CR-H H3CR-H Installation Terminal Arrangement Note: DC models, including 24 VAC/DC models, have polarity. 8-pin Models Without Reset Input (H3CR-H8L) With Reset Input (H3CR-H8RL) Reset input (–) (–) Power supply Power supply Note: Leave terminal 3 open. Do not use them as relay terminals.
  • Page 42 H3CR H3CR Operation Note: The undermentioned is common for all H3CR models. • Basic Setting H3CR-F Twin Timers A time range (0 to 1.2, 0 to 3, 0 to 12, or 0 to 30) is selected for ON- Setting of Selectors and OFF-time using the time range selector at the lower left corner The selectors can be turned clockwise and counterclockwise to se- of the front panel, and the selected time range appears within the...
  • Page 43 H3CR H3CR • • H3CR-G Star-delta Timers H3CR-H Power OFF-delay Timers A star operation time range (0 to 6, 0 to 12, 0 to 60, or 0 to 120 se- A time range (0 to 0.6, 0 to 1.2, 0 to 6, and 0 to 12) is selected with the conds) is selected with the star operation time range selector at the time range selector at the lower left corner of the front panel.
  • Page 44 H3CR H3CR Accessories (Order Separately) Note: The undermentioned is common for all H3CR models. Note: All units are in millimeters unless otherwise indicated. Flush Mounting Adaptor Panel Y92F-30 Panel Cutout 0.5 R max. +0.6 Note: The adapters for two or more timers mounted in a vertical line are different in –0 orientation from those mounted in a horizontal line.
  • Page 45 H3CR H3CR Track Mounting/Front Connecting Socket P2CF-08 Eight, M3.5 x 7.5 sems 70 max. 35.4 Terminal Arrangement/ Two, 4.5 dia. Internal Connections holes (Top View) Surface Mounting Holes 50 max. Two, 4.5 dia. or two, M4 20.3 max. P2CF-08-E (Finger Safe Terminal Type) Conforming to VDE0106/P100 40±0.2 Eight,...
  • Page 46 H3CR H3CR Back Connecting Socket Terminal Arrangement/ P3G-08 27 dia. Internal Connections (Bottom View) P3GA-11 Terminal Arrangement/ 27 dia. Internal Connections (Bottom View) 25.6 16.3 Finger Safe Terminal Cover Conforming to VDE0106/P100 Y92A-48G Twelve, 6.4 dia. holes (Attachment for P3G-08/P3GA-11 Socket) 47.7 x 47.7 48 x 48...
  • Page 47 H3CR H3CR Protective Cover Hold-down Clip Y92A-48B Hold-down clips are sold in sets of two. The protective cover protects the front panel, particularly the time setting section, against dust, dirt, and water. It also prevents the set value from being altered due to accidental contact with the time set- Y92H-7/-1 Y92H-8/-2 ting knob.
  • Page 48 Do not change the time unit, time range, or operation mode while the Timer is in operation, otherwise the Timer may malfunction. The H3CR Series as a built-in timer conforms to EN61812-1 pro- The time unit and time range can be set with the respective selec- vided that the following conditions are satisfied.
  • Page 49 H3CR H3CR Precautions (H3CR-A) Note: The undermentioned is common for all H3CR-A models. Power Supplies For the power supply of an input device of the H3CR-Aj/-AjS/-AP, Input/Output use an isolating transformer with the primary and secondary wind- Relationship between Input and Power Supply ings mutually isolated and the secondary winding not grounded.
  • Page 50 H3CR H3CR Relationship between Input and Power Supply If a relay or transistor is connected to two or more Timers, the input terminals of those Timers must be wired properly so that they will not Circuits (H3CR-Aj/-AjS) be different in phase or the terminals will be short-circuited to one An appropriate input is applied to the input signal terminals of the another (refer to the figures below).
  • Page 51 H3CR H3CR Precautions (H3CR-H) Note: The undermentioned is common for all H3CR-H models. Power Supplies Wiring The H3CR-H has a large inrush current; provide sufficient power The H3CR-H has a high impedance circuit. Therefore, the H3CR-H supply capacity. If the power supply capacity is too small, there may may not be reset if the H3CR-H is influenced by inductive voltage.
  • Page 52 H3CR H3CR Downloaded from Elcodis.com electronic components distributor...
  • Page 53 H3CR H3CR Downloaded from Elcodis.com electronic components distributor...
  • Page 54 To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. Cat. No. L084-E1-04 In the interest of product improvement, specifications are subject to change without prior notice. OMRON Corporation Industrial Automation Company Industrial Control Components Division...
