Summary of Contents for Monogram ZWE23

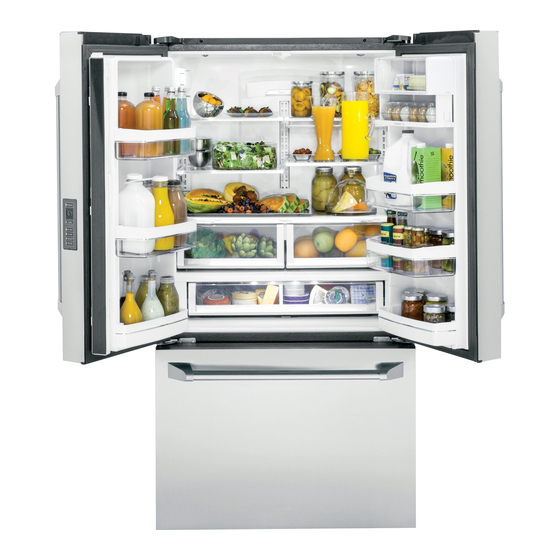

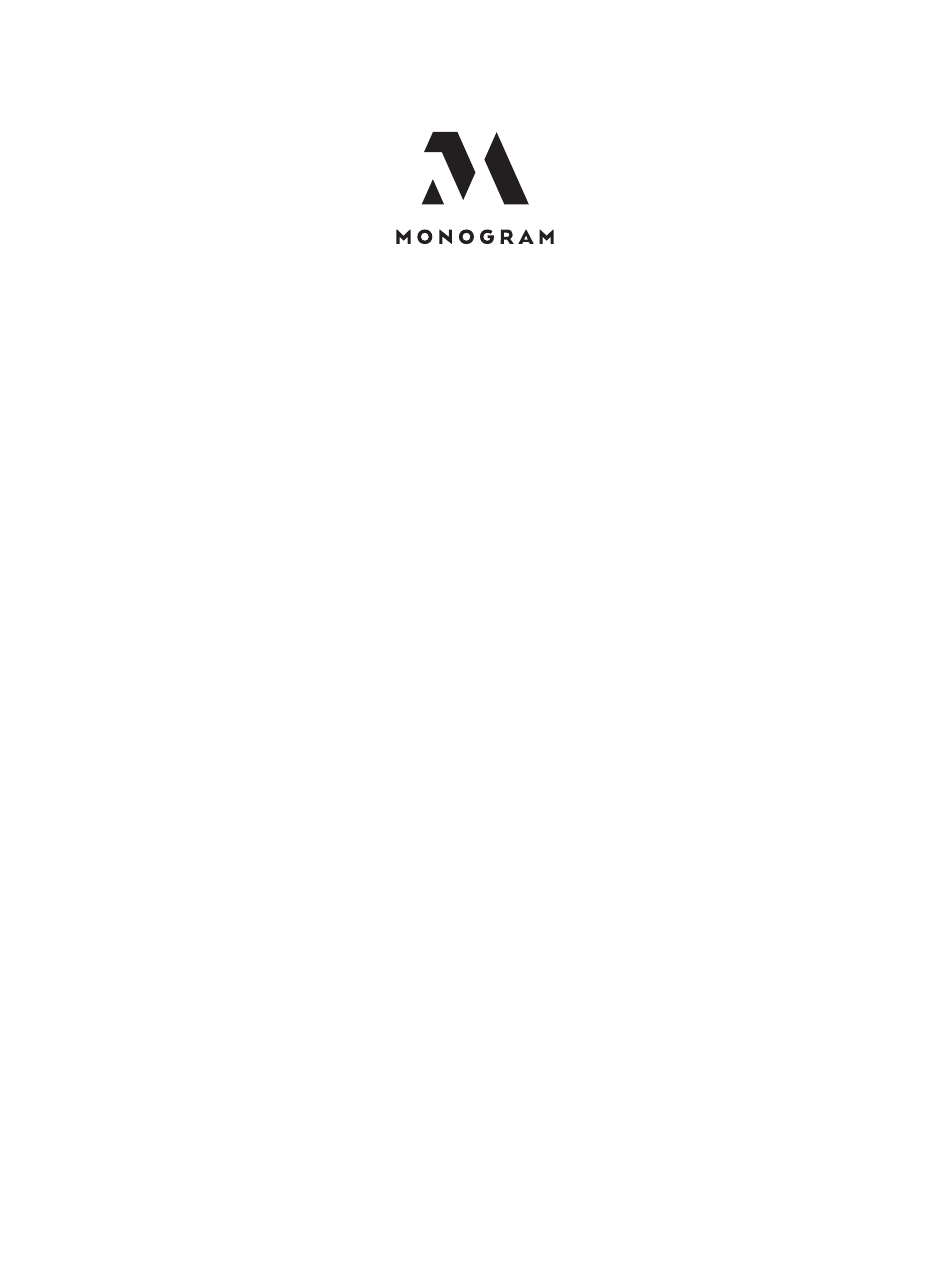

- Page 1 OWNER’S MANUAL French-Door, Bottom-Freezer Free-Standing Refrigerator MONOGRAM.COM...
-
Page 2: Table Of Contents
LIMITED WARRANTY ..................27 MODEL INFORMATION MODEL NUMBERS ZWE23 WRITE DOWN THE MODEL AND SERIAL NUMBERS You’ll see them on a label inside the refrigerator Please write these numbers here: compartment at the top on the right side. -
Page 3: Consumer Support
MONOGRAM WEBSITE Have a question or need assistance with your appliance? Try the Monogram website 24 hours a day, any day of the year! You can also shop for more great Monogram products and take advantage of all our on-line support services designed for your convenience. -
Page 4: Safety Information
IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE To reduce the risk of fire, explosion, electric shock, or injury when using your refrigerator/freezer, WARNING follow these basic safety precautions: located in accordance with the Installation Instructions stand on, or play in or with the appliance. before it is used. - Page 5 CONSIGNES DE SÉCURITÉ IMPORTANTES LISEZ TOUTES LES INSTRUCTIONS AVANT D'UTILISER L'APPAREIL Pour réduire le risque d’incendie, d’explosion, de choc électrique ou de blessures lorsque vous utilisez AVERTISSEMENT votre réfrigérateurde , veuillez suivre ces consignes de sécurité : aux Consignes d’Installation avant toute utilisation. sur le plan physique, sensoriel ou mental, ou qui manquent d’expérience ou de connaissances, peuvent utiliser cet électroménager seulement si elles sont surveillées ou ont...
- Page 6 INFORMACIÓN IMPORTANTE DE SEGURIDAD LEA TODAS LAS INSTRUCCIONES ANTES DE USAR ESTE ELECTRODOMÉSTICO A fin de reducir el riesgo de incendio, explosión, descargas eléctricas o lesiones al usar su ADVERTENCIA refrigerador, siga estas precauciones básicas de seguridad: de acuerdo con las Instrucciones de Instalación antes de ser mental reducida o con falta de experiencia y conocimiento usado.
- Page 7 IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE WARNING FIRE OR EXPLOSION HAZARD Keep flammable materials and vapors away from refrigerator. Failure to do so can result in fire, explosion, or death. WARNING FIRE OR EXPLOSION HAZARD Flammable Refrigerant This appliance contains isobutane refrigerant, also 4.
- Page 8 CONSIGNES DE SÉCURITÉ IMPORTANTES LISEZ TOUTES LES INSTRUCTIONS AVANT D'UTILISER L'APPAREIL AVERTISSEMENT RISQUE D’INCENDIE OU D’EXPLOSION Conservez les matériaux et les vapeurs inflammables à l’écart du réfrigérateur. Une explosion, un incendie voire la mort pourrait en résulter. AVERTISSEMENT RISQUE D’INCENDIE OU D’EXPLOSION Réfrigérant inflammable Cet appareil contient un gaz réfrigérant avec isobutane aussi connu sous R600a, un gaz naturel à...
- Page 9 INFORMACIÓN IMPORTANTE DE SEGURIDAD LEA TODAS LAS INSTRUCCIONES ANTES DE USAR ESTE ELECTRODOMÉSTICO ADVERTENCIA RIESGO DE INCENDIO O EXPLOSIÓN Mantenga cualquier material y vapores inflamables alejados del refrigerador. Si no se cumple con esto se podrá producir una explosión, incendio o la muerte. ADVERTENCIA RIESGO DE INCENDIO O EXPLOSIÓN Refrigerantes Inflamables Este electrodoméstico cuenta con refrigerante isobutano,...
-
Page 10: Operating Instructions
OPERATING INSTRUCTIONS TEMPERATURE CONTROLS Changing Temperature Controls Temperature Display is located on inside of left-hand refrigerator door. To change the temperature, press Refrigerator and release the REFRIGERATOR or FREEZER pad. To Hold 3 Sec for °F/°C change the temperature, tap either the REFRIGERATOR or Recommended: 37 °F FREEZER pad until the desired temperature is displayed. -
Page 11: Dispensers
DISPENSERS INTERNAL WATER DISPENSER The water dispenser is located on the left wall inside the refrigerator compartment. To dispense water: 1 Hold the glass against the recess. 2 Push the water dispenser button. 3 Hold the glass underneath the dispenser for 2–3 seconds after releasing the dispenser button. -
Page 12: Rpwfe Water Filter
RPWFE WATER FILTER WATER FILTER CARTRIDGE 3. For dispenser models – Run two gallons (7.75 Liters) of water through the cold water dispenser (about 5 minutes) The water filter cartridge is located in the refrigerator to remove air from the system. A newly installed filter interior on the left side wall, near the top. -
Page 13: Appliance Communication
APPLIANCE COMMUNICATION WiFi Connect (for customers in the United States, its territories, and Canada) WiFi Connect Enabled* If your refrigerator has a Connected Appliance information label located on the inside as shown, your refrigerator can be connected to your WiFi network, allowing it to communicate with your smart phone for remote monitoring, control and notifications. -
Page 14: Shelves And Bins
SHELVES AND BINS REARRANGING THE SHELVES Shelves in the refrigerator compartment are adjustable. REFRIGERATOR COMPARTMENT To remove: 1. Remove all items from the shelf. 2. Tilt the shelf up at the front. 3. Lift the shelf up at the back and bring the shelf out. - Page 15 SHELVES AND BINS NON-ADJUSTABLE DAIRY BIN To remove: Lift the dairy bin straight up, then pull out. To replace: Engage the bin in the molded door supports and push down. The bin will lock in place. ADJUSTABLE BINS ON DOORS Adjustable bins can easily be carried from refrigerator to work Drop down tray * area.
- Page 16 SHELVES AND BINS BASKET REMOVAL (BOTTOM DRAWER) 1. Open refrigerator doors. 2. Open freezer door to the stop position. 3. Remove freezer basket by lifting up the rear of the basket and rotate it upward. 4. Lift it out to remove. To replace: Reverse step 1 thru 4 to replace.
-
Page 17: Climate Zone And Temerature Controlled Drawer
CLIMATE ZONE AND TEMPERATURE CONTROLLED DRAWER CLIMATE ZONE Keep fruits and vegetables organized in separate compartments for easy access. Excess water that may accumulate in the bottom of the drawers or under the drawers should be wiped dry. TEMPERATURE CONTROLLED DRAWER The Temperature Controlled Drawer is a full-width drawer with adjustable temperature control. -
Page 18: Automatic Icemaker
AUTOMATIC ICEMAKER AUTOMATIC ICEMAKER* NOTE: A newly installed refrigerator may take 12 to 24 hours to begin making ice. ADVERTENCIA WARNING Realice la conexión a un suministro de agua potable únicamente. Connect to potable water supply only. Se requiere un suministro de agua fría para el funcionamiento A cold water supply is required for automatic icemaker de la máquina de hielos automática. - Page 19 AUTOMATIC ICEMAKER ACCESSING ICE Freezer Ice Bucket* The ice storage is in the freezer compartment drawer. • Open the freezer drawer. Freezer • The ice bucket is located on the left side of the upper Bucket basket. • Pull the upper basket forward to remove the ice bucket. *Select Models Only 49-1000572 Rev 3...
-
Page 20: Care And Cleaning
Abrasive powders or sprays Window Sprays or Ammonia Appliances parts store for approved stainless steel Citrus or plant oil-based cleaners cleaners: Monogram.com or call 888.444.1875 Acidic or vinegar-based cleaners Oven cleaners Cleaners with oxalic acid such as Bar Keepers Friend Soft Cleaners containing acetone (propanone) Cleanser™... -
Page 21: Behind The Refrigerator
CARE AND CLEANING BEHIND THE REFRIGERATOR Be careful when moving the refrigerator away from the wall. WARNING ELECTRICAL SHOCK HAZARD All types of floor coverings can be damaged, particularly When pushing the refrigerator back, make sure you cushioned coverings and those with embossed surfaces. don’t roll over the power cord or icemaker supply line. -
Page 22: Replacing The Light Bulbs
An authorized technician will need to replace the LED light. If this assembly needs to be replaced, call Monogram Preferred Service at 800.444.1845 United States or 888.880.3030 in Canada. -
Page 23: The Problem Solver
THE PROBLEM SOLVER NORMAL OPERATING SOUNDS Newer refrigerators sound different from older refrigerators. Modern refrigerators have more features and use newer technology. Do you hear what I hear? These sounds are normal. HUMMM... WHOOSH... The new high efficiency compressor may run faster You may hear the fans spinning at high speeds. -
Page 24: Troubleshooting
TROUBLESHOOTING TIPS Save time and money! Review the charts on the following pages first and you may not need to call for service. Problem Possible Cause Handle is loose/handle has a gap. • Handle needs adjusting. See Attach Refrigerator Handle and Attach the Freezer Handle sections for detailed instructions. -
Page 25: Rpwfe Water Filter Cartridge Limited Warranty
Date * If your Monogram Appliances part fails because of a manufacturing defect within thirty days from the date of original purchase for use, we will give you a new or, at our option, a rebuilt part without charge. Return the defective part to the parts supplier from whom it was purchased warranty does not cover the failure of parts which are damaged while in your possession, are abused, or have been installed improperly. -
Page 26: Performance Data Sheet Model: Rpwfe
0.077 0.001 > 99 replacement elements please call 1.877.959.8688 or visit our chloropicrin 0.015 0.0002 2,4-D 0.110 0.0017 website at Monogram.com. dibromochloropropane (DBCP) 0.052 0.00002 > 99 o-Dichlorobenzene 0.08 0.001 > 99 To reduce the risk associated with WARNING p-Dichlorobenzene 0.040... -
Page 27: Limited Warranty
This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a Monogram Appliances Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized Monogram Appliances Service location for service. - Page 28 49-1000572 Rev. 3 09-22 GEA Printed in the United States...
