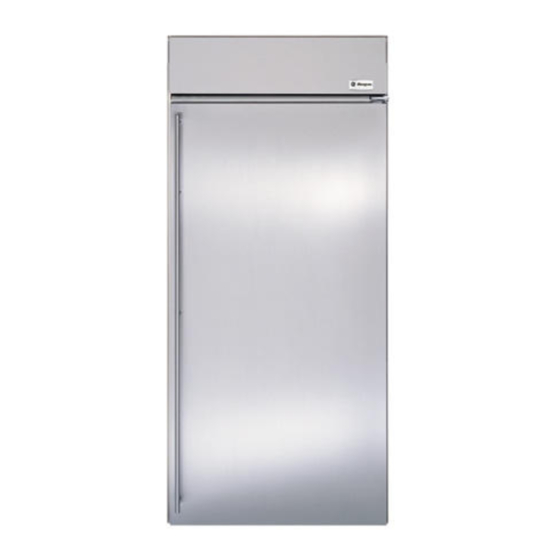

ZIRS36NM – GE Monogram 36" Built-In Stainless Steel All-Refrigerator

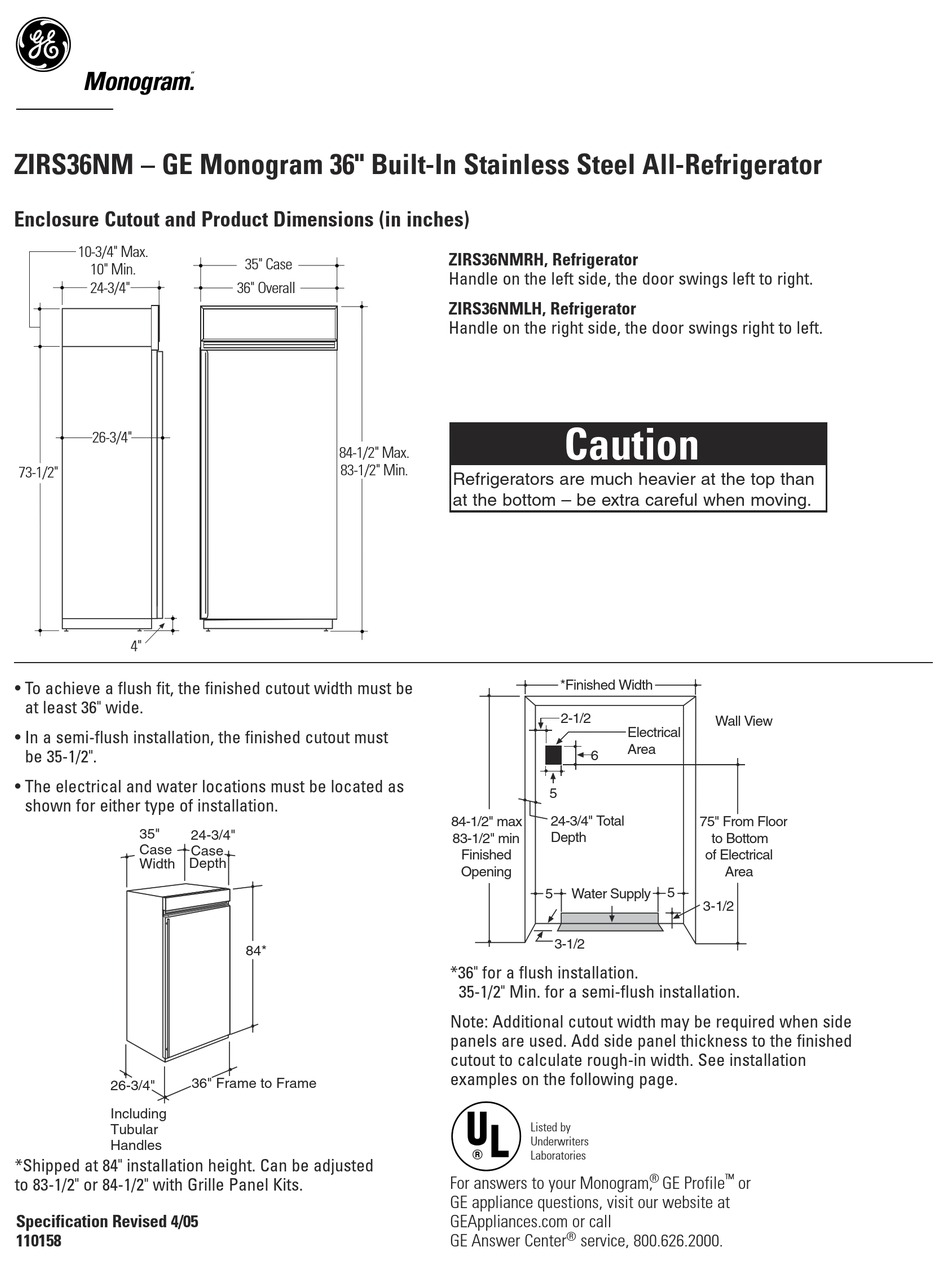

Enclosure Cutout and Product Dimensions (in inches)
10-3/4" Max.
10" Min.
24-3/4"
26-3/4"
73-1/2"
4"
• To achieve a flush fit, the finished cutout width must be
at least 36" wide.
• In a semi-flush installation, the finished cutout must
be 35-1/2".
• The electrical and water locations must be located as
shown for either type of installation.
35"
24-3/4"
Case
Case
Depth
Width
26-3/4"
Including
Tubular
Handles
461Dia27
36" Frame to Frame
26-3/4"
Including
Tubular
Handles
*Shipped at 84" installation height. Can be adjusted
to 83-1/2" or 84-1/2" with Grille Panel Kits.
Specification Revised 4/05
110158
35" Case
36" Overall
84-1/2" Max.
83-1/2" Min.
35"
24-3/4"
Case
Case
Width Depth
84*
36" Frame to Frame
84*
ZIRS36NMRH, Refrigerator
Handle on the left side, the door swings left to right.
ZIRS36NMLH, Refrigerator
Handle on the right side, the door swings right to left.
Caution
Refrigerators are much heavier at the top than
at the bottom – be extra careful when moving.
*Finished Width
2-1/2
5
24-3/4" Total
84-1/2" max
*Finished Width
83-1/2" min Depth
Finished
2-1/2
Opening
Electrical
5 Water Supply
Area
6
5
3-1/2
24-3/4" Total
84-1/2" max
*36" for a flush installation.
Depth
83-1/2" min
35-1/2" Min. for a semi-flush installation.
Finished
Opening
Note: Additional cutout width may be required when side
panels are used. Add side panel thickness to the finished
5 Water Supply
cutout to calculate rough-in width. See installation
examples on the following page.
3-1/2
Listed by
Underwriters
Laboratories
R
For answers to your Monogram,
GE appliance questions, visit our website at
GEAppliances.com or call
®
GE Answer Center
Wall View
Electrical
Area
6
75" From Floor
to Bottom
of Electrical
Wall View
Area
5
3-1/2
75" From Floor
to Bottom
of Electrical
Area
5
3-1/2
® ™
GE Profile or
service, 800.626.2000.
