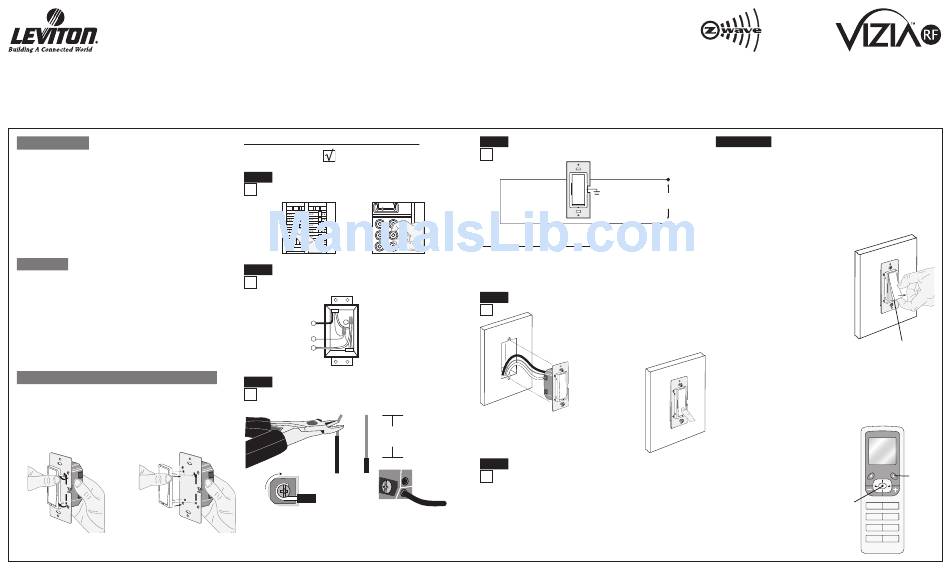

Leviton RZCZ1 Installation Instructions

DI-000-RZCZ1-00C
WARNINGS AND CAUTIONS
:
• ON/OFF LED for remote load control.
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult a qualified electrician.
• Vizia™ RF RZCZ1 1-Zone Dimming Controller does not control the load, but provides 3-way or 4-way applications to operate with Vizia
INTRODUCTION
Leviton's Vizia TM RF components are designed to communicate with
each other via Radio Frequency (RF) to provide remote control of your
lighting. Using RF technology allows Leviton to provide the greatest
signal integrity possible. Each module in Leviton's Vizia TM RF component
line is a Z-Wave TM enabled device. In a Z-Wave TM network, each device
is designed to act as a router. These routers will re-transmit the RF
signal from one device to another until the intended device is reached.
This ensures that the signal is received by its intended device by routing
the signal around obstacles and radio dead spots. The 1-Zone Dimming
Controller/Matching Switch Remote is compatible with any Z-Wave™
enabled network, regardless of the manufacturer and can also be used
with other devices displaying the Z-Wave™ logo.
FEATURES
• This is a Z-Wave Controller
TM
• 3-way or 4-way control without traveler wires
• Controls dimming of load
• ON/OFF LED
• Two way communication
• RF reliability
• Ease of installation – No new wiring
• Compatible with other Z-Wave™ enabled devices
Tools needed to install your 1-Zone Controller:
Slotted/Phillips Screwdriver Electrical Tape
Pencil Cutters
Changing the color of your 1-Zone Controller:
Your 1-zone controller includes three color options. The controller ships
with the White frame attached. To change color of frame, proceed as
follows:
Push in line up tabs
side at tab and press in
to release side to attach
INSTAllING YOUR 1-ZONE CONTROllER
NOTE: Use check boxes when Steps are completed.
WARNING:
Step 1 TO AVOID FIRE SHOCK OR DEATH; TURN
OFF POWER at circuit breaker or fuse and test that power is
off before wiring!
Identifying your wiring application (most common):
Step 2
NOTE: If the wiring in your wall box does not resemble this
configuration, consult a qualified electrician.
1. Line (Hot)
2. Neutral
3. Ground
2
1
3
2
Preparing and connecting wires:
Step 3
This 1-zone controller can be wired using side wire terminal
Pliers
screws or through backwire openings. Choose appropriate wire
Ruler
stripping specifications accordingly.
Cut
(if necessary)
Side Wire Connection Back Wire (either hole may be used)
Side wire terminals accept #14 Back wire openings use #14-12 AWG
AWG solid wire copper only. solid wire copper only.
• Make sure that the ends of the wires from the wall box are
straight (cut if necessary).
1-Zone Dimming Controller/
Matching Switch Remote
Cat. No. RZCZ1
120VAC, 60Hz

INSTAllATION INSTRUCTIONS

WARNINGS AND CAUTIONS
• Recommended minimum wall box depth is 2-1/2".
• No traveler wires are needed. Remote controls via radio frequency (RF) technology.
• Disconnect power at circuit breaker or fuse when servicing, installing or removing fixture.
TM RF switches. • Use this device only with copper or copper clad wire. With aluminum wire use only devices marked CO/ALR or CU/AL.
Wiring Application:
Step 4
1-Zone Controller
WH
WIRING 1-ZONE CONTROllER:
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• Line Hot wall box wire to terminal screw marked "BK".
• Line Neutral wall box wire to terminal screw marked "WH".
• Proceed to Step 5.
Testing your 1-Zone Controller prior to mounting
Step 5
in wall box:
• Restore power at circuit breaker or fuse.
• LED should turn ON.
5/8"
If lED does not turn ON, refer to the
Strip Gage
(1.6 cm)
TROUBlESHOOTING section.
(measure bare
wire here)
Including 1-Zone Controller into Z-Wave
Step 6
Network:
NOTES:
• If using a non-Leviton Programmer/Remote, refer to the Programmer/
Remote instruction sheet for Including a device.
• 1-zone controllers included into a Z-Wave
after you have included all other devices.
A) If using a Leviton Z-Wave
press the Menu button and scroll down to System Setup. Press the
center button to select System Setup Menu. Press the center button to
select Network. Press the center button to <Include Node>.
Compatible with
:
Step 6 cont'd
B) If using RZCPG Programmer/Remote, you will be prompted to place
1-zone controller into programming mode.
C) To access Program mode, engage the air gap switch by gently
Hot (Black)
BK
pulling the bottom of the push pad until it lifts out of the frame and a
click is heard (refer to figure). Wait 5 seconds and then press the
Green
Ground push pad back into the frame and hold push pad until the LED turns
Line
Amber. Release the push pad and the LED should blink Amber. You
120VAC, 60Hz
are now in Programming mode.
NOTE: If the LED on the 1-zone controller turns solid Red while
including, there has been a communication error.
Neutral (White)
D) While standing close to the 1-zone
controller (approximately 2-5 ft.), press
the center button on the Programer/
Remote to <Include> device in the
network. NOTE: Only one device may
be included at any time.
E) The Primary Programmer/Remote will
assign a Home ID, Node ID and Name
for this device.
NOTE: This information will be stored in
the Programmer/Remote to be used for
• Position all wires to provide room in
future reference.
outlet wall box for device.
NOTE: You may name or edit the node
• Ensure that the word "TOP" is facing up
of this device at this time.
on device strap.
F) The 1-zone controller is now installed
• Partially screw in mounting screws in
in the network.
wall box mounting holes.
G) After all devices are included into the
NOTE: Dress wires
network, the controller must be updated to allow proper network
with a bend as
function. To update controller proceed as follows:
shown in diagram
• I f using a non-Leviton Programmer/Remote, refer to the
in order to relieve
Programmer/Remote instruction sheet for updating controller.
stress when
• I f using Leviton Z-Wave
mounting device.
press the Menu button and scroll down to System Setup. Press
the center button to select System
Setup Menu. Press the center button
to select Network. Press the center
button to select Update "cntrl". When
prompted press push pad on the 1-
zone dimming controller.
• W ait until the RZCPG Programmer/
TM
Remote confirms completion. Update
is done.
NOTE: If the 1-zone controller
has been successfully Included in
the network and the user tries to
Include it again without first
excluding it from the network,
network must be updated
TM
the controller will retain the first
node ID it had received and
TM Programmer/Remote, Cat. No. RZCPG,
ignore the second.
TM
enabled products!
Gently lift bottom of
push pad out
Programmer/Remote, Cat. No. RZCPG,
TM
Cat. No. RZCPG
Menu
Button
Center
1
ON OFF
Button
2
ON OFF
3
ON OFF
4
ON OFF
