Step
2

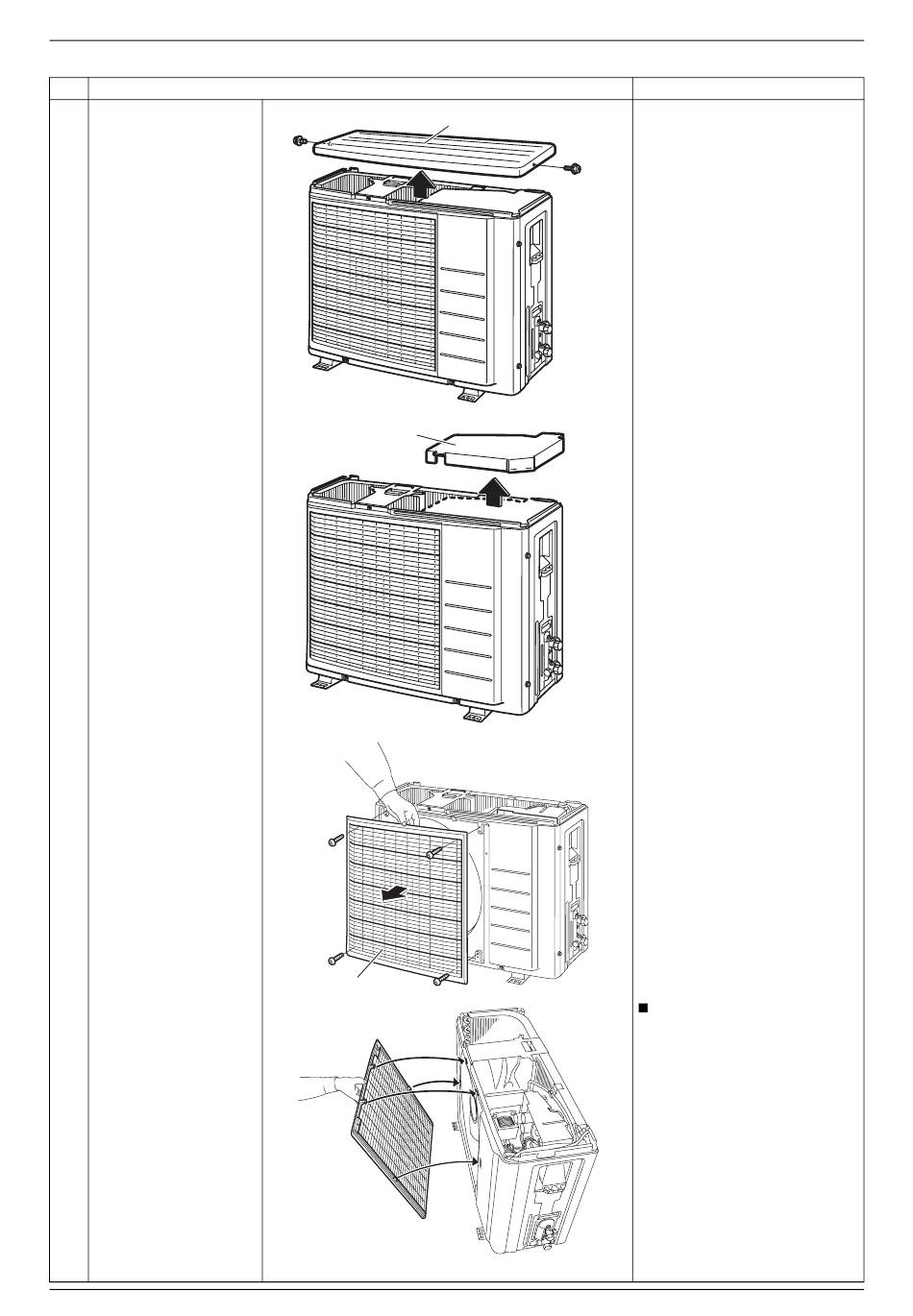

Remove the 2 screws
and lift the top panel.
Remove the drip proof
3
plate.
Remove the 4 screws
4
and remove the
discharge grille.
Removal Procedure
Procedure
Top panel
Drip proof plate
Discharge grille
Removal of Outer Panels / Fan Motor
(R7190)
(R7191)
(R12569)
The discharge grille has 4
hooks.
(R12570)
Points
3
