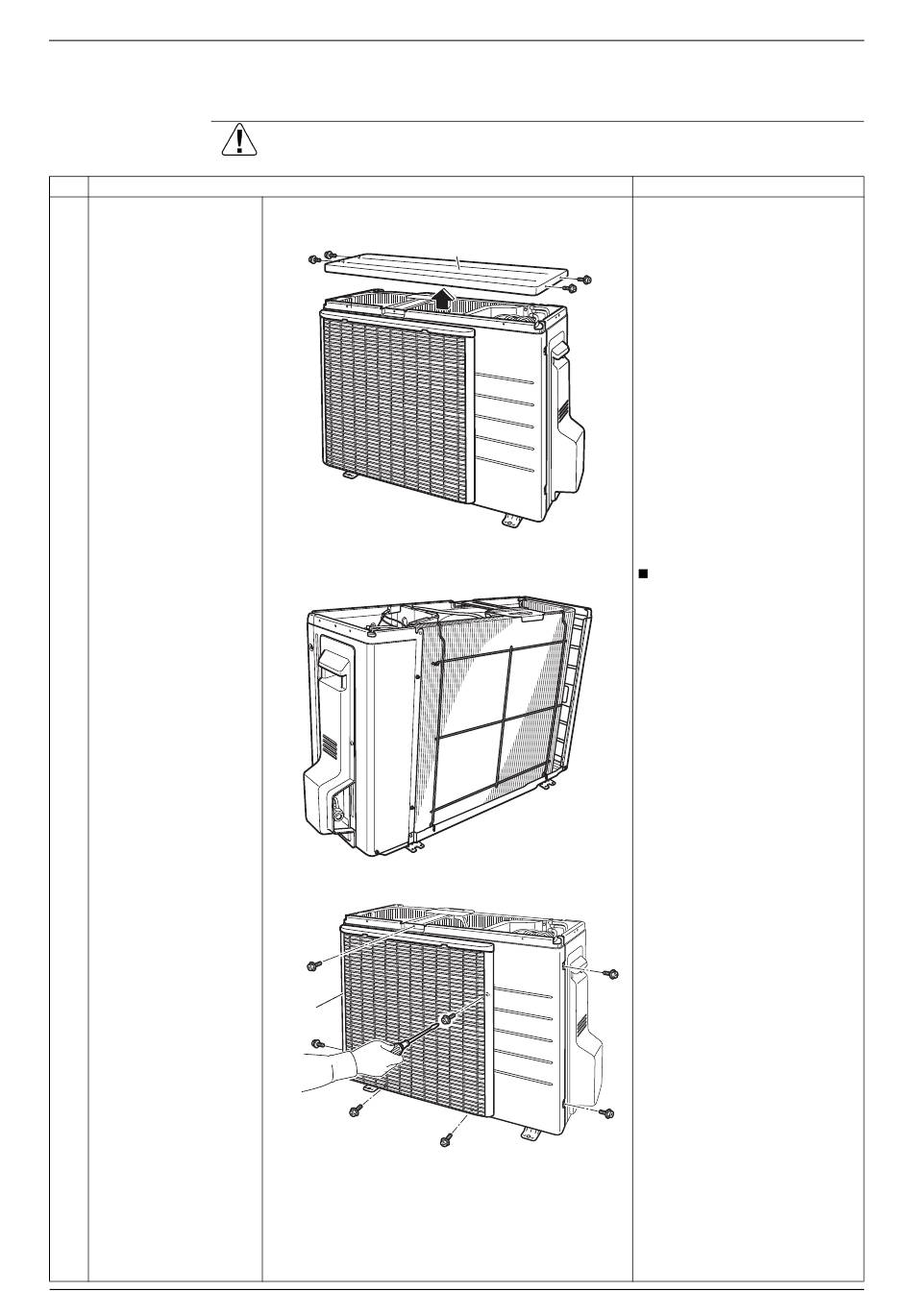

Removal of Outer Panels
1. Removal of Outer Panels
Procedure
Step
Remove the 4 screws
1
and remove the top
panel.
Remove the 7 screws
2
of the front panel.
2
Warning
Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Procedure
Top panel
Front panel
(R15386)
Take care not to cut your
finger by the fins of the
outdoor heat exchanger.
(R15384)
(R15387)
Si011193
Points
Removal Procedure
