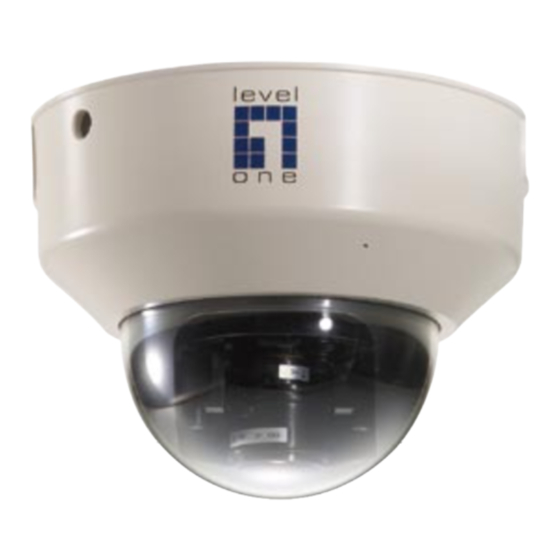

LevelOne FCS-3021 Specifications

PoE IP Dome Camera
H/W Version: 1
Product Overview
The LevelOne FCS-3021 is an indoor PoE IP Network
Camera. It streams real-time audio and video in
MPEG4 and MJPEG video compression formats over
a PoE enabled LAN network or in 3GPP compression
format for streaming over a 3G mobile network.
PoE IP Camera
The FCS-3021 features an IEEE 802.3af Power
over Ethernet compliant PoE module for flexible
deployment over a PoE enabled LAN network. Users
can install the camera without concern for a power
outlet located near the camera.
Advanced Features
The FCS-3021 supports simultaneous dual-streaming.,
Key Features
- IEEE 802.3af PoE compliant for easy network
deployment
- Real time steaming in VGA resolution
- Supports MPEG-4 and M-JPEG real-time video
compression modes simultaneously
- Features a 3-axis sensor module for ceiling mount
application
- Supports 3GPP for streaming over a 3G mobile
network
- Digital Input/Output ports for attaching 3rd party
alarm/sensor devices
- Features 2-way Audio
- Bundled with LevelOne IP CamSecure Lite
surveillance management software

MPEG4 streaming over UDP, TCP or HTTP, multicast
streaming and MJPEG streaming over HTTP.
It also features GSM-AMR audio compression, AAC
audio encoding and 2-way audio.
Multiple window video motion detection, digital
input/output connectors for alarms or sensors and
event notification via HTTP, SMTP or FTP completes
the advanced features of the FCS-3021.
Free Bundled Software
The FCS-3021 is bundled with LevelOne IP CamSecure
Lite, a 32-channel surveillance monitoring software
package. Recording of video and audio can be done
easily in event-driven or schedule recording modes.
1 2 3 4 5
Works Well With
1. Reset Button
2. Ethernet
3. Power Cord Socket
4. Digital Input/Output
5. Audio Output
6. Microphone Input
7. Switch for Internal/External
Audio Input
6 7
FCS-9464
IP CamSecure Pro64 Mega
FCS-7011
1-port PoE Video Server
FCS-3021
