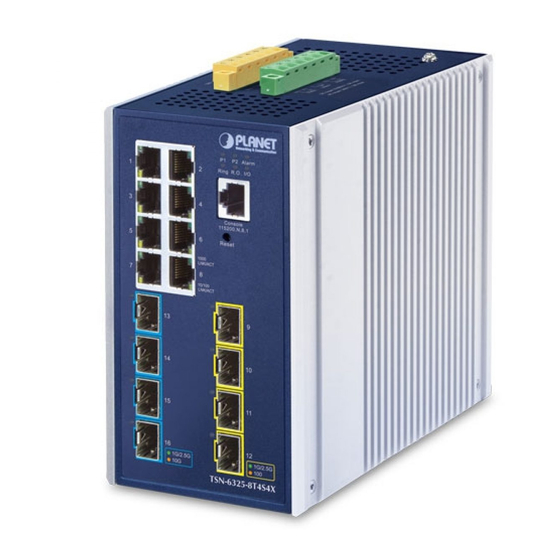

- Page 1 Industrial Layer 3 Managed TSN Switch TSN-6325-8T4S4X Quick Installation Guide...
-
Page 2: Table Of Contents
Table of Contents 1. Package Contents ..............3 2. Requirements ................4 3. Wiring the Power Inputs ............5 3.1 Grounding the Device ............6 4. Terminal Setup ................7 4.1 Logging on to the Console ........... 8 4.2 Configuring IP Address via Console ........9 4.3 Storing Current Switch Configuration ........11 5. -
Page 3: Package Contents
1. Package Contents Thank you for purchasing PLANET L3 Industrial Managed TSN Switch, TSN-6325-8T4S4X. “Industrial Managed Switch” mentioned in this Quick Installation Guide refers to the above model. Open the box of the Industrial Managed Switch and carefully unpack it. The box should contain the following items:... -
Page 4: Requirements
2. Requirements The Industrial Managed Switch provides remote login interface for management purposes. The following equipment is necessary for further management: • Workstations running Windows XP/2003/2008/Vista/7/8/10/11, MAC OS X or later, Linux, UNIX, or other platforms are compatible with TCP/IP Protocols. • Workstations are installed with Ethernet NIC (Network Interface Card). -
Page 5: Wiring The Power Inputs
PWR2 DC Input: 9-48V , 5A max. AC Input: 24V , 2A max. Figure 3-1: TSN-6325-8T4S4X Upper Panel Tighten the wire-clamp screws for preventing the wires from loosening. Power 1 Power 2 Figure 3-2: Power 1 & 2 Pins of Terminal Block Connector 1. The wire gauge for the terminal block should be in the range from 12 to 24 AWG. -
Page 6: Grounding The Device
3.1 Grounding the Device Users MUST complete grounding wired with the device; otherwise, a sudden lightning could cause fatal damage to the device. DI1 DO0 DO1 1 2 3 4 5 6 Max. Fault Alarm Loading: 24V, 1A 1 2 3 4 5 6 PWR1 Alarm PWR2... -
Page 7: Terminal Setup
4. Terminal Setup To configure the system, connect a serial cable to a COM port on a PC or notebook computer and to RJ45 type serial (console) port of the Industrial Managed Switch. TSN Industrial Managed Switch PC/Workstation with Terminal Emulation Software Ring R.O. -
Page 8: Logging On To The Console
4.1 Logging on to the Console Once the terminal has been connected to the device, power on the Industrial Managed Switch and the terminal will display “running testing procedures”. Then, the following message asks to log in user name and password. The factory default user name and password are shown as follows as the login screen in Figure 4-1 appears. -
Page 9: Configuring Ip Address Via Console
Subnet Mask: 255.255.255.0 To check the current IP address or modify a new IP address for the Switch, please use the procedure as follows: Display of the Current IP Address 1. At the “#” prompt, enter “show ip interface brief”. TSN-6325-8T4S4X # show ip interface brief 2. The screen displays the current IP address shown in Figure 4-2. Figure 4-2: IP Information Screen... - Page 10 Configuration of the IP Address 3. At the “#” prompt, enter the following command and press <Enter> as shown in Figure 4-3. TSN-6325-8T4S4X# configure terminal TSN-6325-8T4S4X (config)# interface vlan 1 TSN-6325-8T4S4X (config-if-vlan)# ip address 192.168.1.100 255.255.255.0 The previous command would apply the following settings for the Industrial Managed Switch. IP Address: 192.168.1.100 Subnet Mask: 255.255.255.0 Figure 4-3: Configuring IP Address Screen...
-
Page 11: Storing Current Switch Configuration
4.3 Storing Current Switch Configuration 1. At the “#” prompt, enter the following command and press <Enter>. # copy running-config startup-config Figure 4-4: Saving Current Configuration Command Screen If the IP is successfully configured, the Industrial Managed Switch will apply the new IP address setting immediately. You can access the Web interface of the Industrial Managed Switch through the new IP address. If you are not familiar with the console command or the related parameter, enter “help”... -
Page 12: Starting Web Management
5. Starting Web Management The following shows how to start up the Web Management of the Industrial Managed Switch. Note the Industrial Managed Switch is configured through an Ethernet connection. Please make sure the manager PC must be set to the same IP subnet address. For example, the default IP address of the Industrial Managed Switch is 192.168.0.100, then the manager PC should be set to 192.168.0.x (where x is a number between 1 and 254, except 100), and the... -
Page 13: Logging In To The Industrial Managed Switch
5.1 Logging in to the Industrial Managed Switch 1. Use Chrome 98.0.xxx or above for Web browser and enter IP address https://192.168.0.100 (the factory-default IP address) to access the Web interface. 2. When the following dialog box appears, please enter the default user name “admin” and password “admin” (or the password you have changed before) as shown in Figure 5-2. - Page 14 3. After entering the password, the main screen appears as shown in Figure 5-3. Figure 5-3: Web Main Screen of Industrial Managed Switch The Switch Menu on the top of the Web page lets you access all the commands and statistics the Industrial Managed Switch provides. The Switch Menu always contains one or more buttons, such as “System”, “Switching”, “Routing”, “QoS”, “Security”, “Ring”...
-
Page 15: Saving Configuration Via Web
Figure 5-6: Switch Sub-menu Now, you can use the Web management interface to continue the Switch management. Please refer to the user manual for more. If you are not familiar with Switch functions or the related parameter, press “Help icon” anytime on the Web page to get the help description. - Page 16 2. Press the “Save Configuration” button. 3. Or the other way to save the setting is to Click Maintenance, Save Startup Config.
-
Page 17: Recovering Back To Default Configuration
Be noted that all the previous setups will be disappeared after the factory default reset is made. Alarm Ring R.O. Console 115200,N,8,1 Reset Button Reset 1000 LNK/ACT 10/100 LNK/ACT 1G/2.5G 1G/2.5G TSN-6325-8T4S4X Figure 6-1: TSN-6325-8T4S4X Reset Button... -
Page 18: Customer Support
7. Customer Support Thank you for purchasing PLANET products. You can browse our online FAQ resource on PLANET web site first to check if it could solve your issue. If you need more support information, please contact PLANET switch support team.
