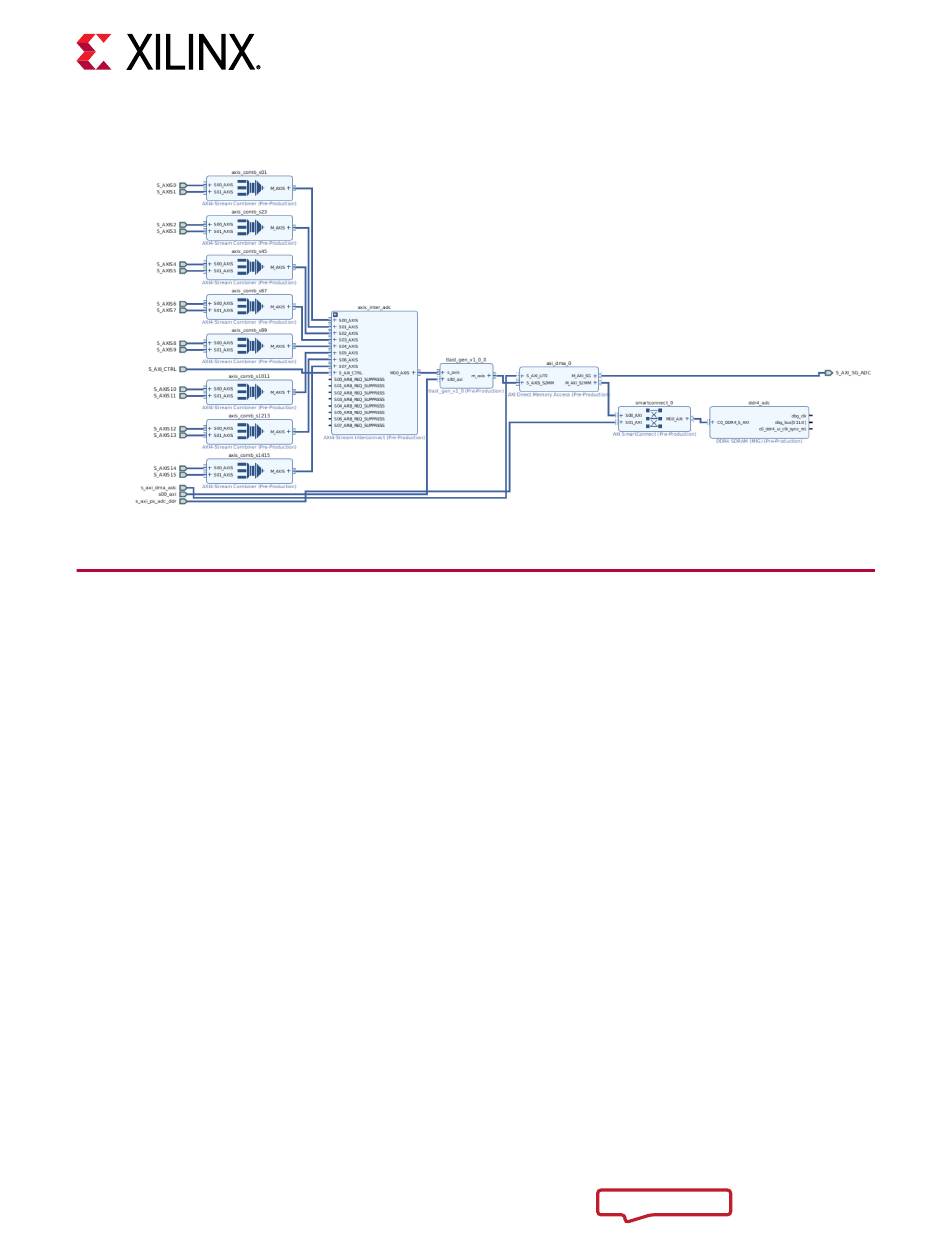

Figure 5: RF-ADC DDR Block Architecture for Dual RF-ADC Tiles

Clocking Scheme

The clocking scheme is built to support both individual tile clocks and independent RF-ADC or
RF-DAC multi-tile synchronization (MTS). Consequently, two of the typical clocking schemes
from the Zynq UltraScale+ RFSoC RF Data Converter LogiCORE IP Product Guide (PG269) are
merged. The first clocking scheme uses the output of each tile to connect to a mixed-mode clock
manager (MMCM) or phase-locked loop (PLL), which gives an independent clock per tile. The
second clocking scheme supports MTS, takes its input from a fabric pin, and generates an output
for the tiles selected by the MTS functions. BUFGMUX and MMCM dual input allows merging
these two clocking schemes. For the RF-ADC, a mixture of MMCM and PLL are used. The RF-
ADC clocking scheme figure shows a representation for two tiles. The RF-DAC clocking scheme
figure shows a representation for two tiles. For the RF-DAC, only the MMCM is used. The path
used in the MTS case is shown in red.
