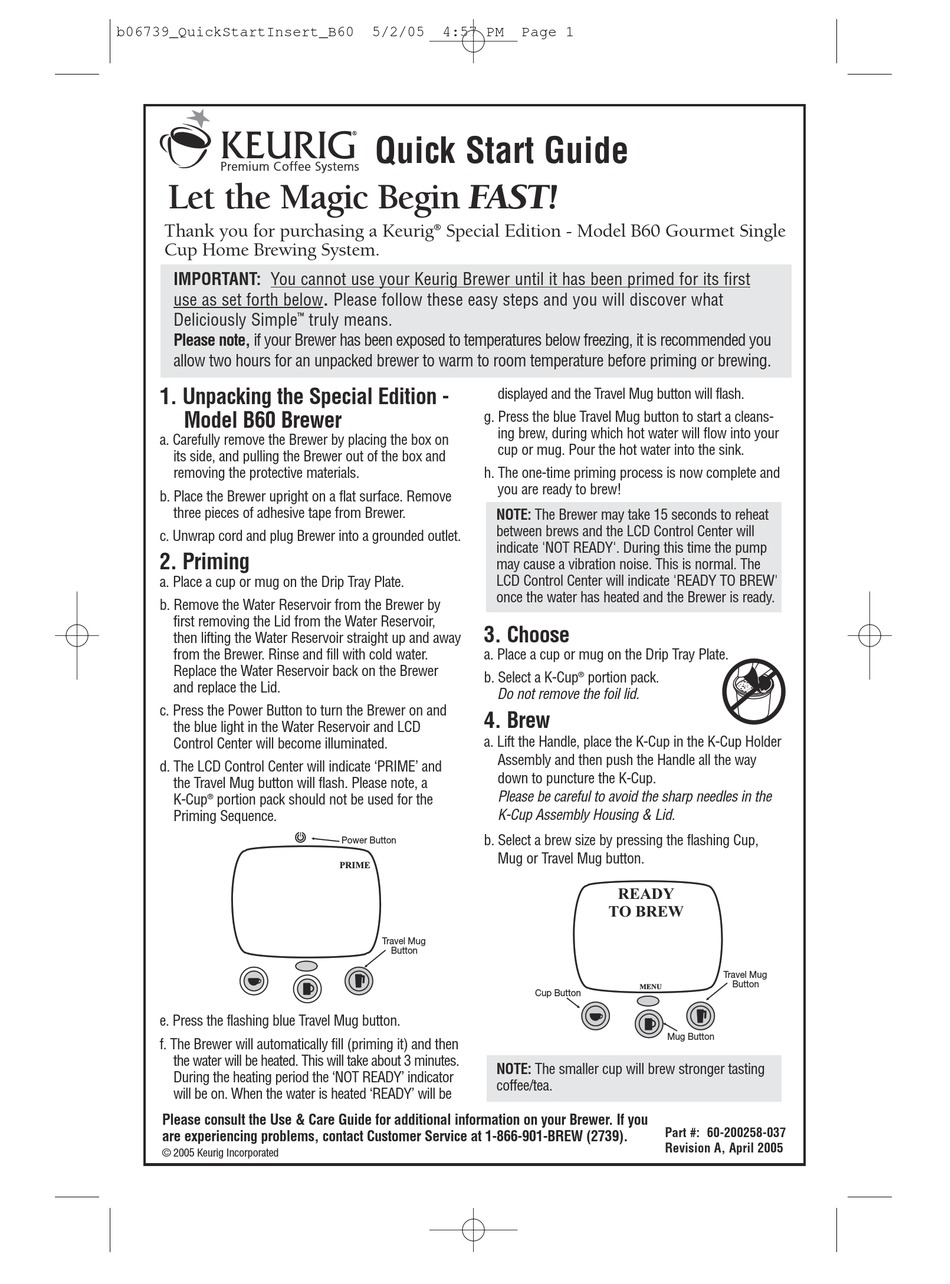

Keurig B60 Quick Start Manual

b06739_QuickStartInsert_B60
KEURIG
Premium Coffee Systems Premium Coffee Systems
Let the Magic Begin FAST!
Thank you for purchasing a Keurig
Cup Home Brewing System.
IMPORTANT: You cannot use your Keurig Brewer until it has been primed for its first
use as set forth below. Please follow these easy steps and you will discover what
Deliciously Simple
Please note, if your Brewer has been exposed to temperatures below freezing, it is recommended you
allow two hours for an unpacked brewer to warm to room temperature before priming or brew ing.
1. Unpacking the Special Edition -
Model B60 Brewer
a. Carefully remove the Brewer by placing the box on
its side, and pulling the Brewer out of the box and
removing the protective materials.
b. Place the Brewer upright on a flat surface. Remove
three pieces of adhesive tape from Brewer.
c. Unwrap cord and plug Brewer into a grounded outlet.
2. Priming
a. Place a cup or mug on the Drip Tray Plate.
b. Remove the Water Reservoir from the Brewer by
first removing the Lid from the Water Reservoir,
then lifting the Water Reservoir straight up and away
from the Brewer. Rinse and fill with cold water.
Replace the Water Reservoir back on the Brewer
and replace the Lid.
c. Press the Power Button to turn the Brewer on and
the blue light in the Water Reservoir and LCD
Control Center will become illuminated.
d. The LCD Control Center will indicate 'PRIME' and
the Travel Mug button will flash. Please note, a
K-Cup ® portion pack should not be used for the
Priming Sequence.
e. Press the flashing blue Travel Mug button.
f. The Brewer will automatically fill (priming it) and then
the water will be heated. This will take about 3 minutes.
During the heating period the 'NOT READY' indicator
will be on. When the water is heated 'READY' will be
Please consult the Use & Care Guide for additional information on your Brewer. If you
are experiencing problems, contact Customer Service at 1-866-901-BREW (2739).
© 2005 Keurig Incorporated
5/2/05 4:57 PM
®
Quick Start Guide
® Special Edition - Model B60 Gourmet Single
™ truly means.
Power Button
PRIME
Travel Mug
Button
Page 1
displayed and the Travel Mug button will flash.
g. Press the blue Travel Mug button to start a cleans-
ing brew, during which hot water will flow into your
cup or mug. Pour the hot water into the sink.
h. The one-time priming process is now complete and
you are ready to brew!
NOTE: The Brewer may take 15 seconds to reheat
between brews and the LCD Control Center will
indicate 'NOT READY'. During this time the pump
may cause a vibration noise. This is normal. The
LCD Control Center will indicate 'READY TO BREW'
once the water has heated and the Brewer is ready.
3. Choose
a. Place a cup or mug on the Drip Tray Plate.
b. Select a K-Cup ® portion pack.
Do not remove the foil lid.
4. Brew
a. Lift the Handle, place the K-Cup in the K-Cup Holder
Assembly and then push the Handle all the way
down to puncture the K-Cup.
Please be careful to avoid the sharp needles in the
K-Cup Assembly Housing & Lid.
b. Select a brew size by pressing the flashing Cup,
Mug or Travel Mug button.
READY
TO BREW
MENU
Cup Button
NOTE: The smaller cup will brew stronger tasting
coffee/tea.
Travel Mug
Button
Mug Button
Part #: 60-200258-037
Revision A, April 2005
