Binary Monitor; Binary Data Modification - Omron SYSMAC mini SP10 Operation Manual

Monitoring Operation and Modifying Data
Key Sequence
Example
4-1-5

Binary Data Modification

Key Sequence
Word currently
displayed in binary.
122
[Word Address]
or

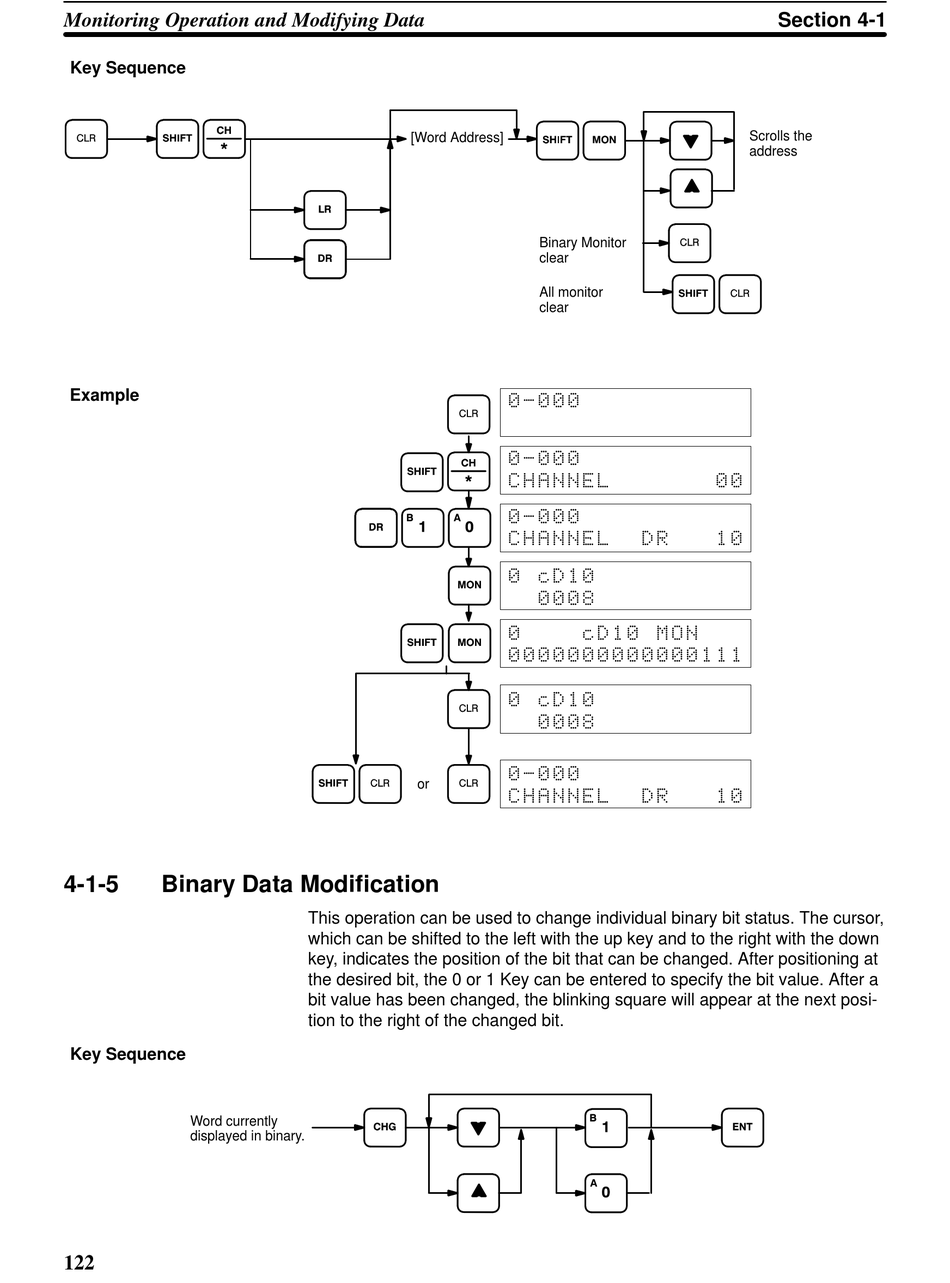

This operation can be used to change individual binary bit status. The cursor,
which can be shifted to the left with the up key and to the right with the down
key, indicates the position of the bit that can be changed. After positioning at
the desired bit, the 0 or 1 Key can be entered to specify the bit value. After a
bit value has been changed, the blinking square will appear at the next posi-
tion to the right of the changed bit.

Binary Monitor

clear
All monitor
clear
0 000
0 000
CHANNEL
0 000
CHANNEL DR
0 cD10
0008
0 cD10 MON
0000000000000111
0 cD10
0008
0 000
CHANNEL DR
Section 4-1
Scrolls the
address
00
10
10
