Summary of Contents for Clarity 430

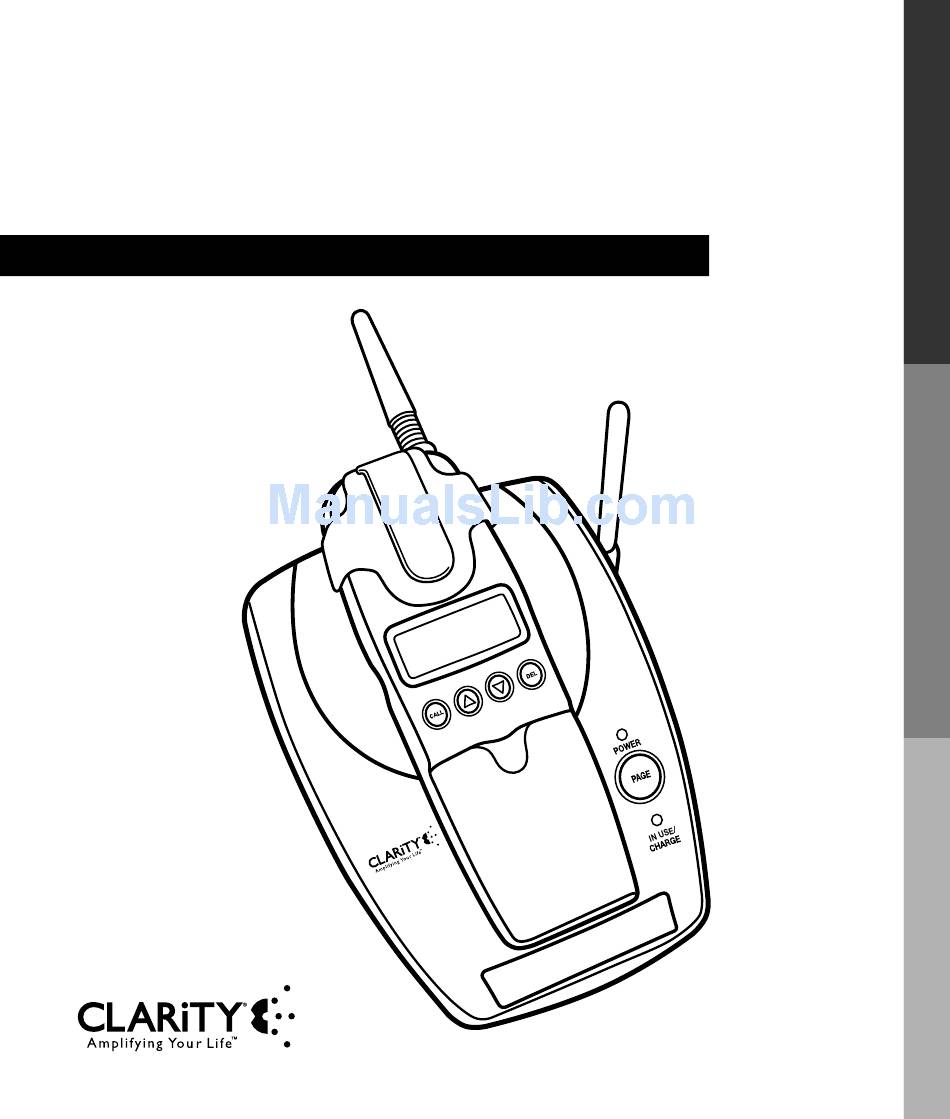

- Page 1 900 MHz Cordless Telephone with Caller ID Featuring Clarity Power ® Clarity 430 User Guide Technology ™ Ñ Ç...
-
Page 2: Table Of Contents
Set Up Mode ....12 Clarity Power Technology ..14 Boost Clarity Power On/Off ..14 Volume Control . -
Page 3: Safety Instructions
Important Safety Instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons including the following: 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the telephone. -
Page 4: Safety Instructions For Batteries
Important Safety Instructions normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions. Improper adjustment may require extensive work by a qualified technician to restore the telephone to normal operation. E. If the telephone has been dropped or the case has been damaged. -
Page 5: Features
6. Talk Button (TALK) 7. Memory Button (MEM) Features 8. Emergency Memory Storage Buttons 9. Flash Button (FLASH) 10. Mute Button (MUTE) 11. Redial/Pause Button (RD/P) 12. Temporary Tone Button (*) 13. Handset Ringer Off/On 14. BOOST Clarity Power 15. Volume Control... - Page 6 Top of Base/Handset Back 1. Visual Ringer 2. Charging Contacts 3. Base Antenna 4. Power LED (RED) 5. In Use/Charge LED (GREEN/RED) 6. Page Features 7. Call 8. Scroll Up 9. Scroll Down 10. Delete 11. LCD 12. Belt Clip...
- Page 7 Base Side and End 5. Pulse/Tone 1. Ringer Off/On 6. BOOST On/Off 2. Volume Up 7. AC (Electrical) Adapter Jack 3. Volume Down 8. Telephone Line Jack 4. Ring Style Features...
-
Page 8: Getting Started
AC power before you disconnect it from the phone. INSTALLATION Connecting Your Telephone Carefully remove your cordless telephone from it’s box. If there is any visible damage, do not attempt to operate this equipment. Return it to the place of purchase. - Page 9 6. Set the TONE/PULSE switch located on the back of the base to correct dialing mode. Please check with your local Phone Company if uncertain of the type of service. 7. Place handset in the cradle to begin initial charging. WALL MOUNTING INSTRUCTIONS The base unit may be mounted on a standard wall plate.
-
Page 10: Battery Installation
BATTERY INSTALLATION The C430 uses a 3.6Volt 600mAHr NiMH rechargeable 3 cell (AAA Type) battery that is included with your unit. HANDSET BATTERY MUST BE CONNECTED BEFORE BEginning INITIAL CHARGING. To connect battery, remove battery compart- ment cover and connect battery pack plug into the battery connector as shown in Diagram C. -
Page 11: Headset Jack
Ordering a Headset: In the event you wish to purchase a headset for your Clarity 430, please contact Plantronics at 1-800-544-4660 for location near you. We recommend using the Plantronics M110 or M130 headset. -
Page 12: Feature Set Up
HANDSET Set Up Mode NOTE: In Set Up, if there is no input within 30 seconds, the program will default to the last selection in that mode (e.g., Language) and the C430 will return to Standby. If at any time you want to exit Set Up and return to Standby, press FLASH. - Page 13 3. Press CALL to confirm the selection. 4. Press the UP ( ) or DOWN ( to go to the next menu. If the CID mode is set to off, the LCD will display time and date and the display will read “CID IS OFF”.
-
Page 14: Clarity Power Technology
15 dB of volume before the CLARITY POWER button is activated. Once the CLARITY POWER button is pressed, the Clarity 430 will provide up to 30 dB of gain. Handset Ringer Set the switch marked Ringer On/Off located on the side of the handset. -
Page 15: Pulse/Tone
Power button in order to gain the extra level of amplification. If the phone hangs up, the Clarity Power will reset to OFF. During a call, the BOOST Clarity Power button can toggle the Clarity Power function on or off according to the user’s needs. -
Page 16: Telephone Operations
Answering a Call 1. Remove handset from base. You will automatically be connected. 2. Press the TALK button. Refer to BOOST Clarity Power and Volume Control for information on adjusting volume controls (Page 14). Temporary Tone If you have rotary (pulse) dial service, you can change from pulse to touch tone (tone) during a call. -
Page 17: Lcd Display Screen
TALK button to cancel the page. Channel Operation The Clarity 430 cordless telephone auto- matically searches and selects the clearest of 40 channels when it is being used. If interference develops on the line, pressing this button will move to another channel. -
Page 18: Memory Storage
Memory Storage Locations The C430 has ten (10) indirect or two touch memory locations on the telephone (0-9) that can be programmed to dial frequently called numbers of up to 16 digits. Three (3) Emergency Storage buttons are located on the handset. These storage buttons can be programmed with numbers of up to 16 digits. -
Page 19: Caller Id Operations
IMPORTANT: You must subscribe to Caller ID Service from your local telephone company to utilize this feature. This telephone will automatically display an incoming caller’s name and telephone along with the date and time of the call. It will record up to fifty (50) calls and store the data into memory. -
Page 20: Placing A Call From The List
The REPEAT call icon will light if the C430 receives more than one call from the same number. There will be message to indicate end of CID list. Placing a call from Caller ID List 1. From stand by use the UP/ DOWN arrows to scroll through Call List 2. -
Page 21: Care
The C430 has been designed to give you years of dependable service with a minimum of care. To ensure the utmost in performance, follow these guidelines in caring for the unit: 1. Avoid dropping or knocking the unit. 2. Dust the unit regularly. Wipe the unit with a soft damp cloth. - Page 22 Noise, Static, Interference or Other Calls Heard while Using the Handset: • Try changing channels. • Make sure the base antenna is in an upright position. • Make sure you are in the usable range of the base station. • Make sure the handset battery is fully charged.
-
Page 23: Regulatory Compliance
If trouble is experienced with this tele- phone equipment, for repair or warranty information, please contact Clarity, 1-800- 552-3368. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved. - Page 24 i) If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this telephone equip- ment does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer.
- Page 25 (The term “IC:” before the certification/regis- tration number only signifies that the Industry Canada technical specifications were met.) The party responsible for regulatory compliance: Clarity, A Division of Plantronics, Inc. 4289 Bonny Oaks Drive, Suite 106 Chattanooga, TN 37406 Phone: 1-800-552-3368...
-
Page 26: Warranty And Service
(1) year from the date of original purchase (“Warranty Period”). The obligation of Clarity under this warranty shall be at Clarity‘s option, without charge, of any part or unit that proves to be defective in material or workmanship during the Warranty Period. - Page 27 How to Obtain Warranty Service To obtain warranty service, please prepay shipment and return the unit to the appropri- ate facility listed below. In the United States Clarity Service Center 4289 Bonny Oaks Drive, Suite 106 Chattanooga, Tennessee 37406 Tel. (423) 622-7793...
