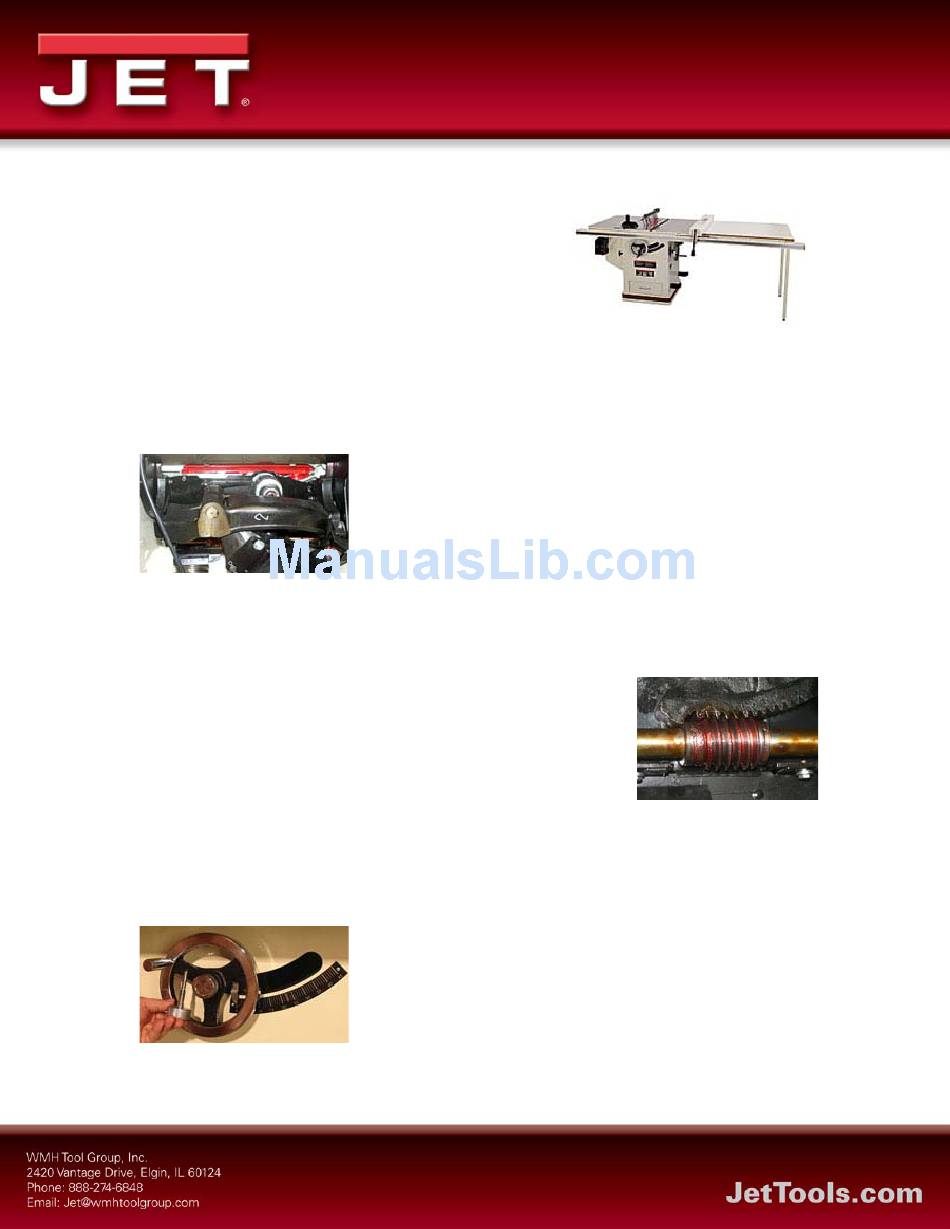

JET Deluxe XACTA Saw
Our 10" JET Deluxe XACTA Saw is a high-
performance cabinet saw with a full range of high-
end, innovative features. While designing the JET
Deluxe XACTA Saw, safety, ease of use,
performance and accuracy were primary goals. The
JET Deluxe XACTA Saw is available with 3 HP -
230V - 1Ph, 5 HP - 230V - 1 Ph or 5 HP - 230V - 3
Ph, all with 30" or 50" JET XACTA-FENCE II
systems in the popular left tilt configuration.
Under the Table
Our wide-stance, cast iron
mechanism is designed to be super
stable and smooth operating.
of the most accurate, versatile and smoothest-running cabinet saws available.
The operating mechanism is mounted directly to the all-steel
cabinet. This makes aligning the miter slot in the cast iron table
with the blade as easy as loosening four hex head cap screws,
accessible from the outside under the table corners. Bump the
table into alignment and then retighten the screws. There is no
easier or more accurate way of making this crucial adjustment.
This alignment system is also extremely secure and requires
realignment much less frequently than most other designs. To
get you started, the table is aligned at the factory to very tight
tolerances and those specs along with other critical tolerances
are recorded on an inspection sheet that is included with each JET Deluxe XACTA Saw.
Heavy cast iron handwheels with
all-steel locking pins make precise
adjustments easy.
The JET Deluxe XACTA Saw features a large, finely
ground 29" by 42" cast iron table (with extensions) that
provides plenty of work surface for the large jobs,
including 10" of clear table in front of the fully raised
blade. Under the table is our heavy duty, wide stance cast
iron trunnion mechanism which is the heart of the saws
remarkable performance, stability and nearly vibration-free
operation. Thus, making the JET Deluxe XACTA Saw one
The blade height and bevel changes are made using a pair
of heavy, 8" diameter, cast iron handwheels (with spinner
handles) that operate precisely machined worm gear drives.
Bevel and blade height adjustments are precise, effortless
and designed to remain smooth after years of use. Even the
locking pins at the center of each handwheel are all steel
and precision-machined so that when they are applied there
is no creep or change to that setting.
The JET Deluxe XACTA Saw is full of
high-end features and engineering.
Smooth-operating, precisely
machined worm gears handle
blade height and bevel
adjustments.
