2021/12/18 19:41
Zeiss AxioExaminer FTP-2100 installation

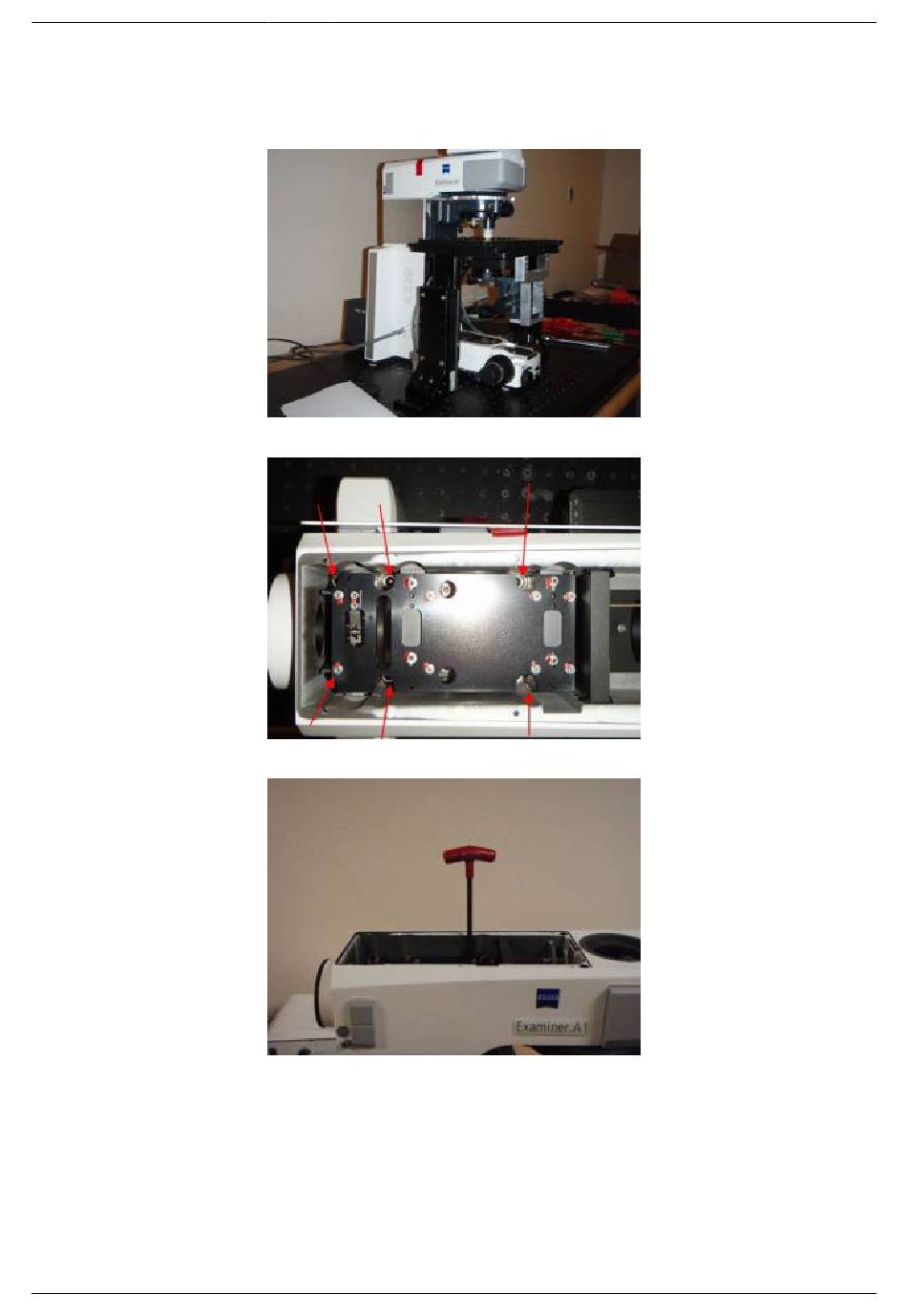

Remove the top cover as shown & loosen the six screws noted with a 5 mm Allen wrench as shown.
Applied Scientific Instrumentation - https://asiimaging.com/docs/
1/12
Zeiss AxioExaminer FTP-2100 installation
Advertisement
Related Manuals for Zeiss AxioExaminer FTP-2100
Summary of Contents for Zeiss AxioExaminer FTP-2100
- Page 1 2021/12/18 19:41 1/12 Zeiss AxioExaminer FTP-2100 installation Zeiss AxioExaminer FTP-2100 installation Remove the top cover as shown & loosen the six screws noted with a 5 mm Allen wrench as shown. Applied Scientific Instrumentation - https://asiimaging.com/docs/...
- Page 2 Last update: 2021/09/23 17:15 zeiss_axioexaminer_ftp_install https://asiimaging.com/docs/zeiss_axioexaminer_ftp_install Remove top of scope as shown & then used T25 wrench to remove four screws noted that secure factory spacer https://asiimaging.com/docs/ Printed on 2021/12/18 19:41...
- Page 3 2021/12/18 19:41 3/12 Zeiss AxioExaminer FTP-2100 installation Locate six screws & washers shown that attach spacer to microscope. Drop them in to the six openings on the spacer block as shown. M6 x 35 mm Applied Scientific Instrumentation - https://asiimaging.com/docs/...
- Page 4 Last update: 2021/09/23 17:15 zeiss_axioexaminer_ftp_install https://asiimaging.com/docs/zeiss_axioexaminer_ftp_install https://asiimaging.com/docs/ Printed on 2021/12/18 19:41...
- Page 5 2021/12/18 19:41 5/12 Zeiss AxioExaminer FTP-2100 installation Align spacer block with top of microscope as shown above, then flip top of microscope & microscope as shown below. Applied Scientific Instrumentation - https://asiimaging.com/docs/...
- Page 6 Last update: 2021/09/23 17:15 zeiss_axioexaminer_ftp_install https://asiimaging.com/docs/zeiss_axioexaminer_ftp_install Use original screws that secured short factory spacer & T25 wrench to secure longer spacer onto top of microscope as shown in photos below. https://asiimaging.com/docs/ Printed on 2021/12/18 19:41...
- Page 7 2021/12/18 19:41 7/12 Zeiss AxioExaminer FTP-2100 installation Applied Scientific Instrumentation - https://asiimaging.com/docs/...
- Page 8 Last update: 2021/09/23 17:15 zeiss_axioexaminer_ftp_install https://asiimaging.com/docs/zeiss_axioexaminer_ftp_install Set top of microscope with Spacer installed on top of microscope body & use 5 mm Allen wrench to secure top of microscope & spacer to microscope body as shown below https://asiimaging.com/docs/ Printed on 2021/12/18 19:41...
- Page 9 2021/12/18 19:41 9/12 Zeiss AxioExaminer FTP-2100 installation Use T25 wrench to remove small dovetail and use 3 mm wrench to remove stops and install these on longer supplied dovetail as shown below Applied Scientific Instrumentation - https://asiimaging.com/docs/...
- Page 10 Last update: 2021/09/23 17:15 zeiss_axioexaminer_ftp_install https://asiimaging.com/docs/zeiss_axioexaminer_ftp_install https://asiimaging.com/docs/ Printed on 2021/12/18 19:41...
- Page 11 2021/12/18 19:41 11/12 Zeiss AxioExaminer FTP-2100 installation Use the original screws with fresh blue lock tight to attach the longer dovetail as shown. Attach the bottom screws first & insure the longer dovetail is aligned parallel to the bottom dovetail; this can be...
- Page 12 Last update: 2021/09/23 17:15 zeiss_axioexaminer_ftp_install https://asiimaging.com/docs/zeiss_axioexaminer_ftp_install zeiss, axioexaminer, ftp, manual From: https://asiimaging.com/docs/ - Applied Scientific Instrumentation Permanent link: https://asiimaging.com/docs/zeiss_axioexaminer_ftp_install Last update: 2021/09/23 17:15 https://asiimaging.com/docs/ Printed on 2021/12/18 19:41...
