Chapter 3
Serial Port Confi guration "uart2:"
Introduction
RS-232
Fit RS-232 circuit on IC2
No circuits on IC3, IC4, or IC18
Strap on S4 deactivated
(fi tted on one pin only)
Strap on S1 deactivated
(fi tted on one pin only)
8
The serial communication port "uart2:" can be confi gured for
one of four different types of serial communication:
• RS-232
• RS-422 non isolated
• RS-422 isolated
• RS-485
By fi tting or removing certain circuits and straps, the desired
type of interface can be selected. This is either done at factory
or by the customer. There can only be one driver circuit and its
corresponding straps fi tted at a time.
When fi tting circuits yourself, do it before connecting the inter-
face board and make sure that the circuits are not fi tted upside
down (see front end markings in the illustrations in this chap-
ter.) Also take care so all "legs" of the circuits fi t into their
respective slots in the socket and are not bent. Also, take
proper precautions so as to protect the board and circuits from
electrostatic discharges.
UART3
UART2

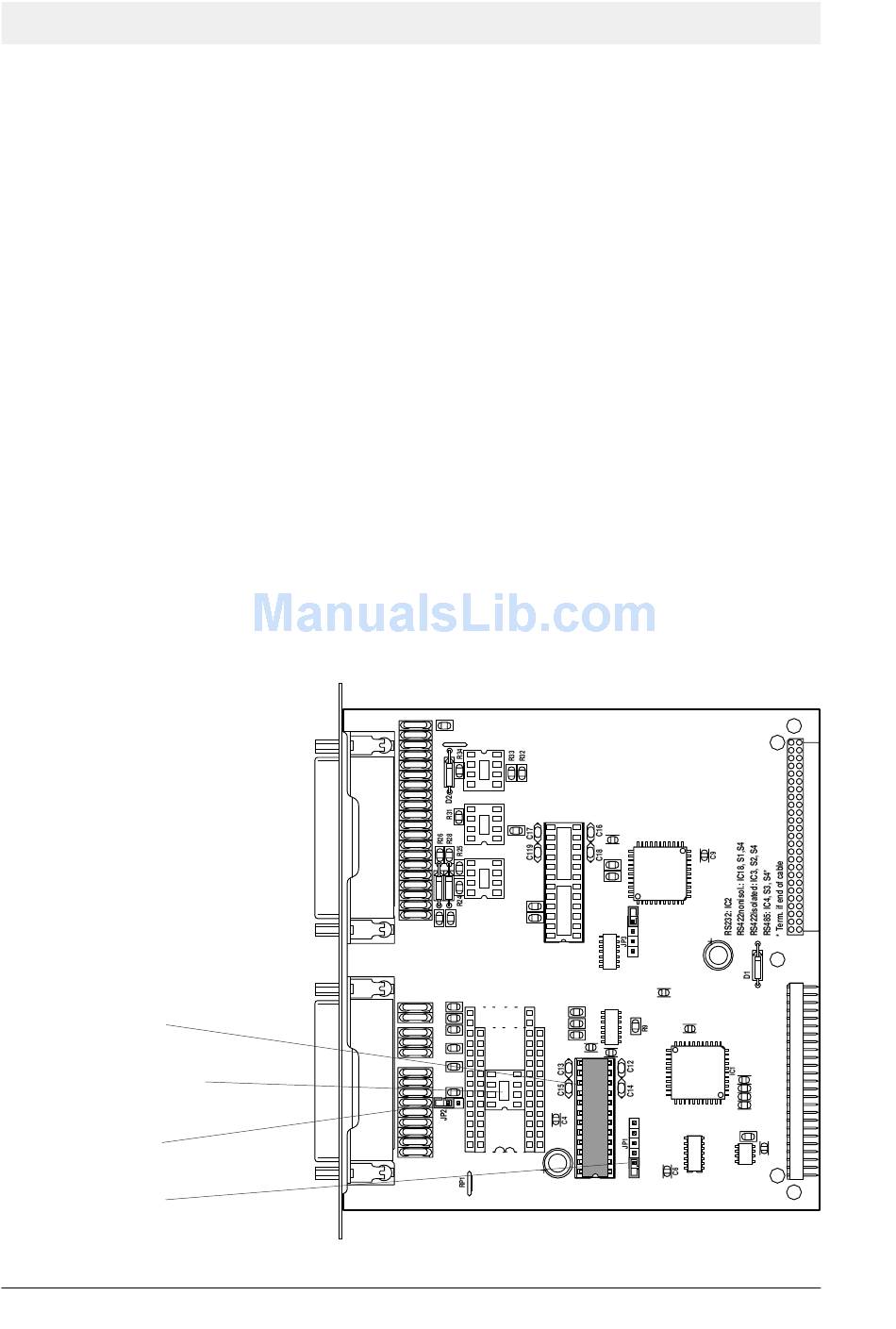

EasyCoder XP- & F-Series Double Serial Interface Board – Installation Instructions Ed. 2
