EasyCoder F2 and F4,
cont.
EasyCoder XP- & F-Series Double Serial Interface Board – Installation Instructions Ed. 2

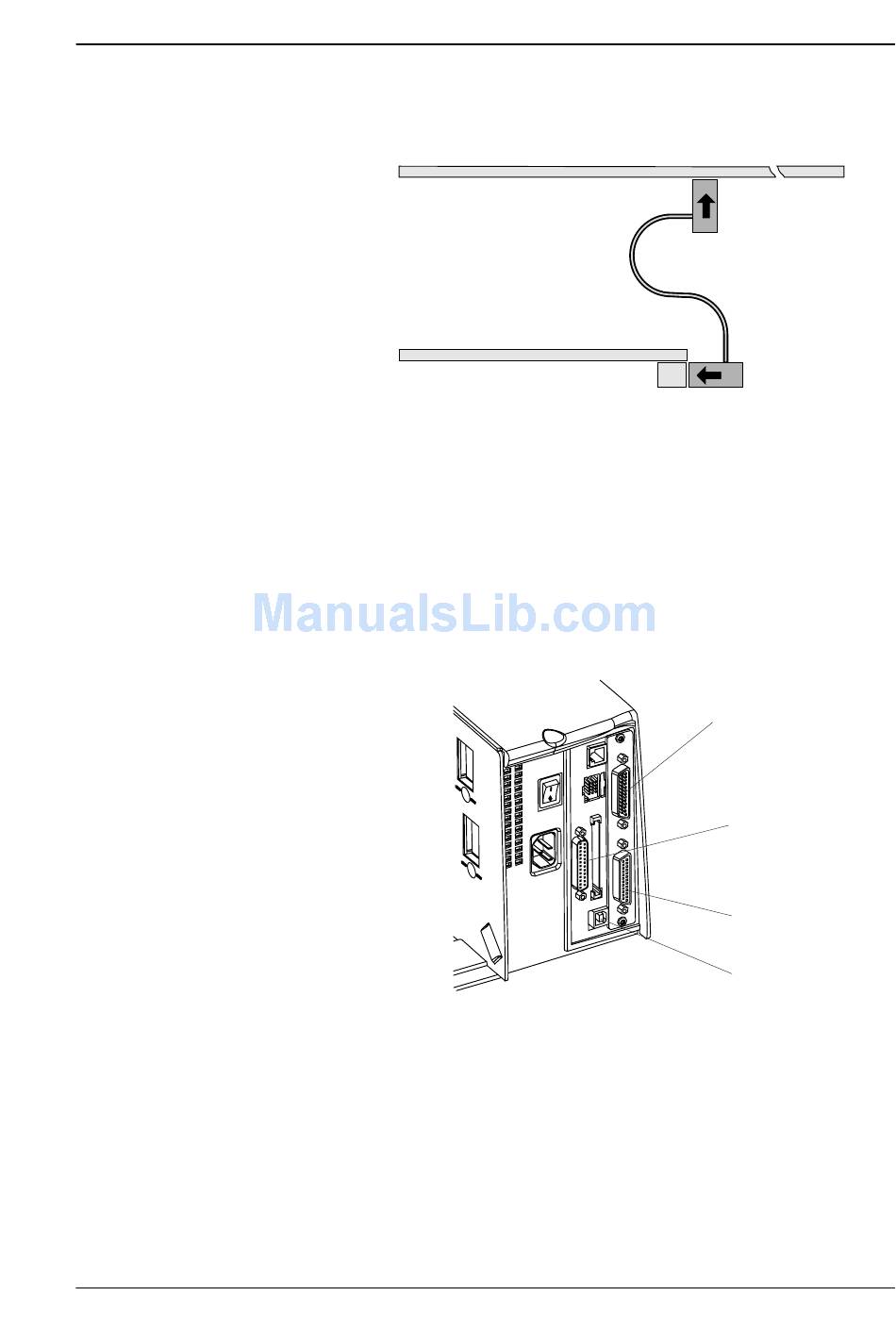

• Make sure that the cable between CPU board and interface
board runs as illustrated below.
CPU Board
Interface Board
• Put back the cover over the electronics compartment.
• Connect the power cord.
• Now you have two new interface connectors on the print-
er's rear plate in addition to the standard interfaces "uart1:"
and "usb1:". Connect the interface cables and switch on the
power.
• Enter the Setup Mode to set the proper baud rate, character
length, parity, number of stop bits, fl owcontrol, new line,
and buffer size parameters for the new serial ports "uart2:"
and "uart3:".
Chapter 2 Installation
Cable
Serial Interface
"uart3:"
Serial Interface
"uart1:"
Serial Interface
"uart2:"
Serial Interface
"usb1:"
7
