Summary of Contents for Clarion DB345MP
-
Page 1: Features

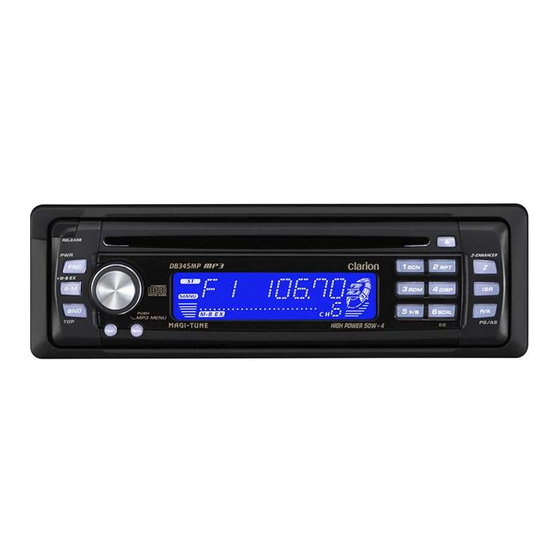

Owner's manual Mode d'emploi Manual de instrucciones DB345MP AM/FM CD/MP3 PLAYER DB346MP RADIO AM/FM-LECTEUR CD/MP3 RADIO DE AM/FM REPRODUCTOR DE CD/MP3... -
Page 2: Table Of Contents
MP3NAVI for Quick Music Folder and Track Search MP3 File Playable with ID3-TAG Display Be sure to unfold and read the next page. Veuillez déployer et vous référer à la page suivante. Cerciórese de desplegar y de leer la página siguiente. DB345MP... -
Page 3: Controls
APPAREIL PILOTE / UNIDAD FUENTE DISPLAY / AFFICHEUR / VISUALIZADOR DB345MP 3. BUTTON TERMINOLOGY Note: • Be sure to read this chapter referring to the front diagrams of chapter “2. CONTROLS” on page 3. Names of the Buttons and their Functions... -
Page 4: Precautions
! CAUTION SERIAL No. PE-2640U 286-6310-00 Clarion Co.,Ltd. MADE IN MALAYSIA DB345MP... -
Page 5: Handling Compact Discs
• Do not use commercially available CD protection sheets or discs equipped with stabilizers, etc. These may get caught in the internal mechanism and damage the disc. DB345MP Note on Compact Discs Never stick labels on the surface of the com- pact disc or mark the surface with a pencil or pen. -
Page 6: Dcp (Detachable Control Panel)
Be careful not to damage it by press- ing on it with fingernails, pens, screwdriv- ers, etc. DCP Rear Panel Main Unit Front connector Note: • If the DCP is dirty, wipe off the dirt with a soft, dry cloth only. Main unit connector DB345MP... -
Page 7: Remote Control
• When replacing batteries, replace both batteries with new ones. • Do not short-circuit, disassemble or heat batteries. • Do not dispose of batteries into fire or flames. • Dispose of spent batteries properly. DB345MP AA (SUM-3, IECR-6/1.5V) Batteries Rear side Rear cover... -
Page 8: Function Of Remote Control Unit Buttons
Scan play. Scan play. When pressed and held for 1 seconds: Folder scan. Repeat play. Repeat play. When pressed and held for 1 seconds: Folder repeat. Random play. Random play. When pressed and held for 1 seconds: Folder random. DB345MP... -
Page 9: Operations
The volume level is from 0 (minimum) to 33 (maximum). DB345MP Note:Be sure to read this chapter referring to the front diagrams of chapter “2. CONTROLS” on page 3. Setting the Z-Enhancer This unit are provided with 3 types of sound tone ef- fects stored in memory. -
Page 10: Switching Clock Display
Illumination dimmer function When the illumination line of this unit is con- nected with the car-side illumination signal line, the display illumination of this unit dims in con- nection with turning on the car-side illumination. DB345MP... -
Page 11: Radio Mode Operations
Preset Memory Function can store up to 24 sta- tions: six station for each of FM1, FM2, FM3 and AM. DB345MP Manual memory function 1. Press the [BND] button, to select a band you want to store in the memory. -
Page 12: Cd Mode Operations
Top Function Press the [BND] button, then the CD will start playing from the first song (track number 1). For MP3 mode, it will start playing from the first song of current folder. CD SLOT mark cannot be DB345MP... -
Page 13: Mp3 Mode Operations
“RDM” in the display lights on, then the entire tracks on the disc will be played at random. Press the [RDM] button again to disengage the unit from random play. DB345MP MP3 Mode Operation What is MP3? MP3 is an audio compression method and classified into audio layer 3 of MPEG stan- dards. - Page 14 ", If you enter " A ", the player A ", and the " " is a space , the player Pressing the Description [ROTARY] knob Play current Indicates this folder is a folder Indicates this file is a file name DB345MP...
- Page 15 For example, a medium with the following folder/file hierarchy is shown below. Example of a medium's folder/file hierarchy DB345MP Random MP3 CD 1. This function enables you to play all the tracks in the MP3 folder or on the disc in ran- dom order.
-
Page 16: Display Selection
MP3 file data and no sound is heard. Album Tag Artist Tag Title Tag Setting Set to CD Set to MP3 Play CD Play MP3 Play CD Play CD Play MP3 Play MP3 DB345MP... - Page 17 MP3 Mode Operation Figure 1 Display selection You can choose the display type for MP3 CD by pressing the [DISP] button. To select the next type, press the [DISP] button again. The arrangement is shown below: DB345MP...
-
Page 18: Troubleshooting
Let dry for about 1 hour with the power on. Turn off the power, then press the [RELEASE] button and remove the DCP. Press the reset button for about 2 seconds with a thin rod. Wipe the dirt off with a soft cloth moistened with cleaning alcohol. Solution DB345MP... -
Page 19: Error Displays
Follow the corrective measures and remove the fault. Error Display ERROR 2 ERROR 3 ERROR 6 DB345MP Corrective Measure This error display indicates that a fault has arisen in the mechanism of the source unit (for example, the disc cannot be ejected). -
Page 20: Specifications
• If this is not done, severe damage to the source unit way happen. 4 ch) 4, into 4 , 20 Hz to 20 kHz,1%THD to 8 allowable) 1-15/16" (Height) 6" (Depth) 50 (H) 152 (D) mm 178 mm 50 mm 188 mm 58 mm DB345MP...
