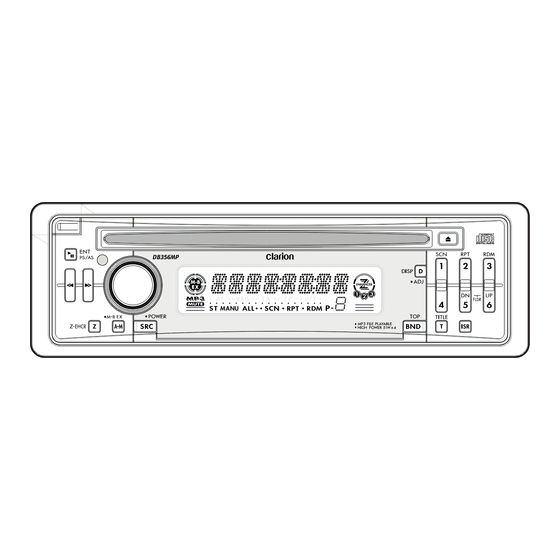

Clarion DB356MP Owner's Manual

Cd/mp3 receiver

Advertisement

Owner's manual
!"
= = = = =
CD/MP3 RECEIVER
DB346MP
!"
CD/MP3
Contents
1. FEATURES ............................................................................................................................... 2
2. CONTROLS ........................................................................................................................... 3
SOURCE UNIT ......................................................................................................................... 3
DISPLAY ................................................................................................................................... 3
3. BUTTON TERMINOLOGY ....................................................................................................... 4
Names of the Buttons and their Functions ............................................................................... 4
4. PRECAUTIONS ....................................................................................................................... 5
5. HANDLING COMPACT DISCS ................................................................................................ 6
6. DCP ( Detachable Control Panel ) ........................................................................................... 7
7. REMOTE CONTROL ................................................................................................................ 8
Functions of Remote Control Unit Buttons ............................................................................... 9
8. OPERATIONS ........................................................................................................................ 10
Basic Operations .................................................................................................................... 10
Radio Mode Operations .......................................................................................................... 12
CD Mode Operations .............................................................................................................. 13
MP3 Mode Operations ............................................................................................................ 14
9. TROUBLESHOOTING ........................................................................................................... 17
10. ERROR DISPLAYS ................................................................................................................ 17
11. SPECIFICATIONS .................................................................................................................. 18
1. FEATURES
MP3 File Playable with ID3-TAG Display
Z-ENHANCER for Sound Creation
MAGNA BASS EX for Dynamic Bass Tuning, Volume Level Dependent
2-Channel RCA Line Level Output
High Power 51W X 4
2
DB356MP
Be sure to unfold and read the next page.
!"#$%&'(
! ! ! ! != = = = =
!"K K K K K
!"
!"
!"
!"
= = = = =
= = = = =
= = = = =

Advertisement

Table of Contents
loading

Summary of Contents for Clarion DB356MP

  • Page 1: Table Of Contents

    MAGNA BASS EX for Dynamic Bass Tuning, Volume Level Dependent 2-Channel RCA Line Level Output High Power 51W X 4 Be sure to unfold and read the next page. DB356MP !"#$%&'( ! ! ! ! != = = = = !"K K K K K !"...
  • Page 2: Controls

    !" !" !" !" !" DISPLAY / DB356MP 3. BUTTON TERMINOLOGY Note: • Be sure to read this chapter referring to the front diagrams of chapter “2. CONTROLS” on page 3. Names of the Buttons and their Functions !"#K [RELEASE] button •...
  • Page 3: Precautions

    2. Driving on extremely bumpy roads which cause severe vibration may cause the sound to skip. 3. This unit uses a precision mechanism. Even in the event that trouble arises, never open the case, disassemble the unit, or lubricate the rotating parts. CAUTION DB356MP...
  • Page 4: Handling Compact Discs

    Note: • Do not use commercially available CD protection sheets or discs equipped with stabilizers, etc. These may get caught in the internal mechanism and damage the disc. DB356MP Note on compact discs mark. Never stick labels on the surface of the compact disc or mark the surface with a pencil or pen.
  • Page 5: Dcp ( Detachable Control Panel )

    DCP is an extremely important part. Be careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc. Note: • If the DCP is dirty, wipe off the dirt with a soft, dry cloth only. DB356MP...
  • Page 6: Remote Control

    4. Replace the cover and slide in until it clicks into place. DB356MP Notes: Misuse may result in rupture of the battery, producing leakage of fluid and resulting in personal injury or damage to surrounding materials.
  • Page 7: Functions Of Remote Control Unit Buttons

    Scan play. Scan play. When pressed and held for 1 second: Folder scan. Repeat play. Repeat play. When pressed and held for 1 second: Folder repeat. Random play. Random play. When pressed and held for 1 second: Folder random. DB356MP...
  • Page 8: Operations

    Setting the Z-Enhancer This unit are provided with 3 types of sound tone ef- fects stored in memory. Select the one you prefer. DB356MP Note:Be sure to read this chapter referring to the front diagrams of chapter “2. CONTROLS” on page 3.
  • Page 9: Switching Display

    ] / [ ] button to switch the ADJ mode ] / [ ] button to start clock adjustment, ] / [ ] button to toggle HOUR and ] button to confirm the clock setting, ] / [ ] / [ DB356MP...
  • Page 10: Radio Mode Operations

    Preset memory function Preset memory function can store up to 24 sta- tions: six stations for each of FM1, FM2, FM3 and DB356MP Manual memory function 1. Press the [ BND ] button, to select a band you want to store in the memory.
  • Page 11: Cd Mode Operations

    Press the [ RDM ] button again to disengage the unit from random play. ] or [ ] button. k selection is only valid in ] or [ ] button. ] or [ ] or [ ] button DB356MP...
  • Page 12: Features

    [ UP ] – Folder up [ DN ] – Folder down 2. When a desired folder is selected, the MP3 CD player will play 1st track of target folder. Note: • The folder which contents of no MP3 file will be skipped.
  • Page 13 2. To select the next type, press the [ T ] button for less than 1 second. The arrangement is shown below. Function Display Indicator "TRK Scan in "SCN" SCN" current folder Scan "FLDR "ALL"& first track SCN" "SCN" of each folder After 2 seconds DB356MP...
  • Page 14 MP3 type track only Play MP3 7. When a mixed mode CD is loaded and CD is set, the track to be played first is MP3 file data and no sound is heard. DB356MP Set to MP3 Play MP3 Play CD Play MP3...
  • Page 15: Troubleshooting

    Check the compact disc. This indicates that the CD’s TOC ( table of contents ) cannot be read, for example because the selected disc is upside-down. Solution DB356MP...
  • Page 16: Specifications

    Folder Support: 128 File Support: 254 Folder Name: Maximum 16 characters File Name: Maximum 28 characters DB356MP Audio Maximum Power Output: 204 W (51 W X 4 ch) Continuous Average Power Output: 17 W X 4, into 4 Ω, 20 Hz to 20 kHz,1%THD Bass Control Action (100 Hz): ±14 dB...
  • Page 17 Clarion Co., Ltd. PE-2737K All Rights Reserved. Copyright © 2004: Clarion Co., Ltd. 280-8149-00 Printed in Malaysia...
