CHART/BIRD'S EYE COMBO VIEW
Chart/Bird's Eye Combo View shows both the Chart and Bird's Eye views in a
combination split screen. You can perform any of the functions for either of these
views, but only when the view you want to control is selected as the active side
(see Sonar X-Press™ Menu: Active Side or Navigation X-Press™ Menu: Active Side for
more information). A green arrow points to the side that is active. You can also
adjust the size of the left side of a split screen (see Sonar X-Press™ Menu: Split
Position or Navigation X-Press™ Menu: Split Position for more information).
NOTE: See Bird's Eye View and Chart View for more information about each side of this view.

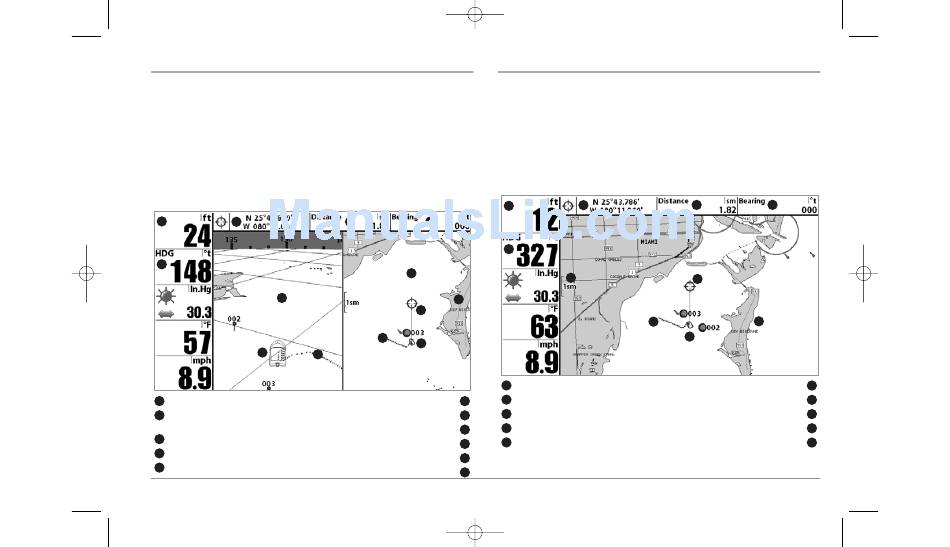

Chart/Bird's Eye Combo View
1 6
2
3
4
1 Depth
2
HDG: Direction that boat is travelling relative to
North Reference
3 Bird's Eye Window
4
Boat Icon
5
Track (Breadcrumb Trail)
11:12 AM Page 41
(937c DF Combo and 937c Combo models only)
7 8
11
9
10
5
4
5
Latitude and Longitude Position of Cursor 6
7
Distance to the Cursor
8
Bearing to the Cursor
Cartography 9
Active Cursor 10
11
Chart Window
36
CHART VIEW
Chart View shows cartography from the built-in UniMap™ or an optional MMC map
for the area surrounding your current position. The current track (also known as the
position history or breadcrumb trail) showing where the boat has been, along with
saved tracks, waypoints, and the current route (when navigating), are overlaid on the
chart. You can use the 4-WAY Cursor Control key to shift/pan the chart to another area.
You can use the ZOOM (+/-) keys to zoom in and out. You can use the INFO key to get
information on the chart objects near the cursor.
Chart View with Active Cursor
5
1
10
4
3
1
Depth
2
Boat Icon
3 Track (Breadcrumb Trail)
4 Map Scale
HDG: Direction that boat is travelling relative to
5
Latitude and Longitude Position of Cursor
(937c DF Combo and 937c Combo models only)
6 7
9
8
2
6
Distance to the Cursor
7
Bearing to Cursor
Cartography 8
Active Cursor 9
10
North Reference.
