Les renseignements que cette fiche contient sont fondés sur des sources que nous croyons fiables,
mais nous ne pouvons les garantir et ils peuvent par ailleurs être incomplets ou changer sans préavis

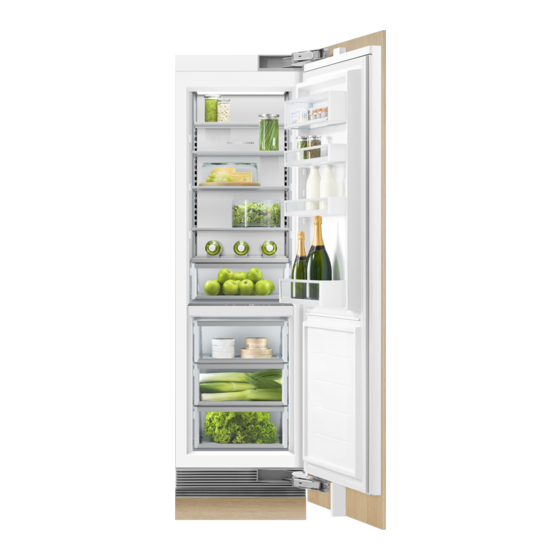

Colonne de réfrigération encastrable 24'' à panneau personnalisé
Modèle Sélectionné
Numéro de modèle
Dimensions
Largeur (po.)
Profondeur (po.)
Hauteur (po.)
Apparence extérieure
Encastrable
Installation à affleurement
Profondeur comptoir
Couleur de la devanture
Capacité
Capacité totale
Caractéristiques
Configuration
Performance
Système de Gestion de la température
Ouverture de la porte
Éclairage intérieur
Angle d'ouverture de porte
Panneau de contrôle SmartTouch™
Bac de rangement
Fermeture des bac automatique
Zone de température
Apparence intérieure
Intérieur
ActiveSmart™
Compresseur
Dégivrage
Alarme de porte
Circulation d'air étagée
Ventilateur de diffusion d'air
Conditions électriques
Volts; Hertz; Amps
Accessoires Inclus
Supports à bouteille
Accessoires (Optionnels)
Poignée en acier inoxydable carrée de
série contemporaine
Poignée en acier inoxydable carrée de
série PRO
Poignée en acier inoxydable ronde de série
contemporaine
Poignée en acier inoxydable ronde de série
PRO
Accessoires (requis)
Panneau de finition en acier inoxydable
EZKleen™
Garantie
Garantie complète de 2 ans
5 ans garantie
RS2484SR1
(intérieur blanc)
RS2484SR1
23 3/4''
24''
84''
Oui
Avec cabinets ajdacents
Oui
Panneaux personnalisés
12.4 pi.cu
Colonne de réfrigération à porte simple
3 modes de réfrigération
ActiveSmart™
Vers la droite
DEL, haut et côté
90° à 115°
Intérieur, central
Transparents, contours blancs et
aluminium
Oui
2 zones de réfrigération indépendantes
Blanc
Variable
Automatique
Oui
Oui
À vitesse variable
115V; 60Hz; 10 Amp
4
AHD3-RD84
AHV2-RD84
AHS-RD84
AHC-RD84
RD2484R4D
Appareil complet; pièces et main d'oeuvre;
à domicile
Système scellé (pièces seulement)
